61 61 100 Removing and installing/replacing both windshield wiper arms

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 230
61 6 060

NOTE: Removal of the windshield wiper arms is described separately for the driver's and passenger sides.

Driver's side:

Remove cover.

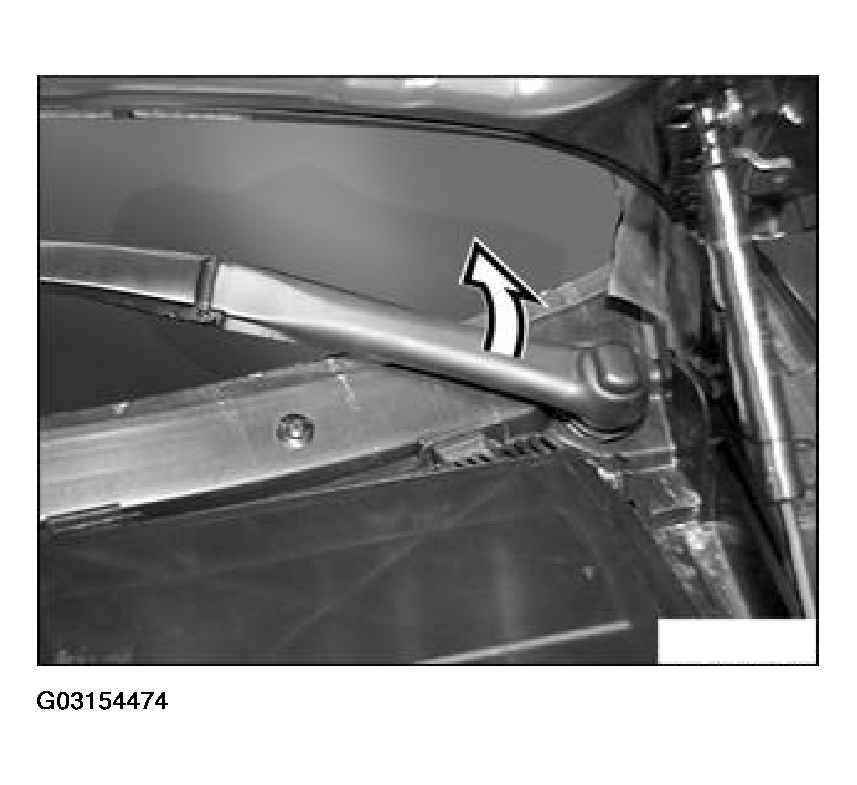

Fig 1: Removing Cover (Driver Side)

G03154474

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not bend windshield wiper arm when removing it (risk of breakage!).

Release nut and remove windshield wiper arm.

Installation:

Tightening torque, see 61 61 10AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE .

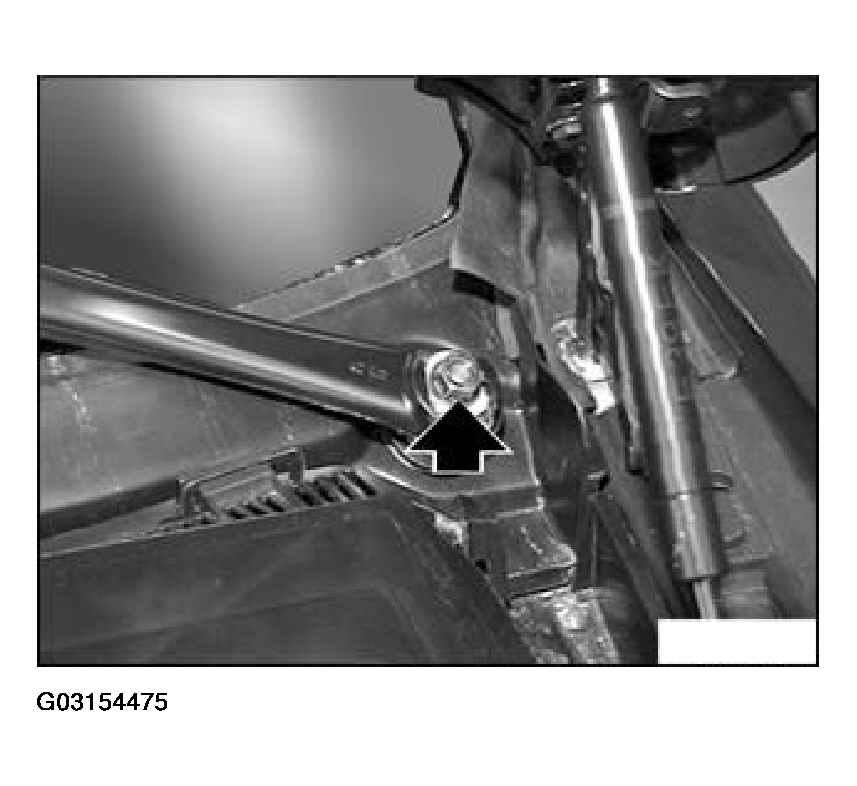

Fig 2: Locating Windshield Wiper Arm Nut

G03154475

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, detach adjusting disk (1) with special tool 61 6 060.

Installation:

Screw adjusting disk (1) together with wiper arm onto shaft.

Check contact angle to windshield with special tool 00 9 230.

If necessary, correct contact angle through displacement of wiper arm on adjusting disk.

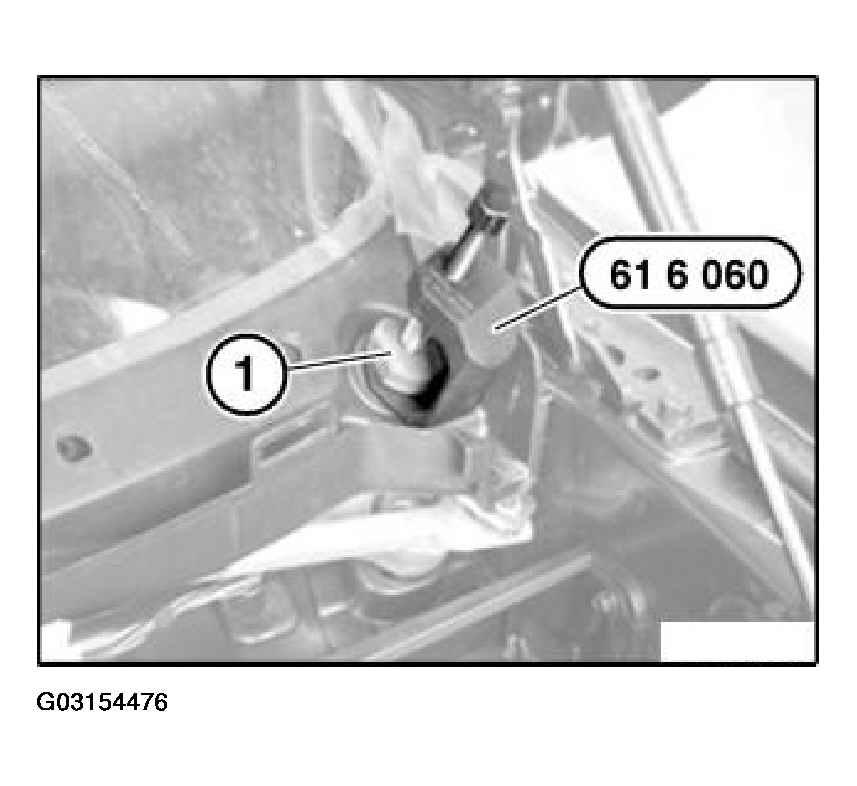

Fig 3: Detaching Adjusting Disk With Special Tool 61 6 060

G03154476

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger side:

Remove caps.

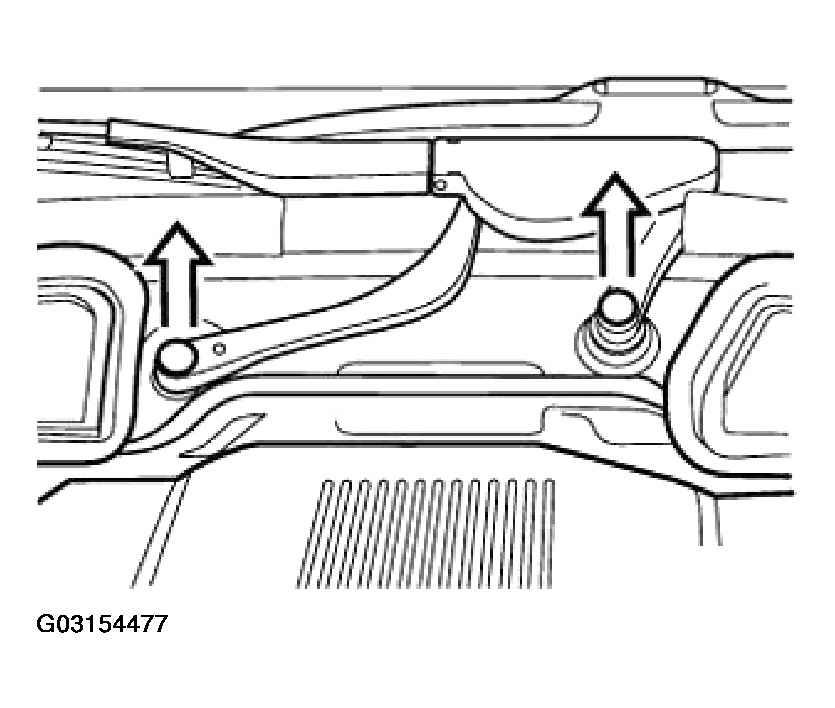

Fig 4: Removing Caps (Passenger Side)

G03154477

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

Installation:

Tightening torque, see 61 61 10AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE .

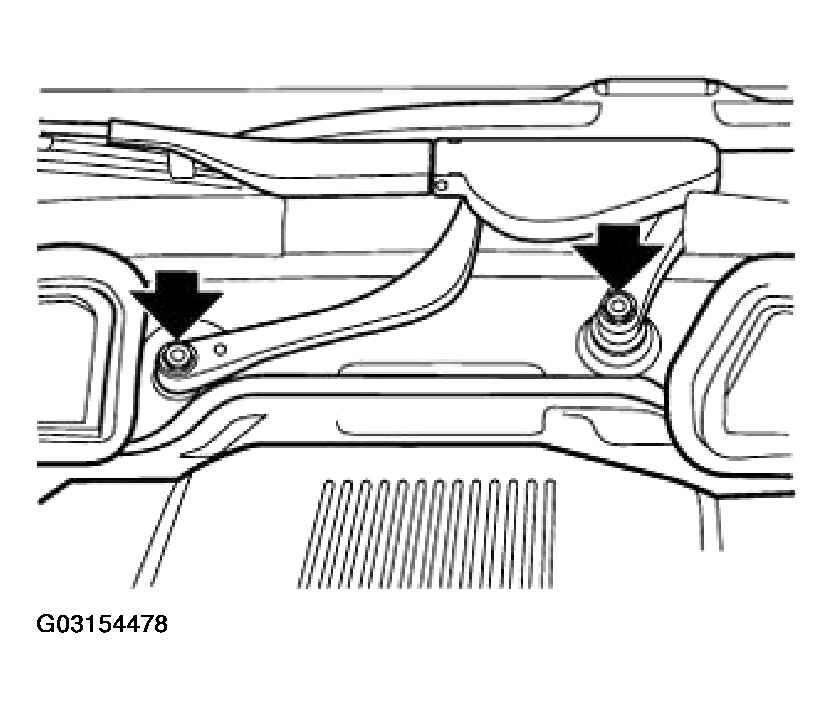

Fig 5: Unscrewing Wiper Arm Nuts

G03154478

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not bend windshield wiper arms when removing them (risk of breakage!).

Detach both wiper arms with special tool 61 6 060.

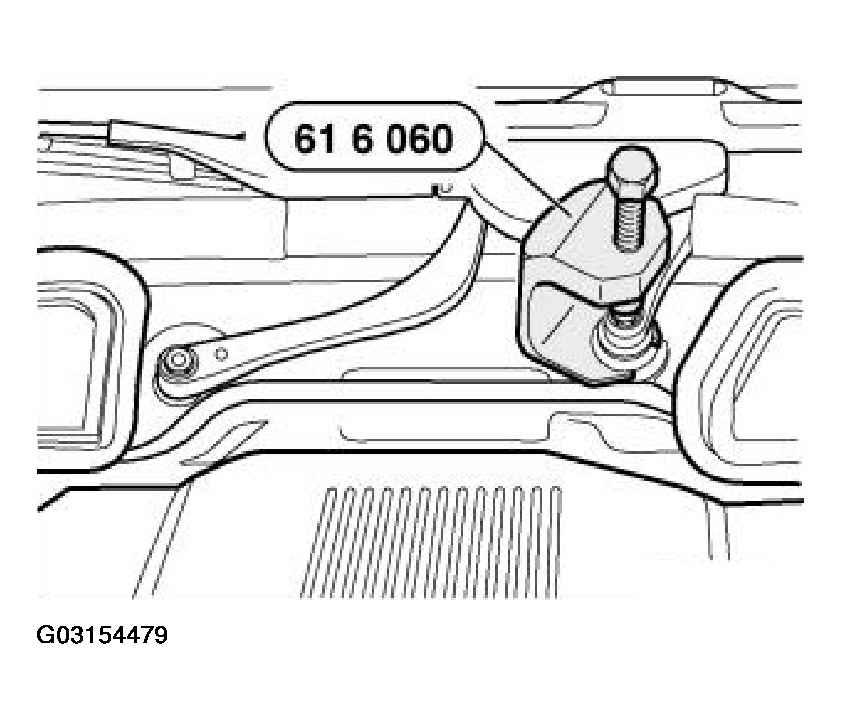

Fig 6: Detaching Both Wiper Arms With Special Tool 61 6 060

G03154479

Courtesy of BMW OF NORTH AMERICA, INC.
