61 31 040 Removing and installing/replacing windshield wiper lever

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Version up to 09/98:

Extend steering column up to stop and move downwards. Open steering column casing at bottom, refer to STEERING COLUMNS .

Open steering column casing at top, refer to STEERING COLUMNS .

Press clips together and remove switch.

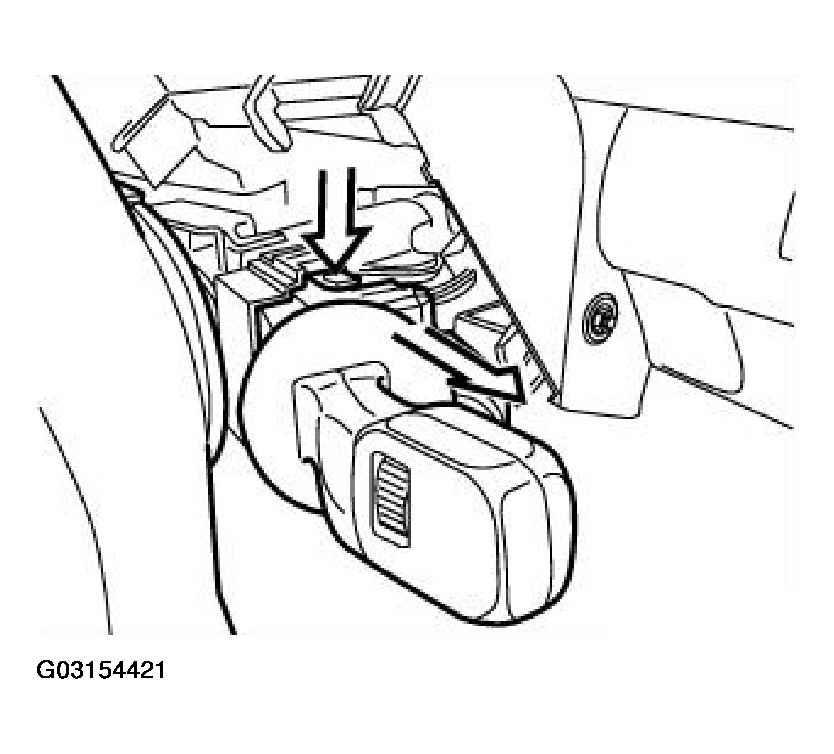

Fig 1: Removing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Press clips together and remove connector.

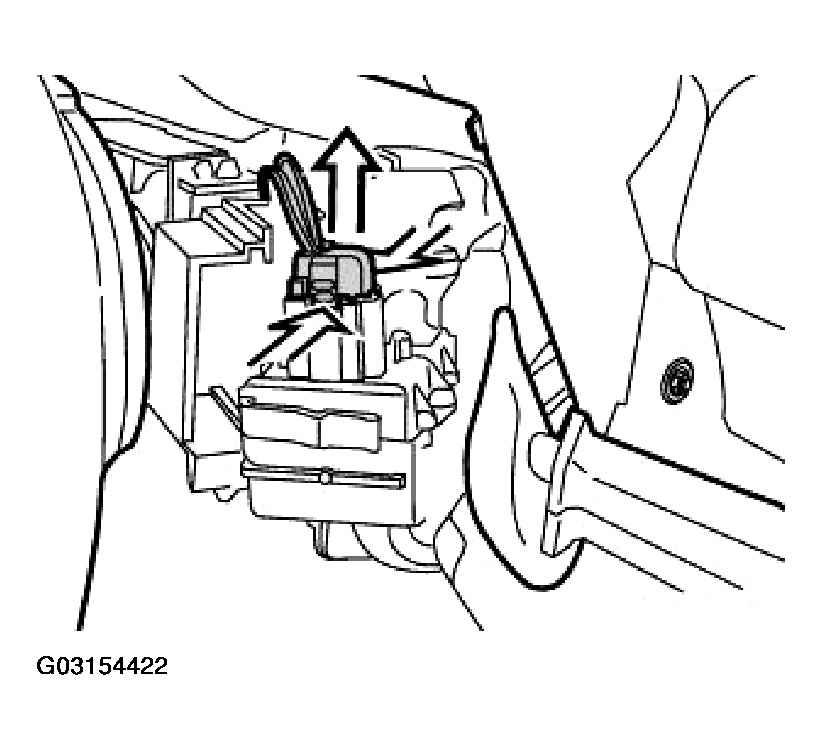

Fig 2: Removing Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 09/98:

This operation is described under:

Removing and installing/replacing support for steering column adjustment, refer to 61 31 005 REMOVING AND INSTALLING/REPLACING FIXTURE FOR STEERING COLUMN STALK .
