61 31 005 Removing and installing/replacing fixture for steering column stalk

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.

Necessary preliminary tasks:

Remove steering wheel.
Remove lower section of steering column trim
Remove top section of steering column casing. See STEERING COLUMNS .

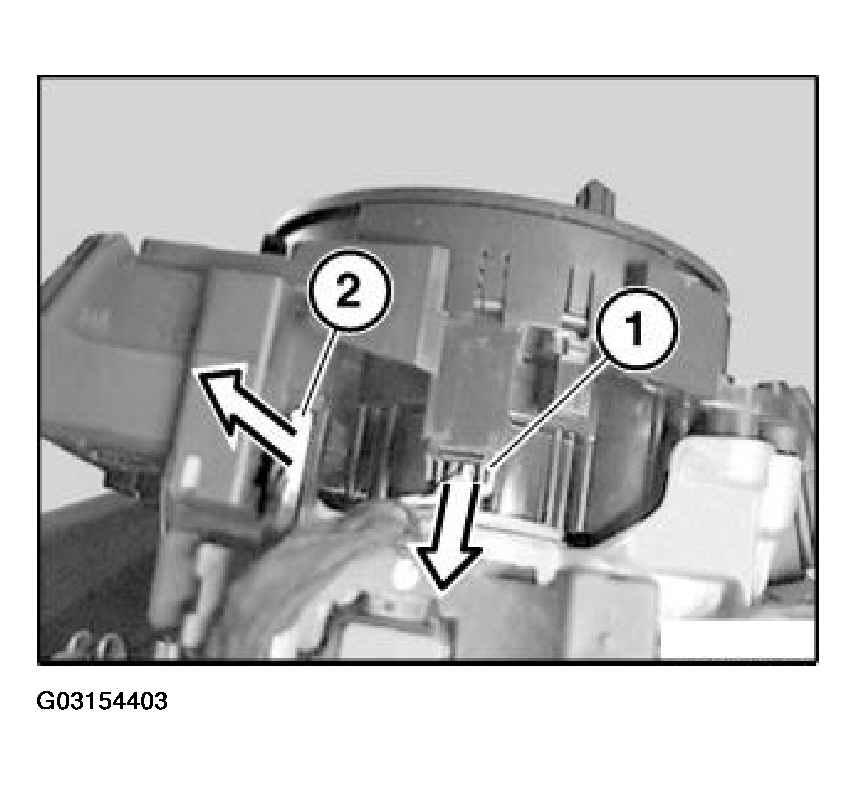

If necessary, disconnect plug connection (1) at mount for steering column stalk.

If necessary, disconnect plug connection (2) at stalk for steering column adjustment.

Fig 1: Disconnecting Plug Connection At Stalk For Steering Column Adjustment

G03154403

Courtesy of BMW OF NORTH AMERICA, INC.

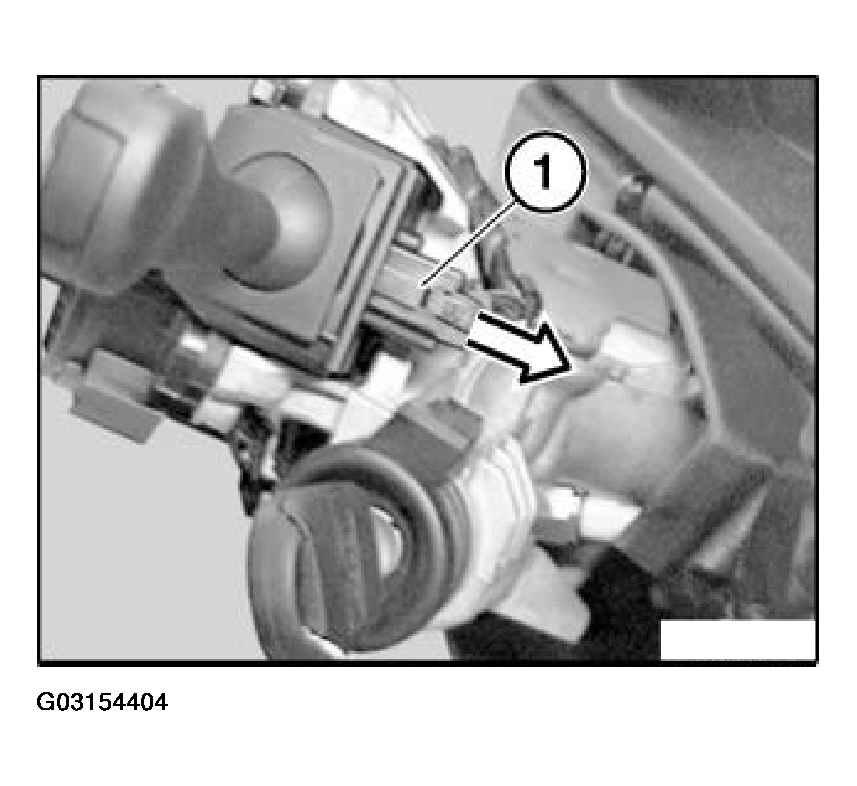

Disconnect plug connection (1) on wiper switch.

Fig 2: Disconnecting Plug Connection On Wiper Switch

G03154404

Courtesy of BMW OF NORTH AMERICA, INC.

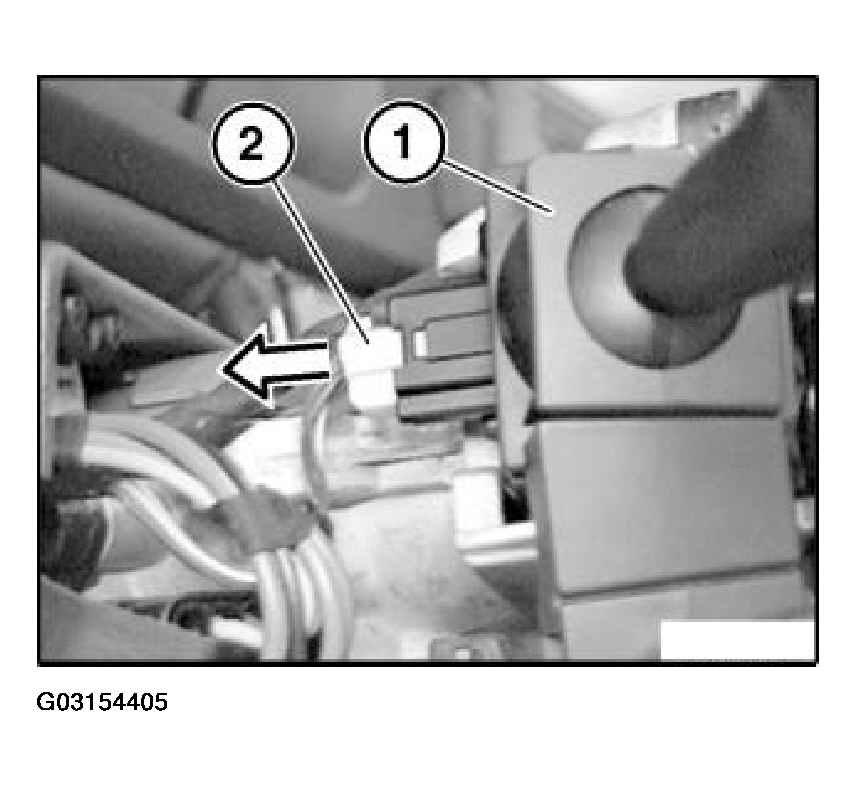

Disconnect plug connection (2) on turn indicator/dipping switch (1).

Fig 3: Disconnecting Plug Connection On Turn Indicator/Dipping Switch

G03154405

Courtesy of BMW OF NORTH AMERICA, INC.

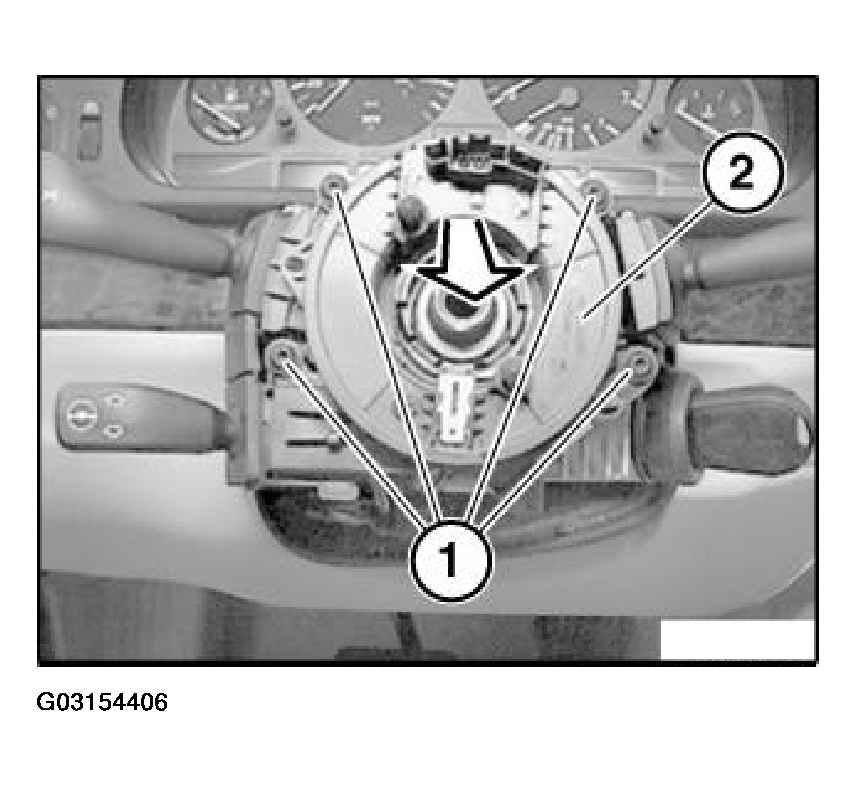

Release screws (1).

Remove fixture for steering column stalk (2).

Fig 4: Removing Fixture For Steering Column Stalk

G03154406

Courtesy of BMW OF NORTH AMERICA, INC.

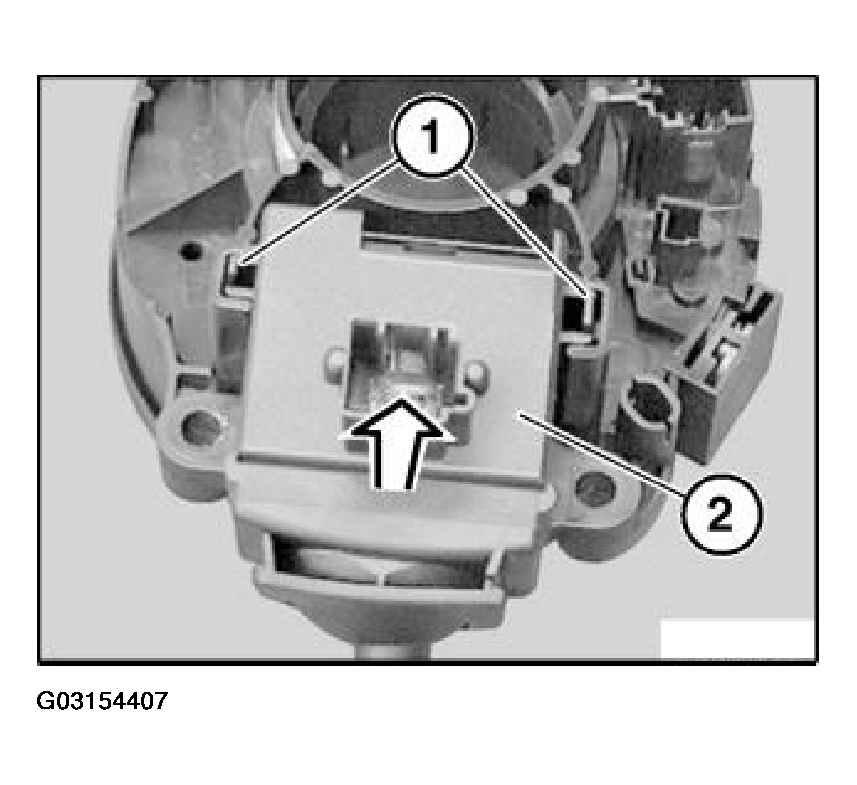

Unlock retainers (1) and pull out switch for windshield wipers (2) towards top.

Fig 5: Unlocking Retainers And Pulling Out Switch For Windshield Wipers Towards Top

G03154407

Courtesy of BMW OF NORTH AMERICA, INC.

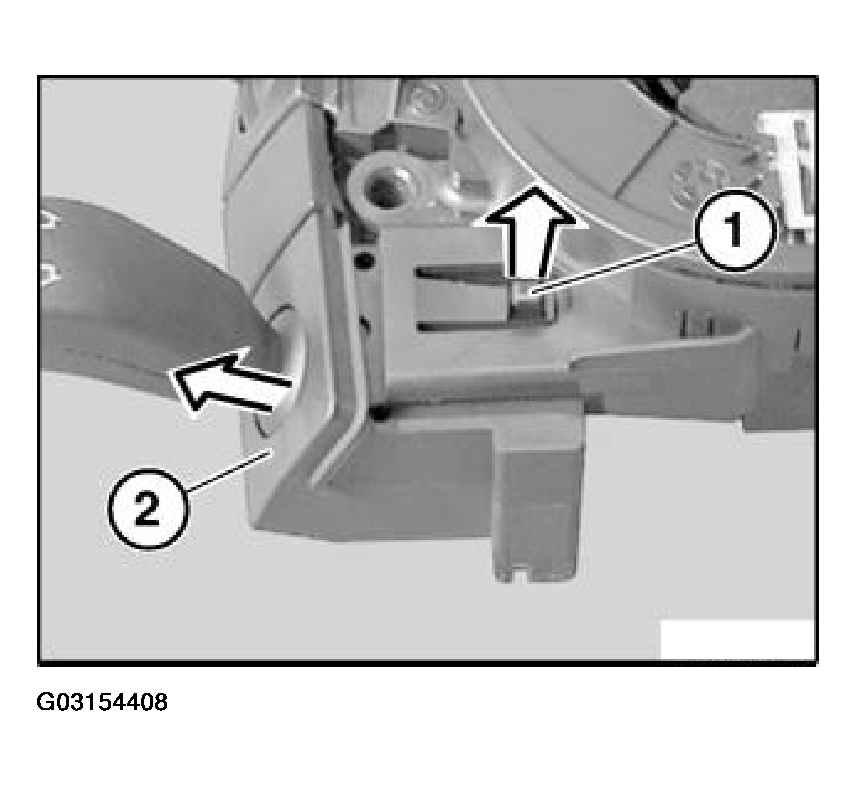

If necessary, remove switch for steering column adjustment. Raise lock (1) in direction of arrow and slide stalk for steering column adjustment (2) in direction of arrow.

Fig 6: Identifying Direction For Sliding Stalk For Steering Column Adjustment

G03154408

Courtesy of BMW OF NORTH AMERICA, INC.

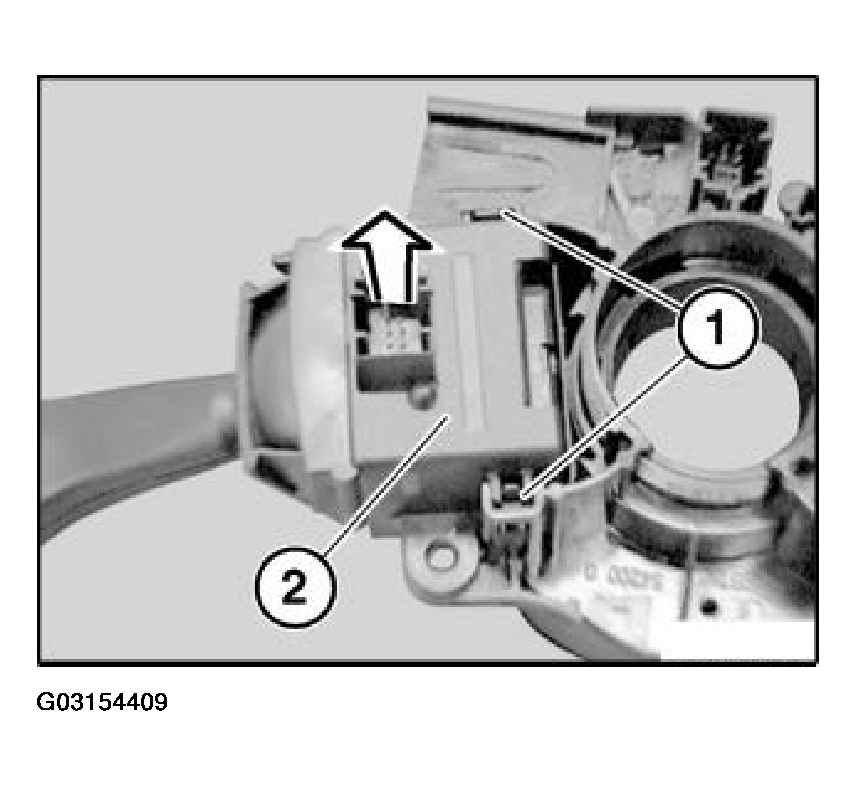

Unlock retainers (1) and pull out turn indicator/dipping switch (2) towards top.

Fig 7: Removing Turn Indicator/Dipping Switch Towards Top

G03154409

Courtesy of BMW OF NORTH AMERICA, INC.
