61 67 045 Removing and installing/replacing spray nozzles for left or right headlight cleaning system

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front bumper. see 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER .

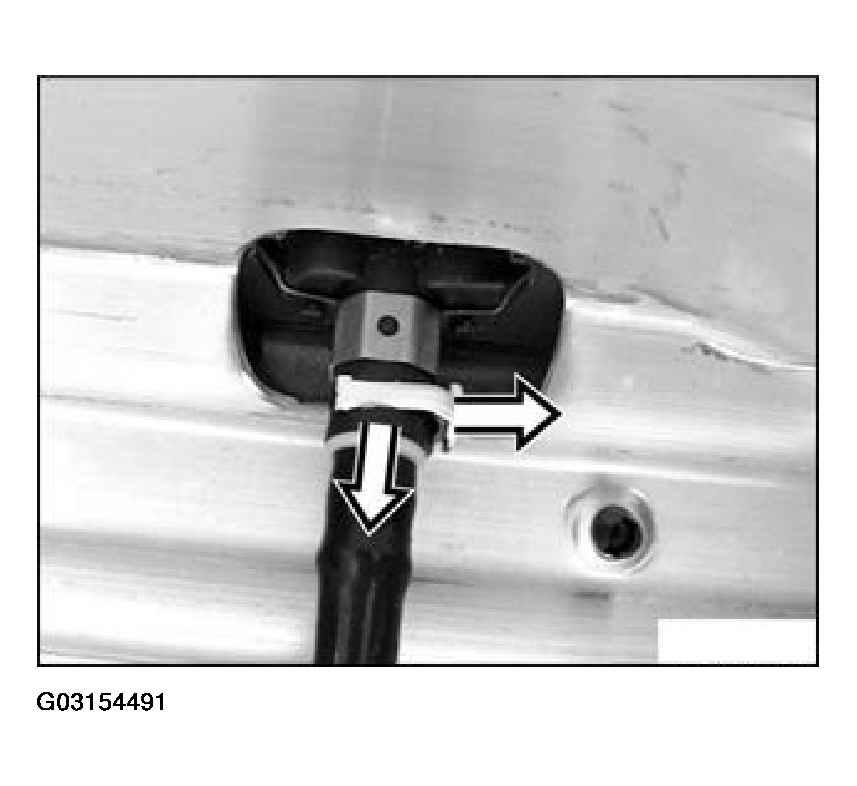

Slide clip to one side and remove line.

Fig 1: Removing Line

Courtesy of BMW OF NORTH AMERICA, INC.

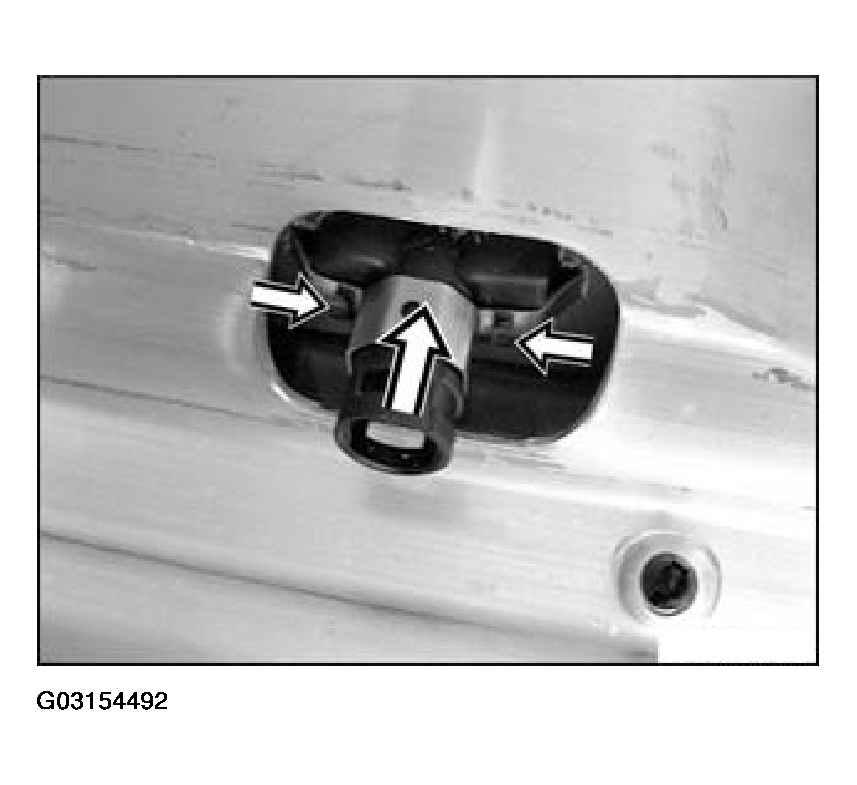

Press together clips and slide spray nozzle upwards.

Fig 2: Sliding Spray Nozzle Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note.

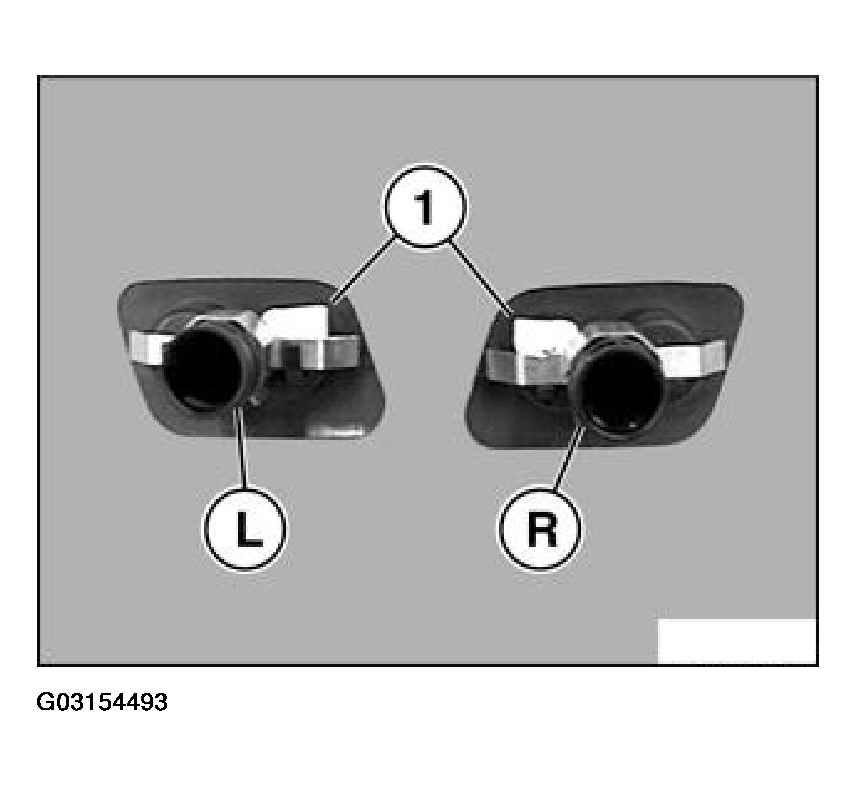

Do not confuse spray nozzles. The lugs (1) point towards the center grill on the car. Nozzles are designated with R and L.

Fig 3: Identifying Nozzle Designations

Courtesy of BMW OF NORTH AMERICA, INC.
