51 11 000 Removing and installing complete front bumper

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

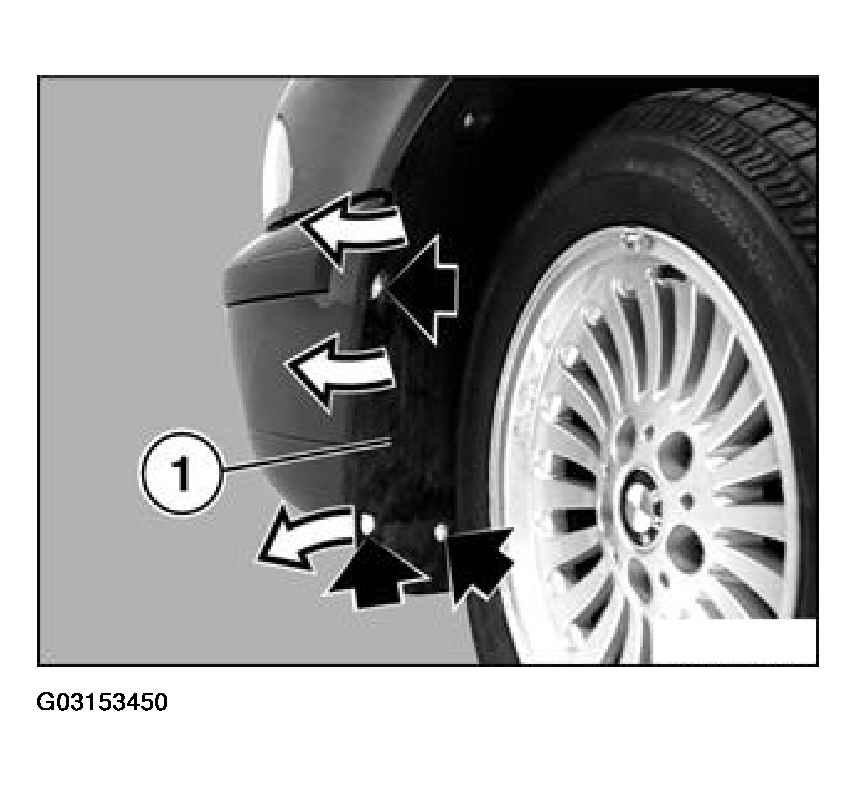

Fig 1: Unfastening Left/Right Screws And Lifting Out Wheel Arch Finishers From Side

G03153450

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left/right screws and lift out wheel arch finishers (1) from side.

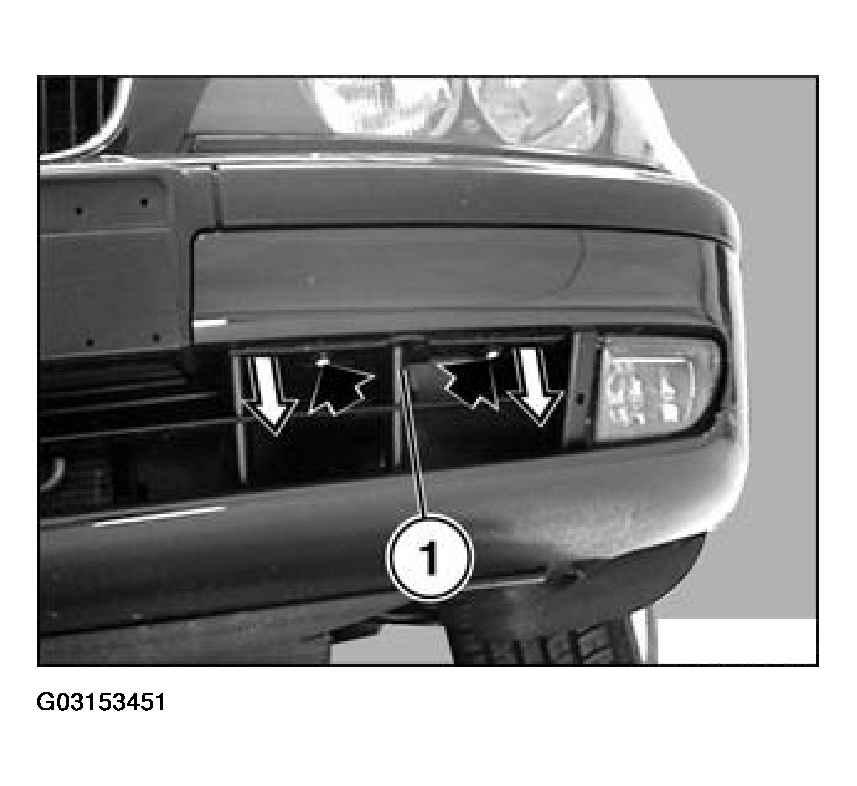

Fig 2: Removing Grille

G03153451

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expansion rivets on left/right and remove grille (1).

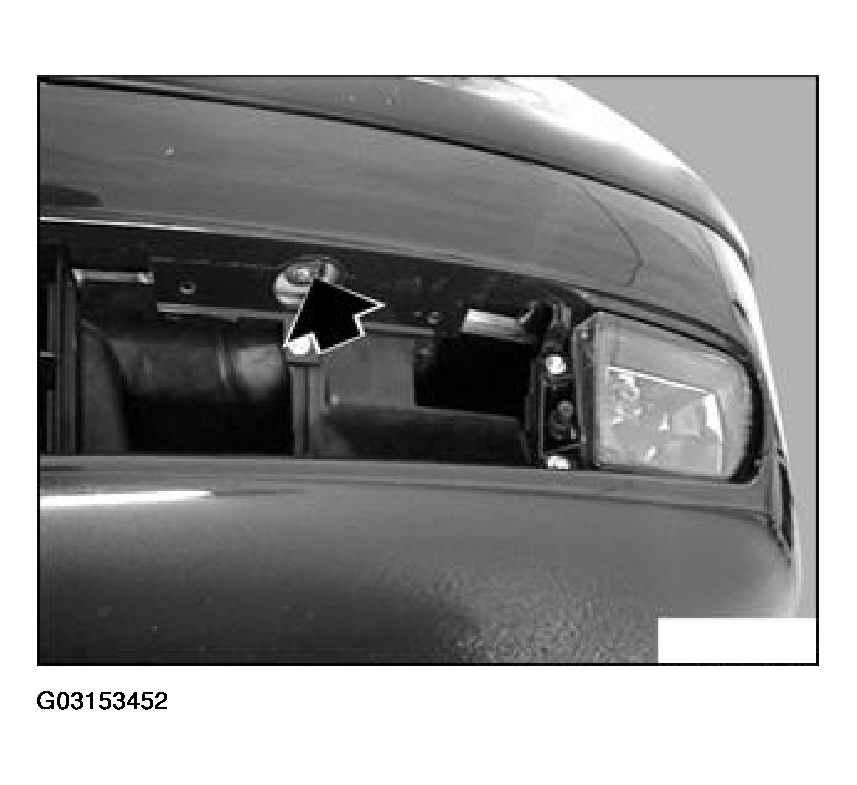

Fig 3: Releasing Screws On Impact Absorber On Left/Right

G03153452

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on impact absorber on left/right.

Installation:

Tightening torque see 51 11 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 540i .

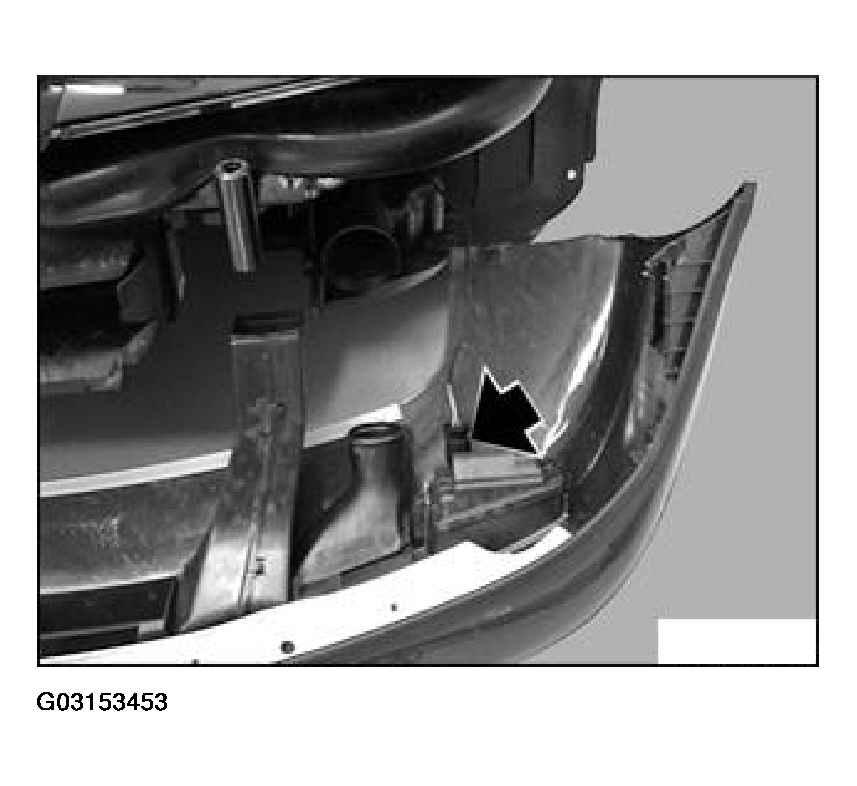

Fig 4: Removing Bumper

G03153453

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control (PDC) and/or fog lamps:

Pull bumper back a little.

Disconnect plug connection for fog lamps and/or PDC on left/right.

Remove bumper.

Version with headlight cleaning system:

Pull bumper back a little:

Detach lock and disconnect hose connection.

Remove bumper.

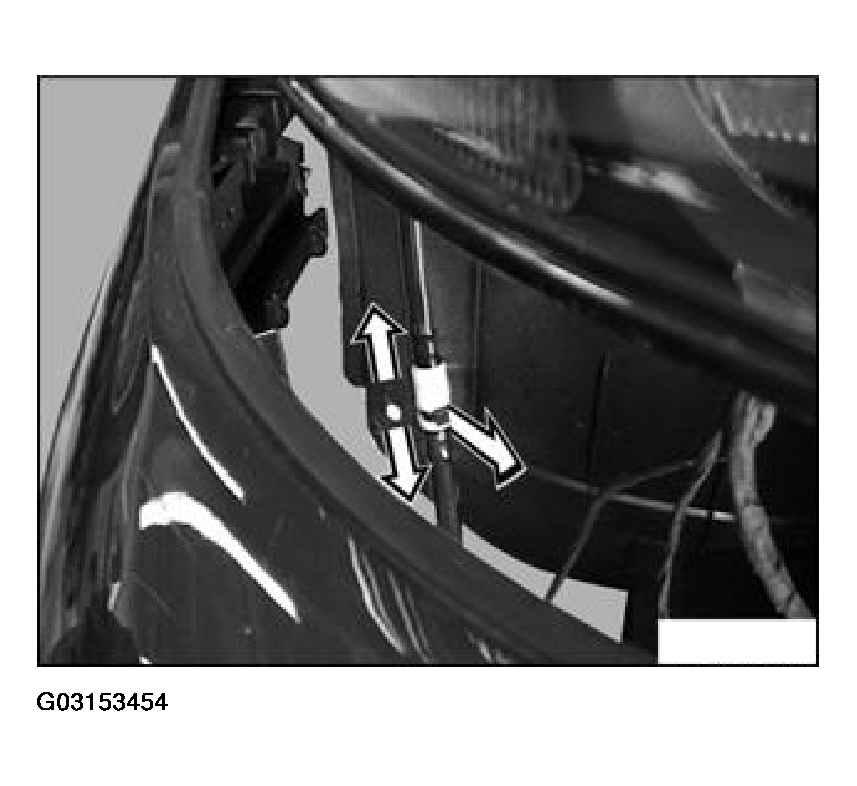

Fig 5: Pulling Bumper Back

G03153454

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The height of the bumper is adjusted by turning the socket head cap screw.

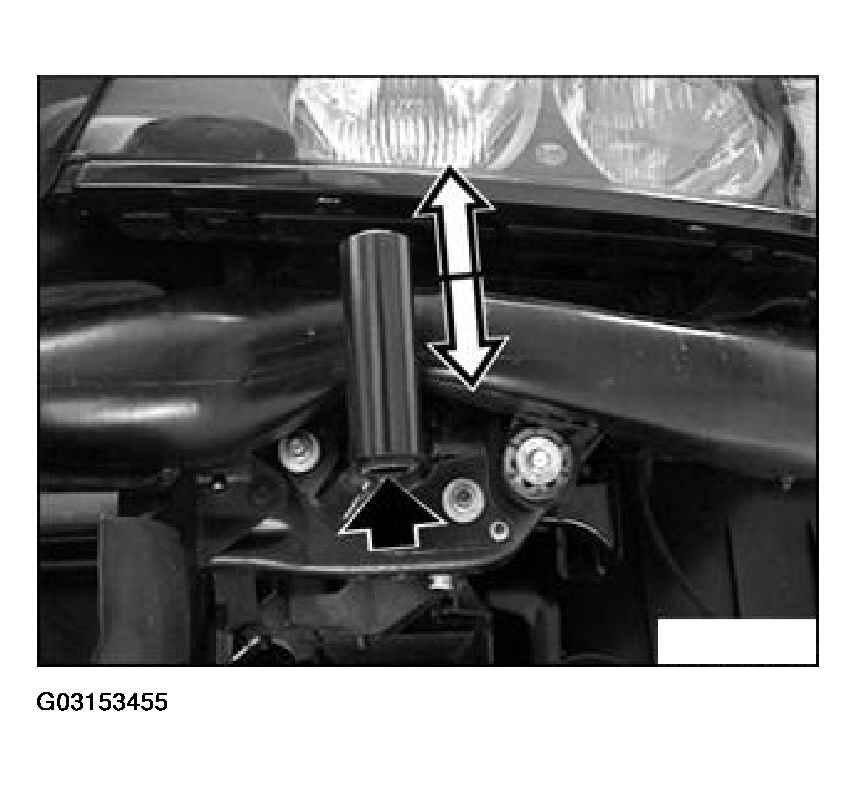

Fig 6: Turning Socket Head Cap Screw

G03153455

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

Distance (A) must be the same all around between the bumper and body cutout.

Dimension (A) = 5 +/- 1 mm

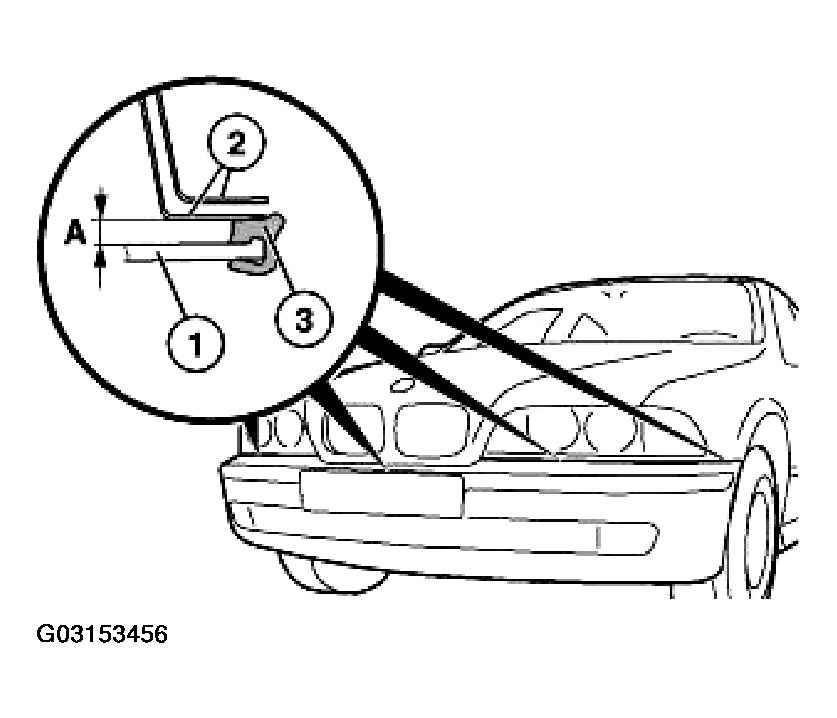

Fig 7: Measuring Dimension Between Bumper And Body Cutout

G03153456

Courtesy of BMW OF NORTH AMERICA, INC.
