54 12 265 Adjusting Both Drive Cables For Actuation Of Glass Slide/Tilt Sunroof

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing And Installing Glass Slide/Tilt Sunroof, Refer To 54 12 115 Removing And Installing Glass Sliding/Tilting Sunroof Lid

Remove Drive Unit With Transmission For Slide/Tilt Sunroof Actuation, Refer to 67 61 510 REMOVING AND INSTALLING OR REPLACING DRIVE WITH GEAR FOR ACTUATING SLIDE/TILT SUNROOF .

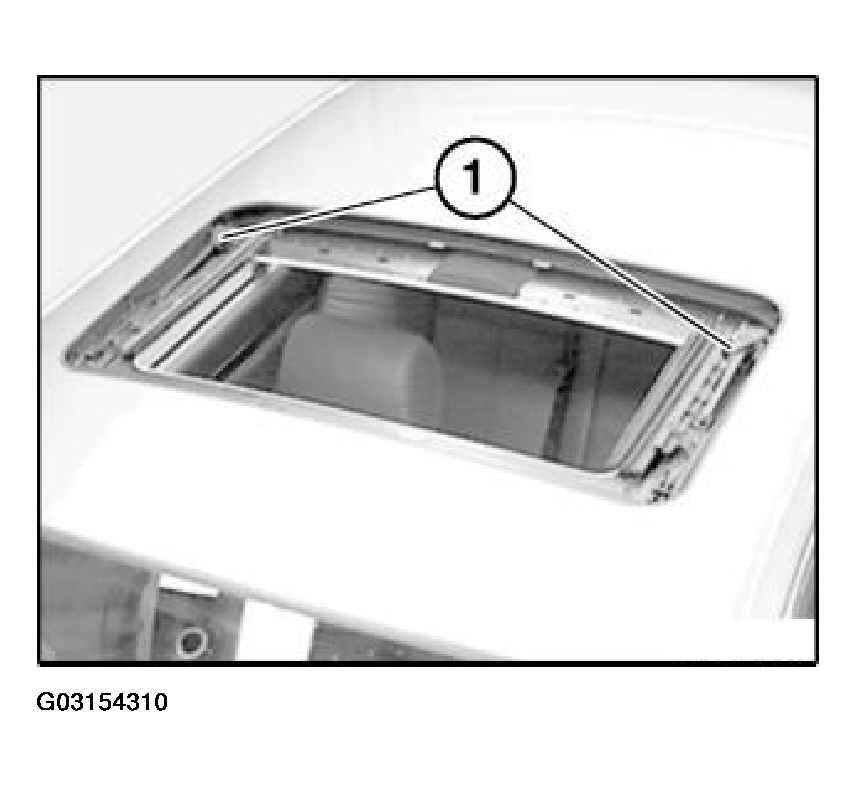

Slide Mechanism (1) Into Zero Setting.

Fig 1: Sliding Mechanism Into Zero Setting

Courtesy of BMW OF NORTH AMERICA, INC.

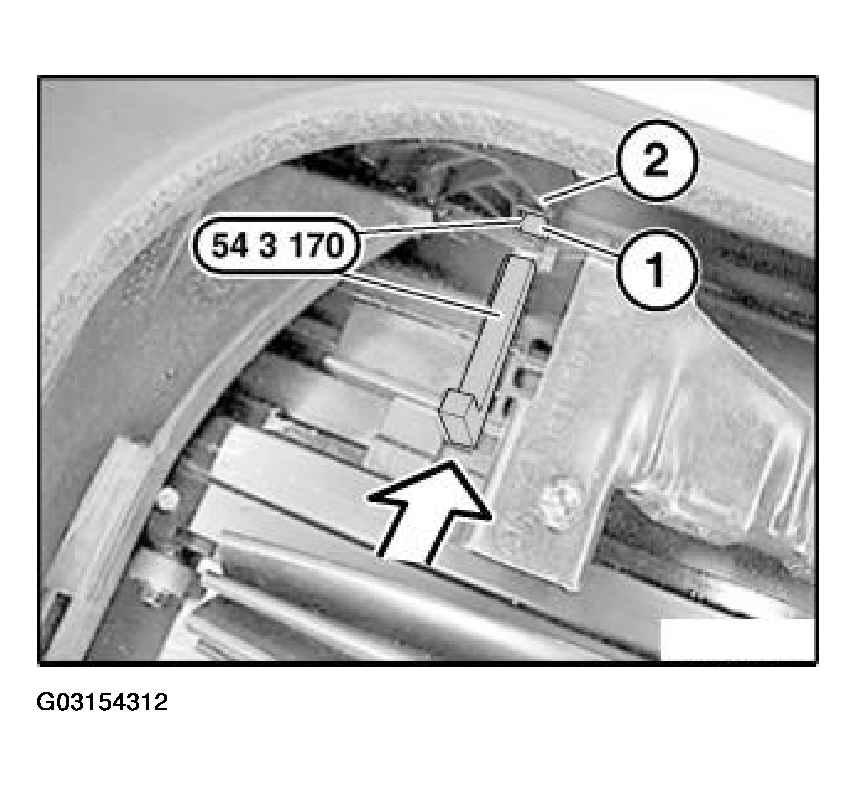

Insert Special Tool 54 3 170 Left/Right Between The Guides (1) In The Lifting Device (2).

Fig 2: Inserting Special Tool Between Guides In Lifting Device

Courtesy of BMW OF NORTH AMERICA, INC.

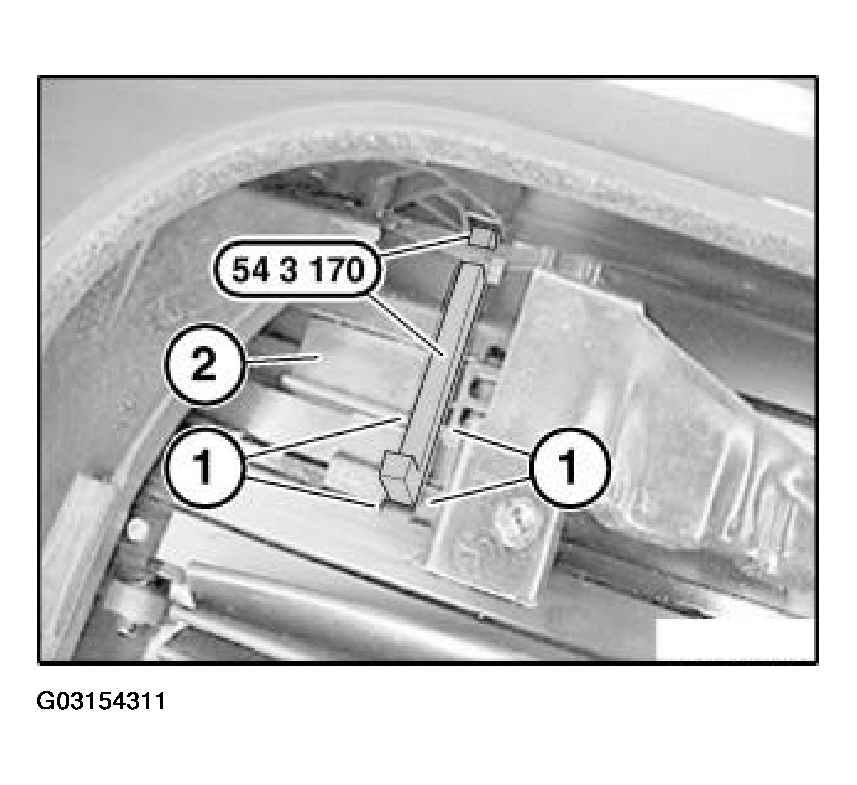

Lift Front Of Special Tool 54 3 170 (1) Slightly And Insert In Control Gate (2) (Both Drive Cables Are Now Secured In Their Zero Setting).

Install Drive Unit With Transmission For Slide/Tilt Sunroof Actuation, Refer To 67 61 510 REMOVING AND INSTALLING OR REPLACING DRIVE WITH GEAR FOR ACTUATING SLIDE/TILT SUNROOF .

Fig 3: Lifting Front Of Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Remove special tool 54 3 170 left/right (risk of damage).

Check function.
