54 12 220 Replacing control rail for left/right glass slide/tilt sunroof: Installation:

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

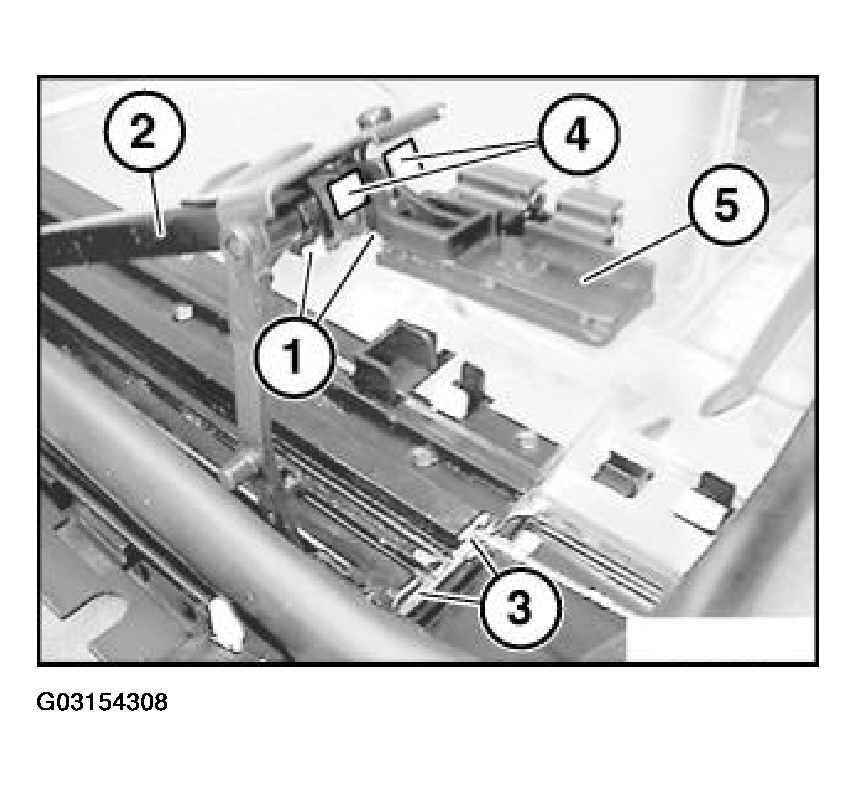

The guide (1) on the control rail (2) must run in the guide channel (3).

The guide (4) on the lifting lever (5) must run above the guide channel (3).

Fig 1: Installing Guide On Control Rail And Lifting lever

Courtesy of BMW OF NORTH AMERICA, INC.

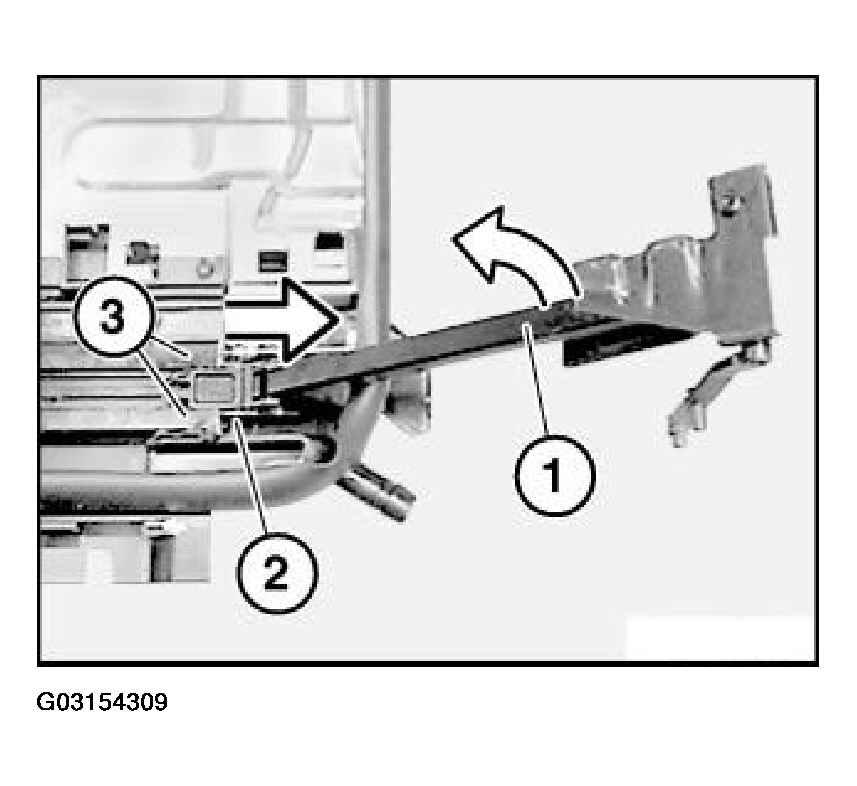

Lift control rail (1) and pull backwards out of guide channel (3) with sliding section (2).

Fig 2: Lifting Control Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting both drive cables for glass slide/tilt sunroof actuation, refer to 54 12 265 ADJUSTING BOTH DRIVE CABLES FOR ACTUATION OF GLASS SLIDE/TILT SUNROOF

Check Function.
