52 13 405 Replacing backrest cover for front seat (normal/manual), left or right

Removing complete backrest:

Remove head restraint,

refer to 52 13 390 REMOVING AND INSTALLING / REPLACING FRONT HEADREST (NORMAL/ MANUAL)  .

Remove rear panel on front seat backrest,

refer to 52 13 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL)  .

Version with lumbar support (version as of Model Year 1996):

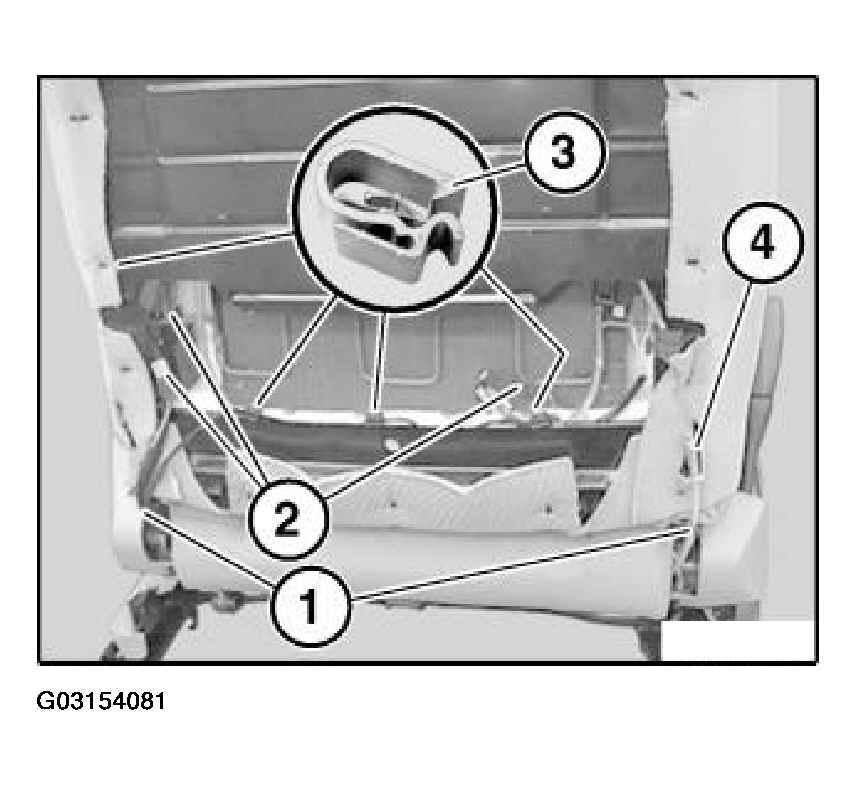

Unfasten cable connector (1). Detach hose (2) and disconnect plug connection (3).

Version with seat heating:

Disconnect plug connection (4).

Version with lumbar support/seat heating (version up to model year 1996,

refer to 52 17 405 REPLACING BACK-REST COVER FOR FRONT SEAT (COMFORT) ON LEFT OR RIGHT SIDES  .

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Version with new head restraint drive:

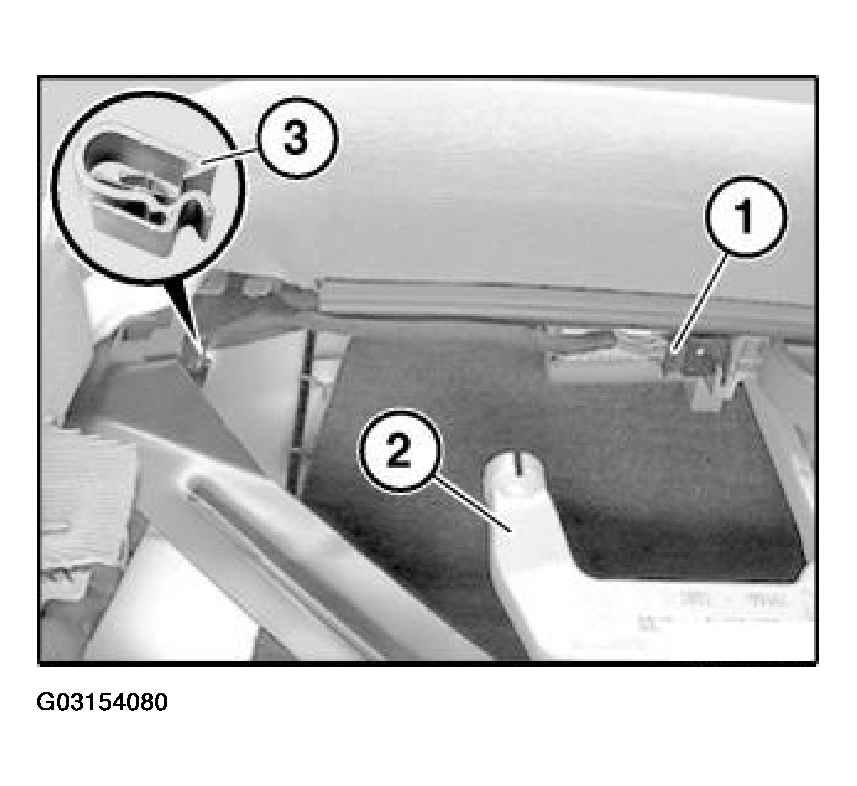

Disconnect plug connection (1) for head restraint drive (2).

Remove cable from clips (3) downwards.

Fig 2: Removing Cable From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

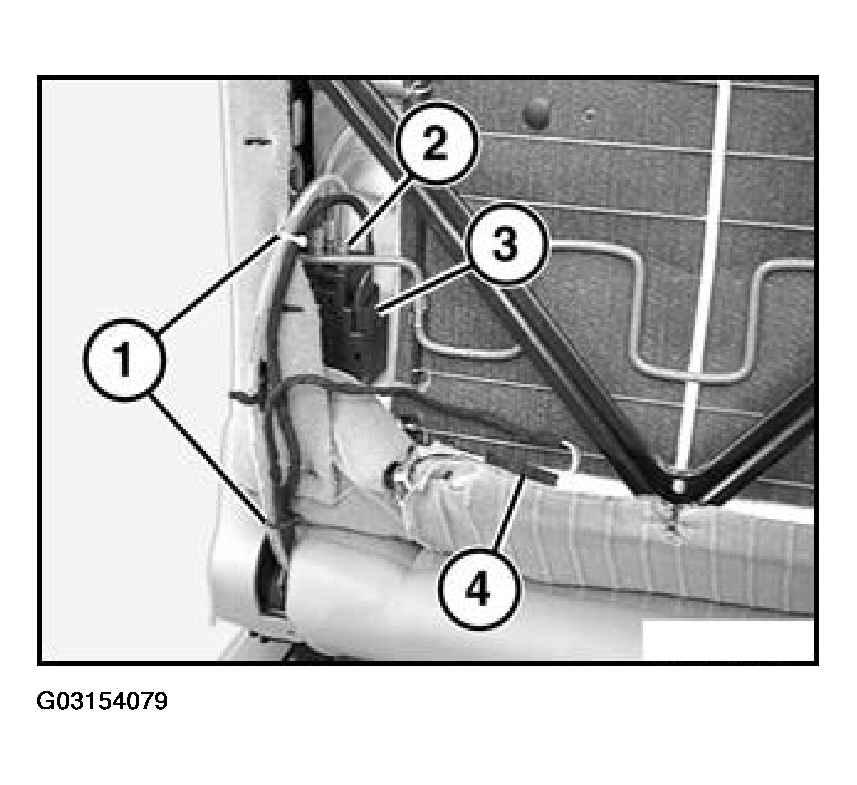

Version with bolted backrest frame:

Cut open cable tie (1).

Disconnect plug connection (2).

Unhook cable with bracket (3).

Detach air hose (4).

Fig 3: Detaching Air Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Version with bolted backrest frame:

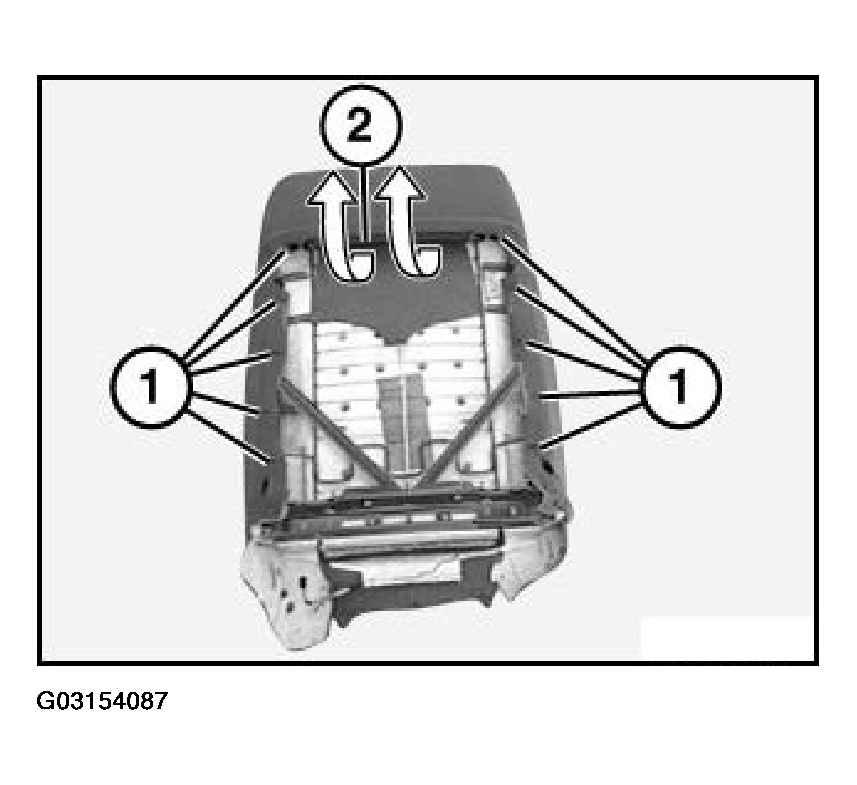

Release screws (1) and detach backrest frame (2) toward top.

Fig 4: Releasing Screws And Detaching Backrest Frame (2) Toward Top

Courtesy of BMW OF NORTH AMERICA, INC.

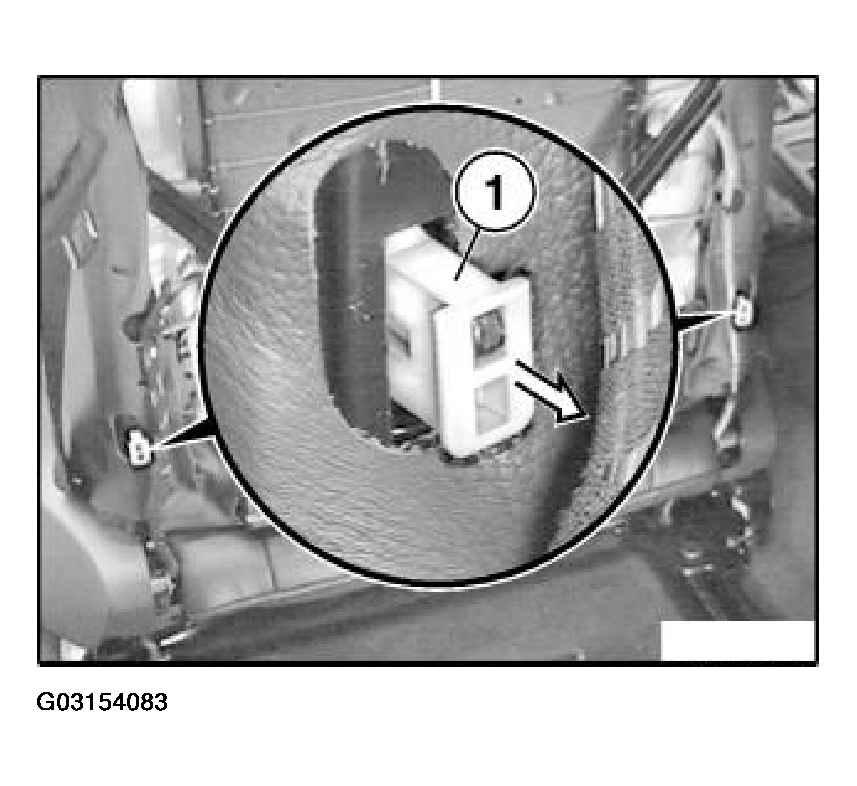

Pull off retaining clip (1) from left/right release lever.

Installation

1. If the retaining clip (1) cannot be fitted (does not snap into place), the backrest is not correctly snapped into place.
2. The backrest must then be unlocked and locked again.

Fig 5: Pulling Off Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

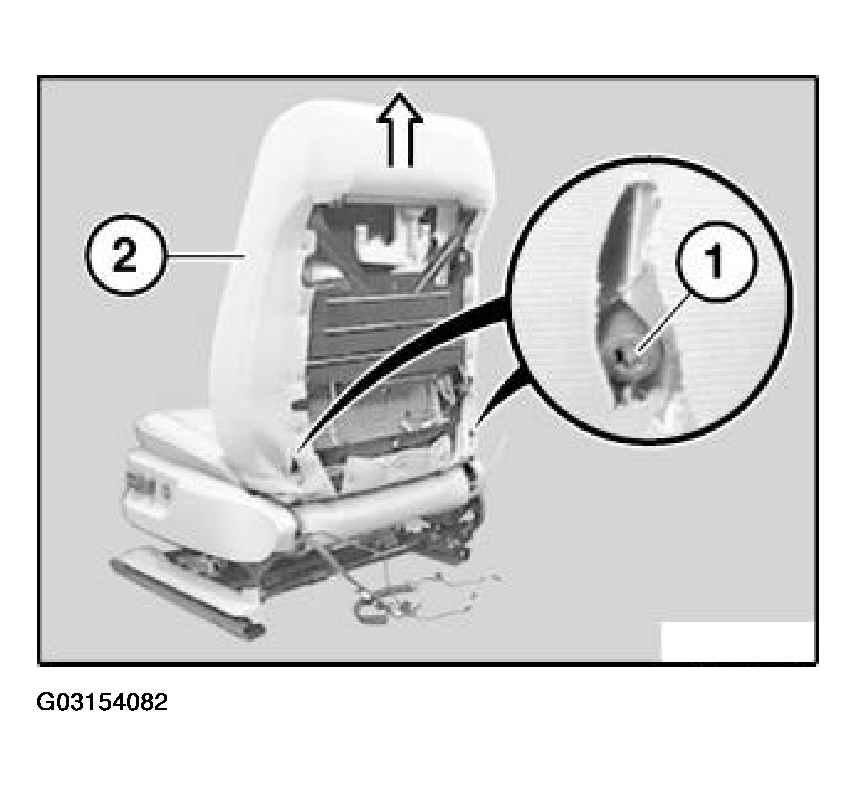

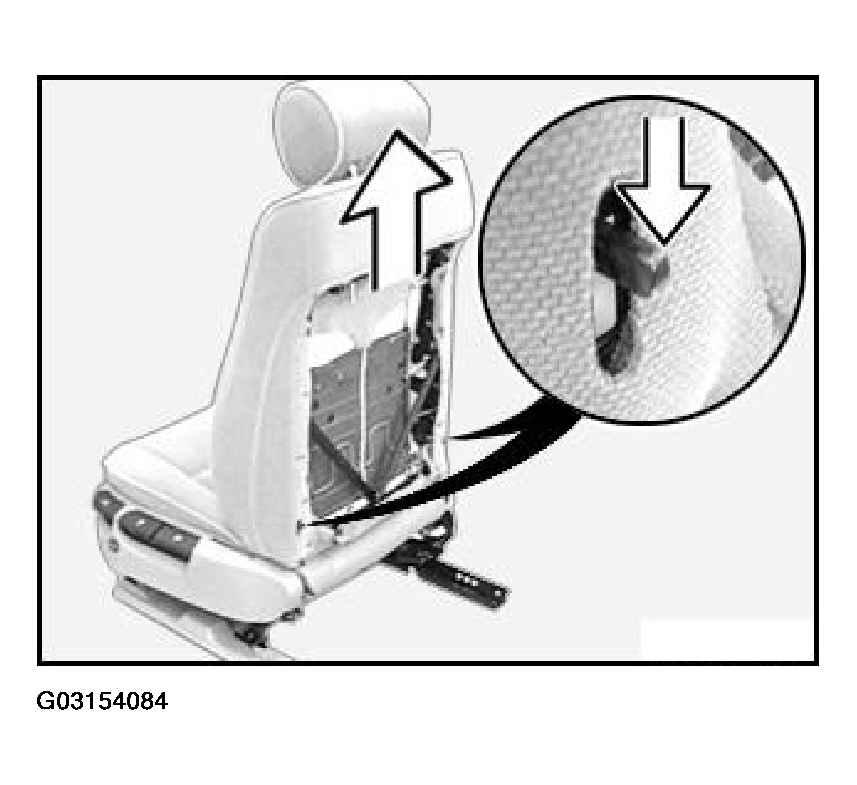

Unlock left and right levers (press downwards). Pull backrest upwards to remove from seat frame and lift out of vehicle.

Fig 6: Unlocking Left And Right Levers

Courtesy of BMW OF NORTH AMERICA, INC.

Removing backrest cover with support:

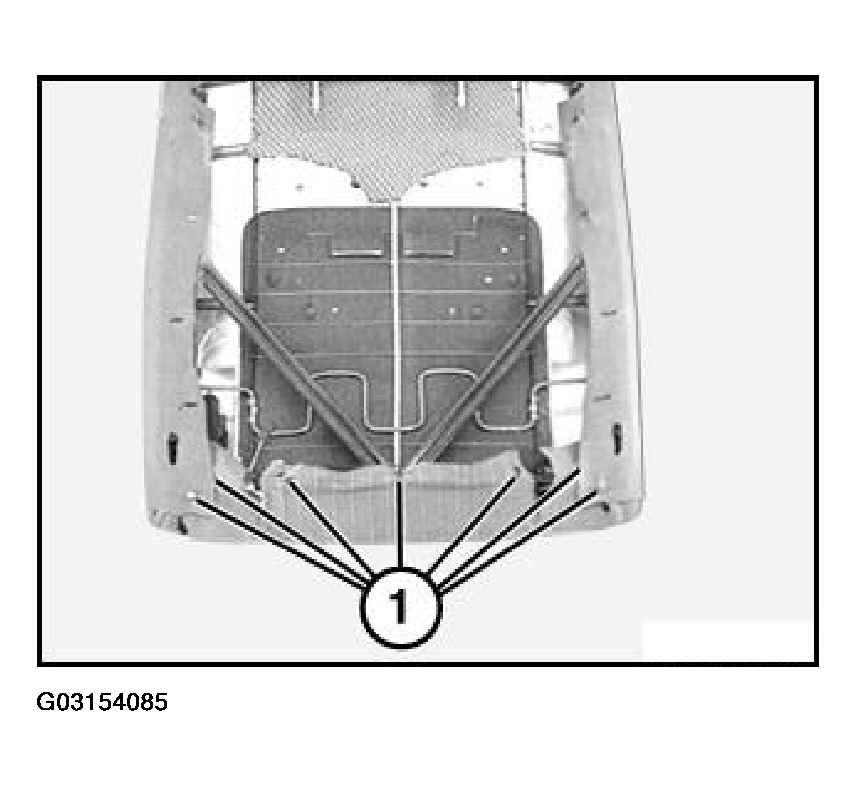

Disconnect bottom of backrest cover from clips (1).

Fig 7: Disconnecting Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

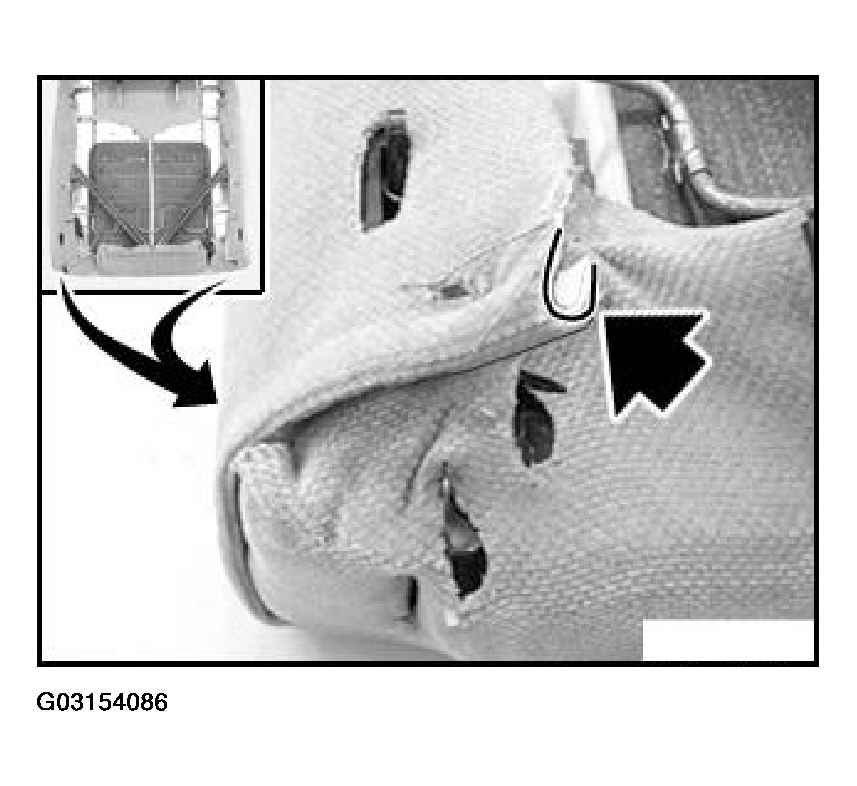

1. Fold lower backrest cover and attach clip on cover.

Fig 8: Folding Lower Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook backrest cover at sides from cover clips (1).

Unscrew strip (2) at top.

Fig 9: Unhooking Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

1. First hook in side backrest cover (1), then upper section (2).

Fig 10: Hooking In Side Backrest Cover (1), Then Upper Section (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

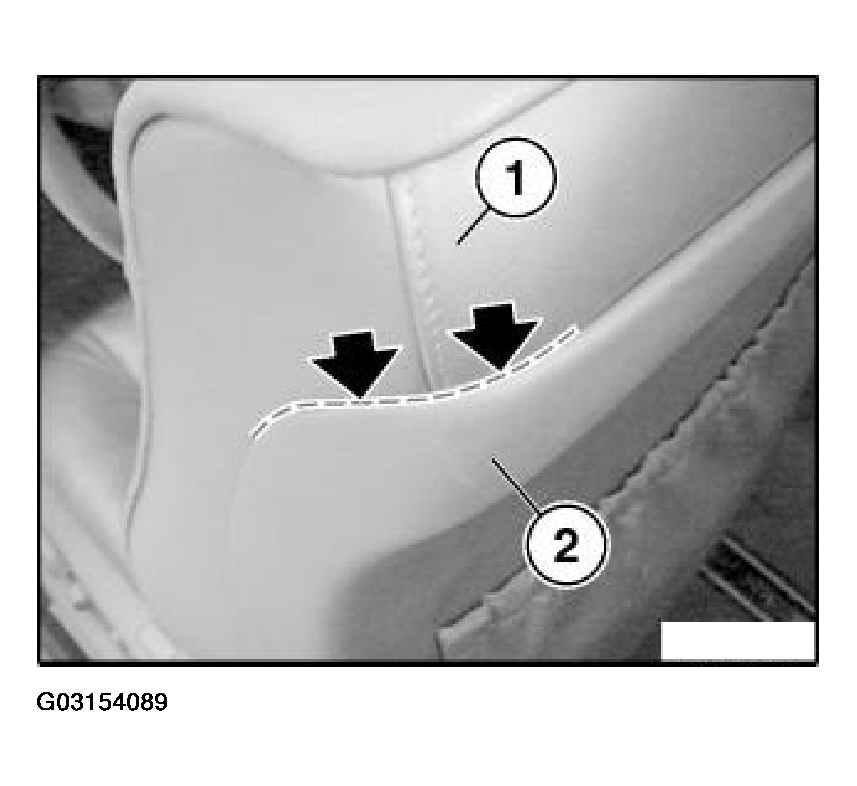

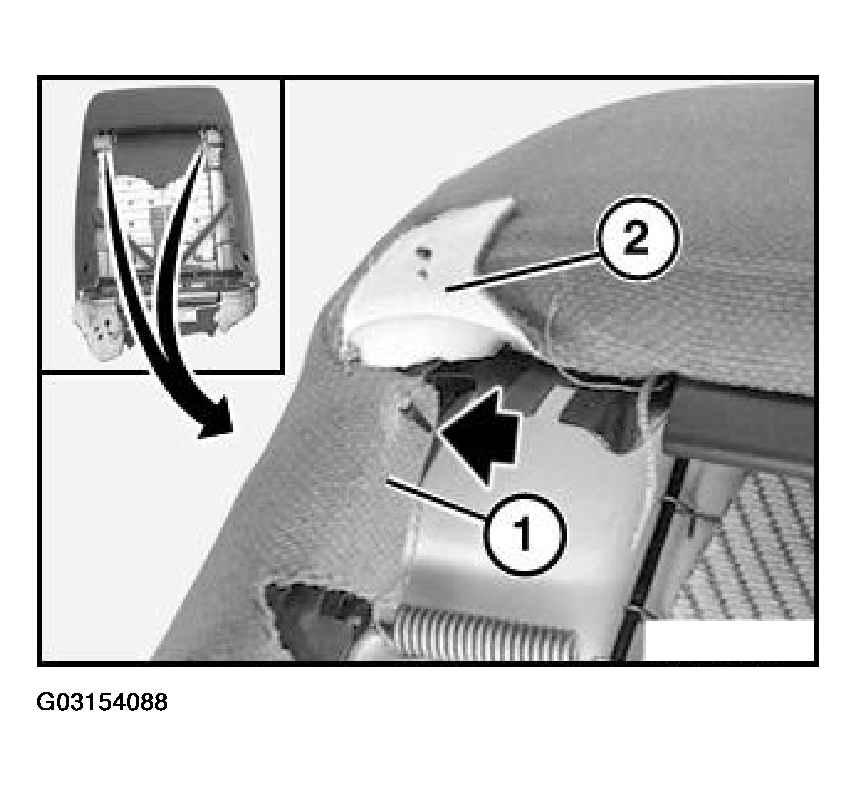

1. If there is a gap between rear panel (2) and back-rest cover (1), then the back-rest cover (1) is tightened too firmly.

Fig 11: Identifying Gap Between Rear Panel And Back-Rest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

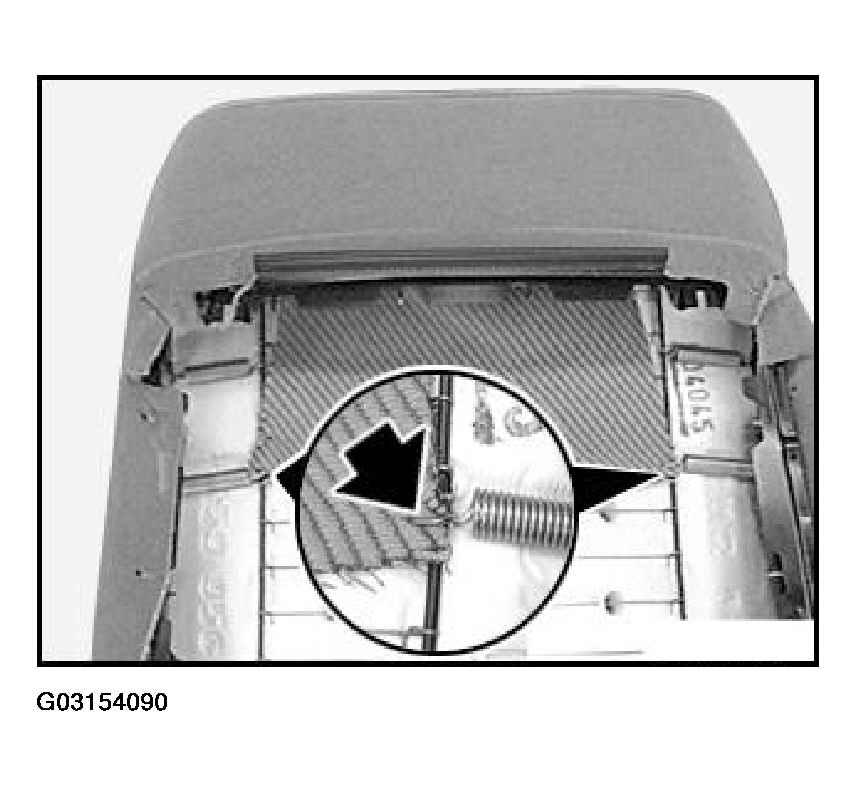

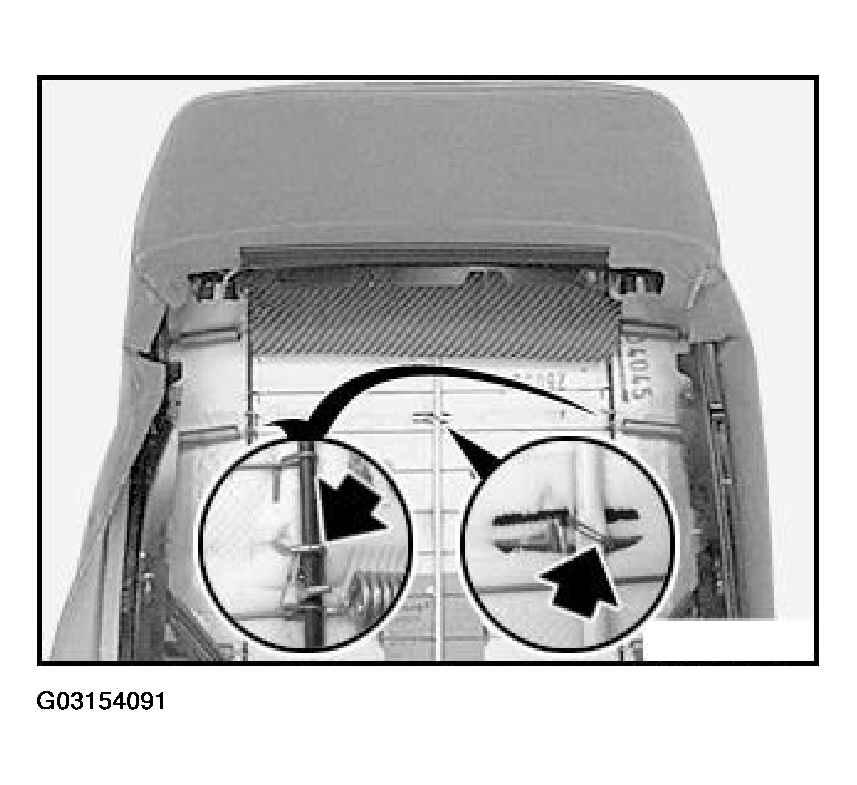

Loosen retainers.

Installation

1. Lock new retainer by bending it with special tool 52 0 050.

Fig 12: Locking New Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clips and remove backrest cover with support.

Installation

1. Lock new retainers by bending with special tool 52 0 050.

Fig 13: Removing Backrest Cover With Support

Courtesy of BMW OF NORTH AMERICA, INC.

Removing backrest cover from support (replacing support):

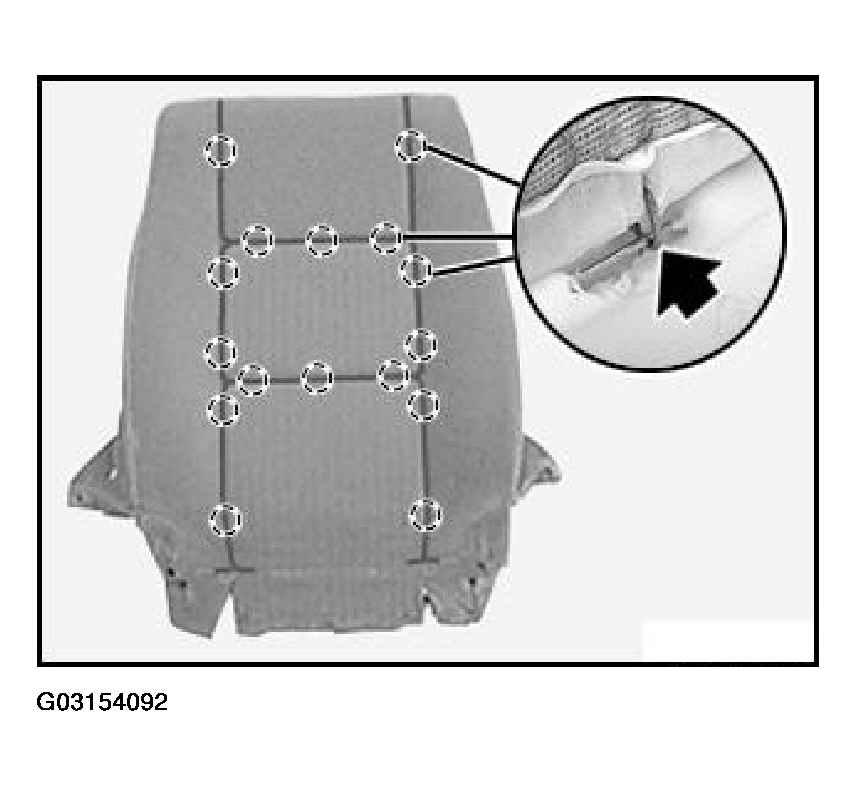

Unfasten all clips and remove backrest cover from support.

Remove all remnants of clips from backrest cover and support.

Fig 14: Removing All Remnants Of Clips From Backrest Cover And Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

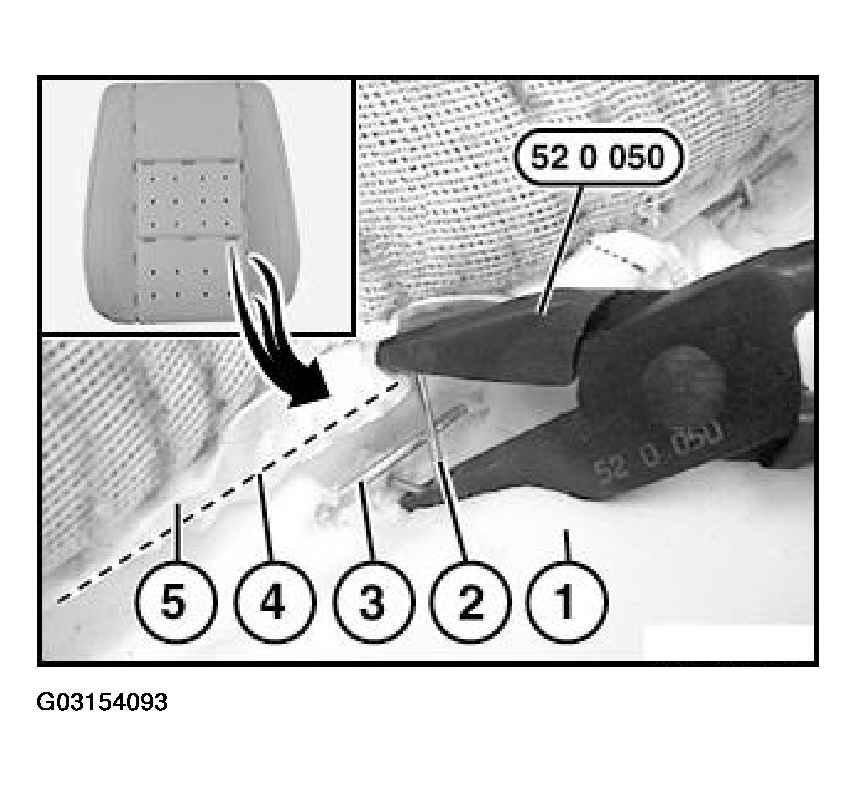

1. Fold in new clip (2) with special tool 52 0 050.

1. Support
2. Retainer
3. Trim thread in support
4. Trim wire in backrest cover
5. Back-rest cover
   Fig 15: Identifying (1) Support, (2) Retainer, (3) Trim Thread In Support, (4) Trim Wire In Backrest Cover, And (5) Back-Rest Cover

   Courtesy of BMW OF NORTH AMERICA, INC.

Replacing backrest cover:

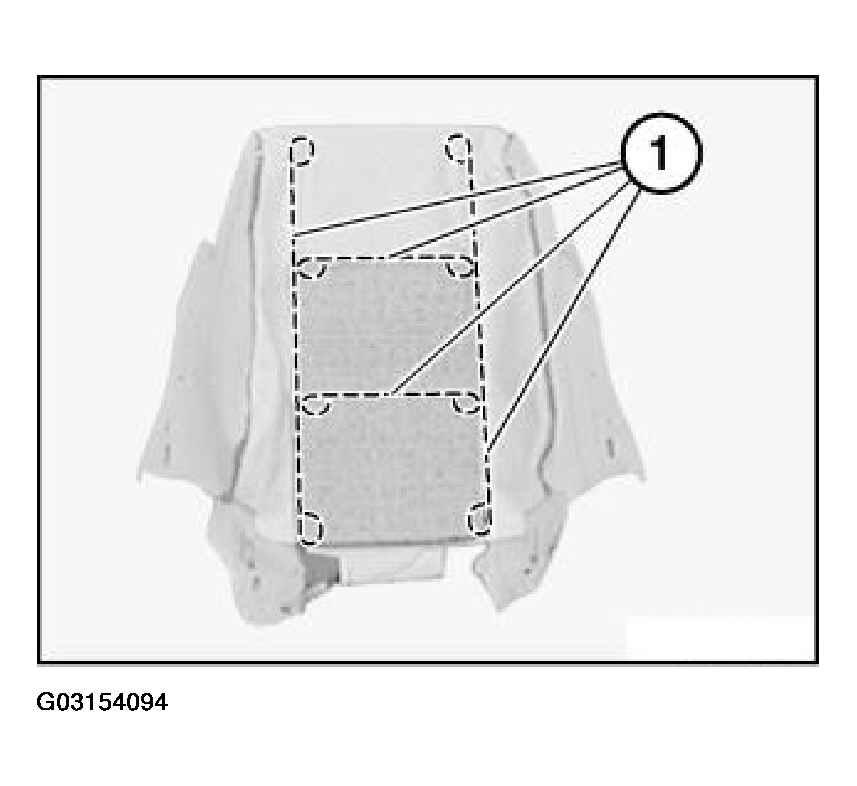

Remove trim threads (1) from backrest cover. Cut new backrest cover to size and insert trim threads.

Fig 16: Removing Trim Threads From Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.
