52 13 198 Removing and installing/replacing rear panel on left or right front seat backrest (normal/manual)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Version without luggage pocket:

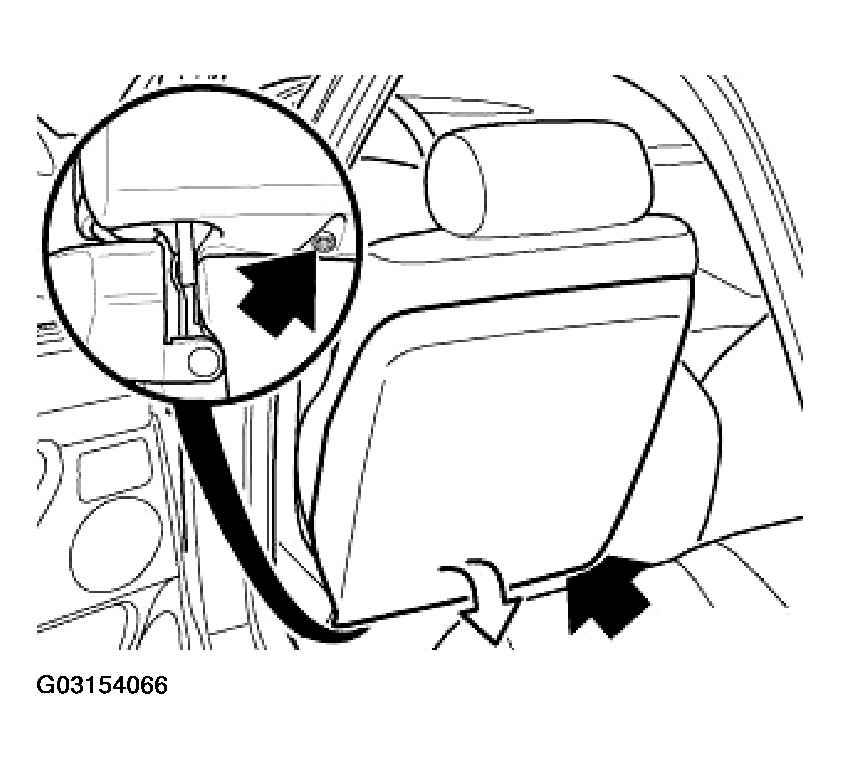

Unfasten bottom left / right screw.

Remove lower rear panel by pulling backwards and downwards.

Fig 1: Unfastening Bottom Left / Right Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Version with luggage pocket:

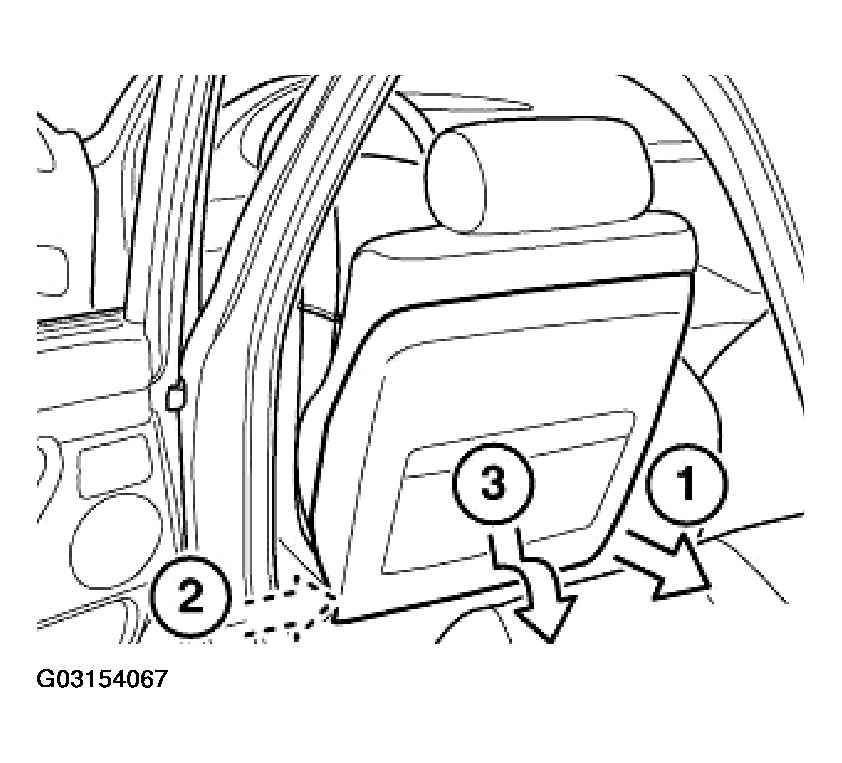

Pull inside rear panel inwards/backwards (1) and drive outside forcefully inwards (2) (spring disconnected inside). Press inside of rear panel outwards and pull outwards/backwards to remove (outside of spring disconnected) and remove rear panel by pulling downwards/backwards (3)

Fig 2: Removing Rear Panel By Pulling Downwards/Backward

Courtesy of BMW OF NORTH AMERICA, INC.
