52 13 050 Replacing left or right lumbar supports on front seat (normal/manual)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove backrest,

refer to 52 13 405 REPLACING BACKREST COVER FOR FRONT SEAT (NORMAL/MANUAL), LEFT OR RIGHT

Disconnect bottom of cover from clips (1).

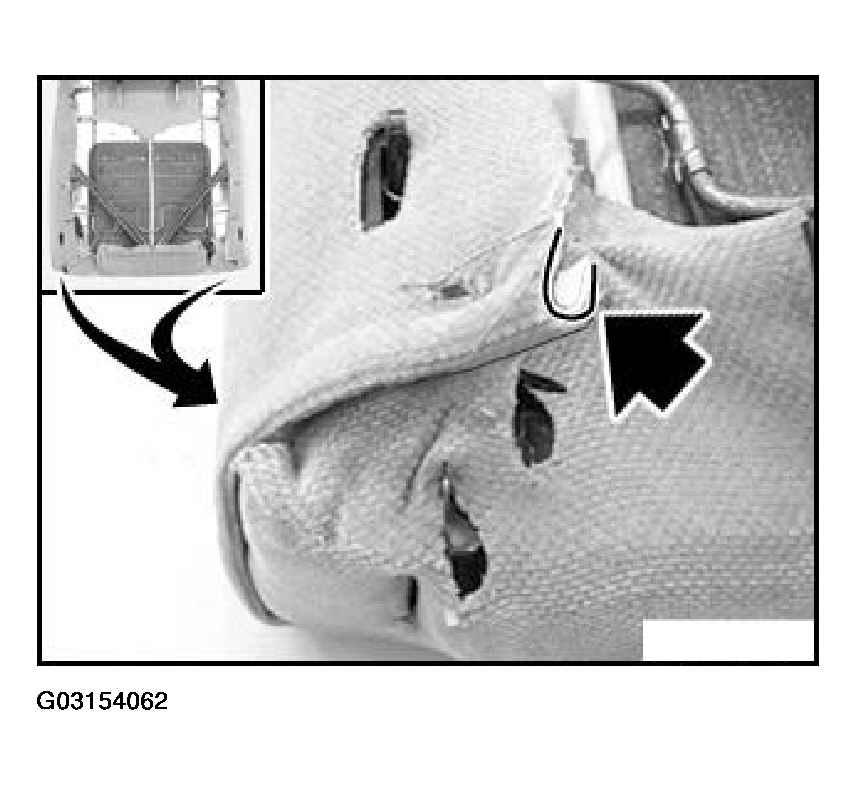

Fig 1: Disconnecting Bottom Cover From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Fold down bottom of seat cover and insert clip.

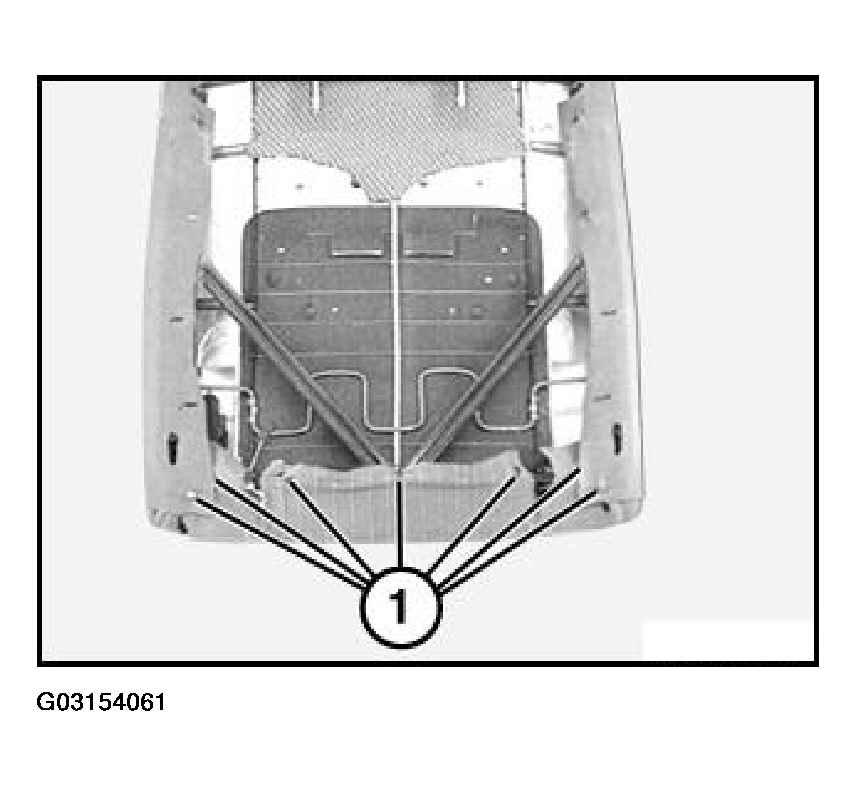

Fig 2: Identifying Bottom Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hose (1) (Blue = small cushion) and hose (2) (Red = large cushion) from control unit (3).

NOTE: If necessary, gently heat hose when firmly seated. Housing (valve block) must not be unclipped (leaks). Should be unclipped: unfasten screw and clip together the housing.

Installation

Connection hoses must be routed without sharp bends.

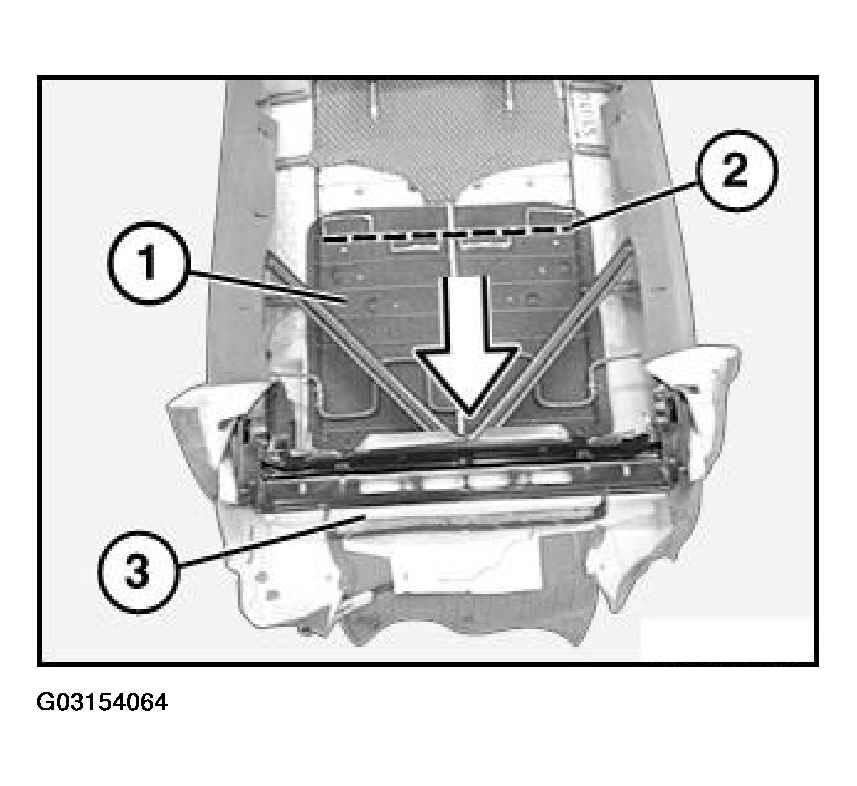

Fig 3: Removing Hose From Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect top of lumbar support cushion (1) from spring wire (2). Press support (3) downwards and remove lumbar cushion (1).

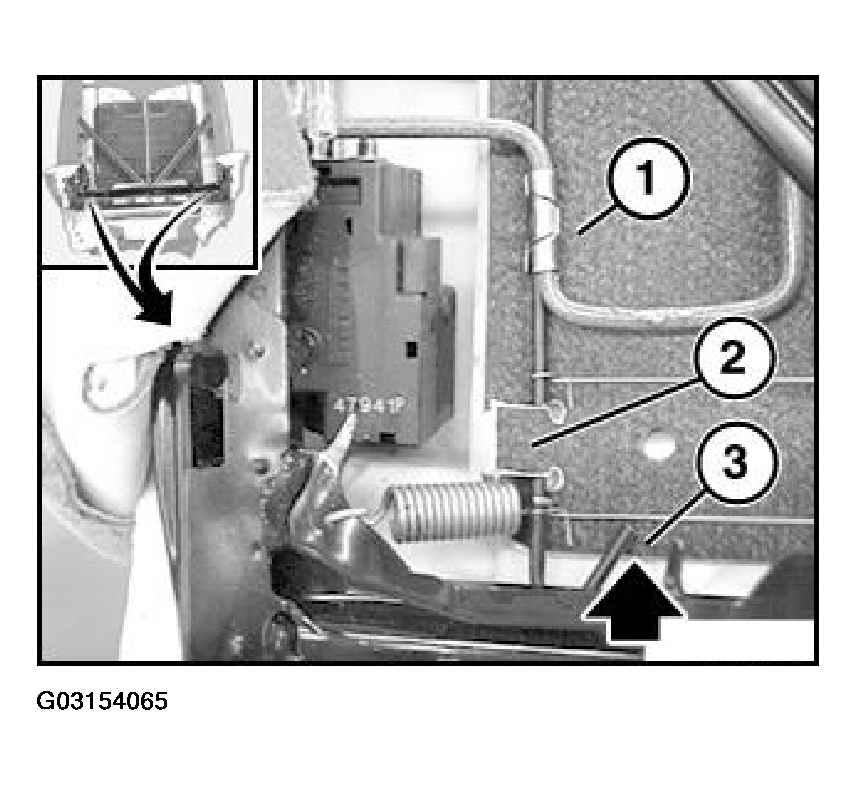

Fig 4: Disconnecting Top Of Lumbar Support Cushion From Spring Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Attach bottom left/right lumbar supports (1) with recesses (2) above the springs so that it is sealed with the spring mat (3) with the connection hoses routed without sharp bends.

Fig 5: Attaching Bottom Left/Right Lumbar Supports

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check function.
