52 13 014 Replacing Bowden cable for longitudinal adjustment on left or right front seat (normal/manual)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat, refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL)

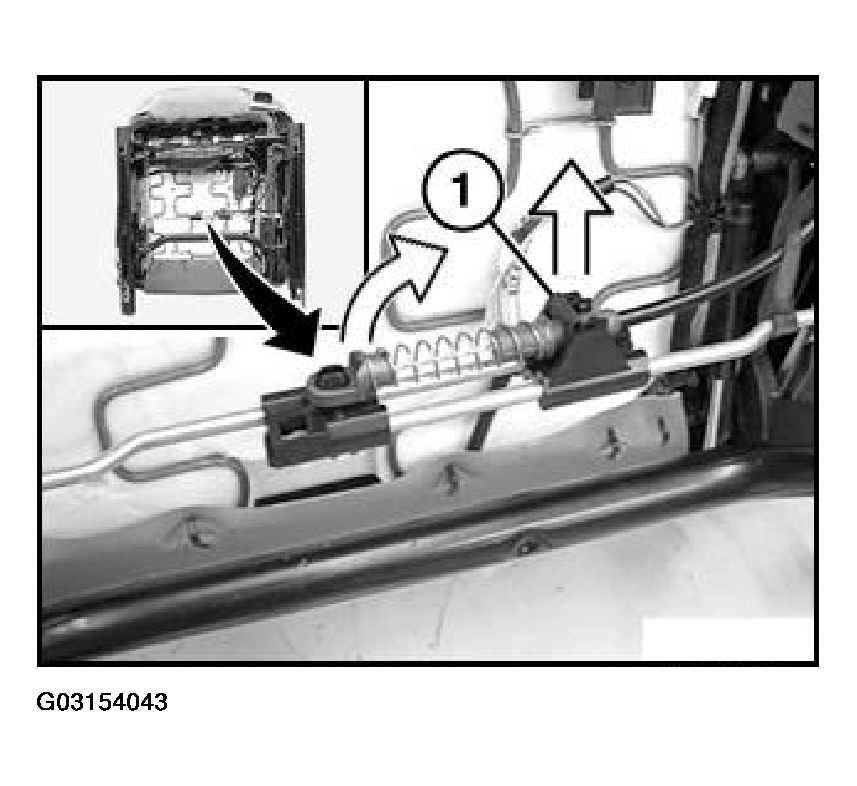

Remove clips (1) and pull Bowden cable forwards to remove.

Fig 1: Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

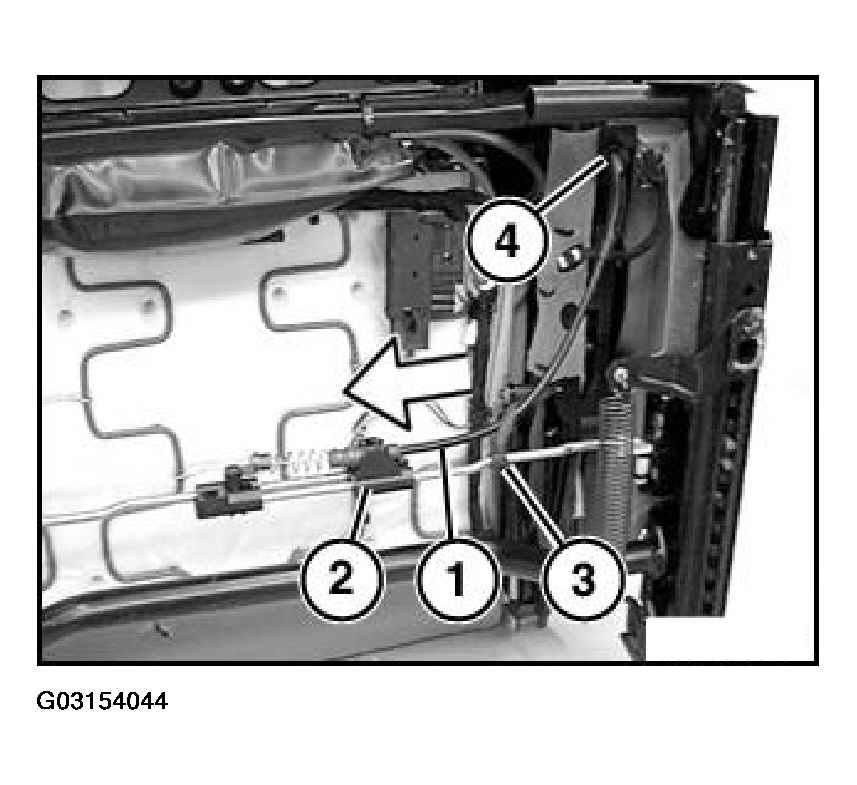

Slide Bowden cable (1) out of guide (2). Twist Bowden cable through 90° and lift out of support (4).

Installation

Route Bowden cable (1) behind rubber tape (3).

Fig 2: Installing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

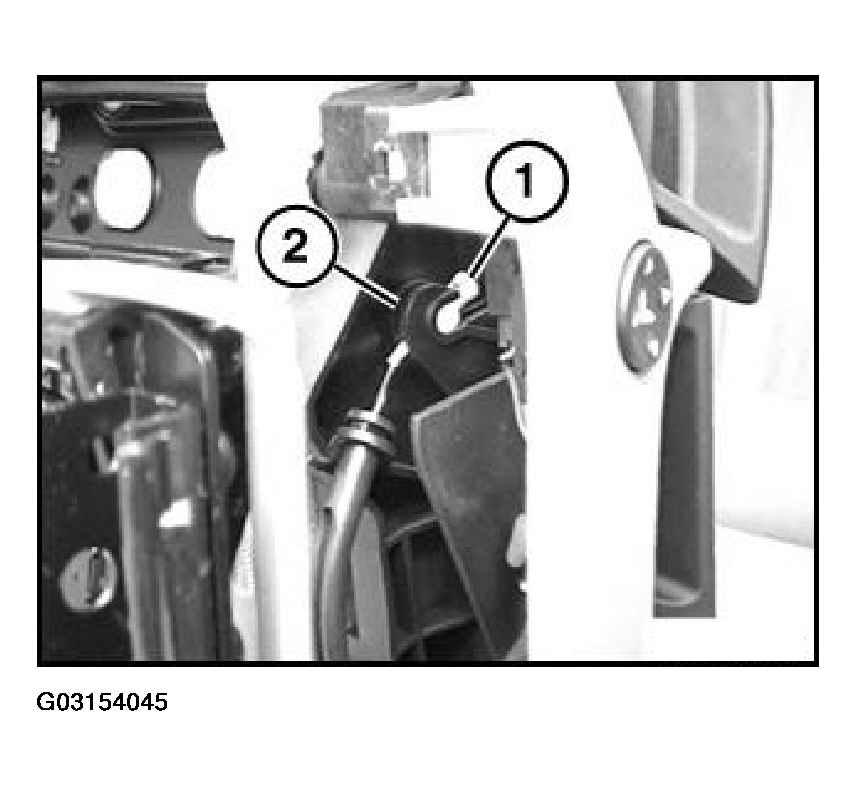

Withdraw Bowden cable nipple (1) from support (2) and remove Bowden cable for longitudinal adjustment.

Installation

Adjust Bowden cable for longitudinal adjustment, refer to 52 13 013 ADJUSTING BOWDEN CABLE FOR LONGITUDINAL ADJUSTMENT OF LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL) .

Fig 3: Removing Bowden Cable For Longitudinal Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.
