52 13 013 Adjusting Bowden cable for longitudinal adjustment of left or right front seat (normal / manual)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat, refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL)

Remove clip from Bowden cable sleeve.

1st person presses left / right unlocking lever (1) down (towards cushion) to ensure that locking pins (2) have no clearance when vehicle is in motion.

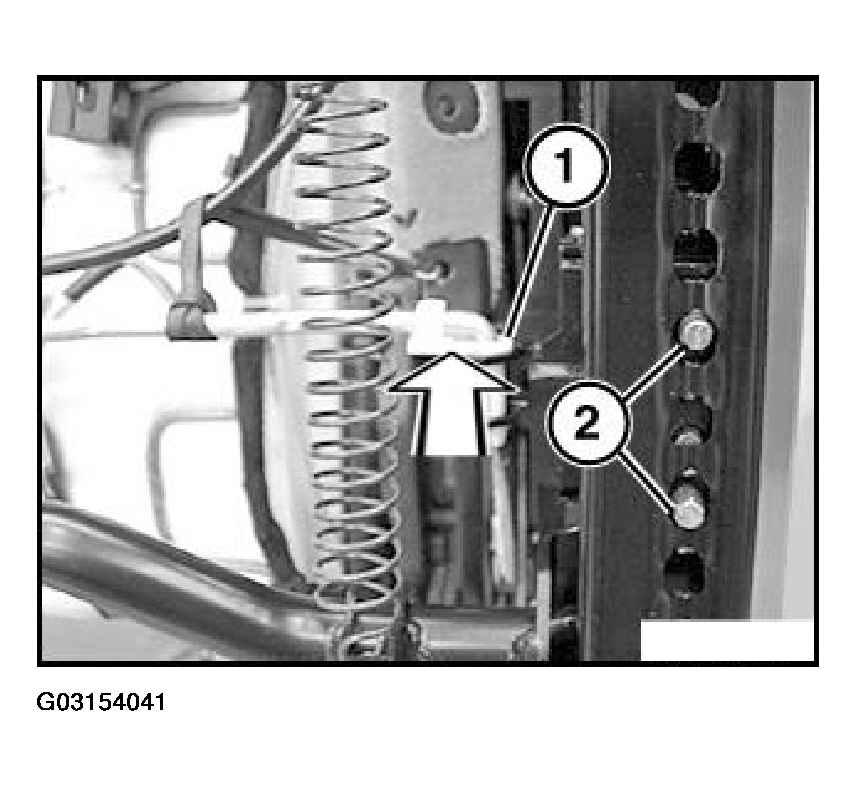

Fig 1: Pressing Left / Right Unlocking Lever

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the clip (1) is bent, replace it.

2nd person pulls on Bowden cable sleeve (3) at same time, pushing up clip (1).

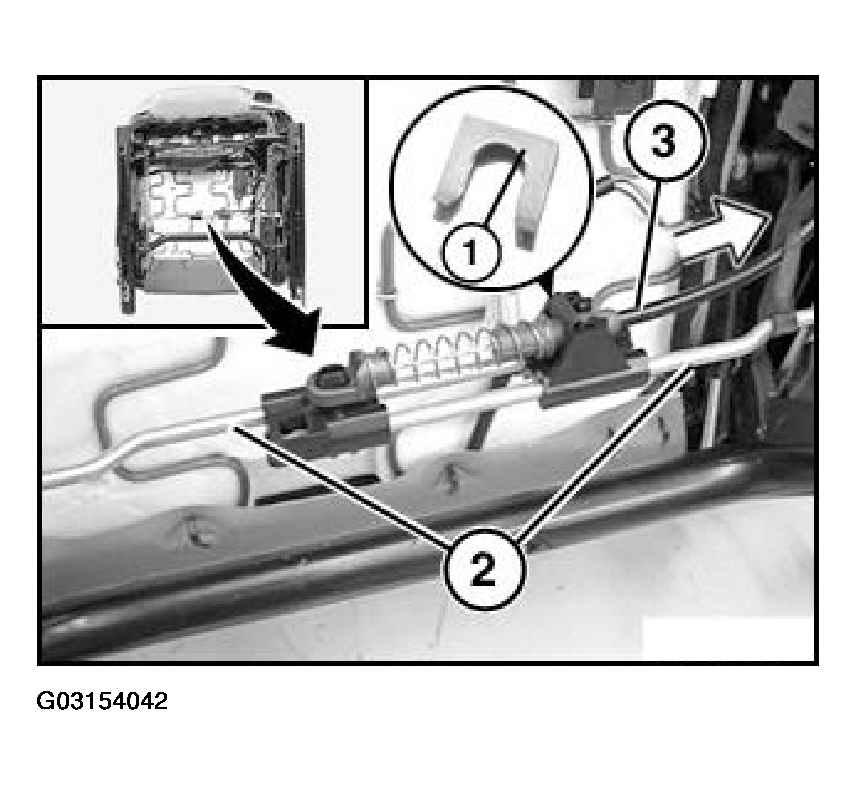

Fig 2: Pulling Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
