52 13 010 Removing and installing/replacing both seat rails on left or right front seat (normal / manual)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat, refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL)

Remove seatbelt tensioner.

Remove Bowden cable for longitudinal adjustment, refer to 52 13 014 REPLACING BOWDEN CABLE FOR LONGITUDINAL ADJUSTMENT ON LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL)

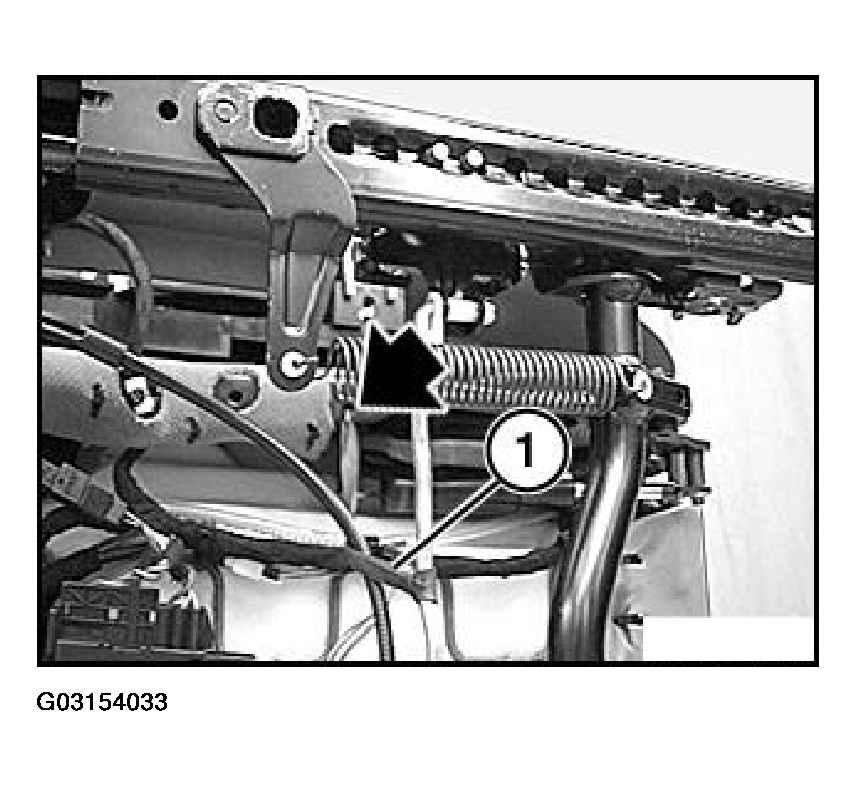

Unfasten clips from rubber belt (1).

Installation

Lock new retainer by bending it with special tool 52 0 050.

Fig 1: Unfastening Clips From Rubber Belt

G03154033

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

Unscrew inside finisher upwards (1) (unclip), lift center (2) upwards and pull off forwards (3).

Only passenger side:

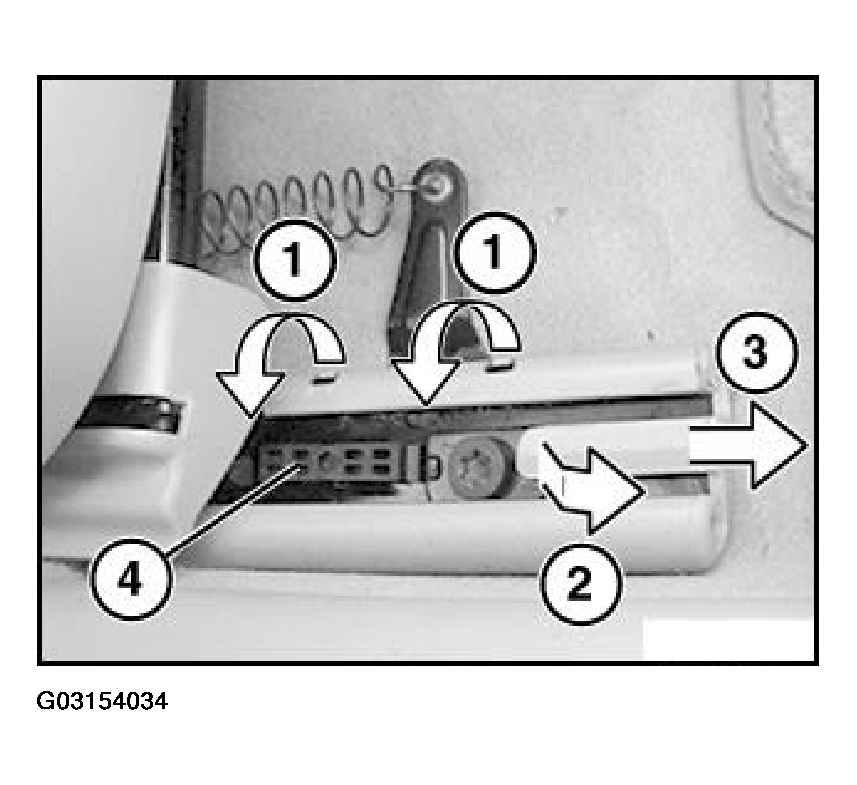

Remove detent for left / right longitudinal seat adjustment (4).

Fig 2: Removing Detent For Left/Right Longitudinal Seat Adjustment

G03154034

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

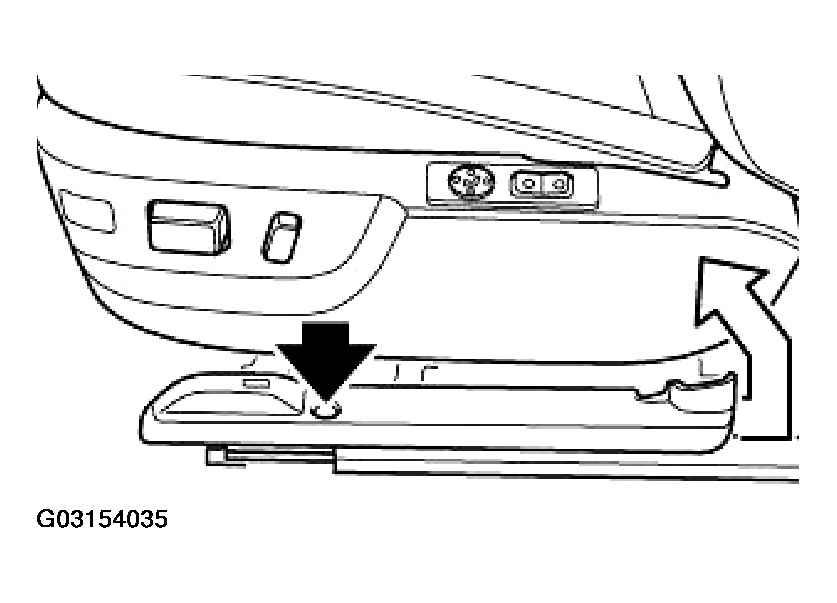

Unscrew screw. Lift outer finisher backwards/upwards and pull off forwards.

Fig 3: Unscrewing Screw

G03154035

Courtesy of BMW OF NORTH AMERICA, INC.

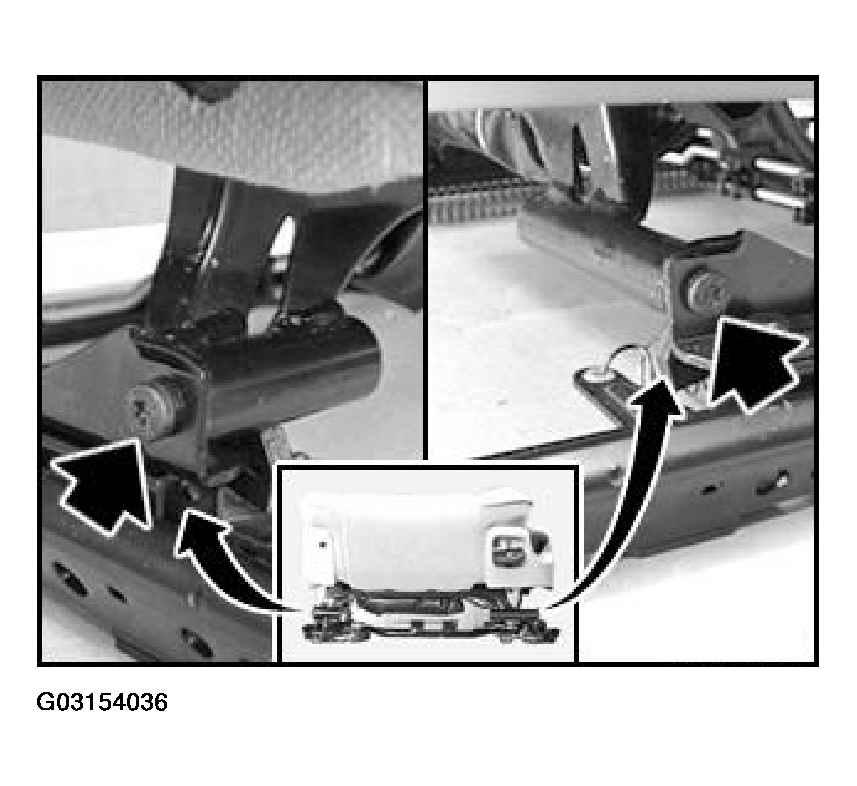

Unfasten screws.

Installation

Replace screws (microencapsulation).
Tightening torque, refer to 52 10 6AZ SEATS - TIGHTENING TORQUES - 540i .

Fig 4: Unfastening Screws

G03154036

Courtesy of BMW OF NORTH AMERICA, INC.

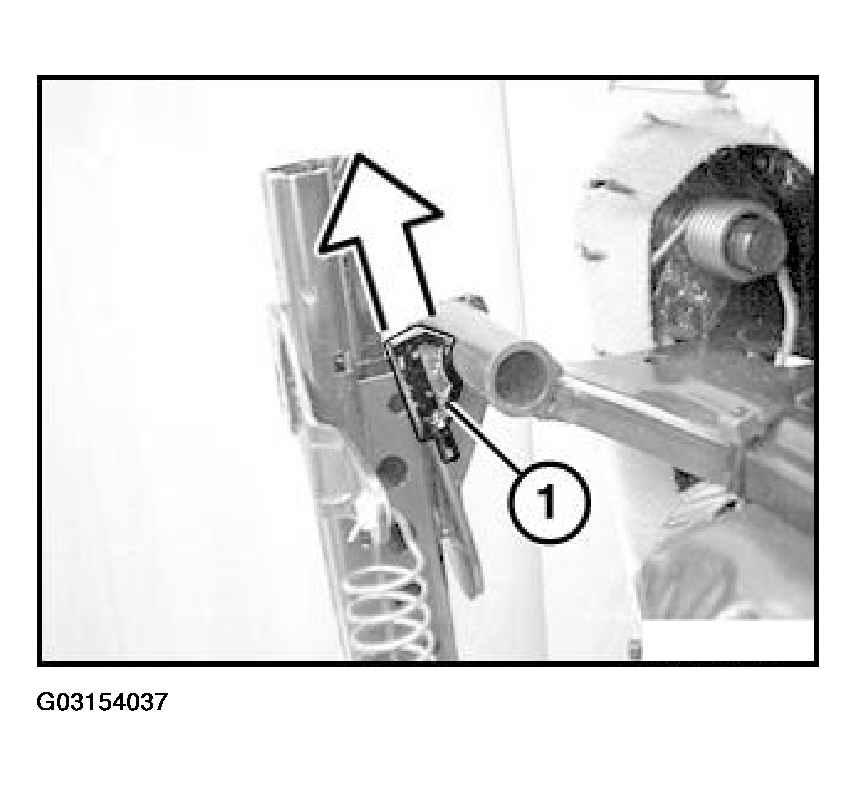

Remove spring by pressing down with large screwdriver and pull off left / right tapers (1). Remove seat rails from seat frame.

Fig 5: Pulling Off Left/Right Tapers

G03154037

Courtesy of BMW OF NORTH AMERICA, INC.

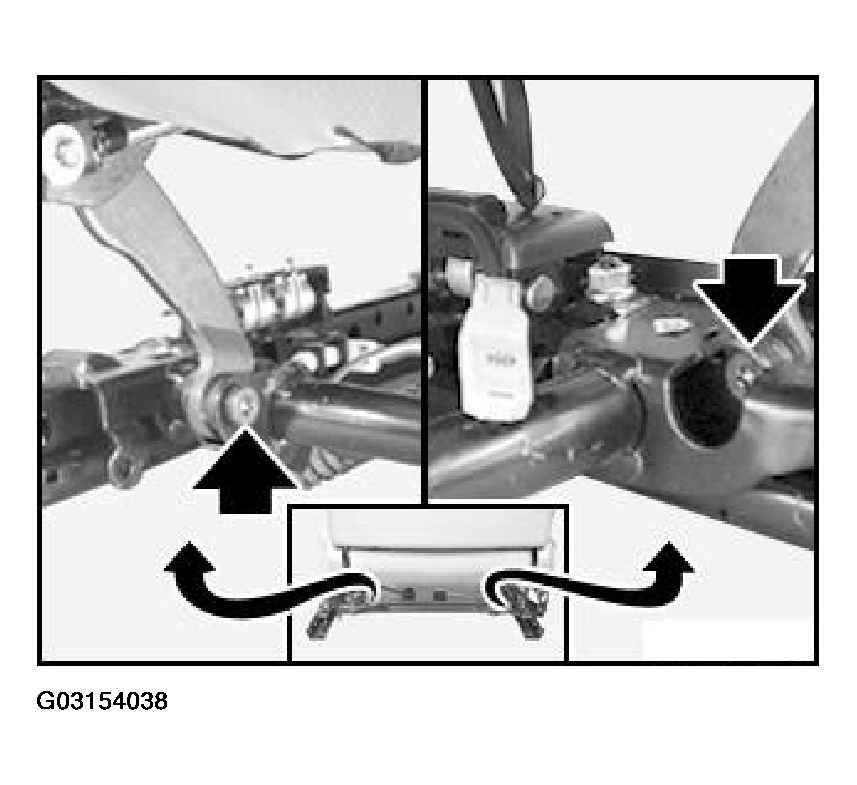

Unfasten screws and pull seat rails backwards to remove from seat frame.

Installation

Replace screws (microencapsulation).
Tightening torque, refer to 52 10 6AZ in SEATS - TIGHTENING TORQUES - 540i .

Fig 6: Unfastening Screws And Pulling Seat Rails

G03154038

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

Lift out left / right interlock and remove unlocking linkage.

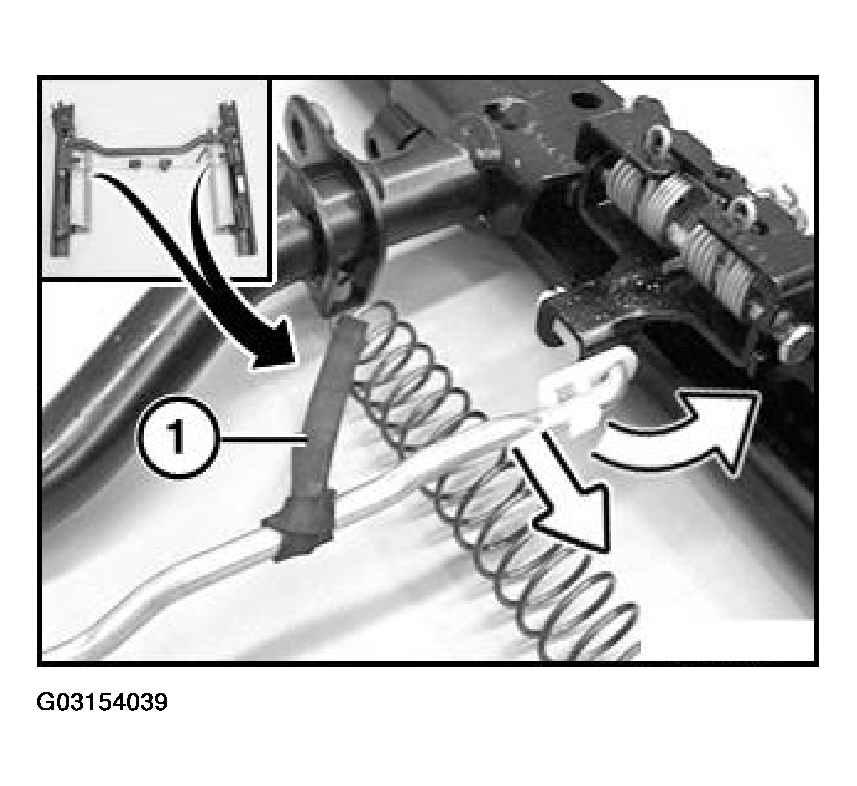

If necessary, replace rubber tape (1).

Fig 7: Replacing Rubber Tape

G03154039

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

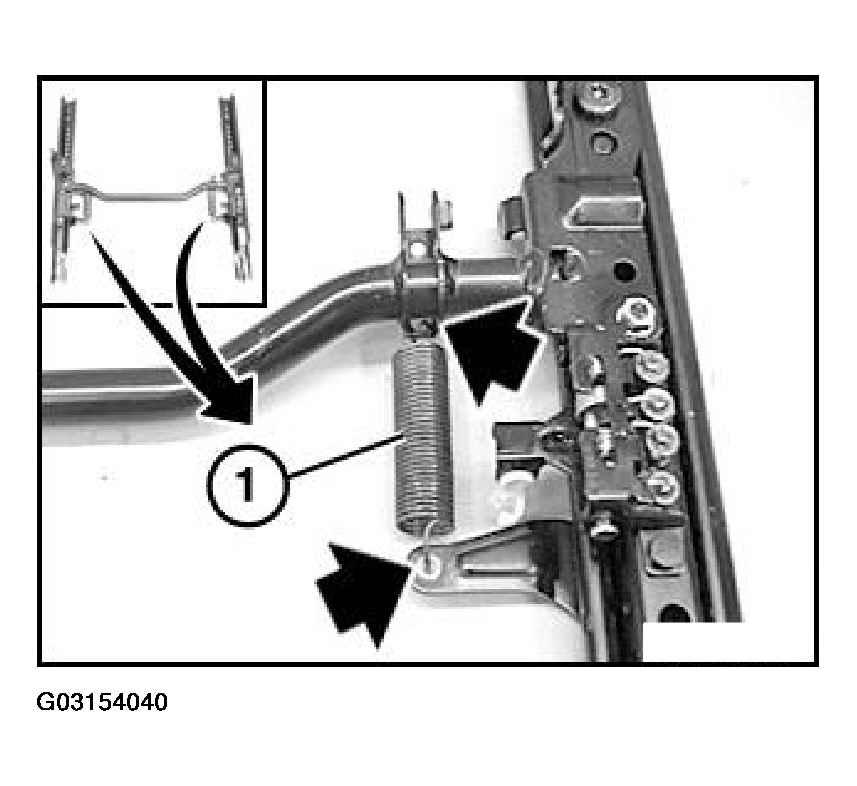

Disconnect left / right spiral spring and remove.

Fig 8: Disconnecting Left/Right Spiral Spring

G03154040

Courtesy of BMW OF NORTH AMERICA, INC.
