52 17 380 Removing and installing/replacing headrest support on left or right front seat (comfort)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing headrest,

refer to 52 17 390 REMOVING AND INSTALLING OR REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINTS (COMFORT)

Remove bottom of rear panel

refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT)

Remove top of cover from claw-type cover clips.

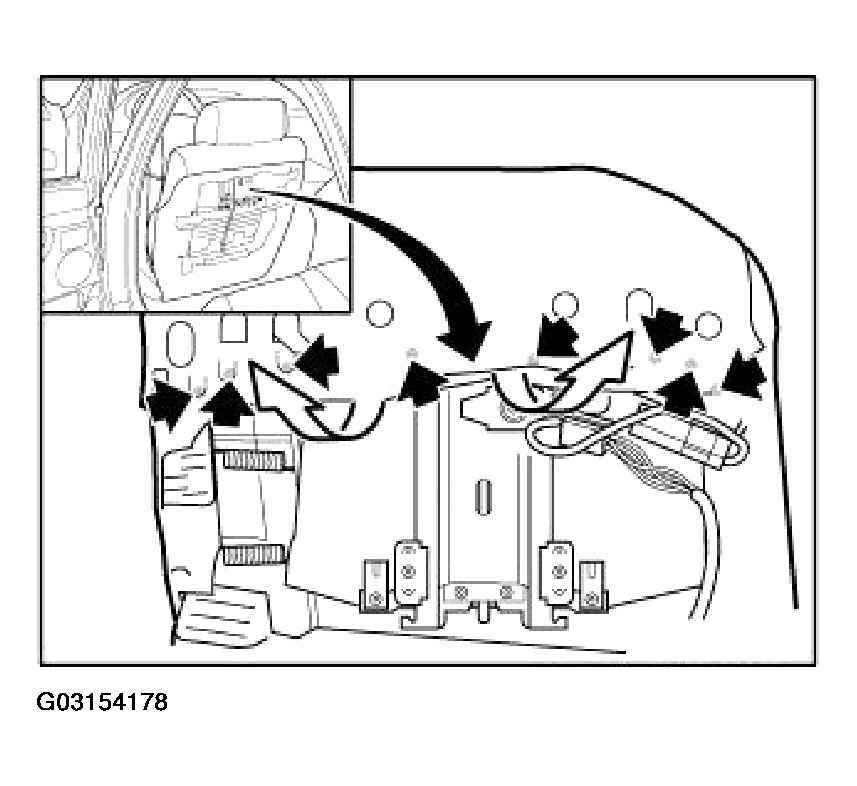

Fig 1: Removing cover clips

Courtesy of BMW OF NORTH AMERICA, INC.

Version with multifunction headrest:

If necessary, remove connector.

Installation

Check function.
The cable must not be under tension.

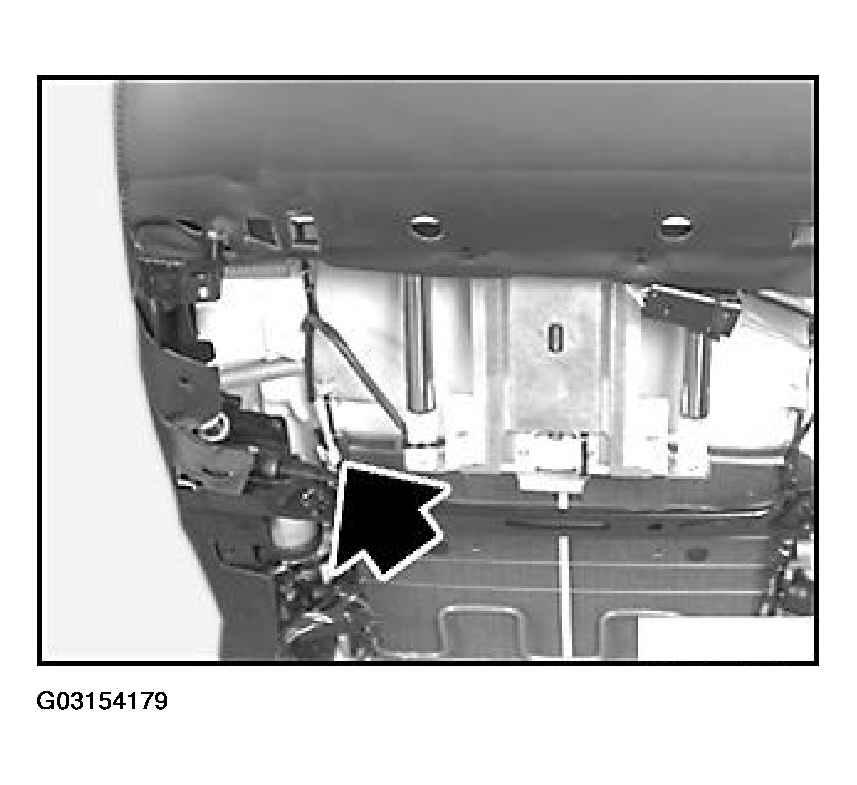

Fig 2: Removing Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

Press cover and support upwards, unfasten screw (1) and pull complete headrest support (2) with semi-circular shell section (3) downwards to remove.

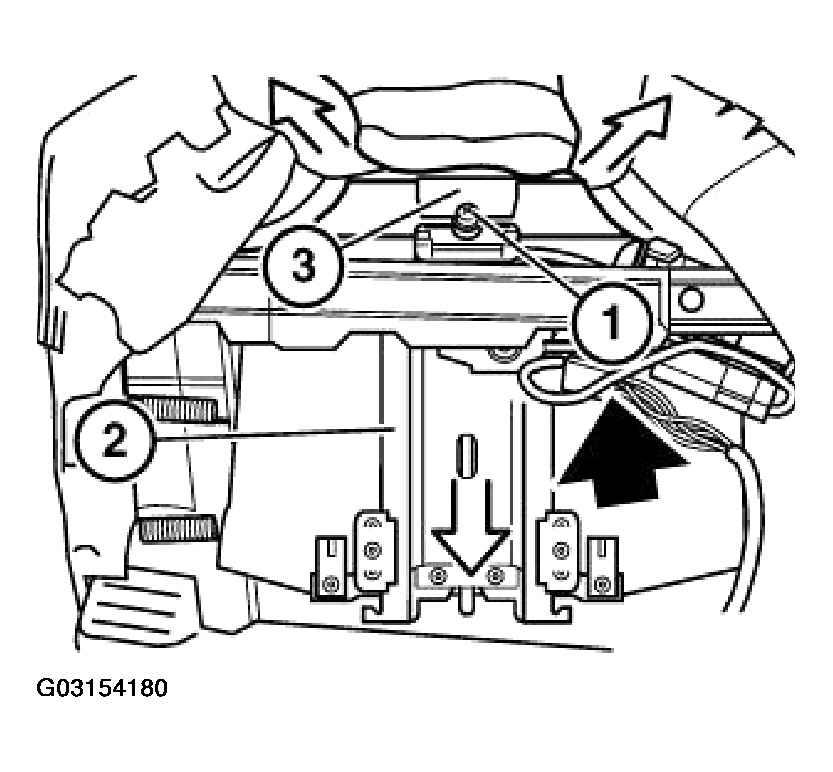

Fig 3: Pressing Cover And Support Upwards, Unfastening Screw (1) And Pulling Complete Headrest Support (2) With Semi-Circular Shell Section (3) Downward To Remove

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Attach semi-circular shell section (3) in headrest support (2), install and secure with screw (1).

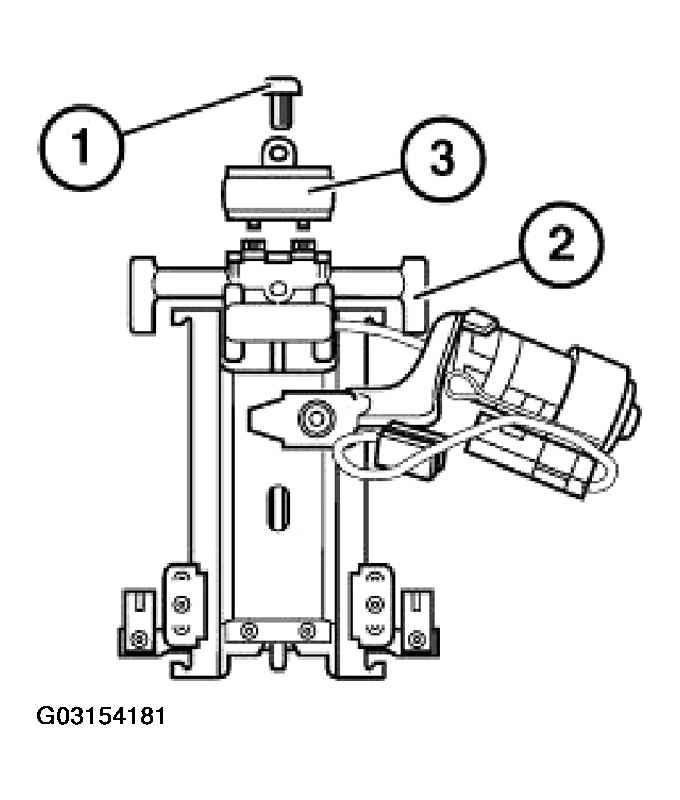

Fig 4: Attaching Semi-Circular Shell Section (3) In Headrest Support (2), Install And Secure With Screw (1)
