52 17 202 Removing and installing/replacing bottom rear panel on front seat backrest (luxury seat)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This document is also applicable to L7 driver's seat with video system in rear compartment.
Head-rest must be moved as far forwards as possible.
Remove top rear panel, refer to 52 17 200 REMOVING AND INSTALLING/REPLACING TOP REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

Pull inside edge of rear panel inwards / backwards (1) and knock firmly inwards (2) (spring disconnected at bottom inside edge).

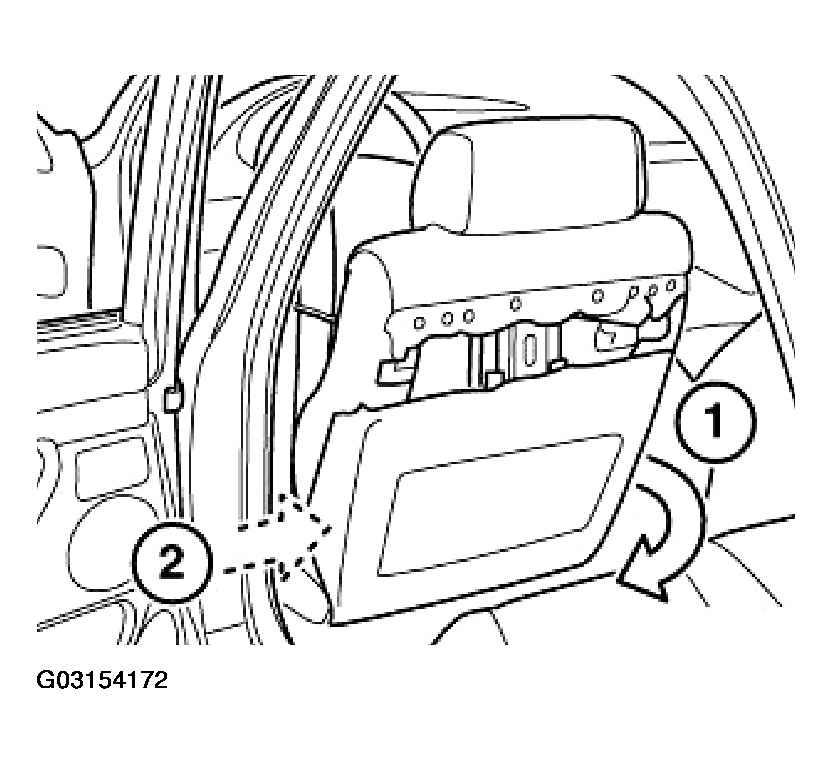

Fig 1: Pulling Inside Edge Of Rear Panel Inward/Backward

Courtesy of BMW OF NORTH AMERICA, INC.

Press inside edge of rear panel outwards (3) and pull outwards and backwards (4) (spring disconnected at bottom outside edge).

Lift rear panel upwards / backwards (5).

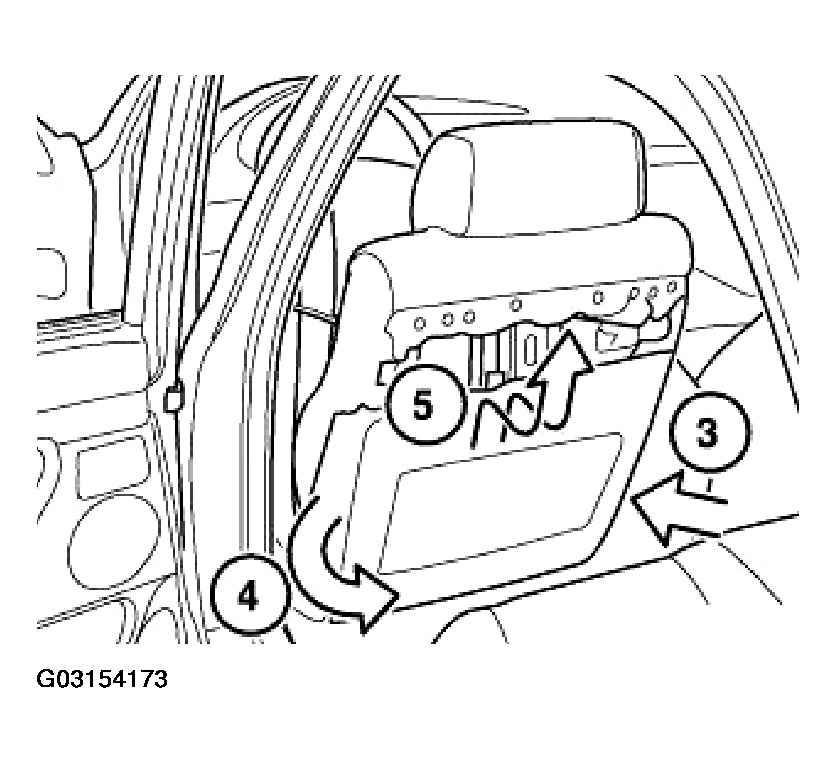

Fig 2: Lifting Rear Panel Upwards / Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

The springs must be correctly located in the rear panel supports and must not be bent.
If necessary, replace defective clips.

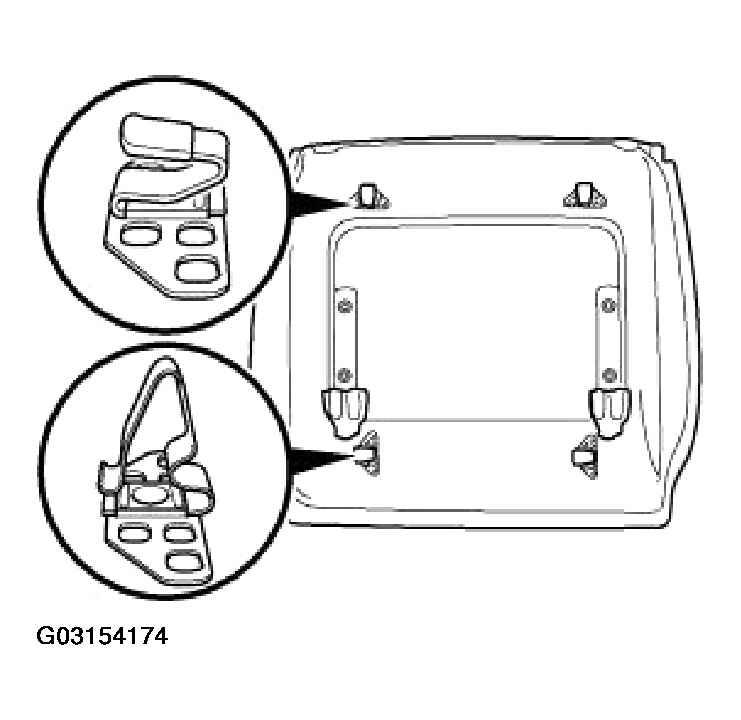

Fig 3: Ensuring Springs Are Correctly Located In Rear Panel Supports

Courtesy of BMW OF NORTH AMERICA, INC.
