52 17 041 Removing and installing / replacing inside cover from left or right front seat (comfort)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove front seat,
refer to 52 17 000 REMOVING AND INSTALLING FRONT SEAT (COMFORT)

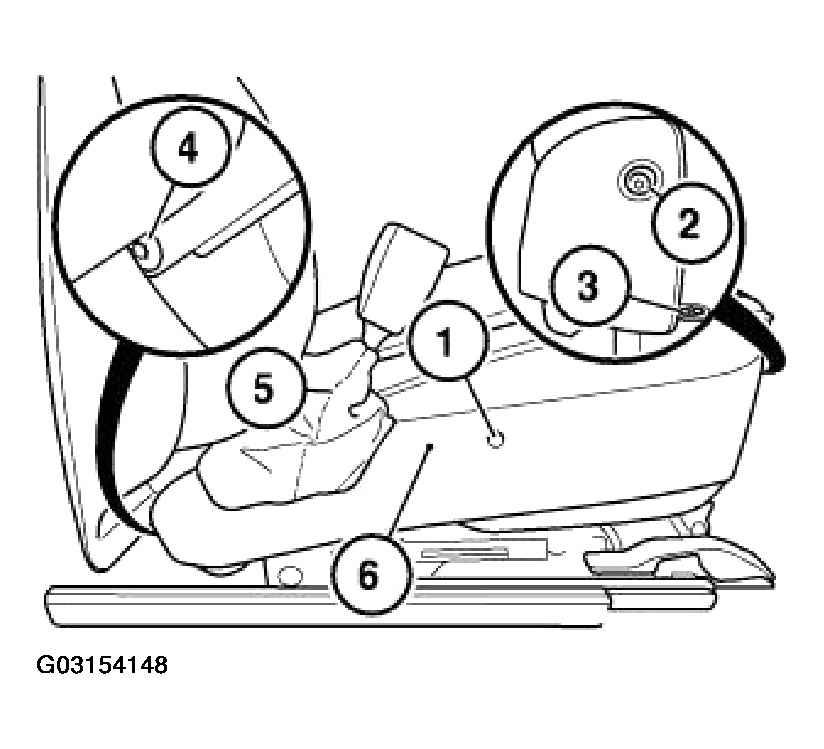

Unscrew screws (1) and (2).
Unfasten clips (3) and (4).
Open finisher cover (5) (burr fastener) and remove cover (6).
If rear clip is not accessible:
If necessary disconnect lower back wall (without dismantling top back wall),
refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT)
