52 23... Repair solution for left or right child's seat mechanism

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing rear seat,

(sedan) refer to 52 23 511 ADDITIONAL WORK WITH INTEGRATED CHILD'S SEATS

(touring) refer to 52 26 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (THROUGH-LOADING)

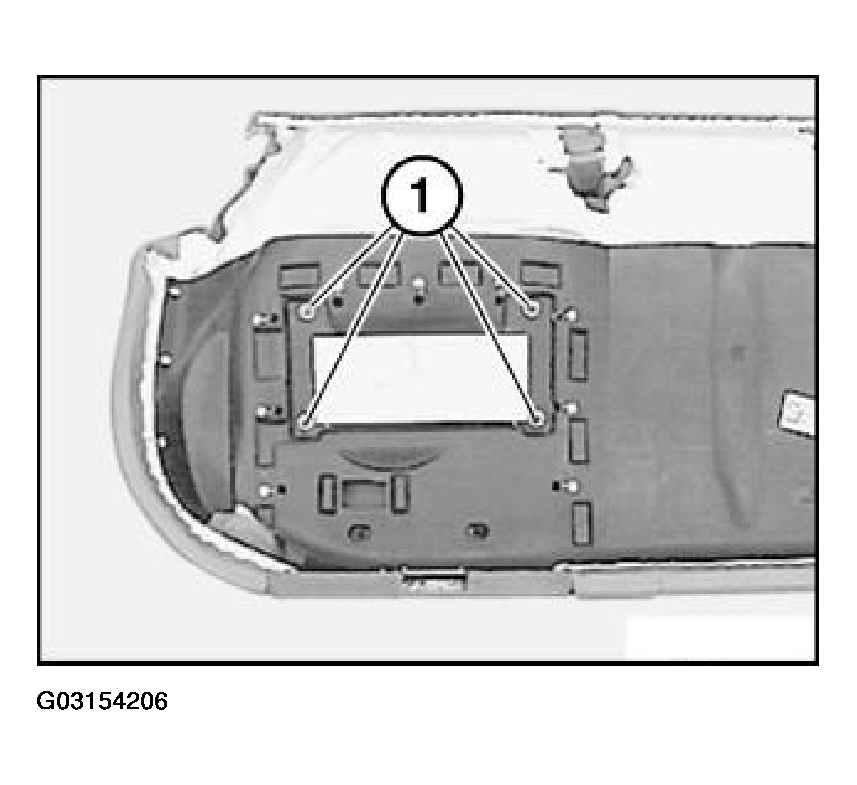

Unfasten nuts (1) and pull child's seat off rear seat.

Fig 1: Unfastening Nuts And Pulling Child's Seat Off Rear Seat

G03154206

Courtesy of BMW OF NORTH AMERICA, INC.

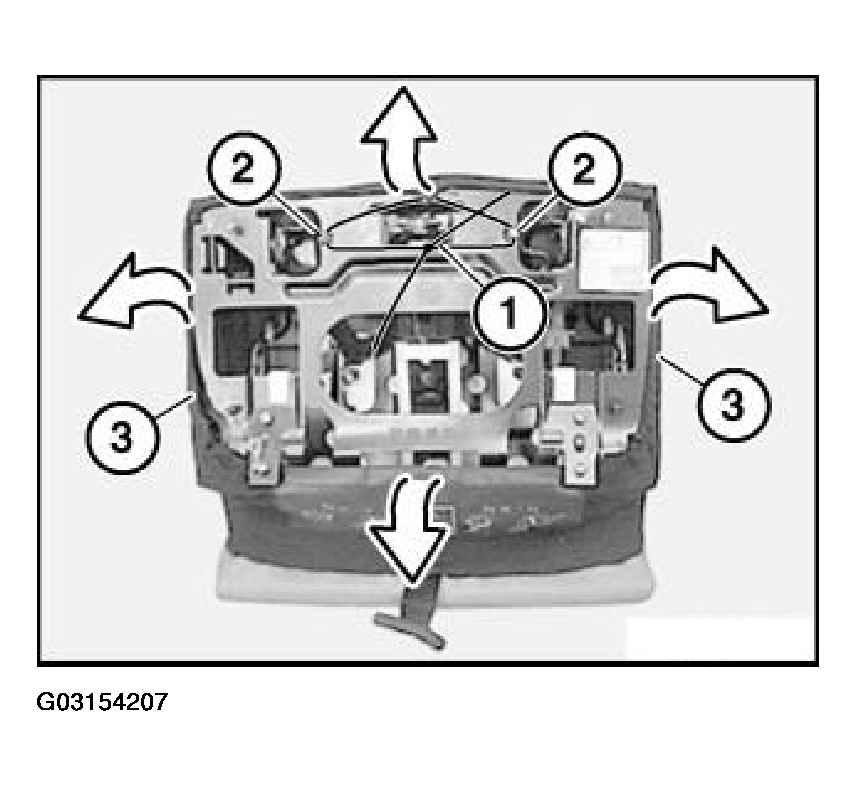

Untie steel cable (1) and lift out of lugs (2). Lift out cover (3) on all sides.

Fig 2: Untying Steel Cable (1) And Lifting Out Of Lugs (2)

G03154207

Courtesy of BMW OF NORTH AMERICA, INC.

Replace loop cable:

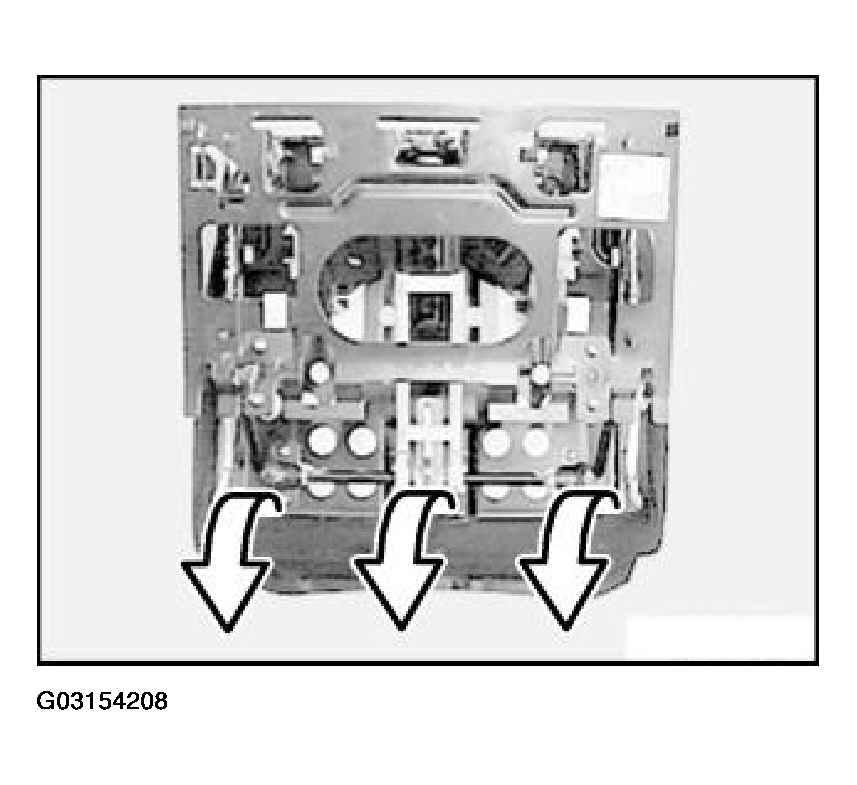

Unhook cover at front.

Fig 3: Unhooking Cover

G03154208

Courtesy of BMW OF NORTH AMERICA, INC.

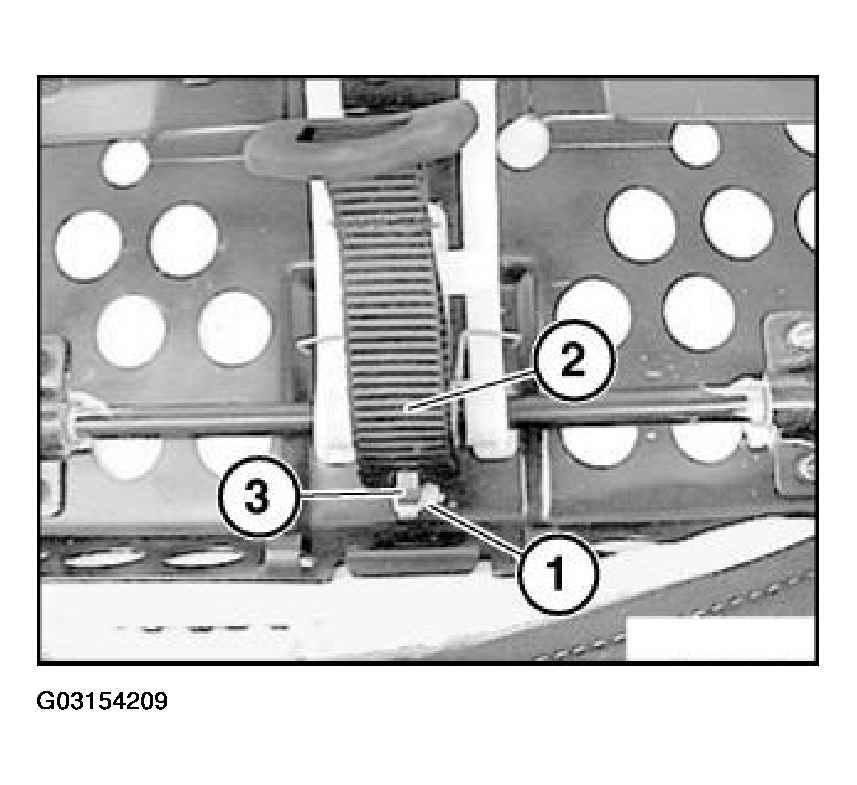

Unfasten cable ties (1) and pull loop cable (2) off bracket (3).

Fig 4: Unfastening Cable Ties And Pulling Loop Cable

G03154209

Courtesy of BMW OF NORTH AMERICA, INC.

Replace central clip:

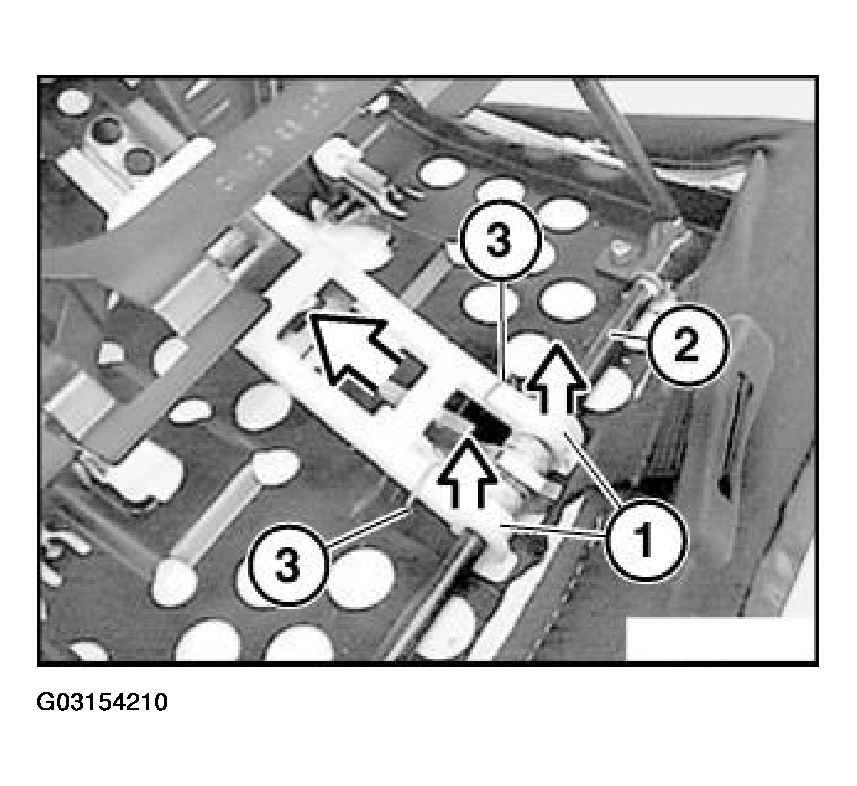

Unclip central clip (1) from rod (2) and thread out of spring (3).

Fig 5: Unclipping Central Clip From Rod

G03154210

Courtesy of BMW OF NORTH AMERICA, INC.

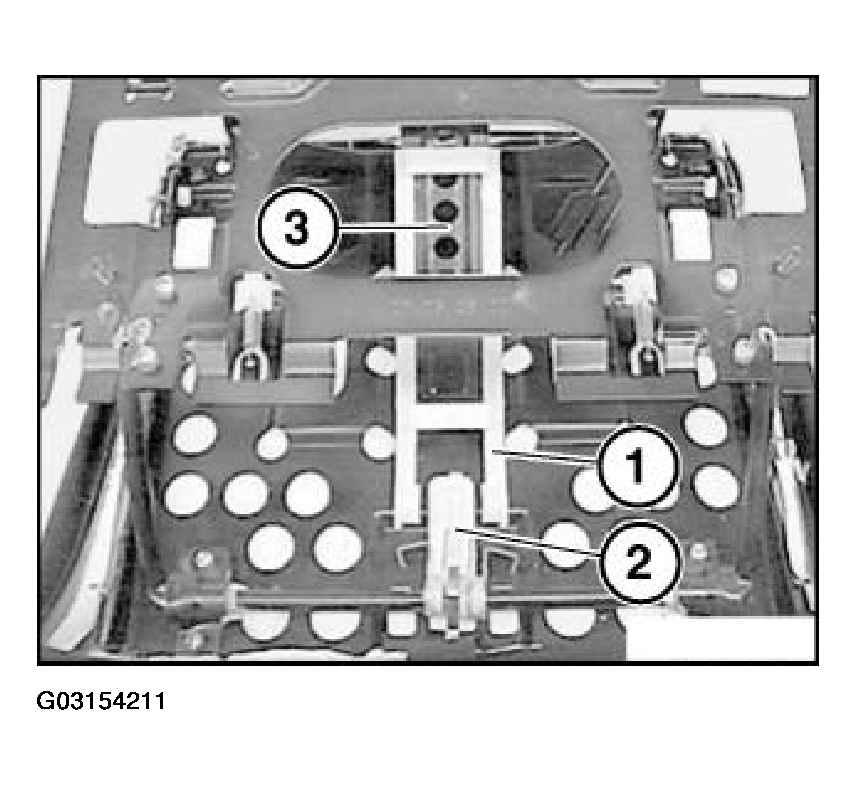

Push up central clip (1) until detent (2) is free, then pull off guide (3).

Fig 6: Pushing Up Central Clip Until Detent Is Free

G03154211

Courtesy of BMW OF NORTH AMERICA, INC.
