52 23 511 Additional work with integrated child's seats

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

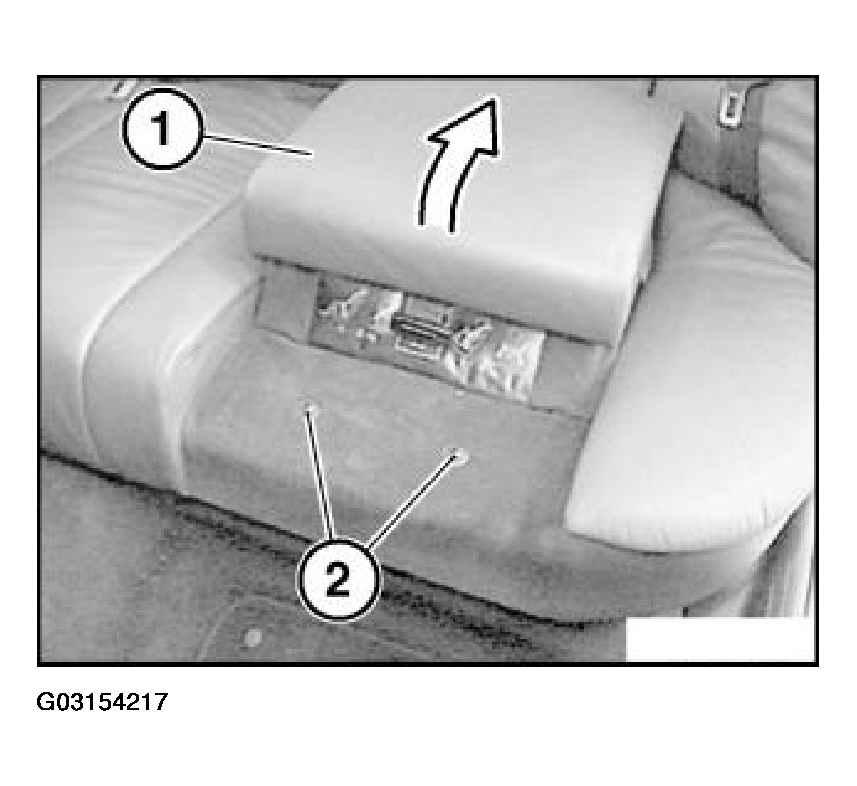

Fold up child's seat (1) and unfasten left/right expansion rivets (2).

NOTE: Remove pins of expansion rivets (2) from vehicle.

Fig 1: Folding Up Child's Seat

G03154217

Courtesy of BMW OF NORTH AMERICA, INC.

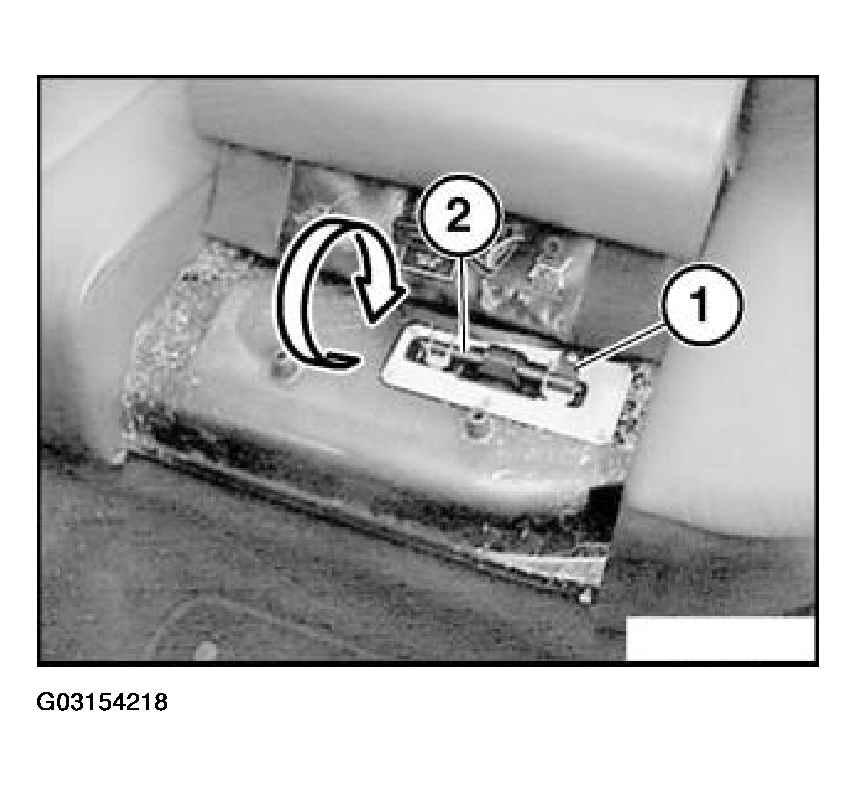

Press down retaining plate (1) and turn left/right locking pin (2) by 180°.

Fig 2: Pressing Down Retaining Plate (1 of 2)

G03154218

Courtesy of BMW OF NORTH AMERICA, INC.

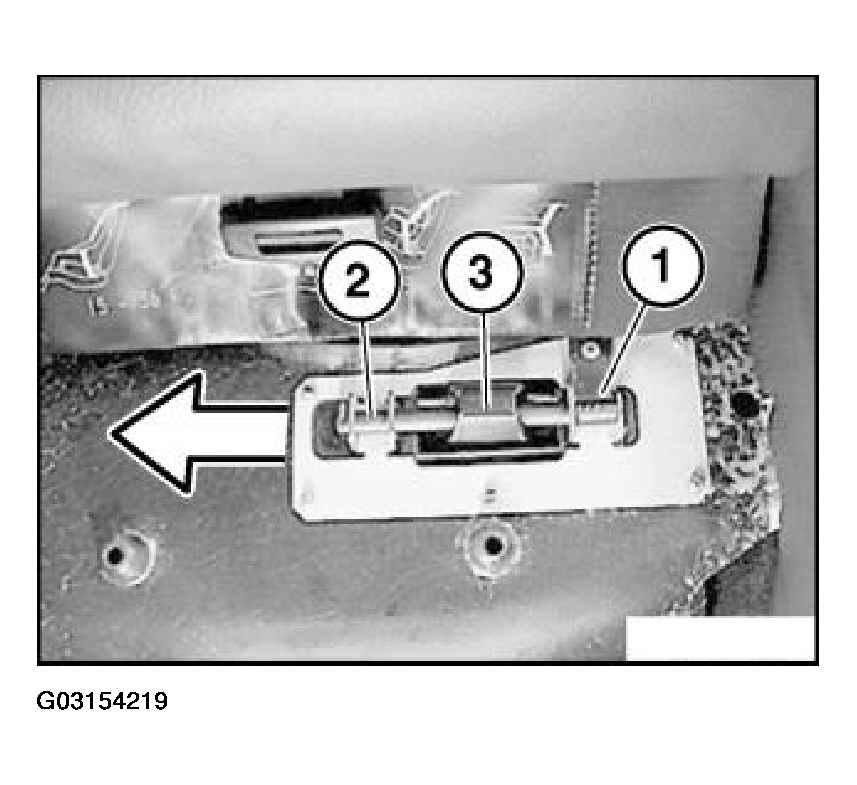

Pressing down retaining plate (1) and pull out left/right locking pin (2) until lug (3) is free.

Fig 3: Pressing Down Retaining Plate (2 of 2)

G03154219

Courtesy of BMW OF NORTH AMERICA, INC.

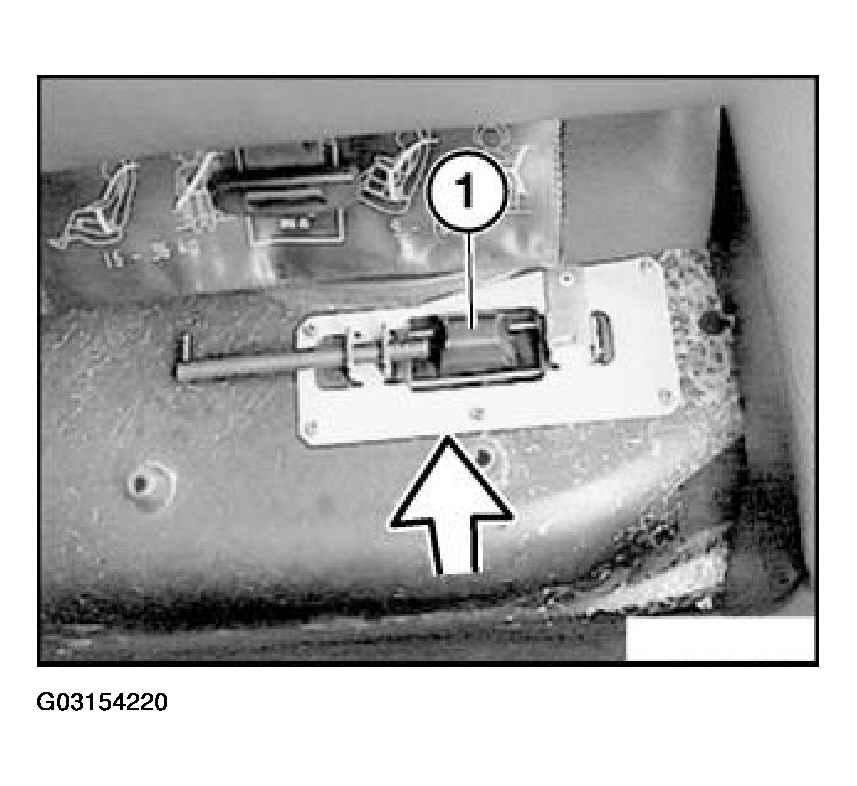

Lift left/right rear seat upward out of lugs (1).

Fig 4: Lifting Left/Right Rear Seat Upward Out Of Lugs (1)

G03154220

Courtesy of BMW OF NORTH AMERICA, INC.

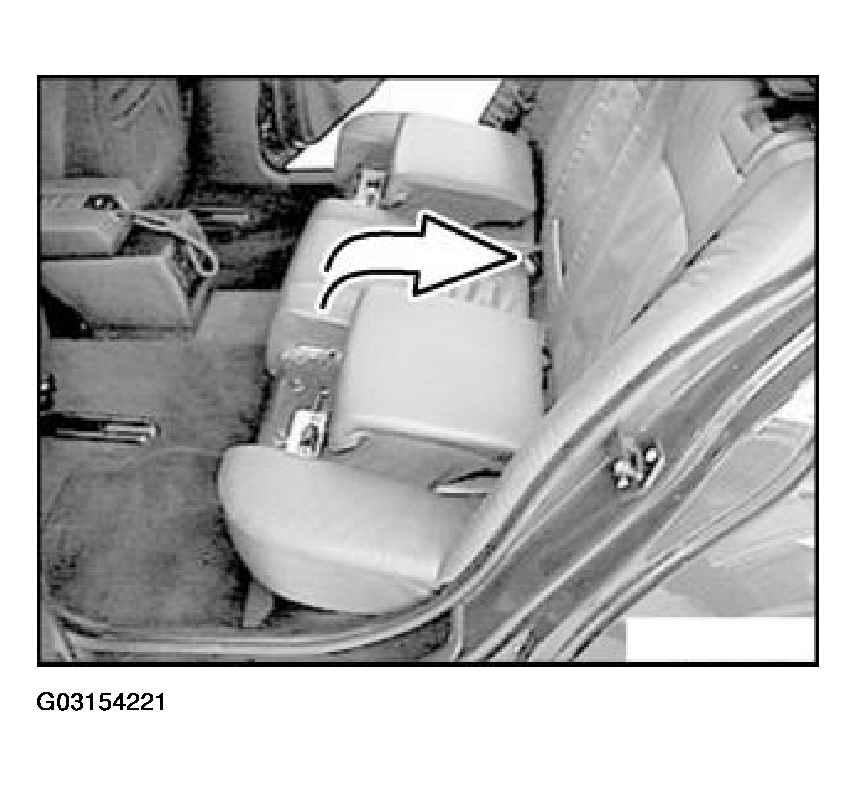

Lift out rear seat and remove from vehicle.

Fig 5: Lifting Out Rear Seat

G03154221

Courtesy of BMW OF NORTH AMERICA, INC.
