51 34 420 Removing and installing/replacing trim on window frame of rear door (front), left or right (Protection)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rubber seal for door window glass, rear left or right,

refer to 51 34 211 REPLACING RUBBER GUIDE FOR REAR LEFT OR RIGHT DOOR WINDOW .

Open rear door.

Detach rubber seal (1) from rear of door.

Installation

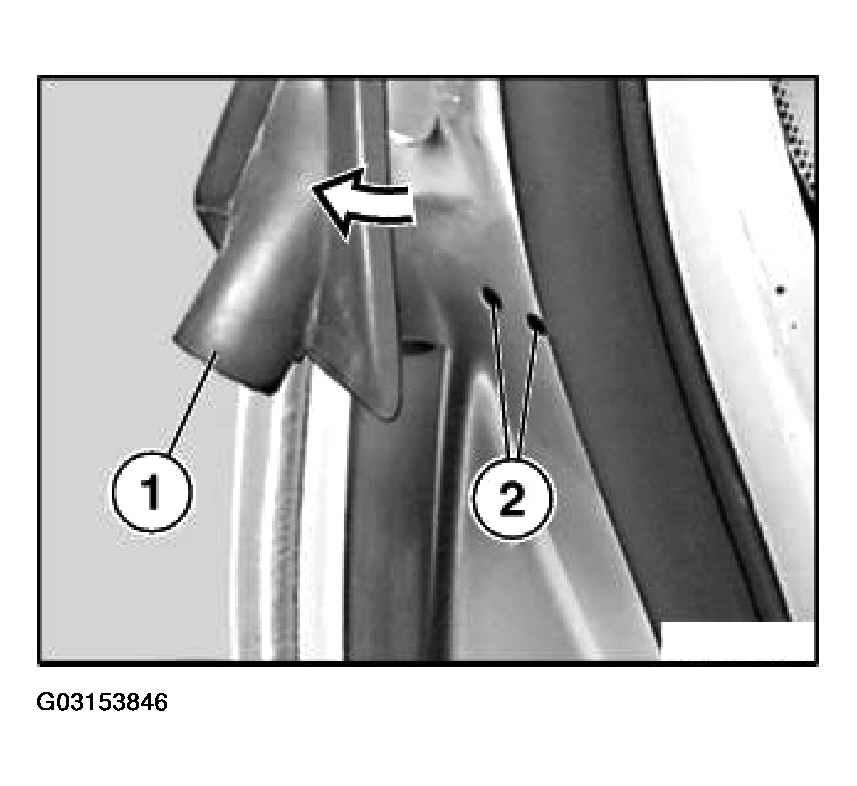

First press pimples on rubber seal into bores (2).

Fig 1: Detaching Rubber Seal From Rear Of Door

G03153846

Courtesy of BMW OF NORTH AMERICA, INC.

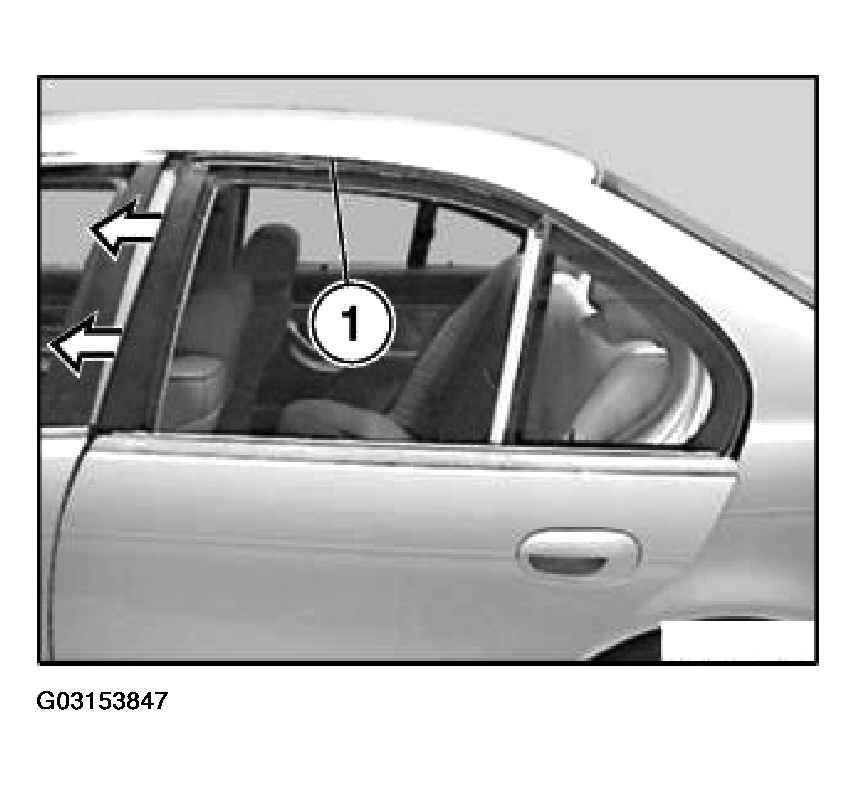

Detach and remove rubber seal (1) at front.

Installation

Coat rubber seal with rubber protection coating agent (sourcing reference: BMW Part).

Fig 2: Detaching And Removing Rubber Seal At Front

G03153847

Courtesy of BMW OF NORTH AMERICA, INC.

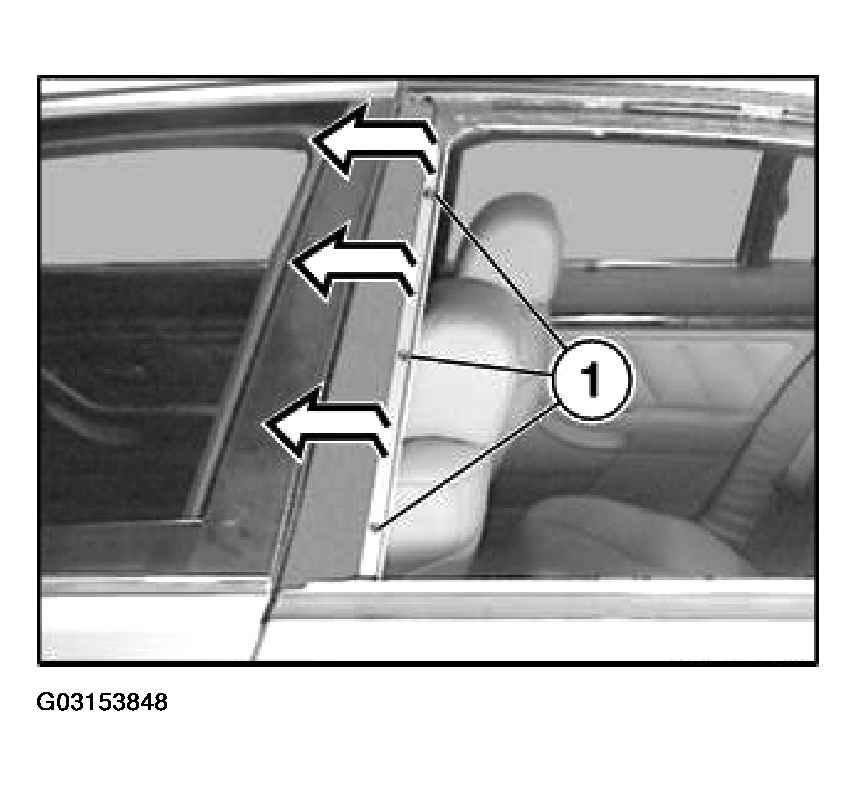

Unscrew bolts (1). Lift out trim (2) at rear and remove towards front.

Fig 3: Lifting Out Trim At Rear And Remove Towards Front

G03153848

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

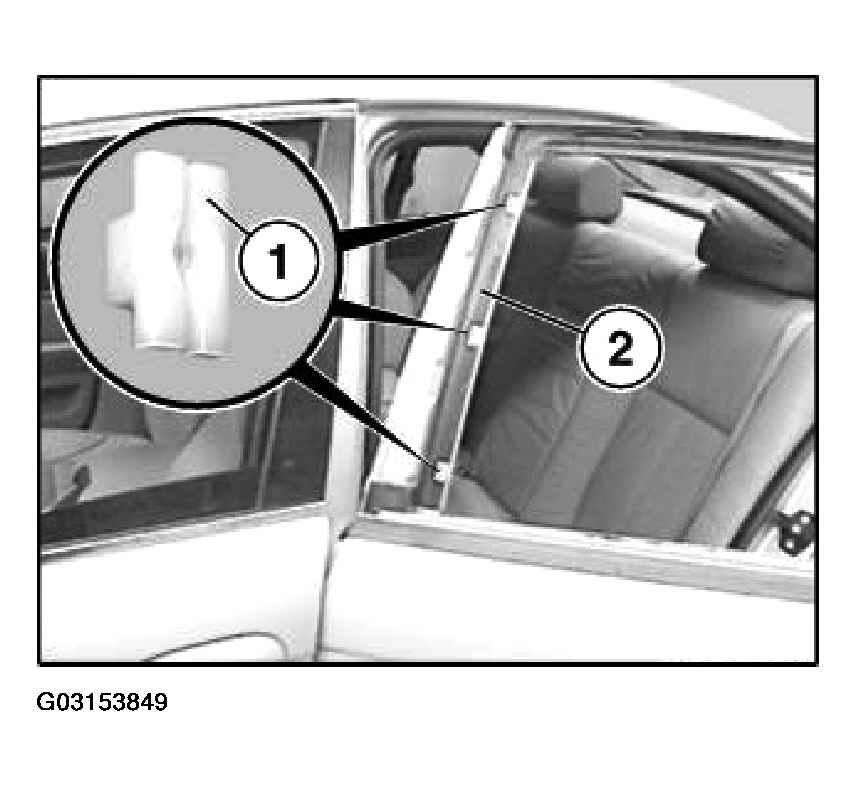

If necessary, replace faulty plastic nuts (1) and insulating material (2).

Fig 4: Replacing Faulty Plastic Nuts And Insulating Material

G03153849

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

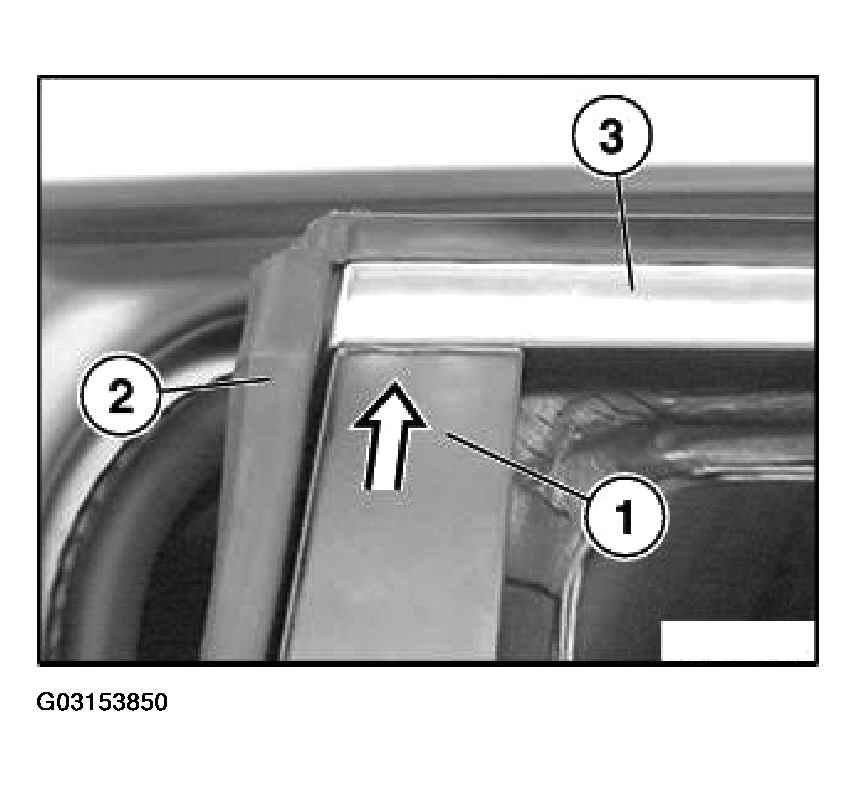

Install trim strip (3) to align trim (1) and rubber seal (2).
Press trim (1) upwards against trim strip (3) and screw into place.
Remove trim strip (3) again.

Fig 5: Pressing Trim Upwards Against Trim Strip And Screw Into Place

G03153850

Courtesy of BMW OF NORTH AMERICA, INC.
