51 34 211 Replacing rubber guide for rear left or right door window

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install cover on fixed door window of inside rear door,

refer to 51 34... REMOVING AND INSTALLING/REPLACING COVER ON FIXED DOOR WINDOW OF REAR DOOR, INSIDE LEFT OR RIGHT

Raise window cavity cover strip on rear door, outside front (do not remove),

refer to 51 22 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON REAR DOOR ON LEFT OR RIGHT

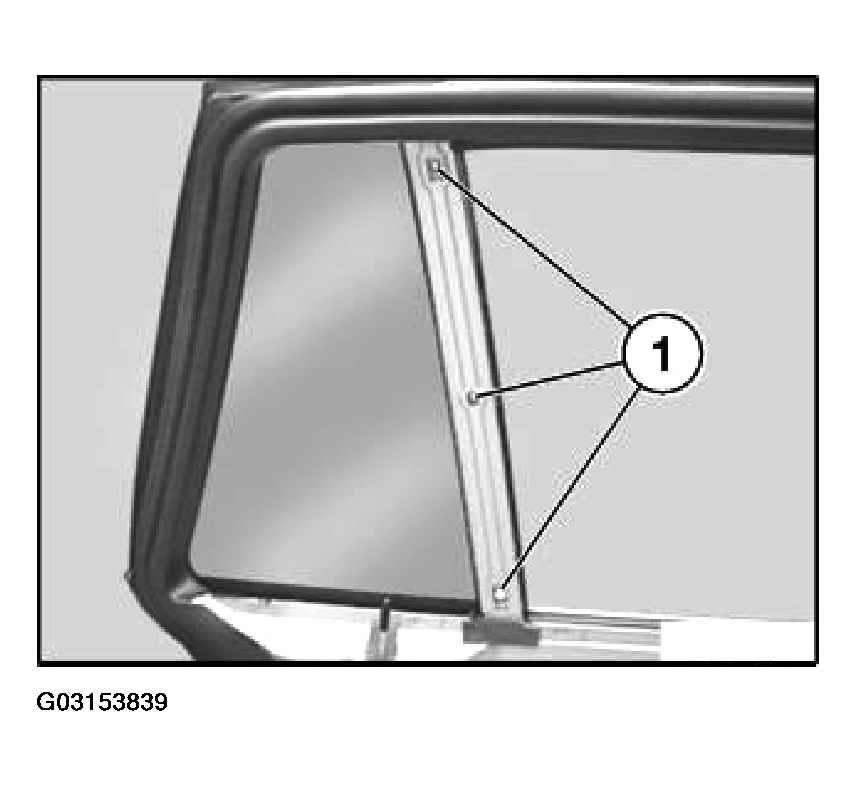

Unscrew bolts (1).

Fig 1: Unscrewing Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

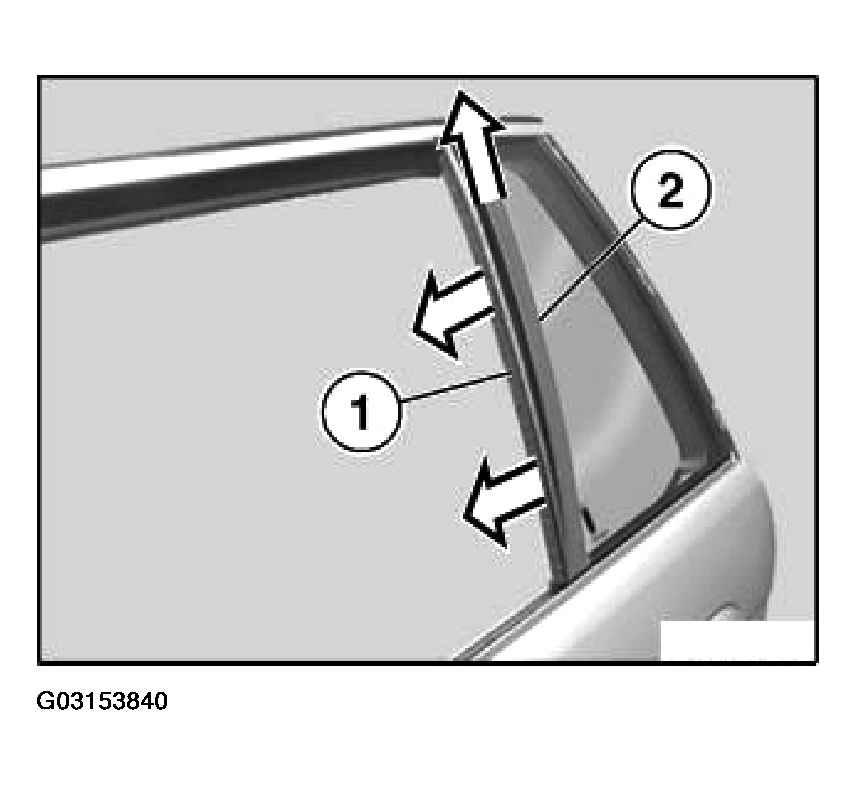

Detach rubber guide (1) and remove trim (2) upwards.

Fig 2: Removing Rubber Guide And Removing Trim Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

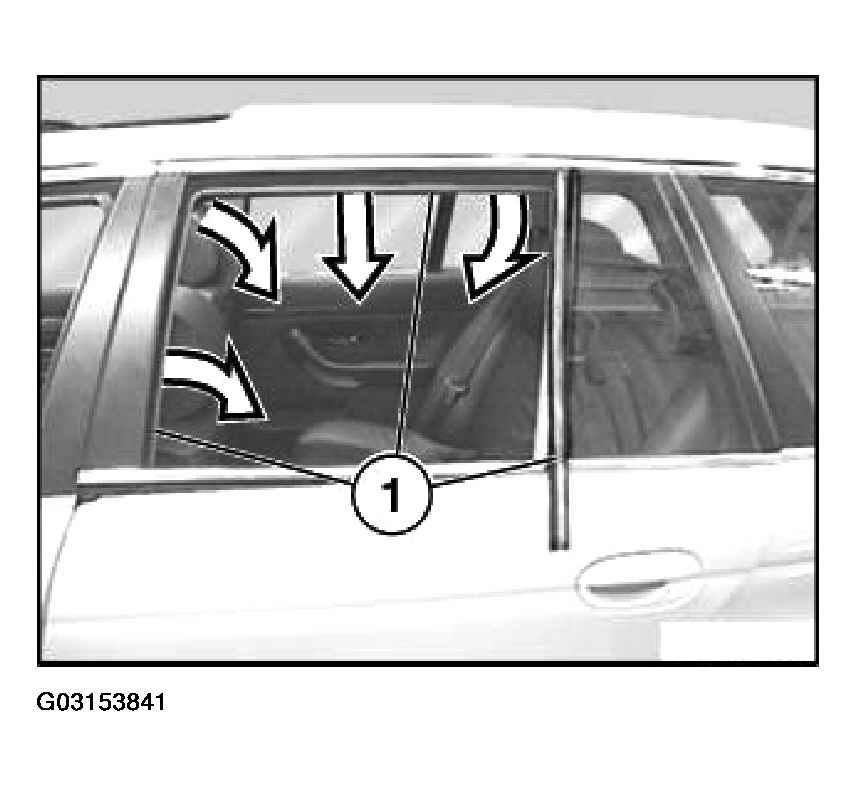

Remove rubber guide (1).

Fig 3: Removing Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.
