51 22 300 Removing and installing/replacing window cavity cover strip on rear door on left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

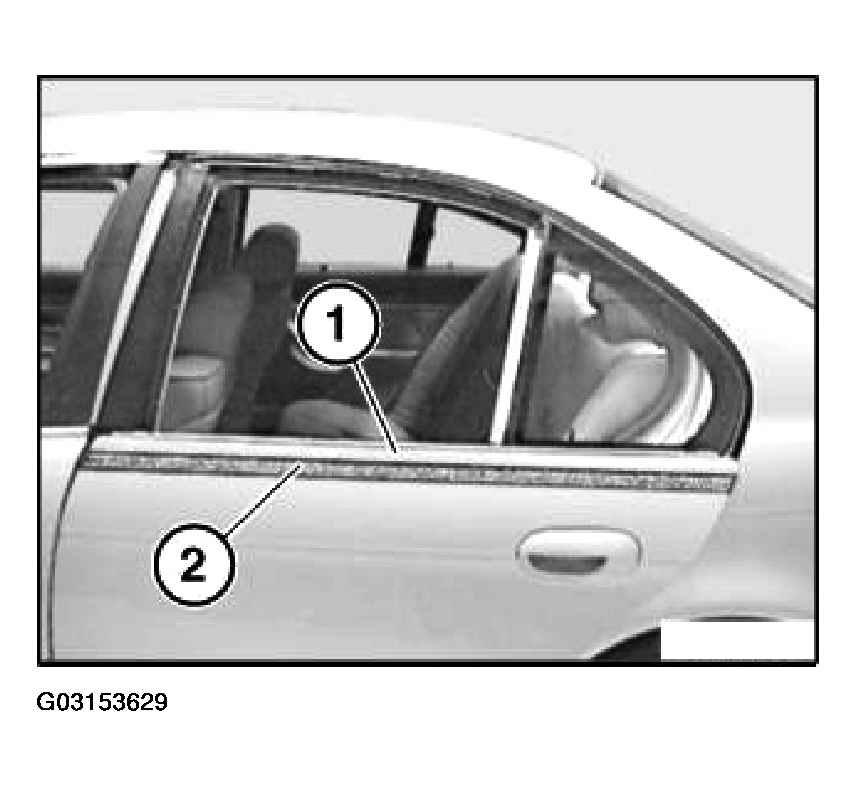

Stick adhesive tape (2) below window cavity cover strip (1) (risk of damage).

Fig 1: Sticking Adhesive Tape Below Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

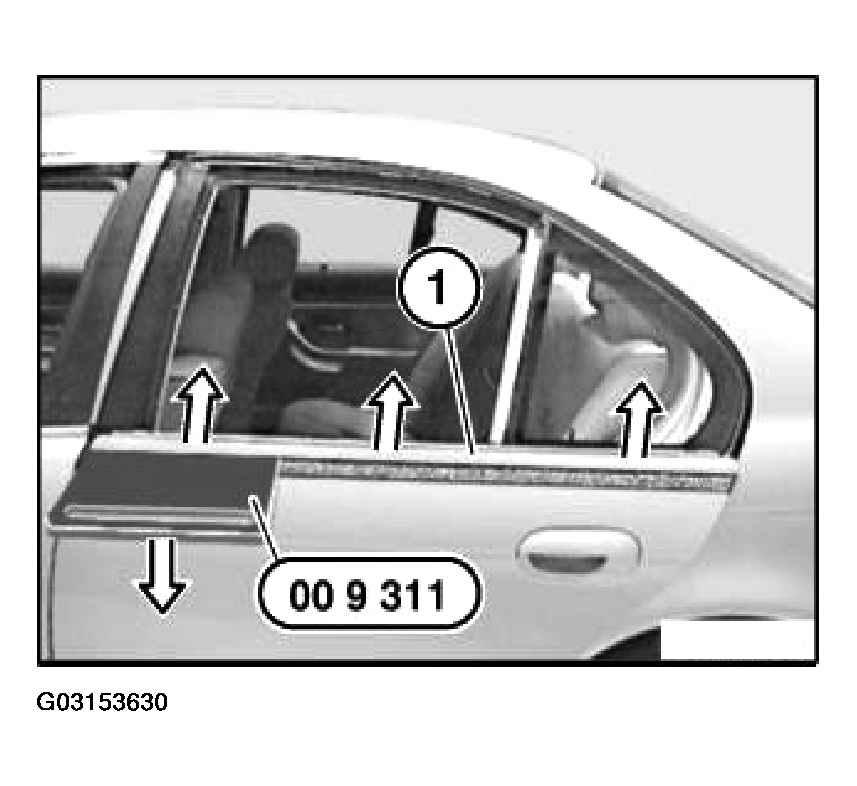

Using special tool 00 9 311 (beginning at front proceeding to rear), lever out window cavity cover strip (1).

Installation

Apply a thin coat of turpentine substitute to window cavity cover strip (1).
Window cavity cover strip (1) must be flush with door edge at front and rear.

Fig 2: Applying Thin Coat Of Turpentine Substitute To Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
