51 34 171 Replacing rear left or right door window

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Open rear door window completely.

Disconnect battery negative lead.

Remove and install window cavity trim on outside of rear door,

refer to 51 22 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON REAR DOOR ON LEFT OR RIGHT .

Remove sound insulation on rear door,

refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT

Remove and install cover on fixed door window of inside rear door,

refer to 51 34... REMOVING AND INSTALLING/REPLACING COVER ON FIXED DOOR WINDOW OF REAR DOOR, INSIDE LEFT OR RIGHT

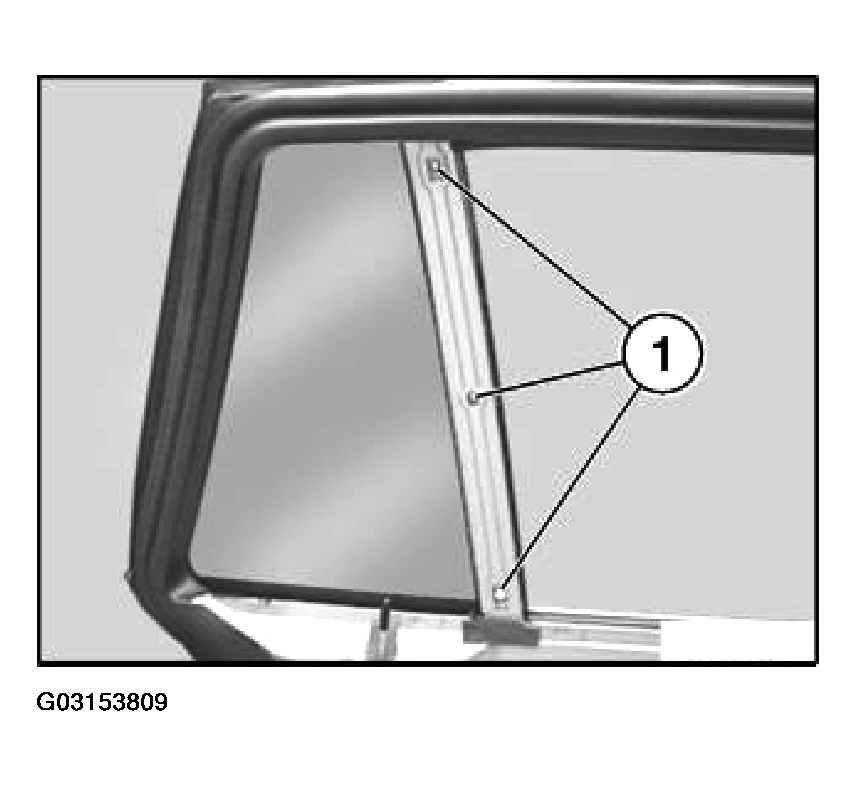

Release screws (1).

Fig 1: Releasing Screws
