51 48... Removing and installing/replacing sound insulation in rear door, left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel,

refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

If necessary, remove airbag module in rear door,

refer to AIR BAG RESTRAINT SYSTEMS .

Remove inside door handle on rear door,

refer to 51 22 225 REMOVING AND INSTALLING/REPLACING INSIDE DOOR HANDLE OF REAR LEFT OR RIGHT DOOR .

Release cable (1).

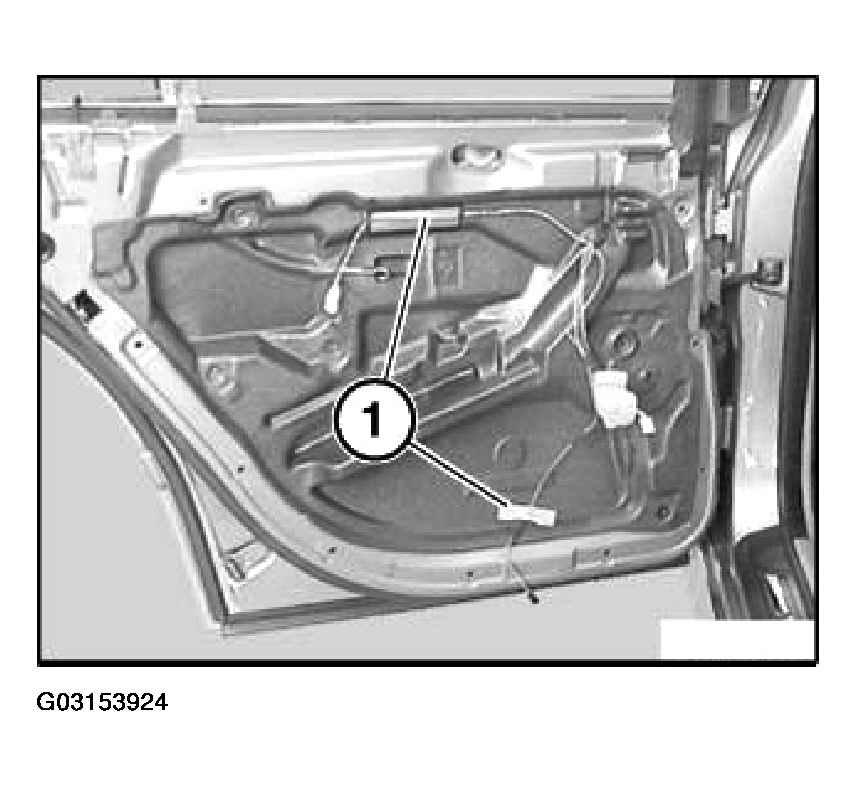

Fig 1: Releasing Cable

Courtesy of BMW OF NORTH AMERICA, INC.

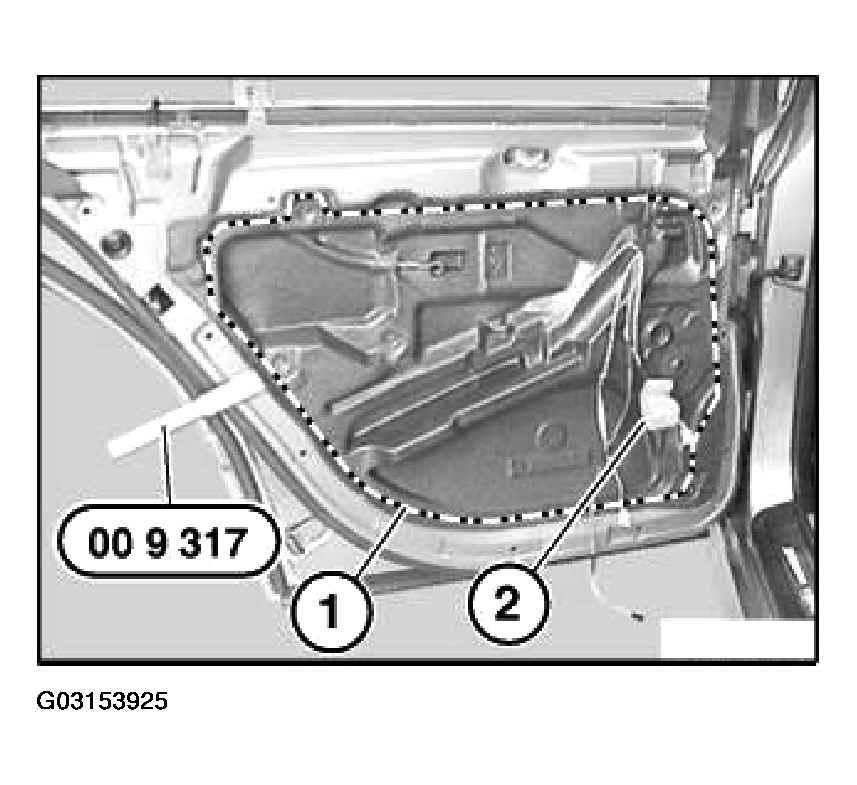

Using special tool 00 9 317 (trim panel wedge), lever out sealing bead (1) of sound insulation (2) completely or if necessary partially.

Fig 2: Levering Out Sealing Bead Of Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

In event of replacement or partial detachment, lay butylene tape (sourcing reference: BMW Part) on inner door plate or sound insulation.
Seal cable penetrations with butylene tape.

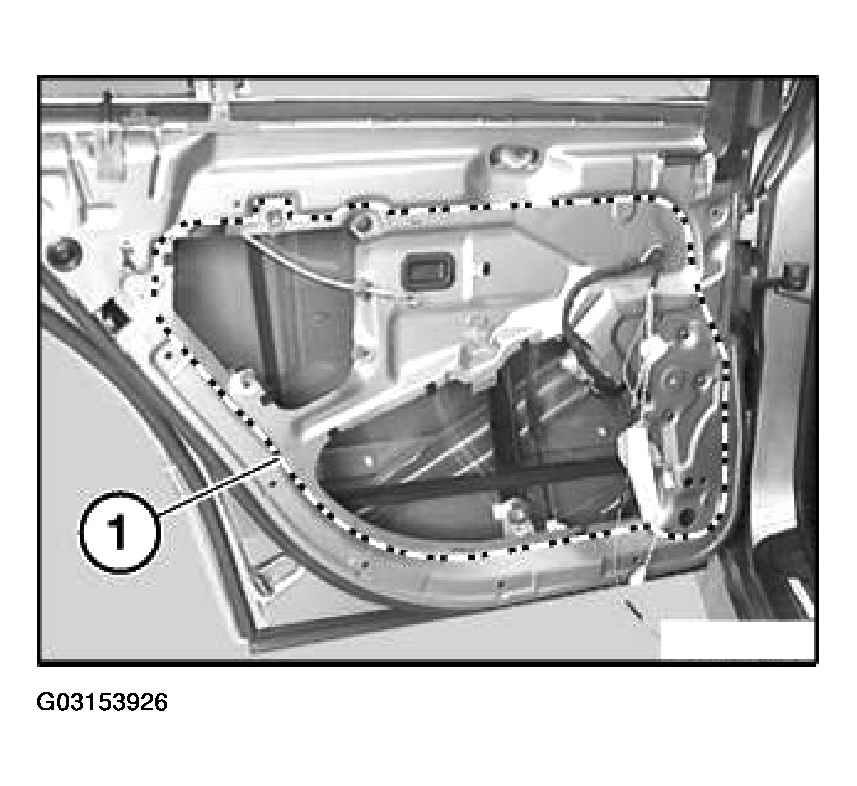

NOTE: Position of butylene tape (1) on inner door plate.

Fig 3: Identifying Position Of Butylene Tape On Inner Door Plate

Courtesy of BMW OF NORTH AMERICA, INC.

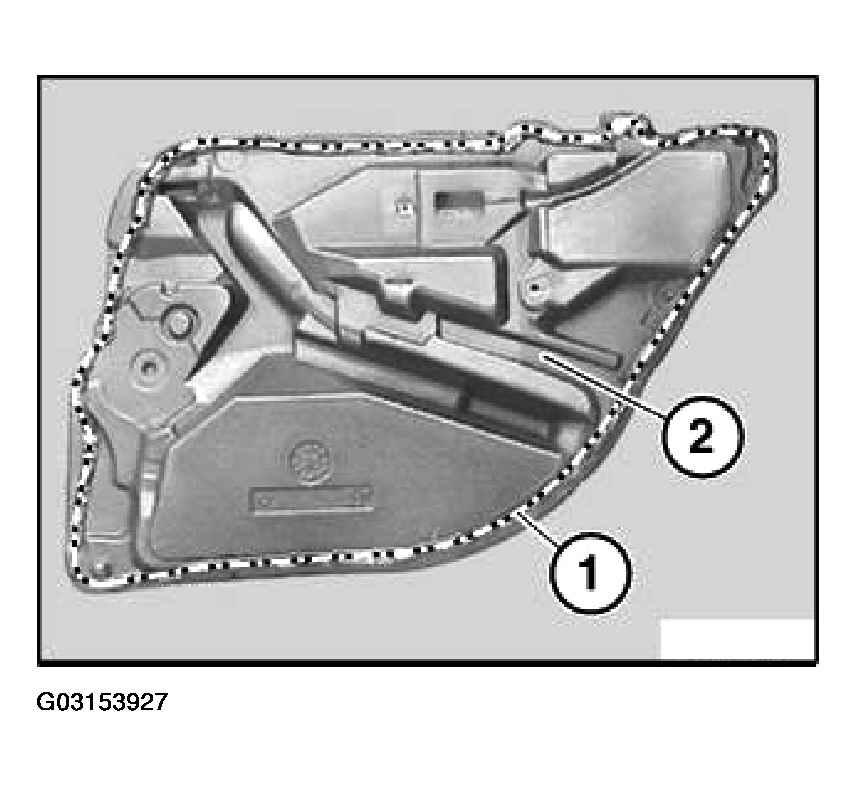

NOTE: Position of butylene tape (1) on sound insulation (2).

Fig 4: Identifying Position Of Butylene Tape On Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: When working with adhesive cleaners in enclosed rooms:
Ensure room is well ventilated.
The adhesive areas must be dry and free from dust and grease.
After cleaning, do not touch the adhesive areas with bare hands.

If necessary, clean the specified adhesive area with adhesive cleaner (sourcing reference: BMW Part).

Air drying time: 1 minute

Lay butylene tape with "PHI" 6 mm (sourcing reference: BMW Part) in specified adhesive area.

Heat butylene tape (hot air blower) and press down firmly on sound insulation all around.

Contact pressure with hand roller: approx. 30 N/cm²

Manual contact pressure: approx. 10 N/cm²

NOTE: Firm thumb pressure has approx. 50 N/cm²
