51 22 225 Removing and installing/replacing inside door handle of rear left or right door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove REAR DOOR TRIM PANEL .

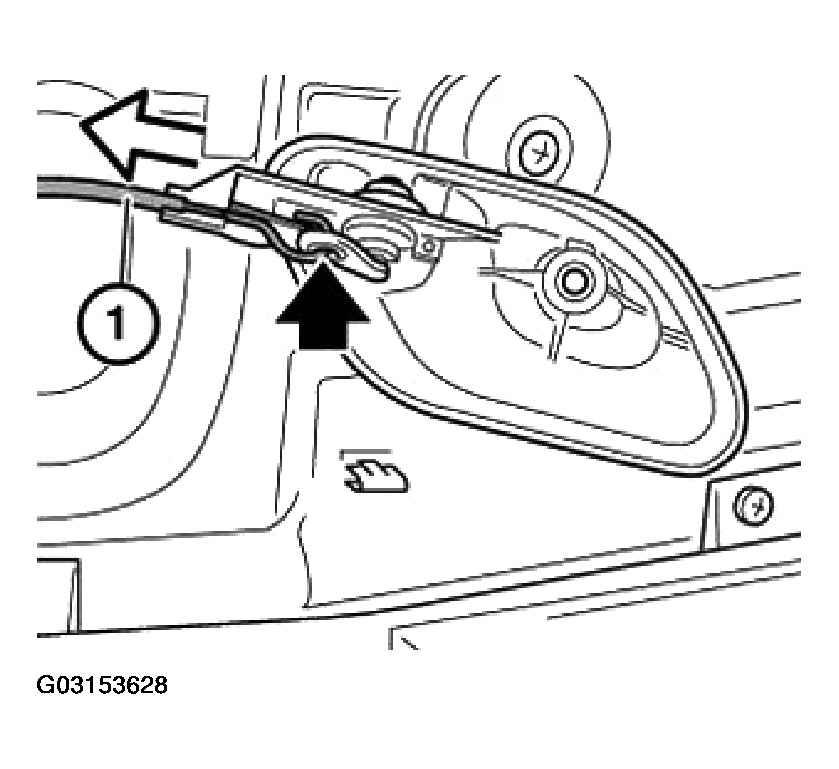

Pull Bowden cable (1) towards rear and unhook from door opener.

Fig 1: Pulling Bowden Cable Towards Rear And Unhook From Door Opener
G03153628Courtesy of BMW OF NORTH AMERICA, INC.
