51 22 351 Replacing window cavity gasket on inner left or right rear door
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove and install window cavity trim on inside of rear door, refer to 51 22 330 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON INSIDE REAR DOOR .

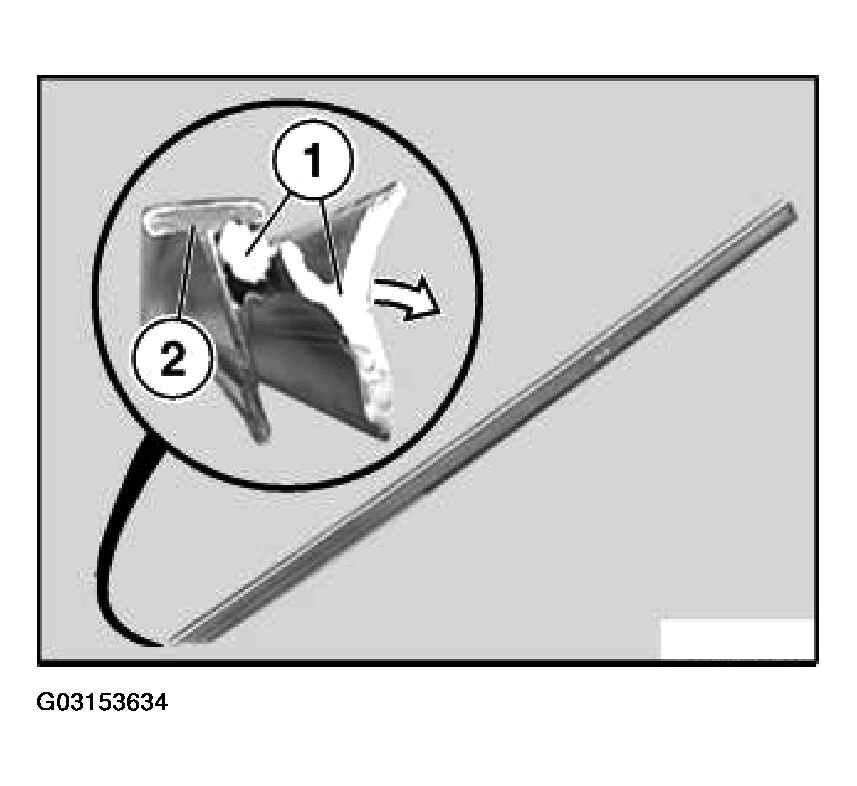

Pull window cavity gasket (1) off window cavity cover strip (2).
Installation
- Coat window cavity seal (1) for assembly with rubber protection coating agent (BMW Part).
