51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear left or right door trim, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Beginning from front, raise clips with special tool 00 9 321 (folding leg).

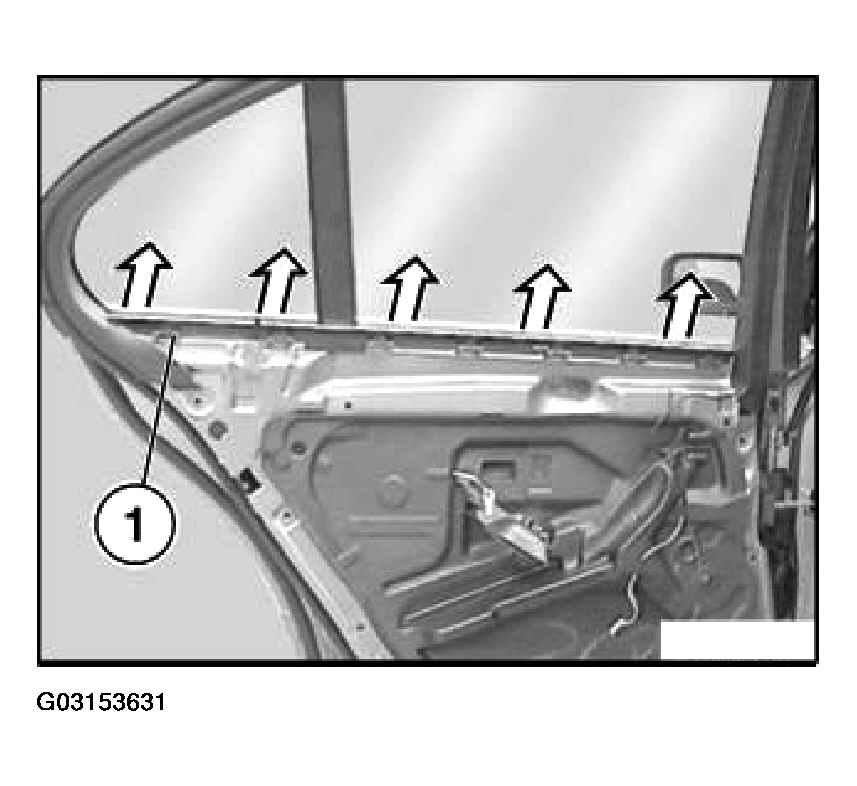

Pull window cavity trim (beginning at front) up out of clips.

NOTE: The rear clip (1) cannot be removed due to windshield adhesive.

Fig 1: Pulling Window Cavity Trim Up Out Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

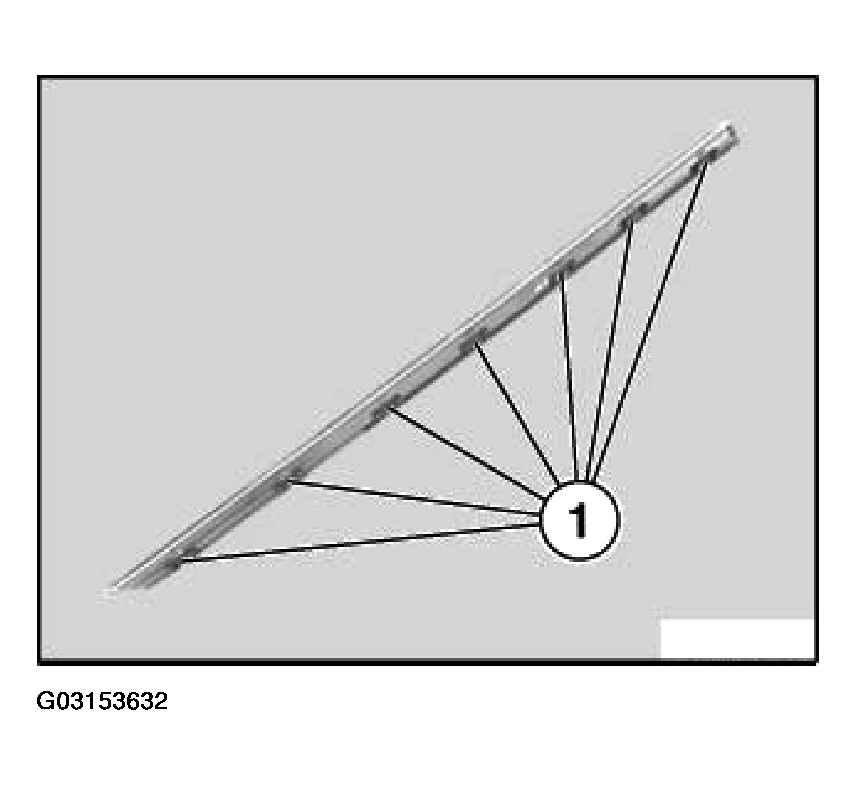

If necessary, remove clips (1) and attach to inner door panel.

Fig 2: Removing Clips And Attach To Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

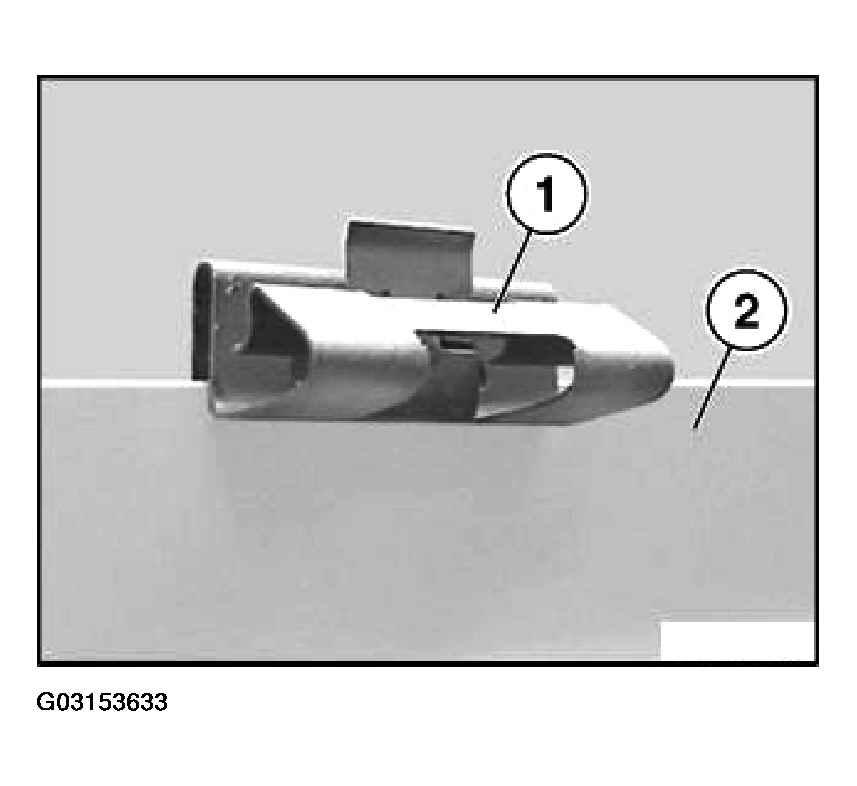

If necessary, remove faulty clips (1) from inner door panel (2) and replace.

Fig 3: Removing Faulty Clips From Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.
