51 16 361 Replace right glovebox

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove right glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX

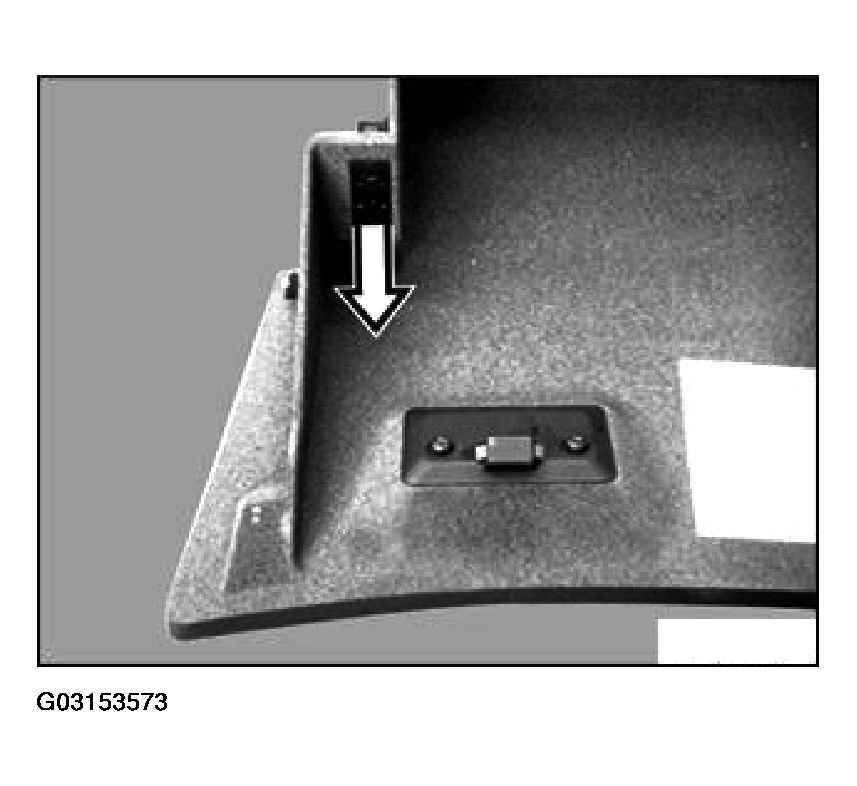

Unclip power connection for accumulator light.

Fig 1: Unclipping Power Connection For Accumulator Light

Courtesy of BMW OF NORTH AMERICA, INC.

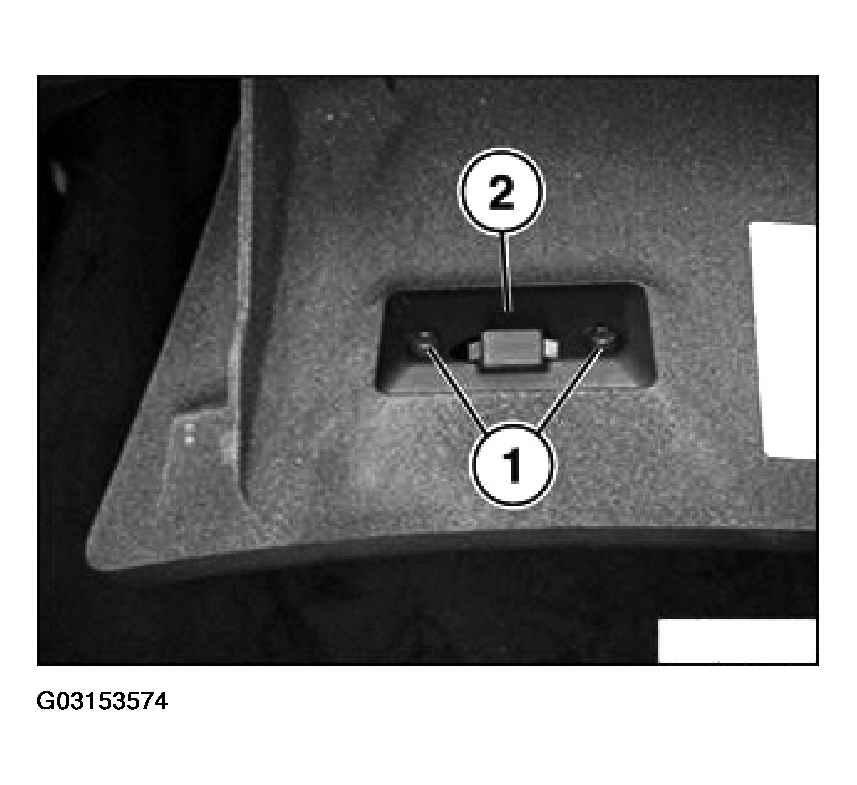

Unscrew bolts (1). Remove upper and lower (2) sections of lock.

Fig 2: Removing Upper And Lower Sections Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

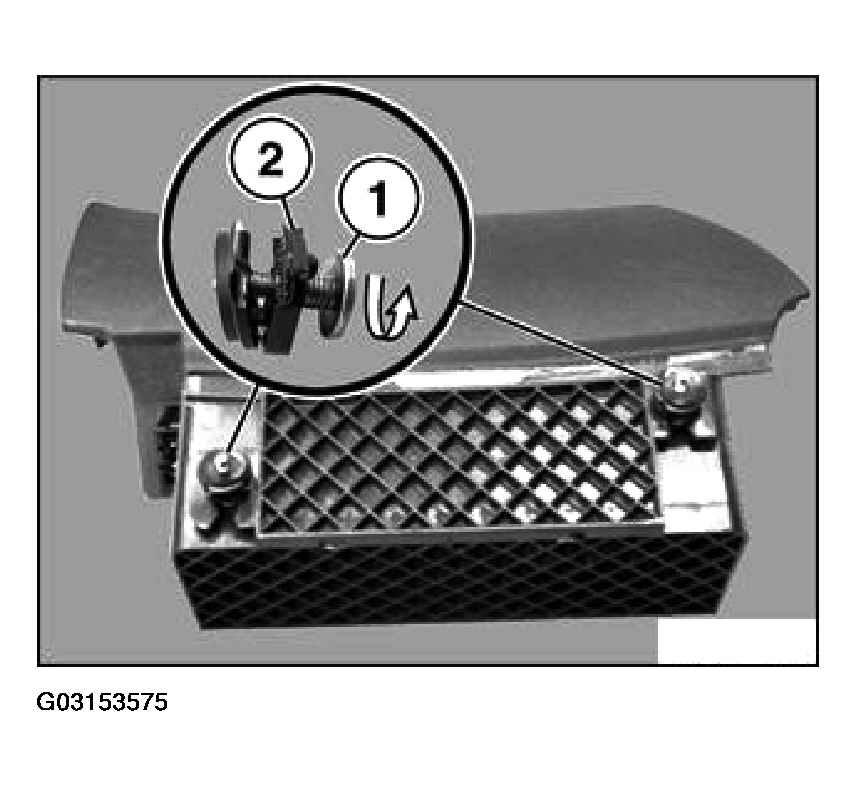

By twisting the screw (1) the height of the clamp bearing (2) and the glovebox is adjusted.

Fig 3: Adjusting Height Of Clamp Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
