51 16 210 Removing and installing/replacing finisher for preselector lever

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Pull handle off with one firm movement.

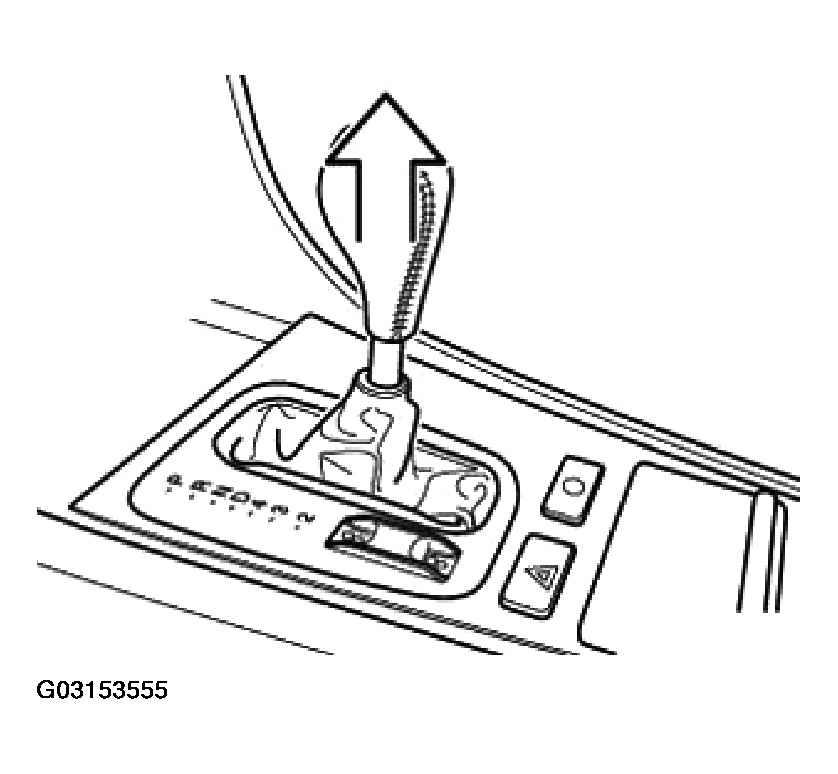

Fig 1: Pulling Handle Off With One Firm Movement

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out cover plate.

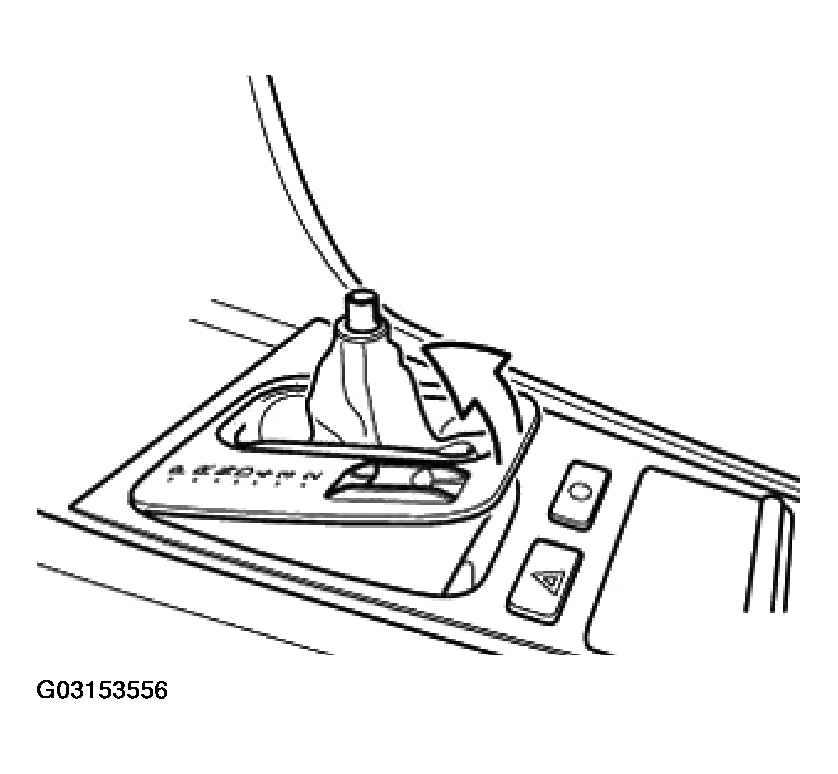

Fig 2: Lifting Out Cover Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out cable connector (1... 3) and remove finisher strip (4) for selector lever.

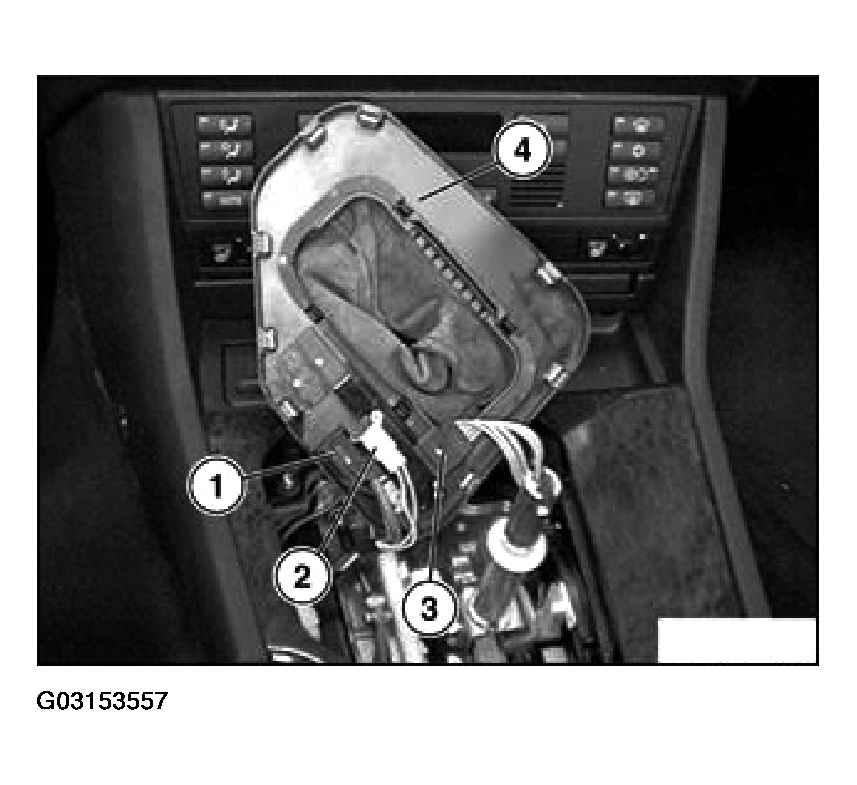

Fig 3: Pulling Out Cable Connector And Removing Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.
