51 21 351 Replacing window recess cover on left or right front door
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove and install window cavity trim on inside of front door, refer to 51 21 330 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON INNER FRONT DOOR .

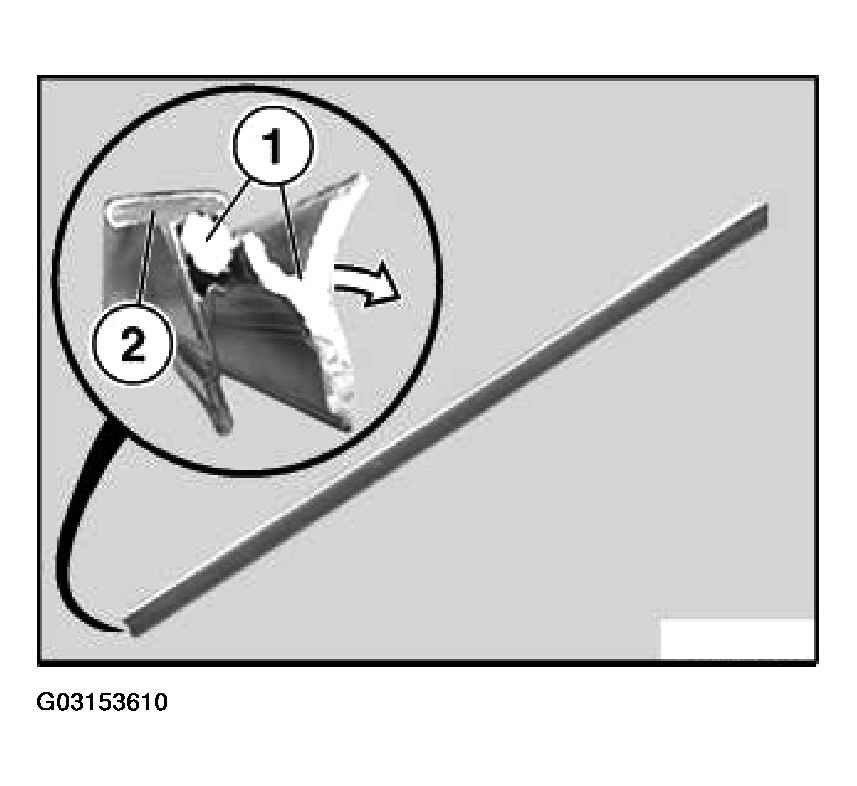

Pull window cavity gasket (1) off window cavity cover strip (2).
Installation:
- Coat window cavity seal (1) for assembly with rubber protection coating agent (sourcing reference: BMW Part).
