51 21 330 Removing and installing/replacing window cavity cover strip on inner front door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left or right door trim, refer to 51 41 000 REMOVING AND INSTALLING DOOR TRIM PANEL, FRONT LEFT OR RIGHT (PROTECTION) .

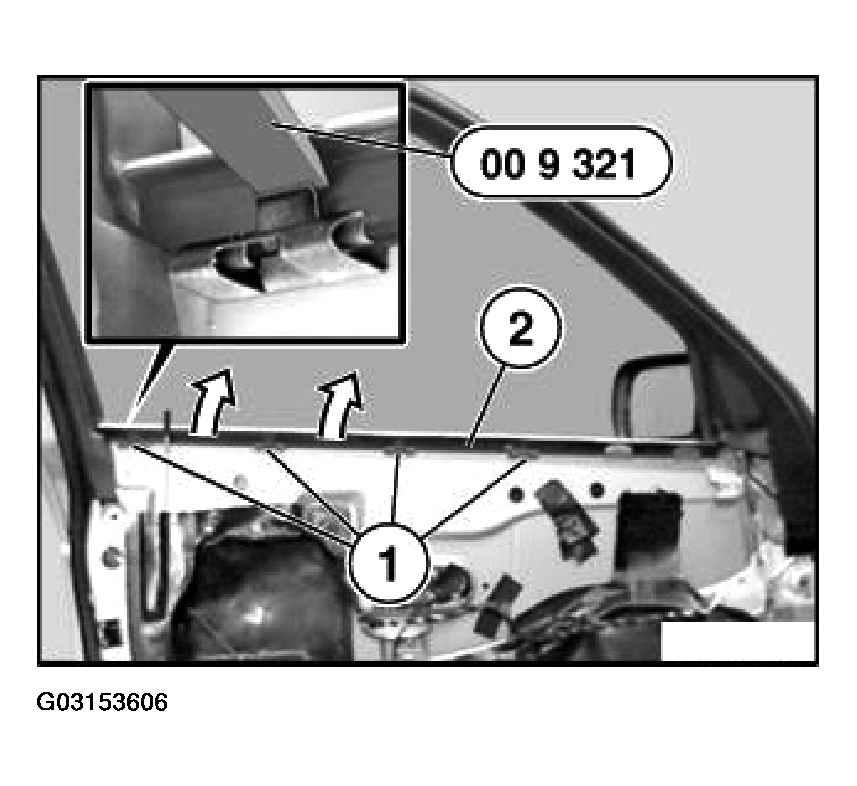

Beginning from rear, raise clips (1) with special tool 00 9 321 (folding leg).

Press cover strip (2) upwards out of clips.

Fig 1: Pressing Cover Strip Upwards Out Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

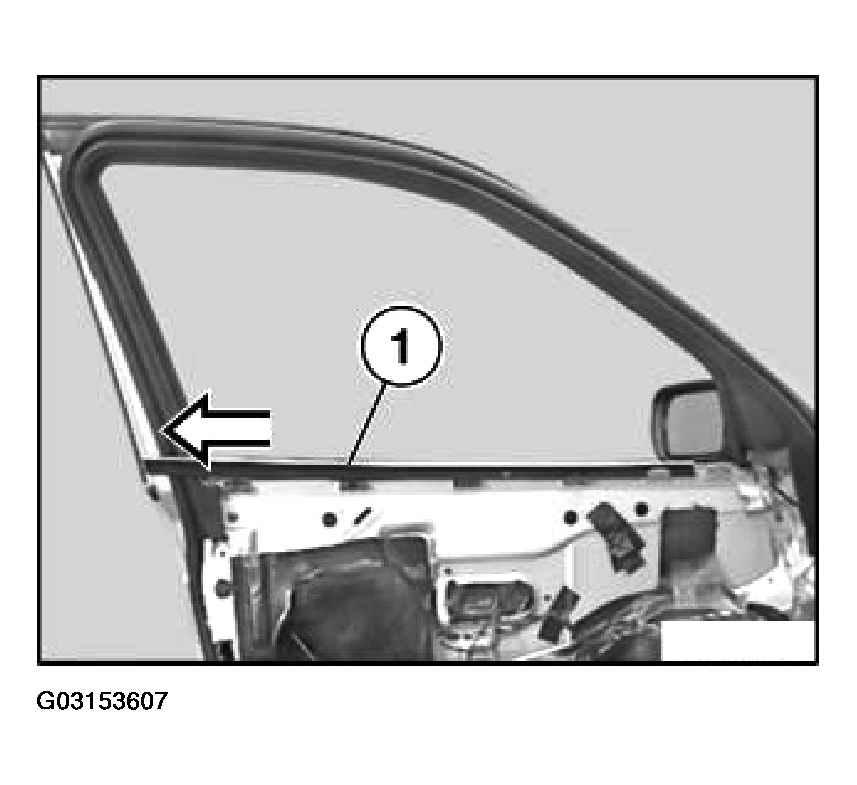

Remove Cover Strip (1) Past Window Frame Towards Rear.

Fig 2: Removing Cover Strip Past Window Frame Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

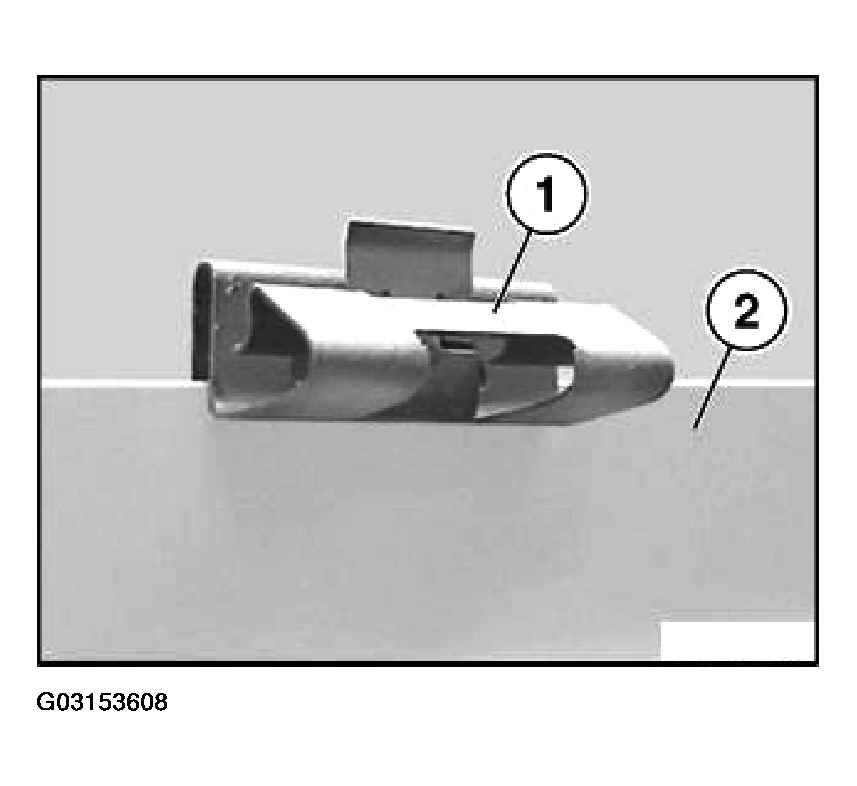

If necessary, remove faulty clips (1) from inner door panel (2) and replace.

Fig 3: Removing Faulty Clips From Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove front left or right door trim, refer to 51 41 000 REMOVING AND INSTALLING DOOR TRIM PANEL, FRONT LEFT OR RIGHT (PROTECTION) .
Coat cover strip with rubber protection coating agent (sourcing reference: BMW Part).

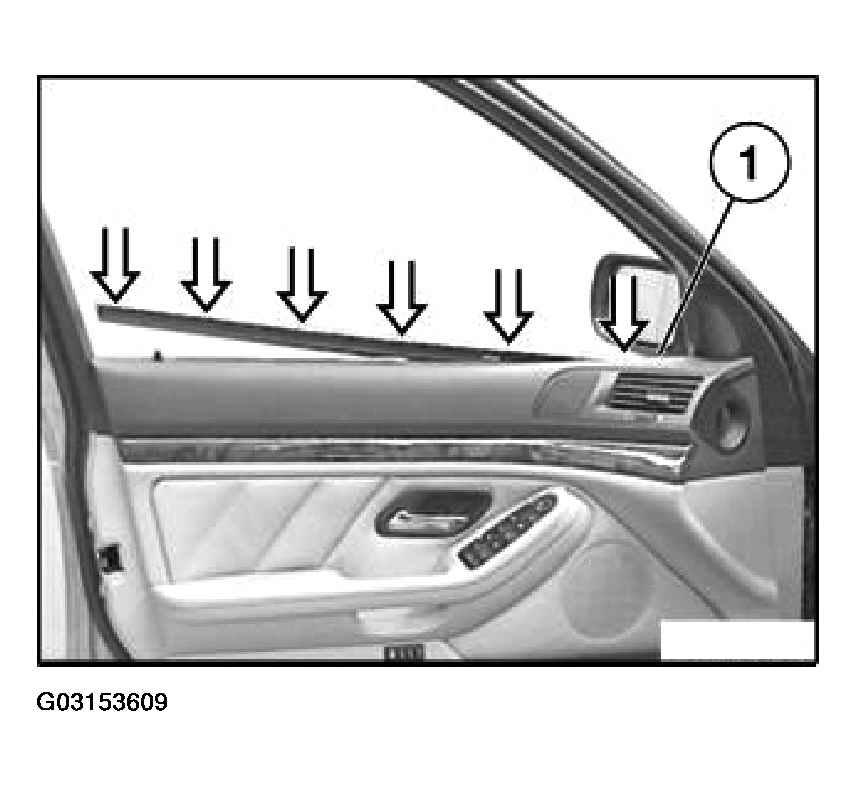

Begin with assembly at front (1).

Fig 4: Coating Cover Strip With Rubber Protection Coating Agent

Courtesy of BMW OF NORTH AMERICA, INC.
