51 31 200 Removing and installing rear window

Cold processing:

Comply with instructions on gluing windows, refer to 51 31... REMOVING WINDSCREEN WITH "ROLL OUT 2000"

Warm processing:

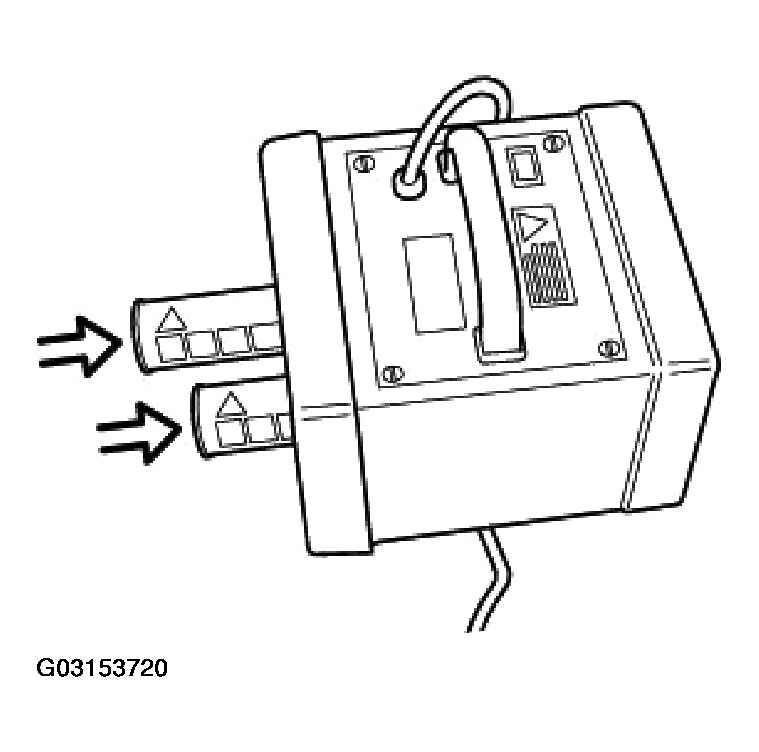

Open rear end of aluminum membrane in cartridge before installing in cartridge oven.

Heat glue cartridges to 80 °C for one hour in oven (sourcing reference: BMW Part).

Comply with instructions on gluing windows, refer to 51 31... REMOVING WINDSCREEN WITH "ROLL OUT 2000"

Fig 1: Opening Rear End Of Aluminum Membrane In Cartridge Before Installing In Cartridge Oven

Courtesy of BMW OF NORTH AMERICA, INC.

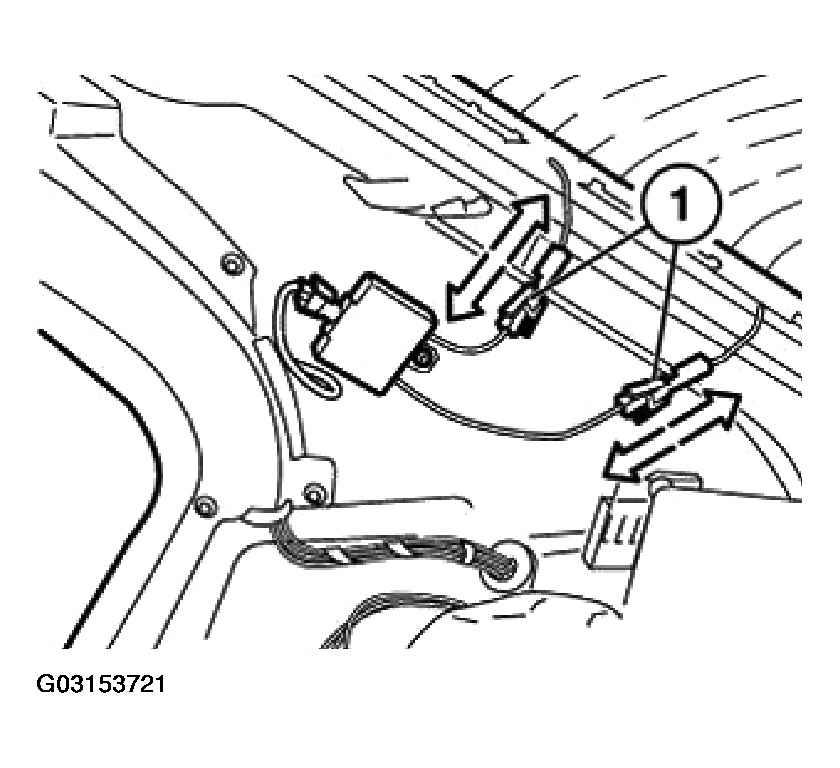

Disconnect right plug connection (1) (wave trap).

Fig 2: Disconnecting Right Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

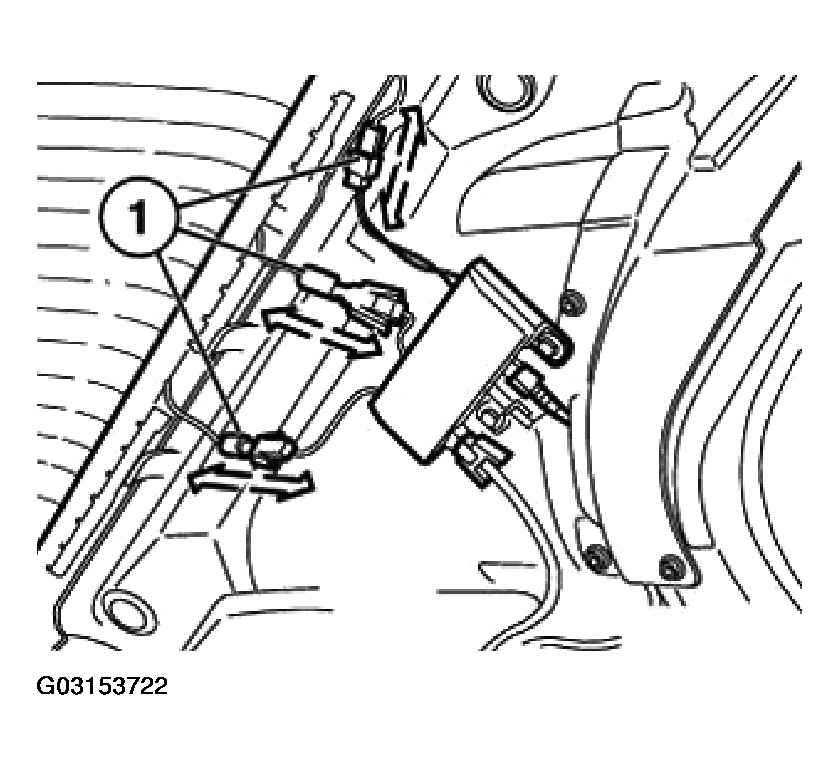

Disconnect left plug connection (1) (rear window heating/antenna).

Version with antenna for car telephone:

If necessary unfasten plug connection.

Fig 3: Disconnecting Left Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

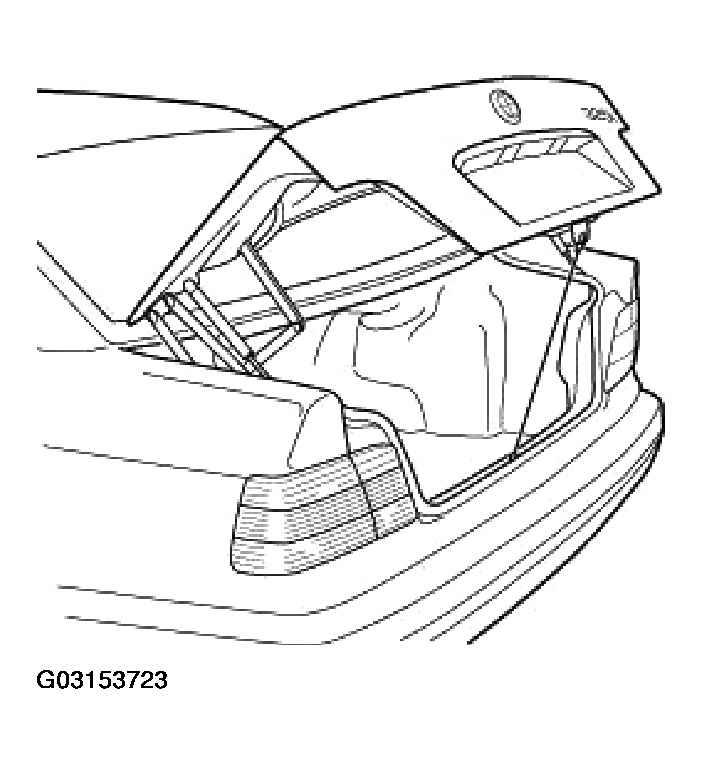

Raise trunk lid by about 65 cm and hold in this position (e.g. attach welding wire with two hooks between lock and lockpin).

Fig 4: Raising Trunk Lid

Courtesy of BMW OF NORTH AMERICA, INC.

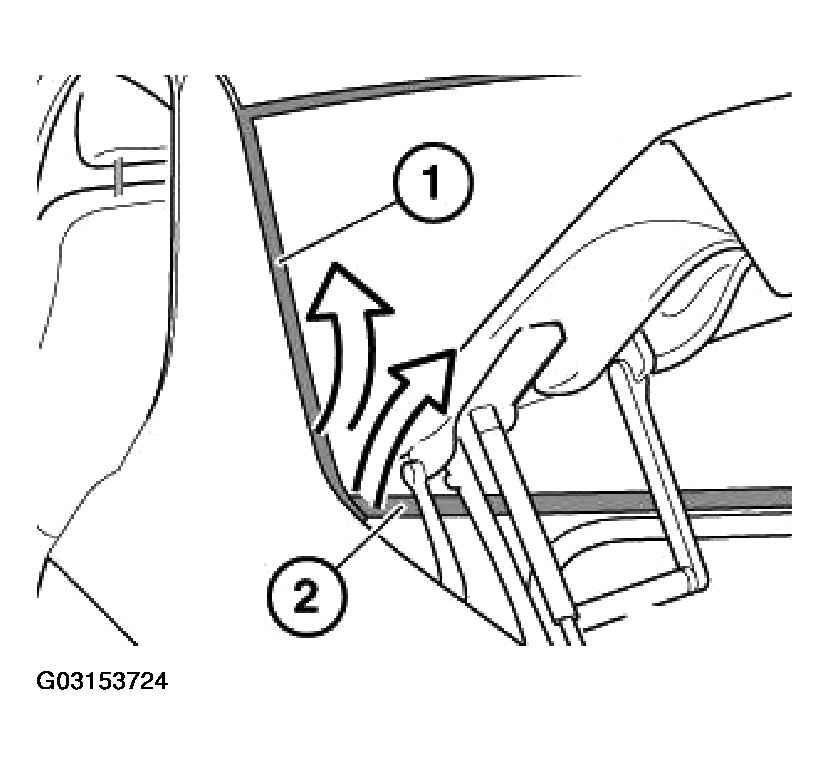

Remove seals (1) and (2).

Fig 5: Removing Seals

Courtesy of BMW OF NORTH AMERICA, INC.

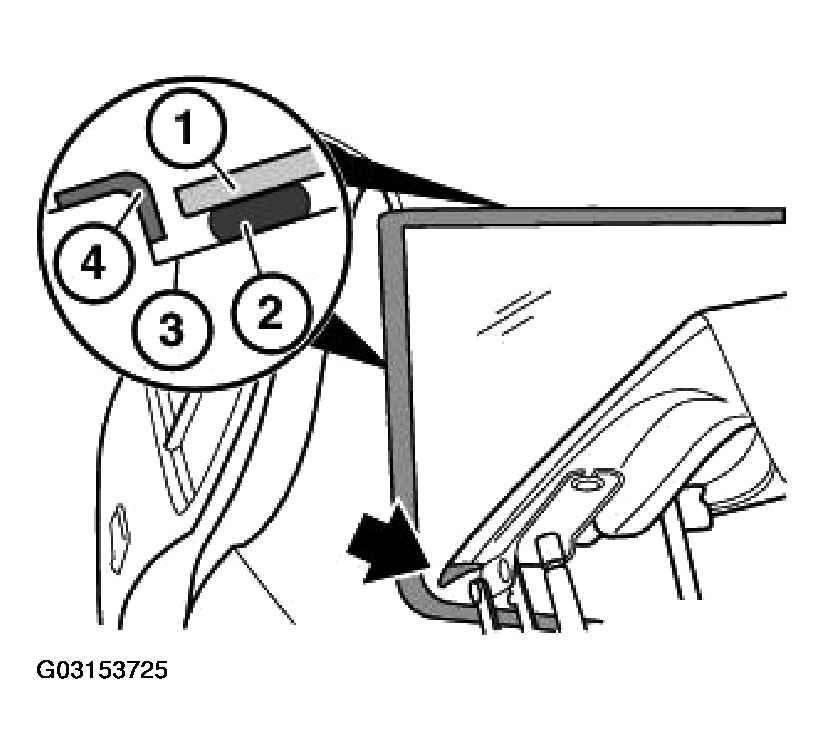

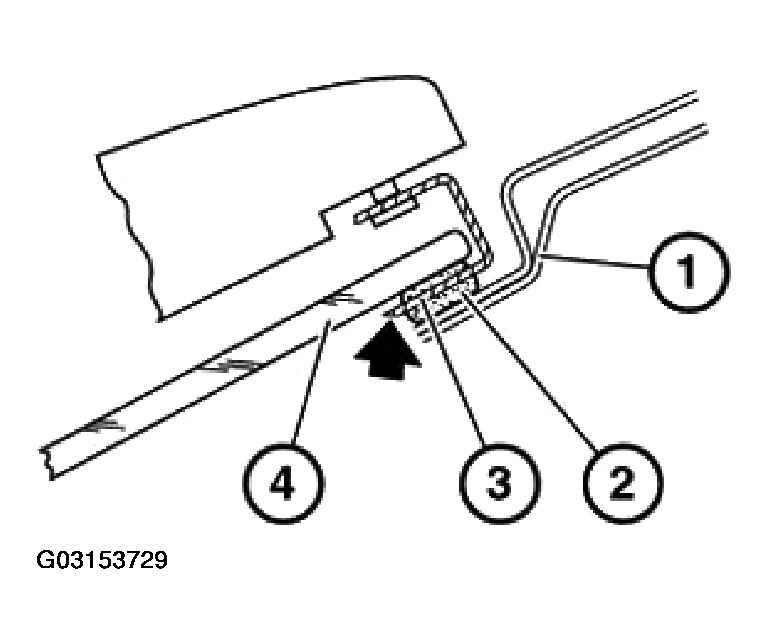

Mask edges of trunk lid and all round body with fabric adhesive tape (e.g. Tesa).

1. Rear window
2. Glue bead
3. Body opening
4. Fabric adhesive tape
   Fig 6: Masking Edges Of Trunk Lid With Fabric Adhesive Tape

   Courtesy of BMW OF NORTH AMERICA, INC.

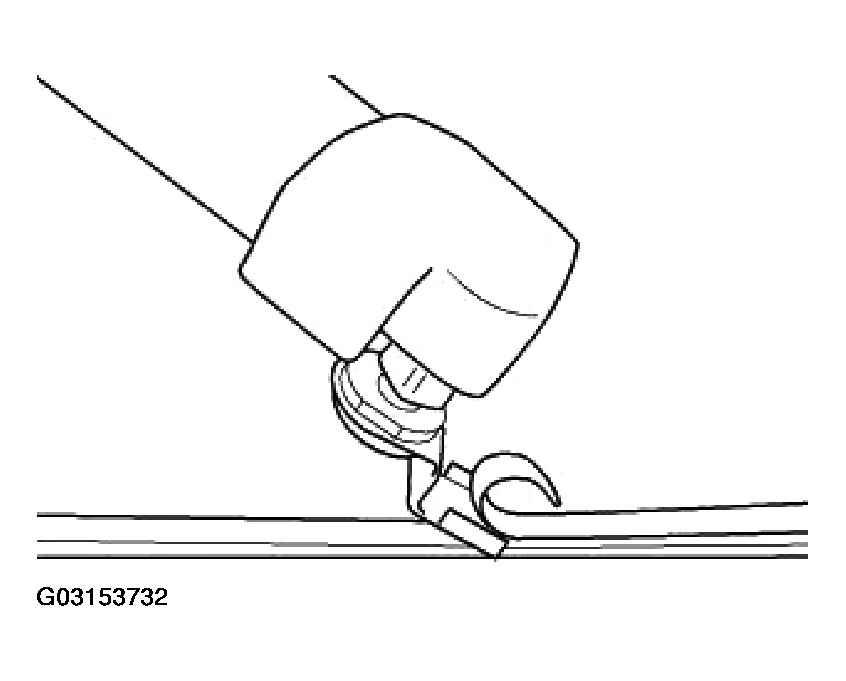

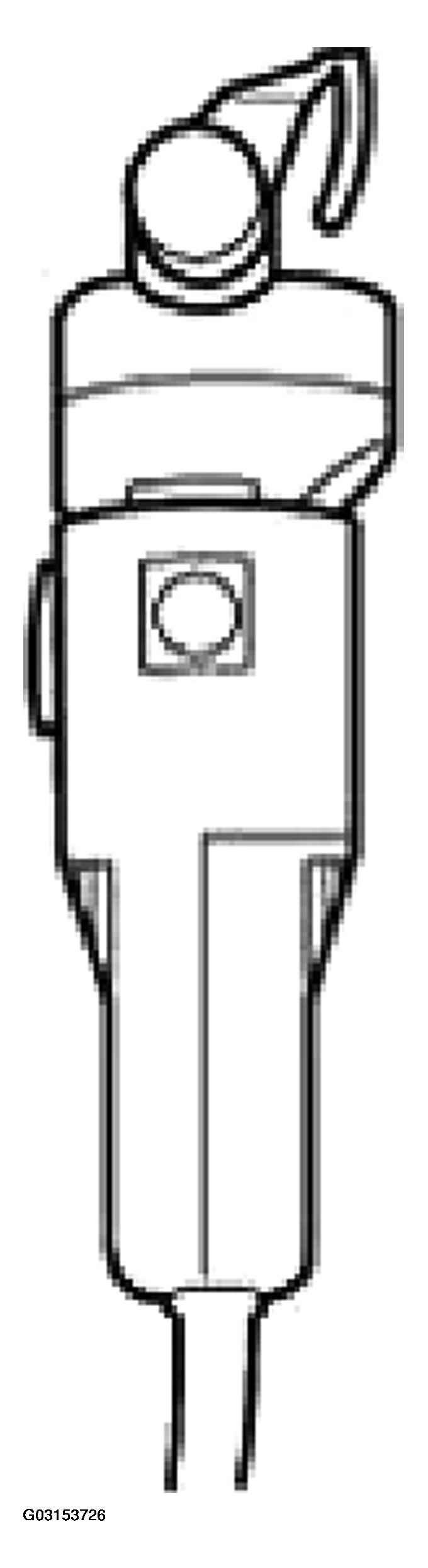

Fit knife (24 mm blade length, sourcing reference: BMW Part) to the tool.

Fig 7: Resharpening Knife With Machine Running

Courtesy of BMW OF NORTH AMERICA, INC.

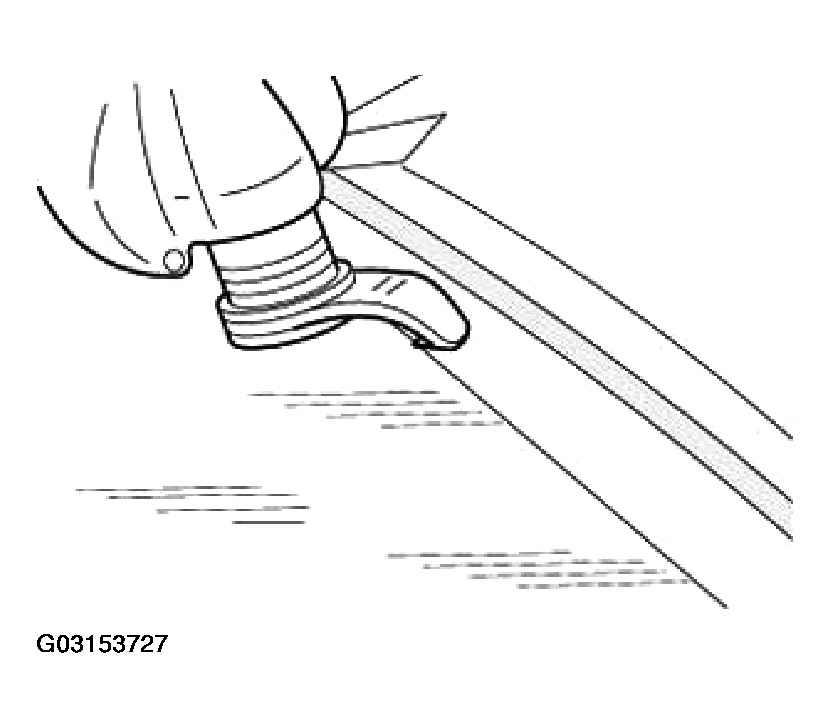

Carefully insert knife between body and top center of rear window.

Fig 8: Inserting Knife Between Body And Top Center Of Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.

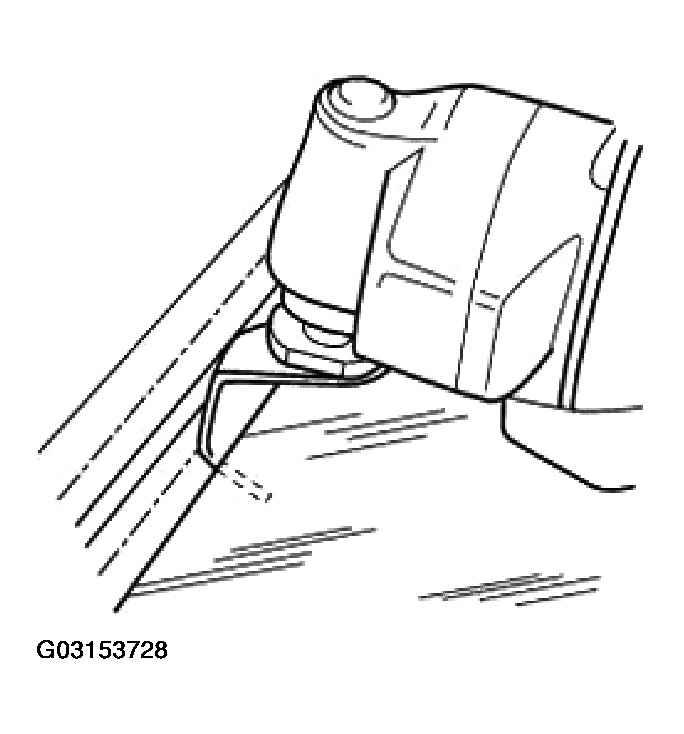

Guide web of knife parallel to rear window.

Fig 9: Identifying Guide Web Of Knife Parallel To Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through glue bead all around as close as possible to the rear window glass.

1. Body opening
2. Glue bead
3. Knife
4. Rear window
   Fig 10: Cutting Glue Bead All Around

   Courtesy of BMW OF NORTH AMERICA, INC.

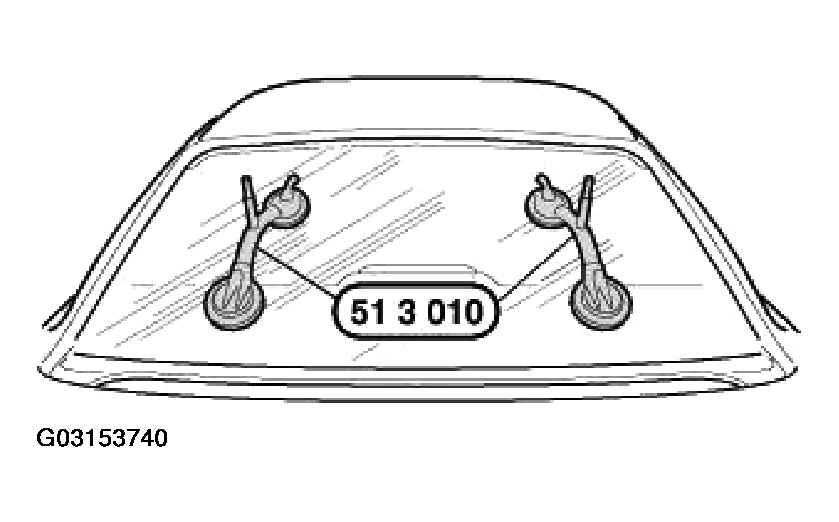

Lift out rear window using special tool 51 3 010.

Fig 11: Lifting Out Rear Window Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

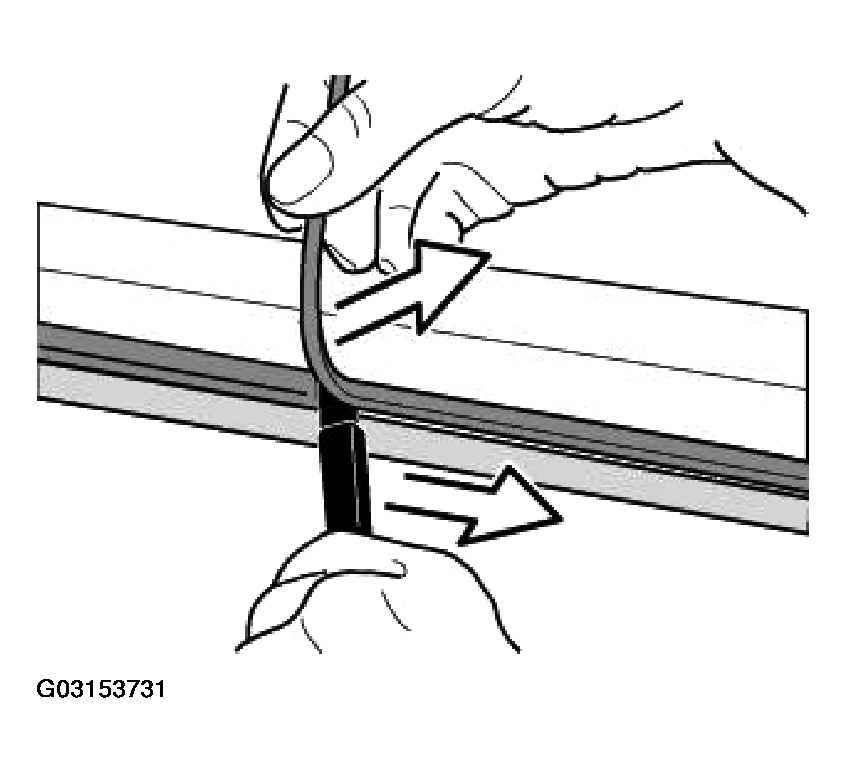

Cut off old glue in body opening but for a thickness of approx. 0.5 mm.

Cut off old glue carefully with an universal knife (sharp as a razor blade) to avoid damaging the paint finish in body opening.

Pull off adhesive tapes all round.

Fig 12: Cutting Off Old Glue With Universal Knife

Courtesy of BMW OF NORTH AMERICA, INC.

When reusing the rear window:

Remove glue residue on rear window with knife to approx. 0.5 mm.

Fig 13: Removing Glue Residue On Rear Window With Knife

Courtesy of BMW OF NORTH AMERICA, INC.

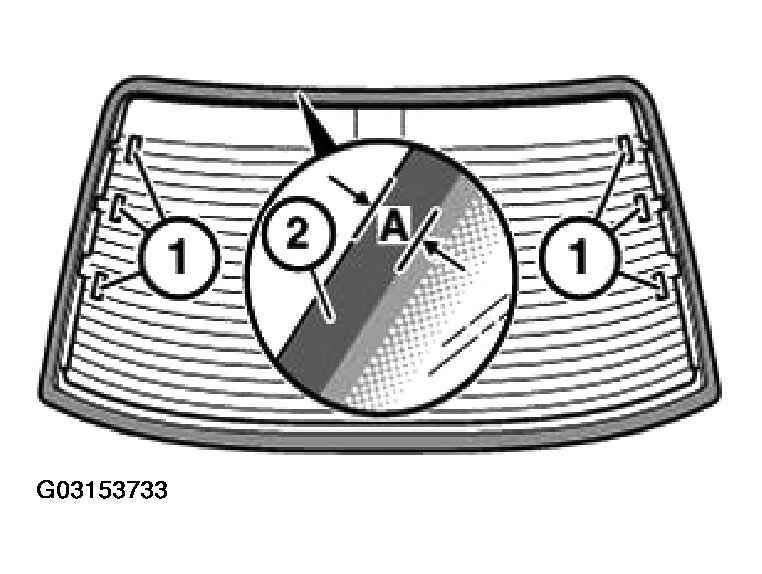

Secure cable (1) (rear window heating/antenna) with adhesive tape.

Treat rear window around glued area (A) with materials approved by BMW (repair kit, Sourcing Reference: BMW Part), refer to 51 31... REMOVING WINDSCREEN WITH "ROLL OUT 2000"

Fig 14: Treating Rear Window Around Glued Area

Courtesy of BMW OF NORTH AMERICA, INC.

(A) = 25 mm (top/side)

(A) = 27 mm (bottom)

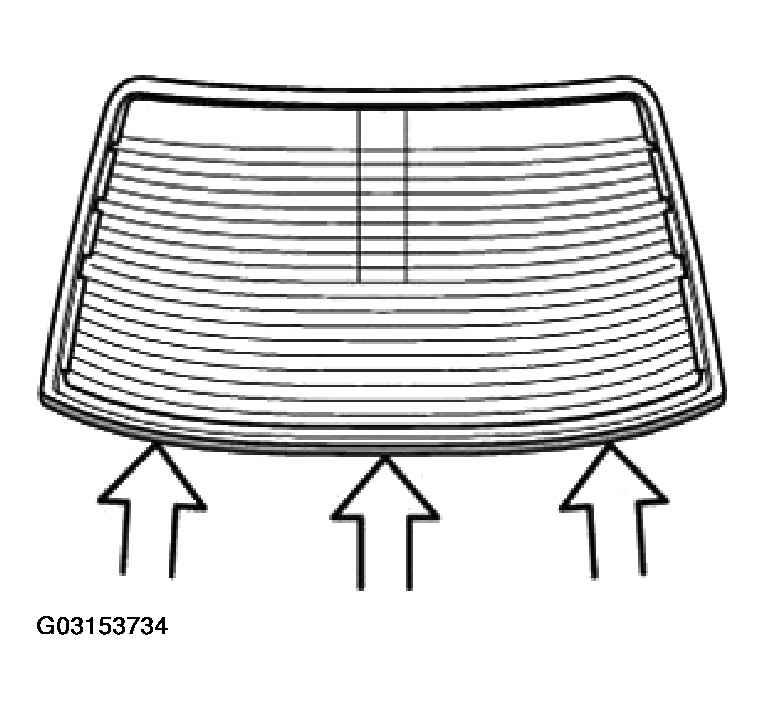

Fit gasket at bottom of rear window and press into place.

Fig 15: Fitting Gasket At Bottom Of Rear Window And Press Into Place

Courtesy of BMW OF NORTH AMERICA, INC.

Fit seal (1) at top in center of rear window and press downwards.

Fig 16: Fitting Seal At Top In Center Of Rear Window And Press Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Treat body in glued area with materials approved by BMW (repair kit, Sourcing Reference: BMW Part), refer to 51 31... REMOVING WINDSCREEN WITH "ROLL OUT 2000"

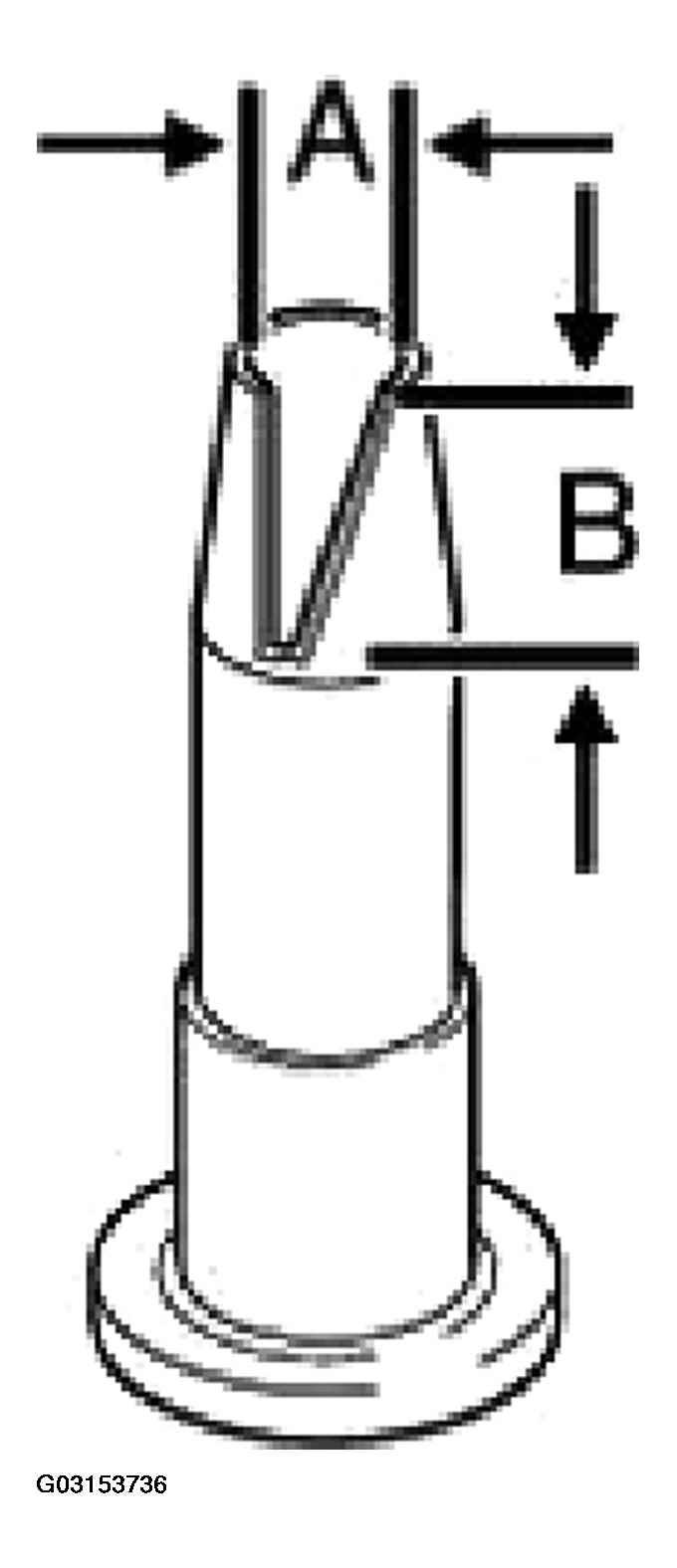

Cut nozzle to size.

1. 8 mm
2. 10_-1 mm

Note expiration date of glue!

Fig 17: Applying Uniform Glue Bead

Courtesy of BMW OF NORTH AMERICA, INC.

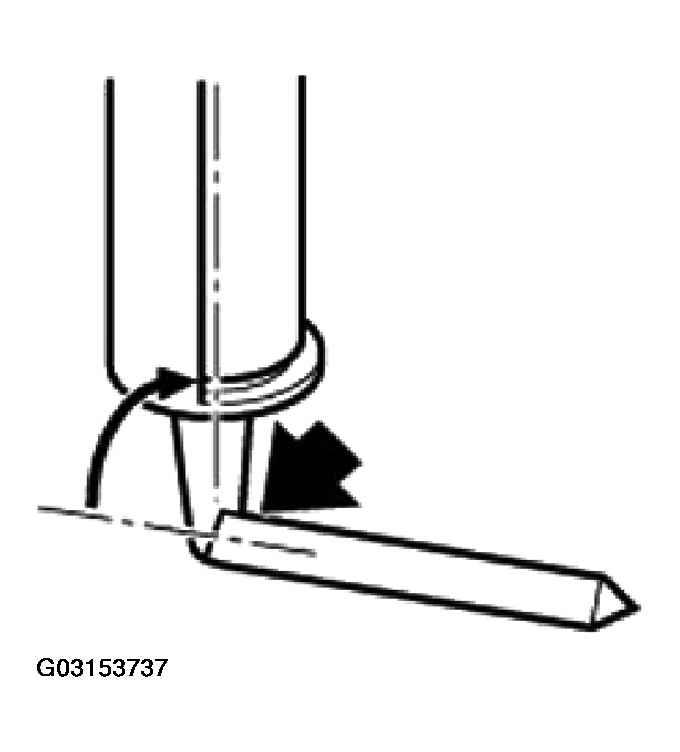

If applicable, produce a sample bead before gluing.

Cartridge must be arranged vertically against rear window.

Fig 18: Identifying Sample Bead

Courtesy of BMW OF NORTH AMERICA, INC.

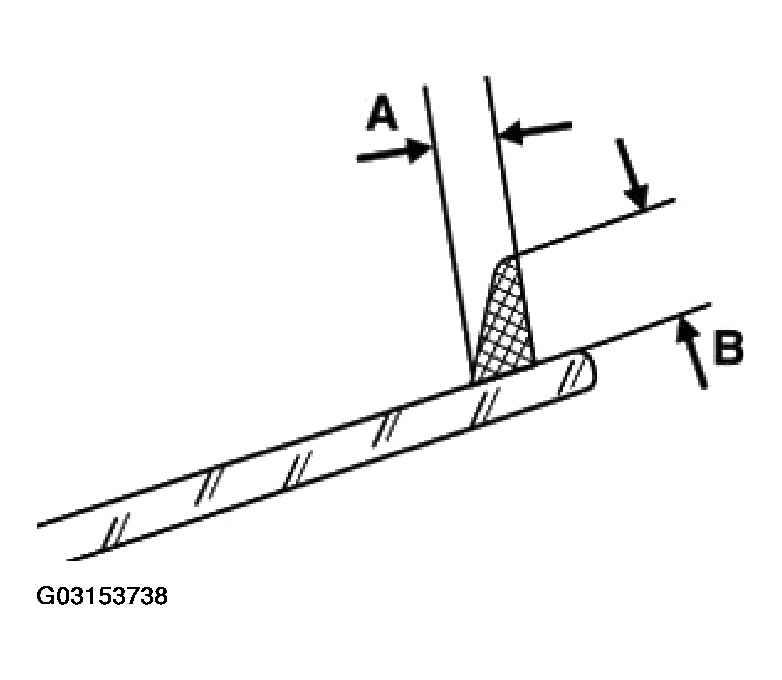

Shape of glue bead:

1. 8 mm
2. 10_-1 mm

Fig 19: Applying Glue Bead Quickly And Inserting Window

Courtesy of BMW OF NORTH AMERICA, INC.

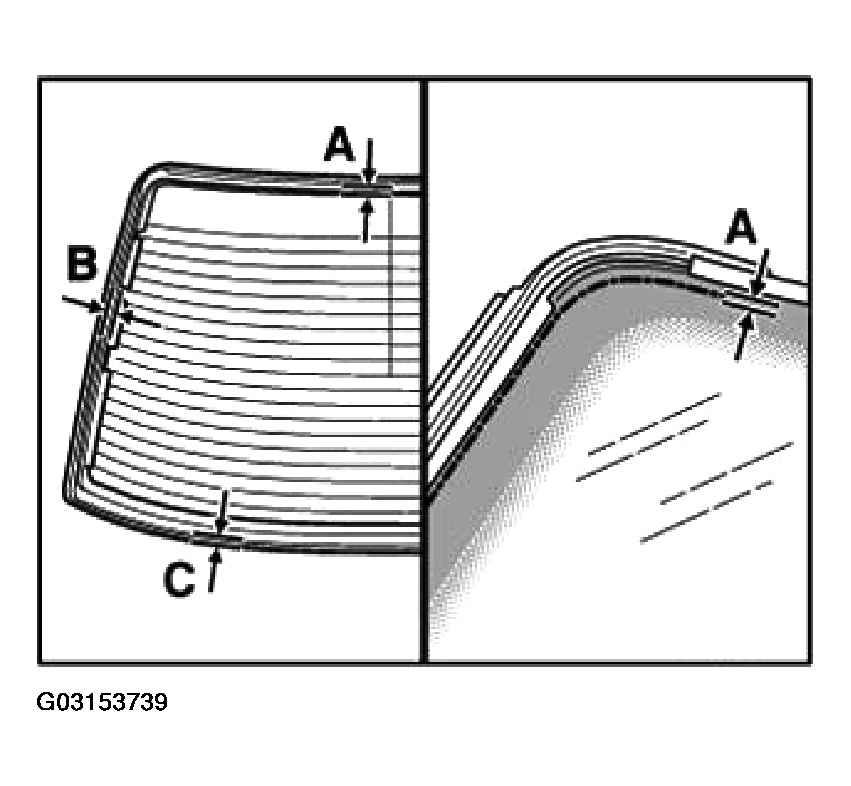

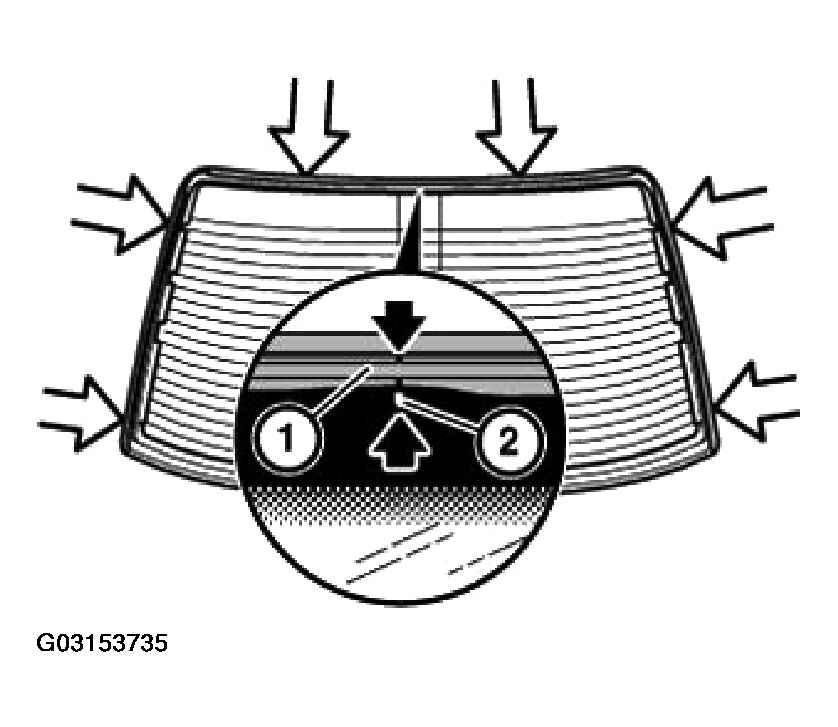

Maintain distance (A), (B) and (C) between glue bead and seal.

1. 1 mm
2. 1 mm
3. 1 mm
   Fig 20: Maintaining Distance Between Glue Bead And Seal

   Courtesy of BMW OF NORTH AMERICA, INC.

Install rear window carefully using special tool 51 3 010. The gasket must make uniform contact all round (center). Press rear window upwards until gasket is at uniform distance from roof all round.

Secure rear window with fabric adhesive tape (e.g. Tesa). If necessary, brace with wooden wedge.

Fig 21: Installing Rear Window Carefully Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble car.

After the hardening time, remove support and adhesive tape.

Version with GPS navigation:

Fig 22: Identifying Version With GPS Navigation

Courtesy of BMW OF NORTH AMERICA, INC.

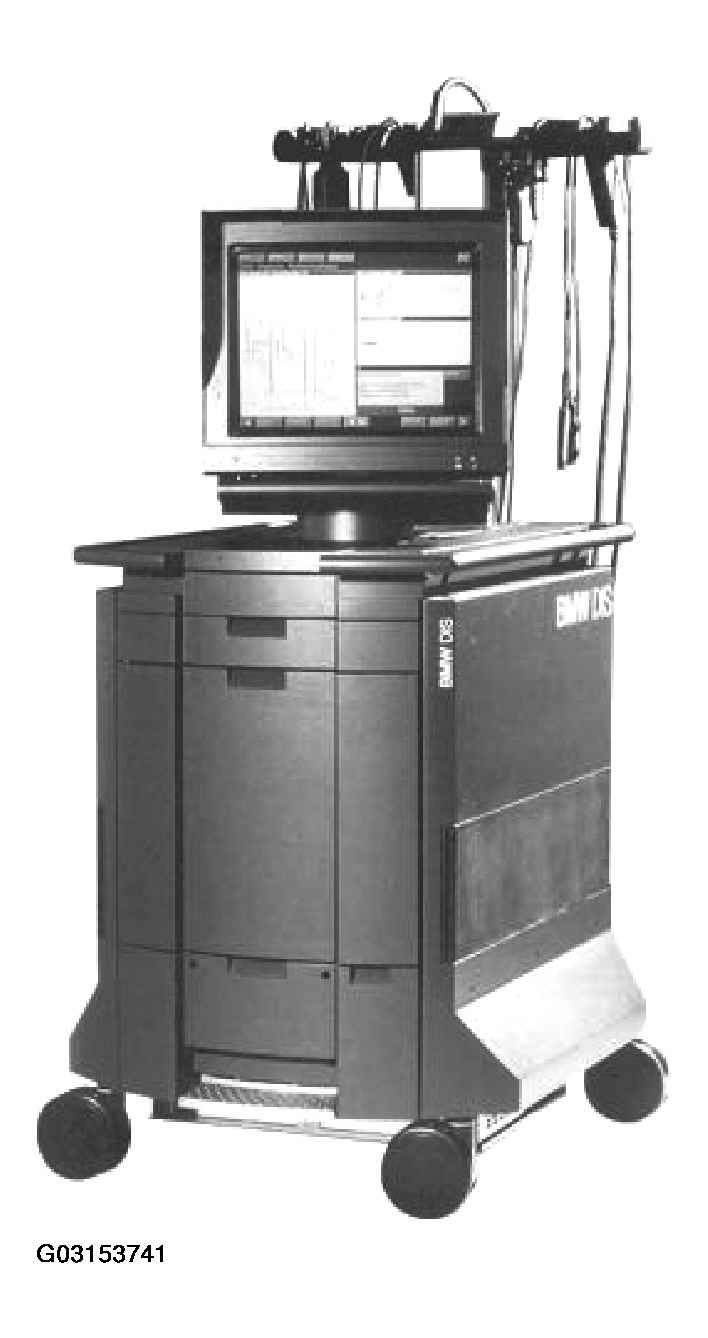

If necessary, recalibrate magnetic field sensor using BMW diagnostic scan tool.
