36 11 520 Removing and installing/replacing RDC control module

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove glovebox,

refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

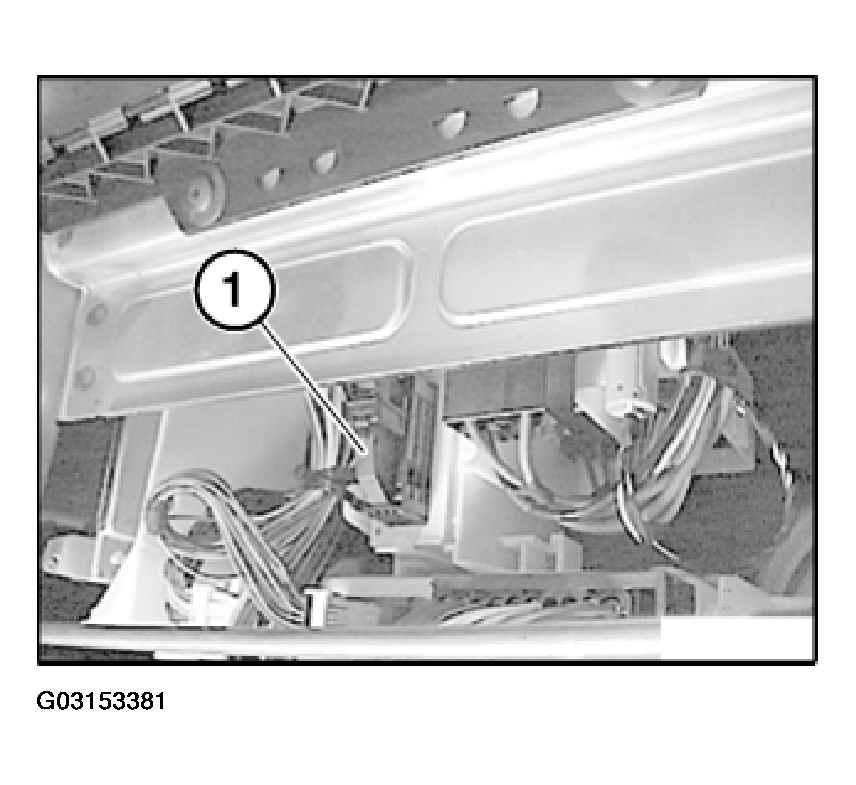

Unfasten plug connection (1) and disconnect.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

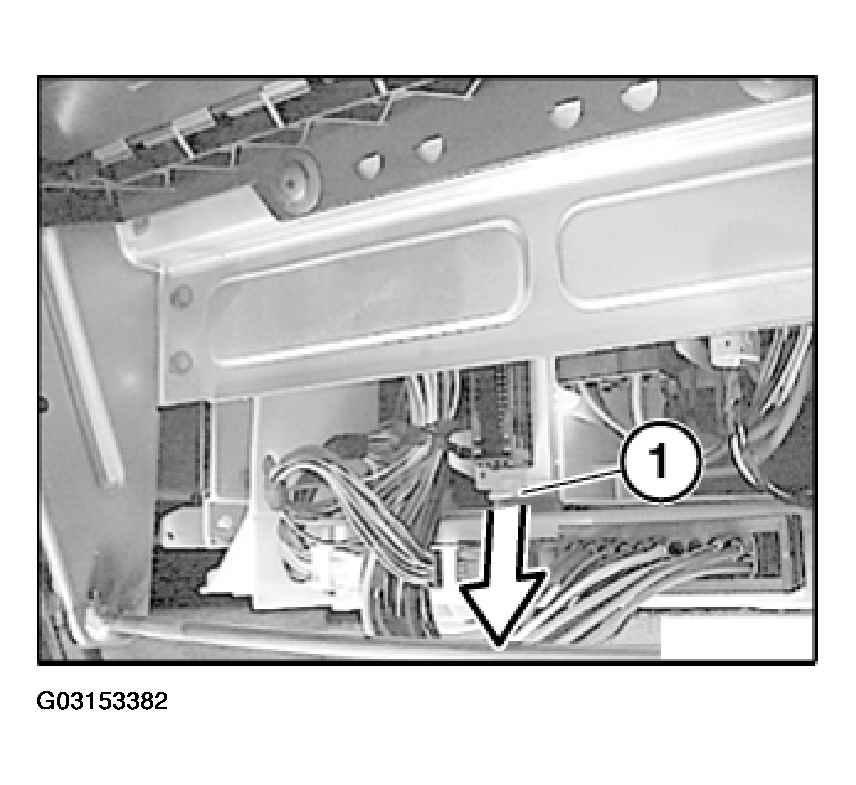

Press lock (1) downwards.

Fig 2: Pressing Lock Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

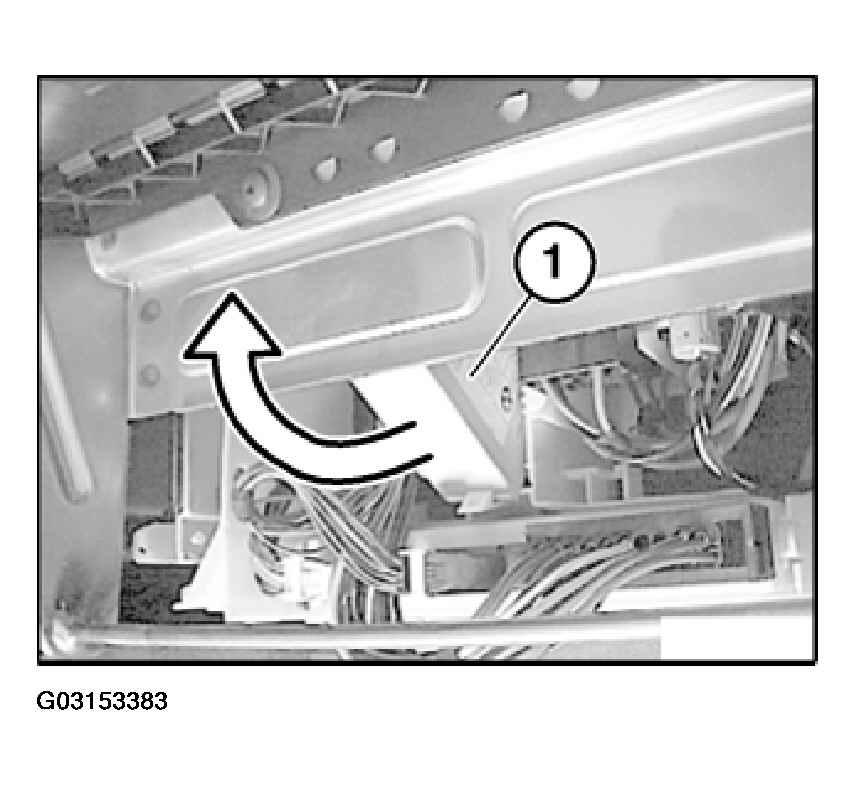

Tilt RDC control module (1) upwards, turn through 90° and remove vertically towards bottom.

NOTE: Do not damage control module carrier.

Fig 3: Tilting RDC Control Module Upwards

Courtesy of BMW OF NORTH AMERICA, INC.
