35 11 000 Removing and installing mounting block for pedals

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Check the function after installation.

Remove clutch master cylinder. See CLUTCH MASTER CYLINDER .

Remove throttle cable from accelerator pedal and accelerator pedal from shaft. See 35 41 010 Removing And Installing Or Replacing Accelerator Pedal .

Remove brake light switch. See 61 31 310 REPLACING BRAKE LIGHT SWITCH .

Pull off retainer (1).

Disconnect recoil spring (2).

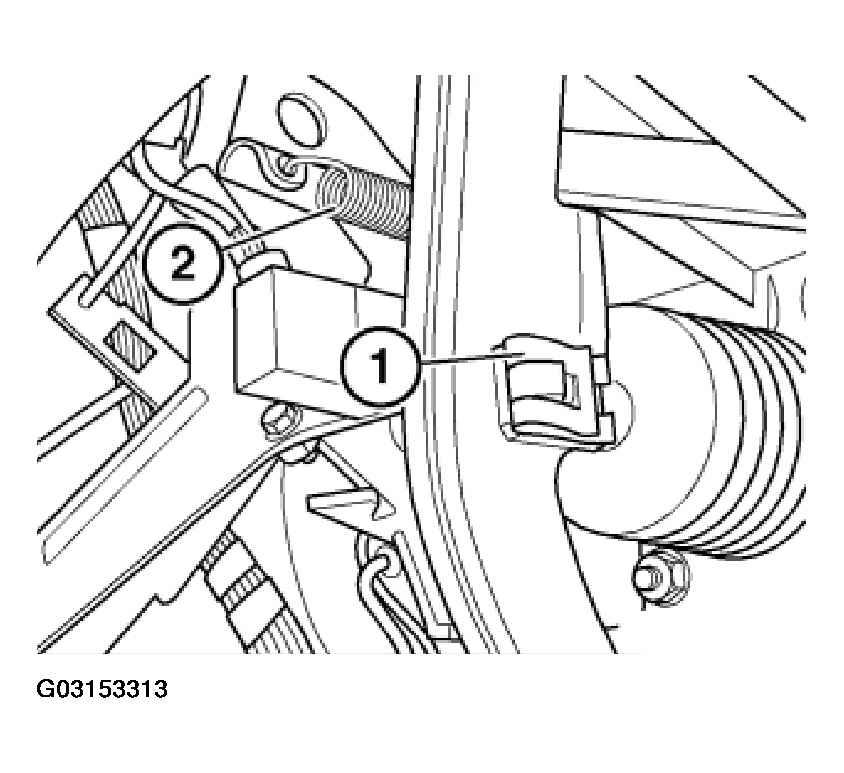

Fig 1: Disconnecting Recoil Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw pin (3).

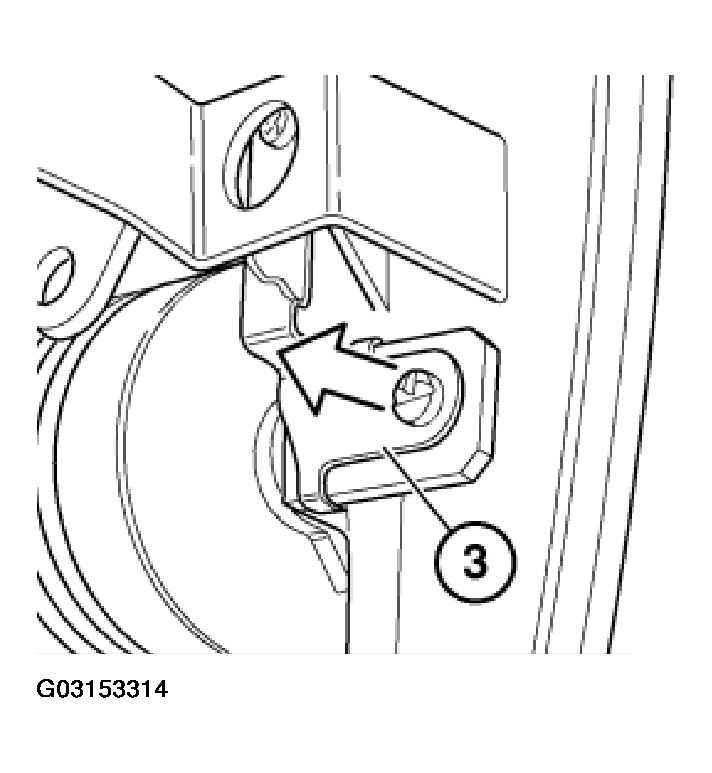

Fig 2: Withdrawing Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nuts and remove mounting block.

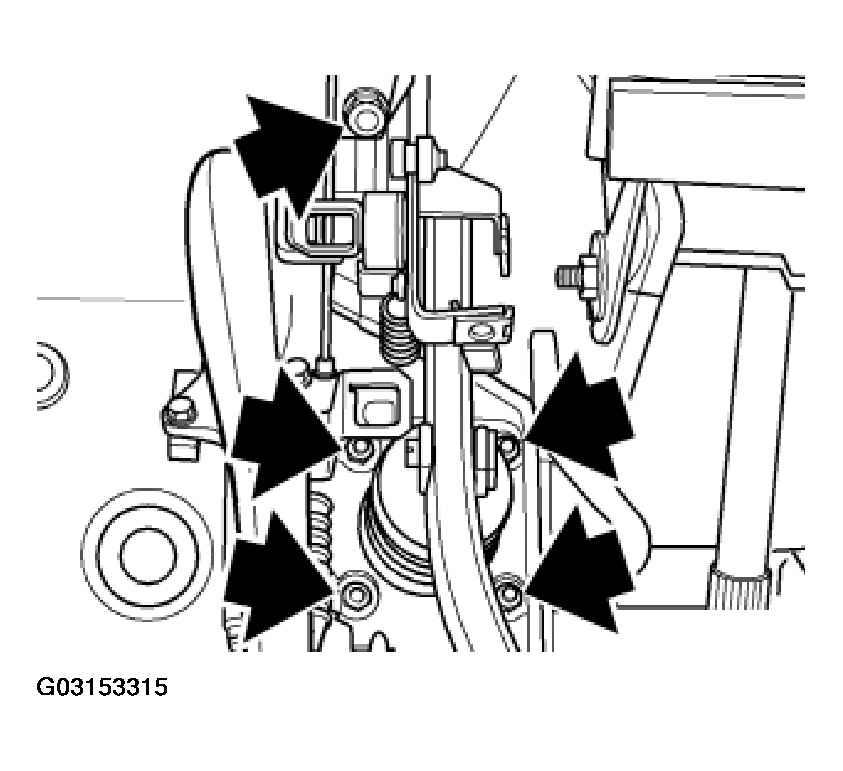

Fig 3: Removing Mounting Block

Courtesy of BMW OF NORTH AMERICA, INC.
