35 41 010 Removing and installing or replacing accelerator pedal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower left trim from instrument panel. Disconnect accelerator cable.

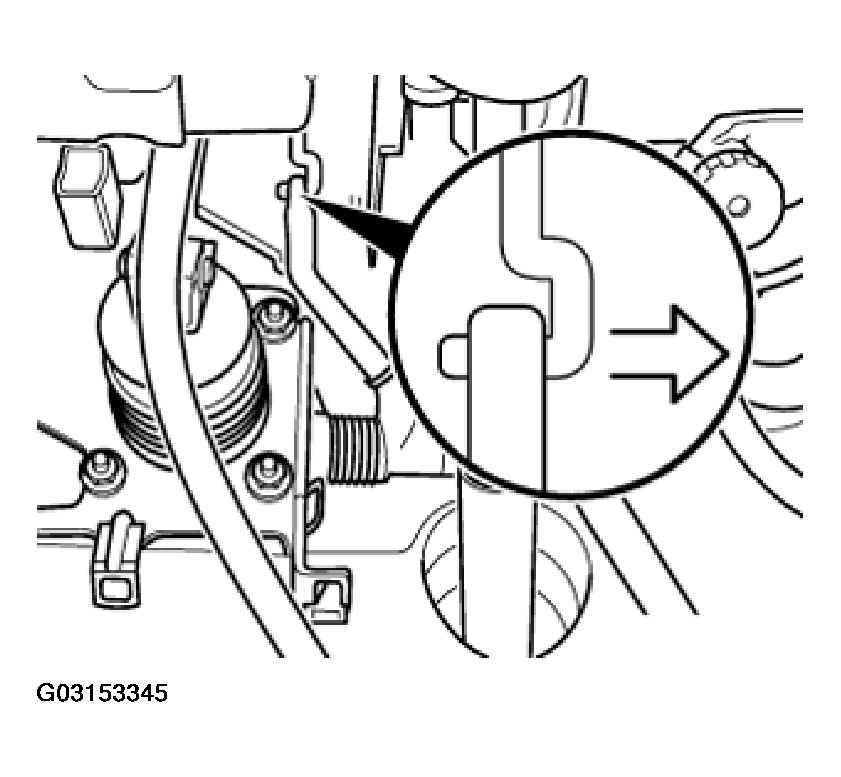

Fig 1: Removing Lower Left Trim From Instrument Panel

G03153345

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retainer (1).

Disconnect spring (2).

Remove acclerator pedal.

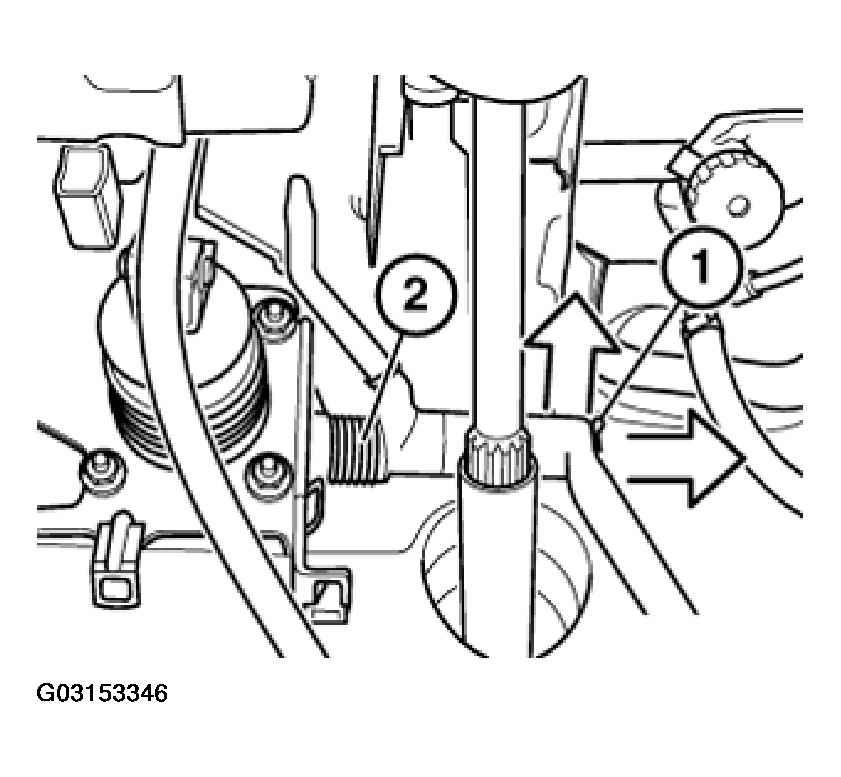

Fig 2: Removing Retainer

G03153346

Courtesy of BMW OF NORTH AMERICA, INC.

Twist accelerator pedal until linkage lug (2) locates in recess (3) of accelerator pedal (1).

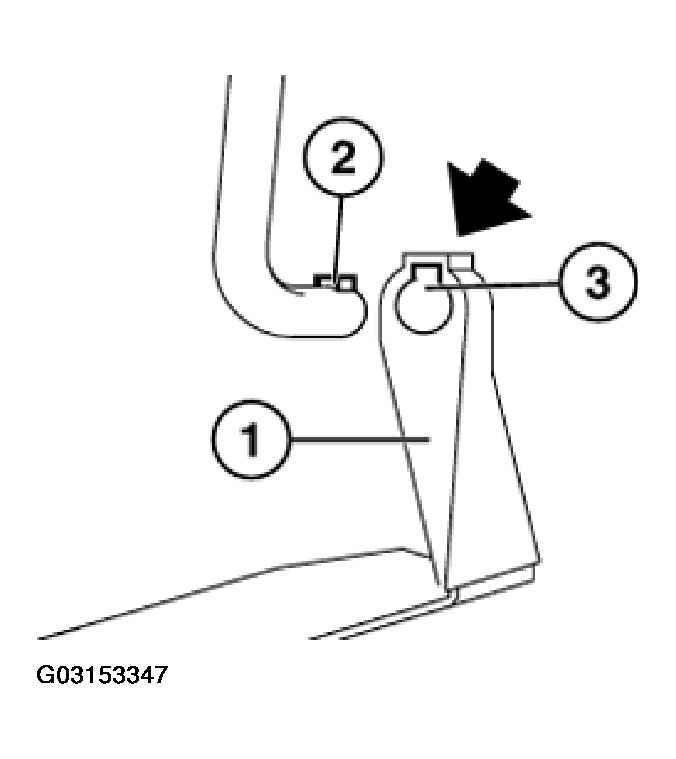

Fig 3: Twisting Accelerator Pedal Until Linkage Lug Locates In Recess Of Accelerator Pedal

G03153347

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check bearing bushes (1) and replace if necessary.

Apply light coat of grease to bearing bushes.

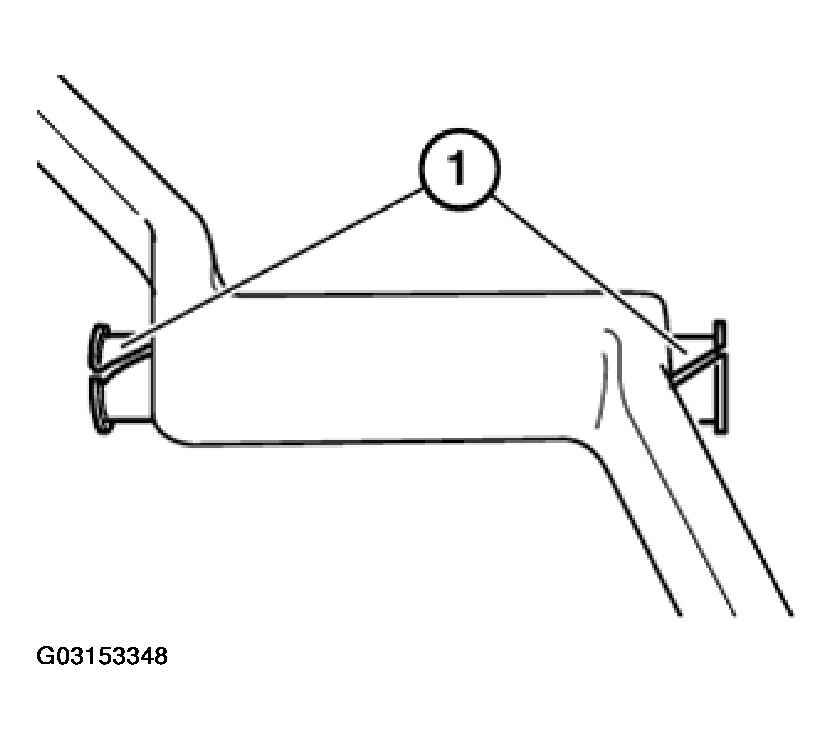

Fig 4: Checking Bearing Bushes

G03153348

Courtesy of BMW OF NORTH AMERICA, INC.
