35 21 000 Removing and installing or replacing brake pedal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower left trim panel from instrument panel. 51 45 031 REPLACE TRIM FOR INSTRUMENT PANEL (LOWER SECTION)

Remove brake light switch, refer to 61 31 310 REPLACING BRAKE LIGHT SWITCH .

Remove retainers (1).

Withdraw pin (2).

Remove brake pedal.

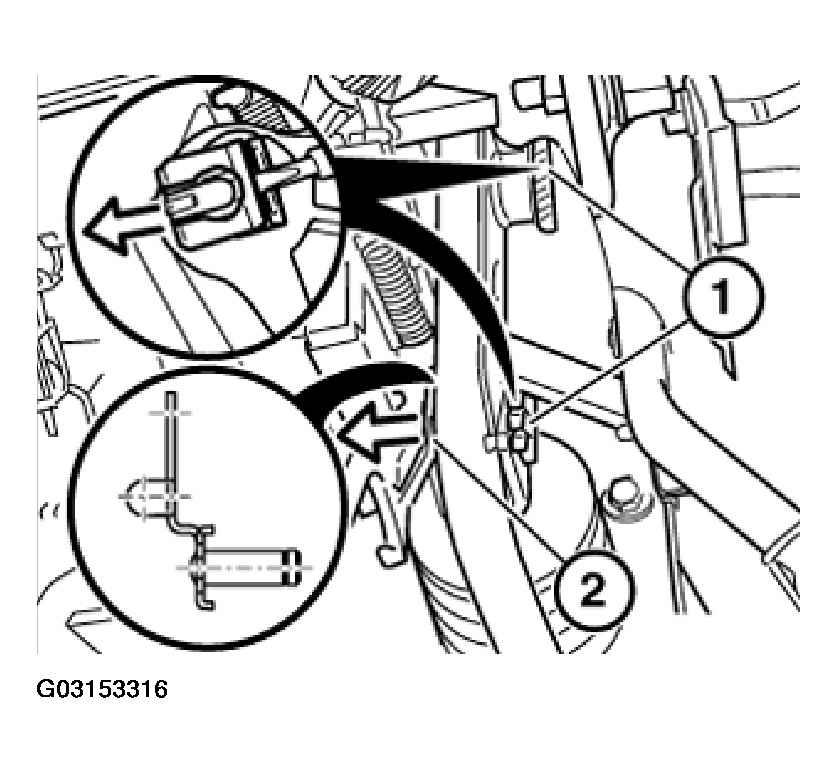

Fig 1: Removing Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check bearing bushes (1) and replace if necessary.

Apply light coat of grease to bearing bushes (1) and bore (2).

Attach spring in grommet and pin.

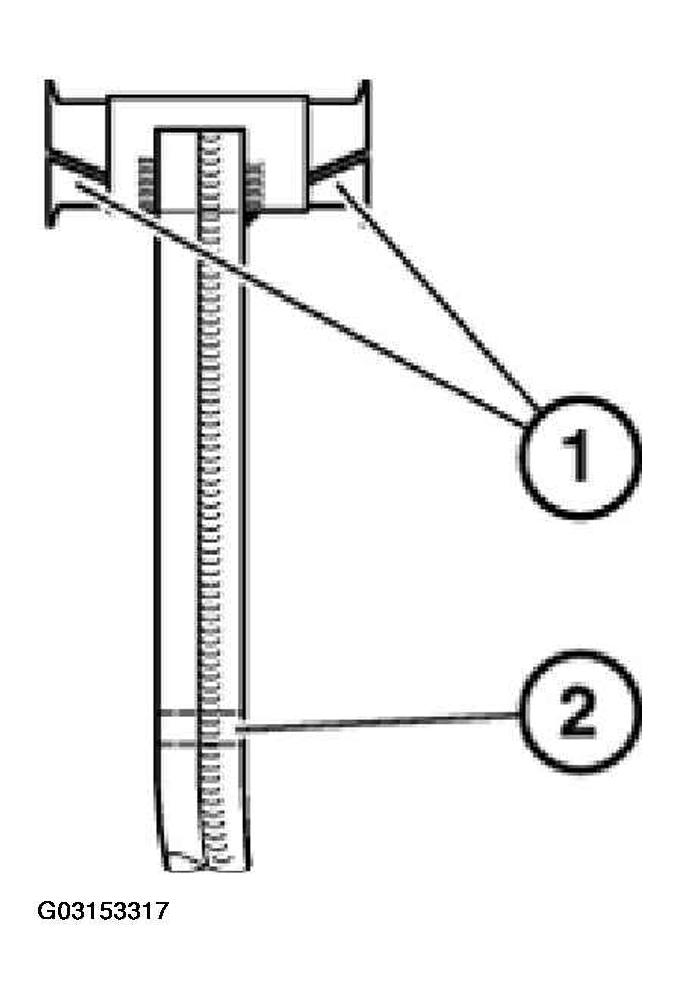

Fig 2: Applying Light Coat Of Grease To Bearing Bushes And Bore

Courtesy of BMW OF NORTH AMERICA, INC.
