51 45 031 Replace trim for instrument panel (lower section)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for lower section of instrument panel,

refer to 51 45 030 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL (LOWER SECTION)

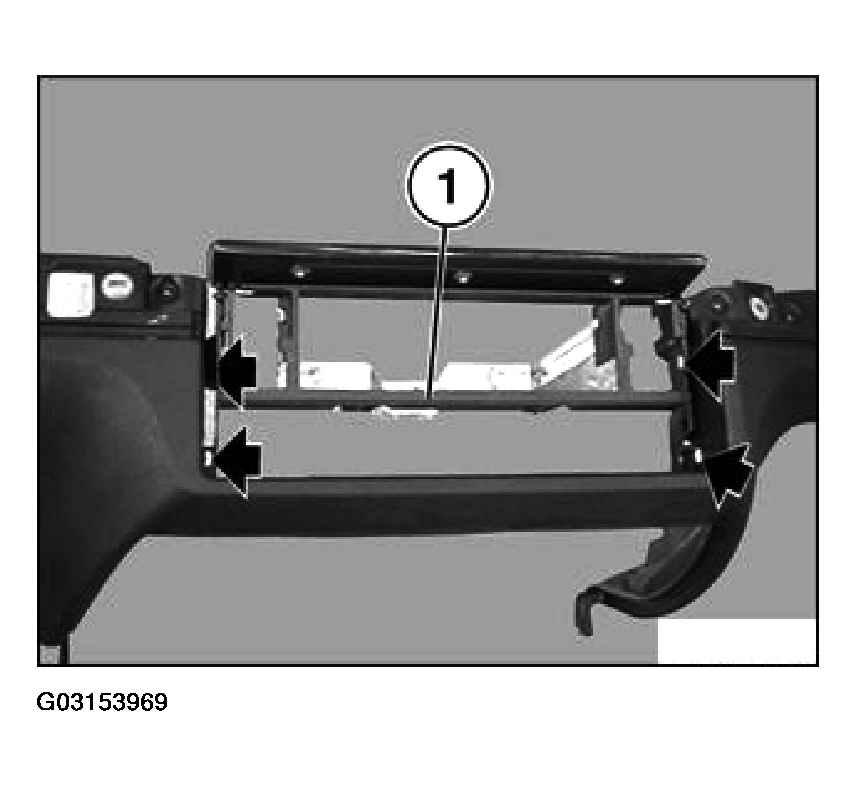

Unfasten screws and remove frame (1) for radio.

Fig 1: Unfastening Screws And Remove Frame For Radio

Courtesy of BMW OF NORTH AMERICA, INC.

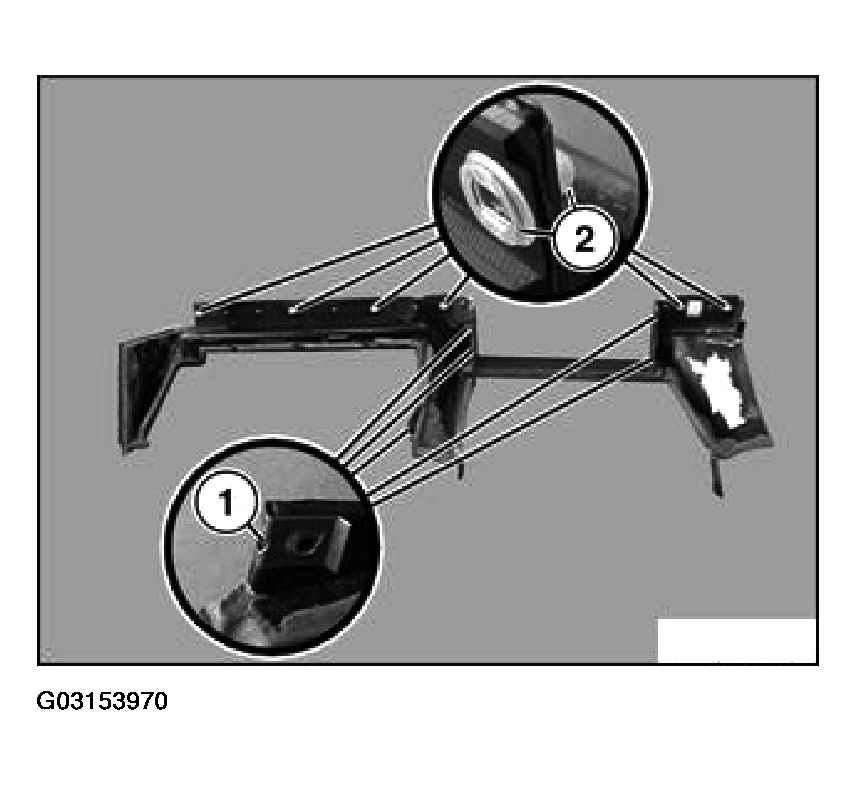

Remove all tab washers (1) and grommets (2) from lower section of instrument panel.

Fig 2: Removing All Tab Washers And Grommets From Lower Section Of Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.
