35 40 503 Replacing adapter plate
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always replace disassembled adapter plate with a new part.
Retaining clips of old part can be damaged and adapter plate can slide out of steel plate.
Remove accelerator pedal module. See 35 40 001 Removing and installing/replacing accelerator pedal module

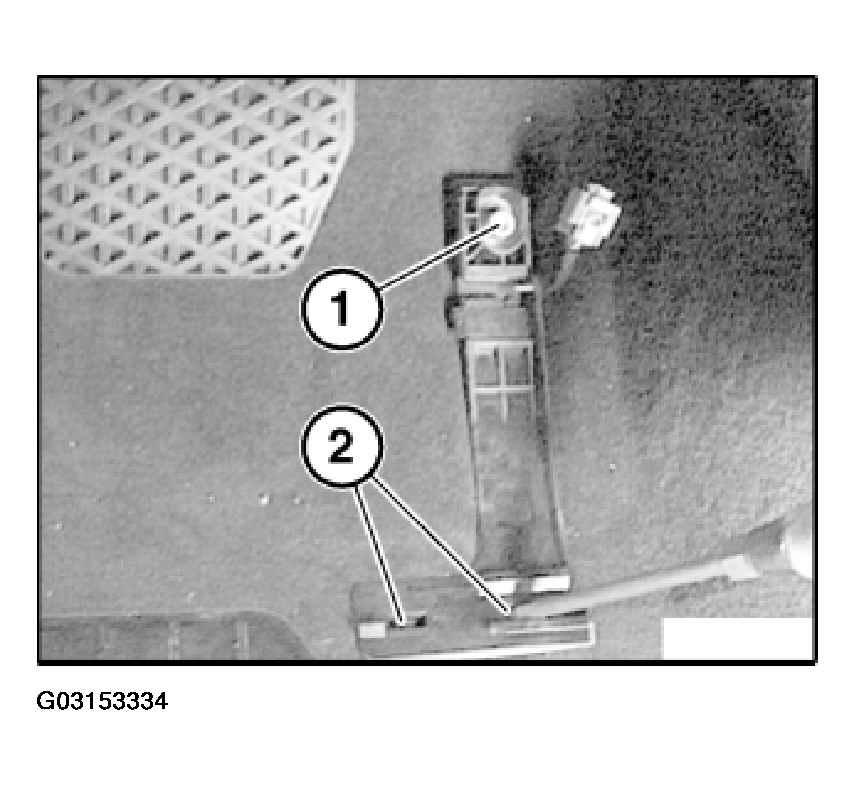

Release screw (1).
Installation:
Tightening torque, see 35 40 1AZ in PEDALS - TIGHTENING TORQUES - 540I .
Bend retaining clips (2 and 3) to one side and pull out adapter plate towards top.
