35 40 001 Removing and installing/replacing accelerator pedal module

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

Accelerator pedal modules for vehicles with manual and automatic transmissions are different. Accelerator pedal module for automatic vehicles can be identified by its increased pressure point in full-load position.

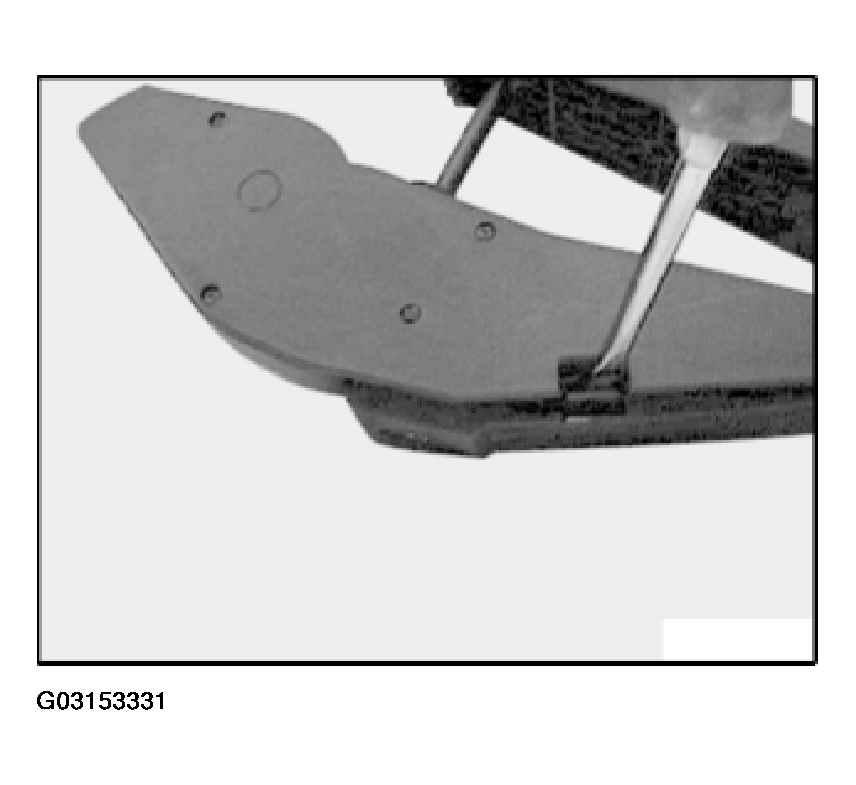

Lever lock downwards with a screwdriver and detach accelerator pedal module to one side.

Fig 1: Detaching Accelerator Pedal Module To One Side

Courtesy of BMW OF NORTH AMERICA, INC.

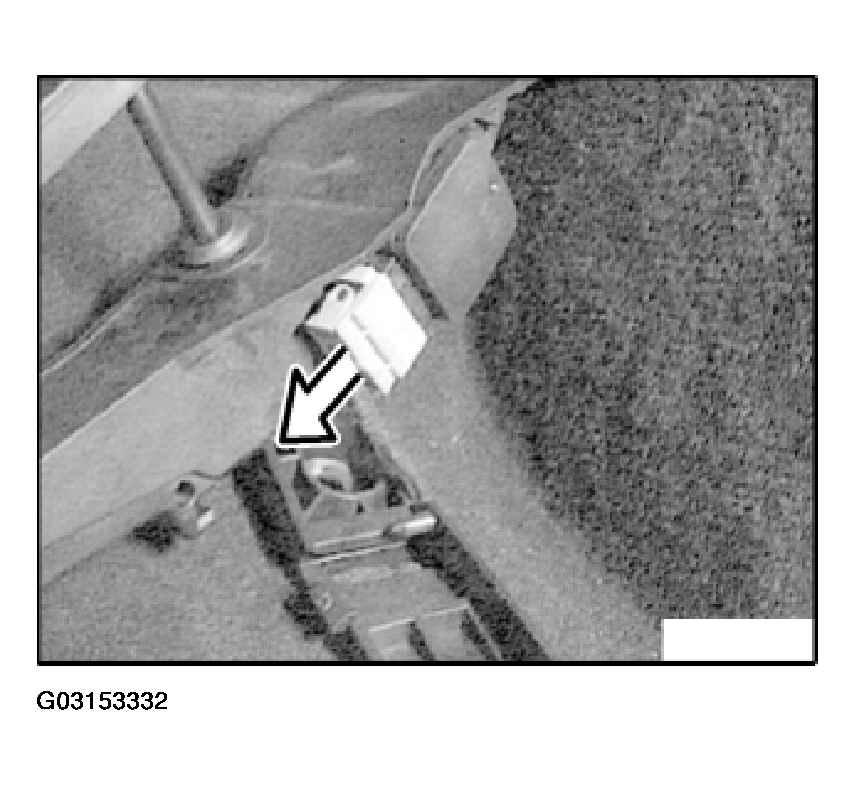

Press together lock and detach plug.

Fig 2: Pressing Together Lock And Detach Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

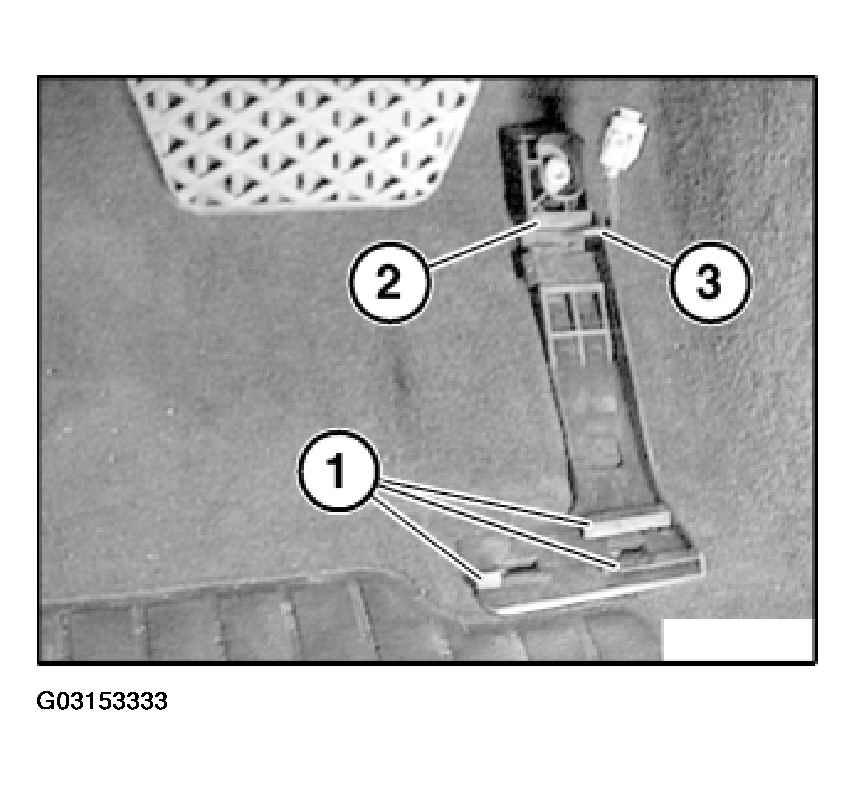

Slide accelerator pedal module first at bottom (1) and then at top (2) into guide rails. Mandrel of adapter plate (3) must penetrate into corresponding opening in accelerator pedal module.

In the end position, the right outer surfaces of the adapter plate and the accelerator pedal module are flush and the lock of the adapter plate is snapped into place twice.

Fig 3: Identifying Accelerator Pedal Module

Courtesy of BMW OF NORTH AMERICA, INC.
