17 11 530 Removing and installing cassette (condenser for air conditioner)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove radiator. See 17 11 000 Removing and installing radiator (M62)

NOTE: The condenser for the A/C system is integrated in the cassette.
At the same time, depending on the model of vehicle, the individual coolers for steering hydraulics, automatic transmission and engine oil are installed in the cassette.

Disconnect lines for power steering and if necessary engine and transmission oil coolers.

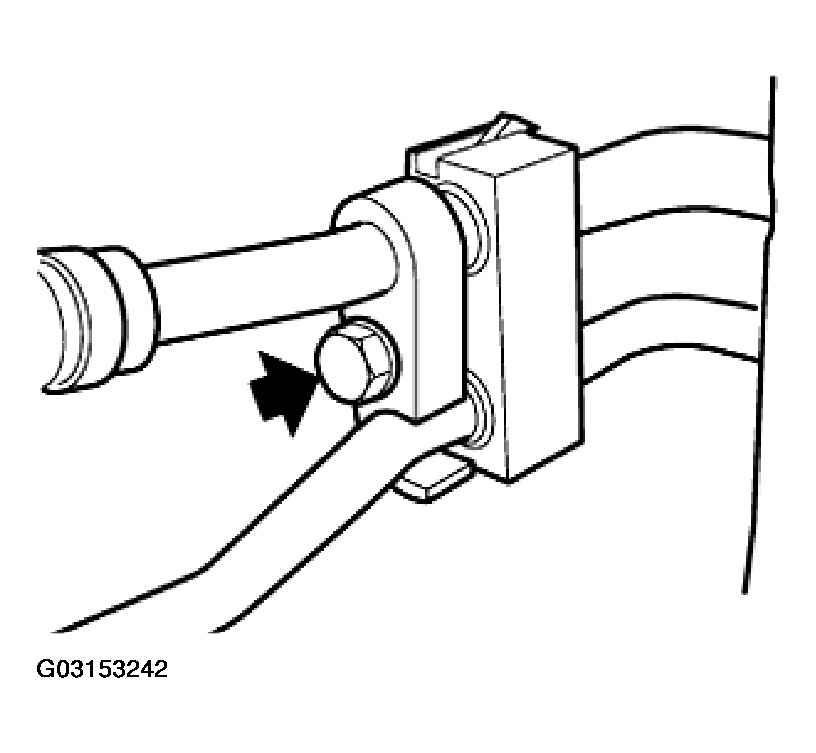

Fig 1: Disconnecting Lines For Power Steering

G03153242

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Replace sealing rings.

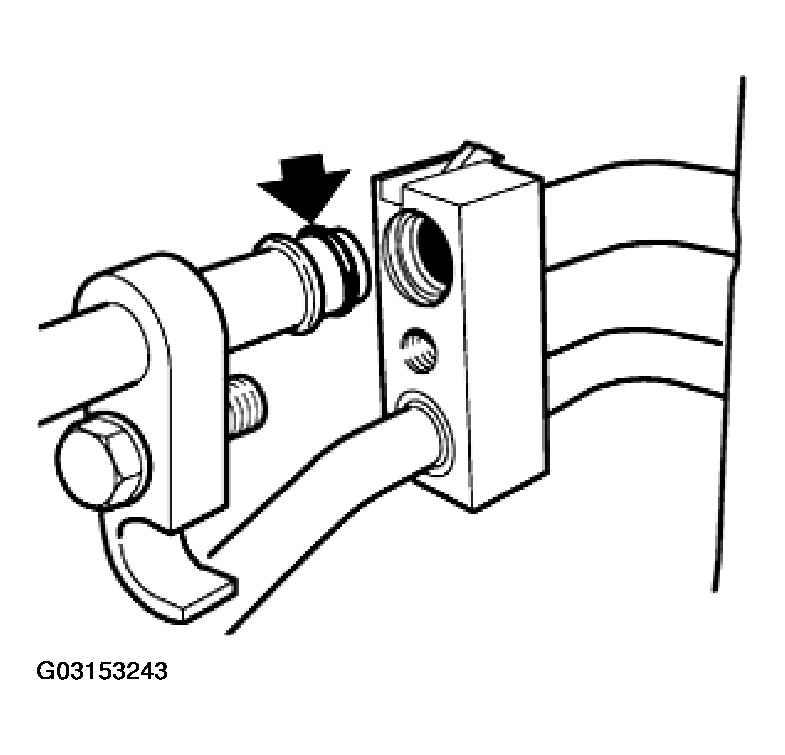

Fig 2: Replacing Sealing Rings

G03153243

Courtesy of BMW OF NORTH AMERICA, INC.

Draw off refrigerant from A/C system.

Remove lines from air conditioner.

Installation

Replace sealing rings.

Evacuate and fill A/C system.

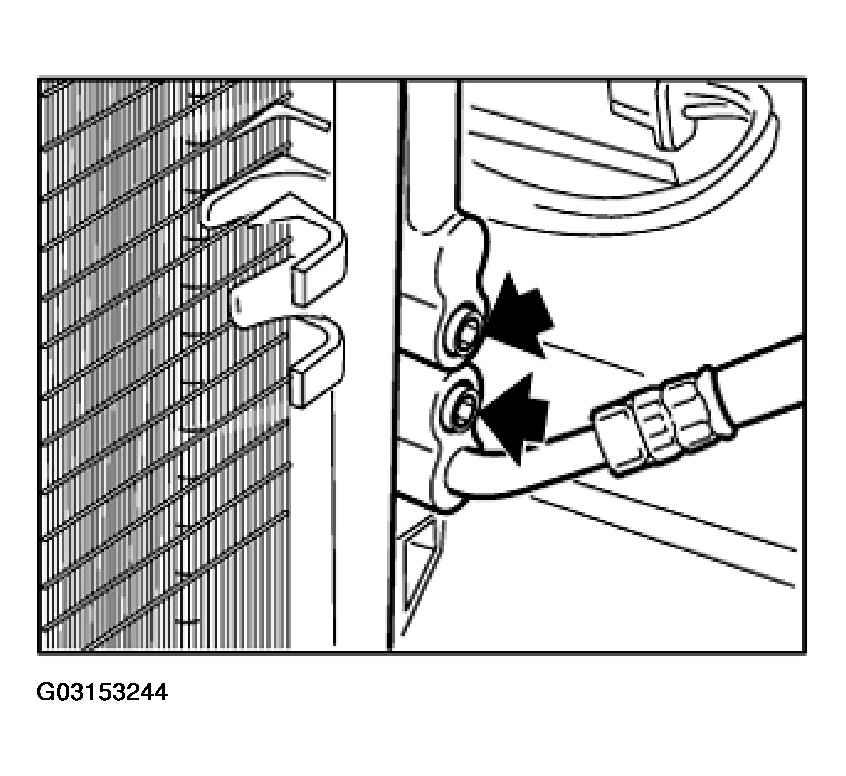

Fig 3: Removing Lines From Air Conditioner

G03153244

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt cassette backwards slightly and lift upwards to remove.

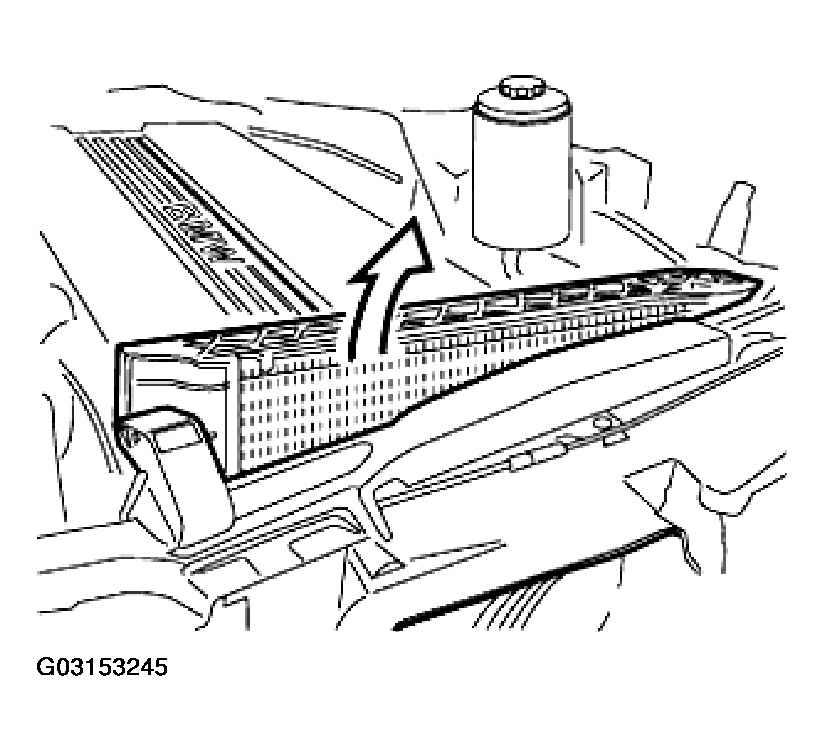

Fig 4: Tilting Cassette

G03153245

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Note rubber mounts on front wall.

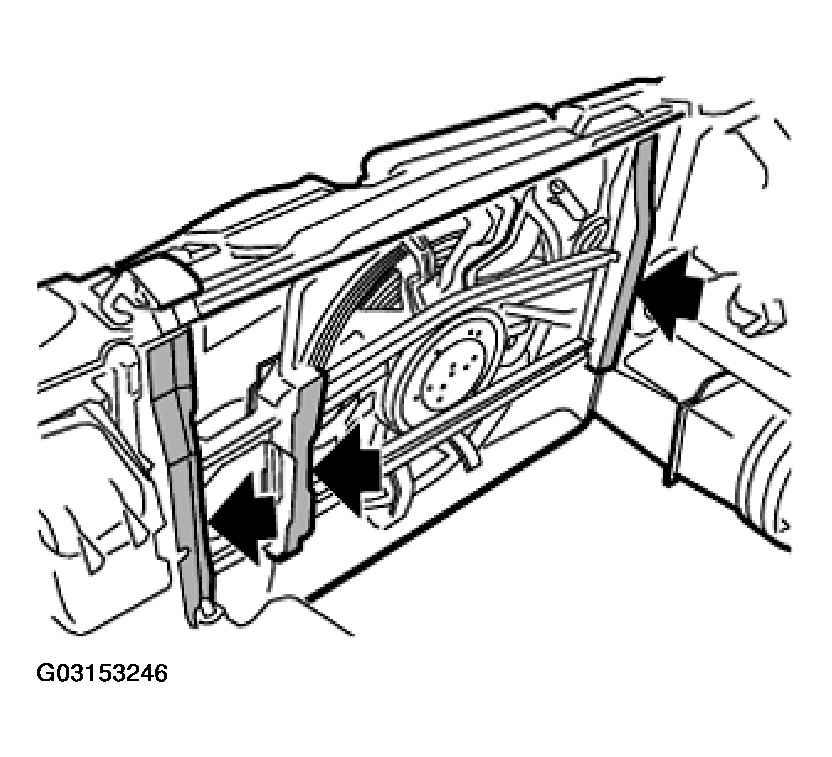

Fig 5: Identifying Rubber Mounts

G03153246

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check rubber mounts on left and right sides.

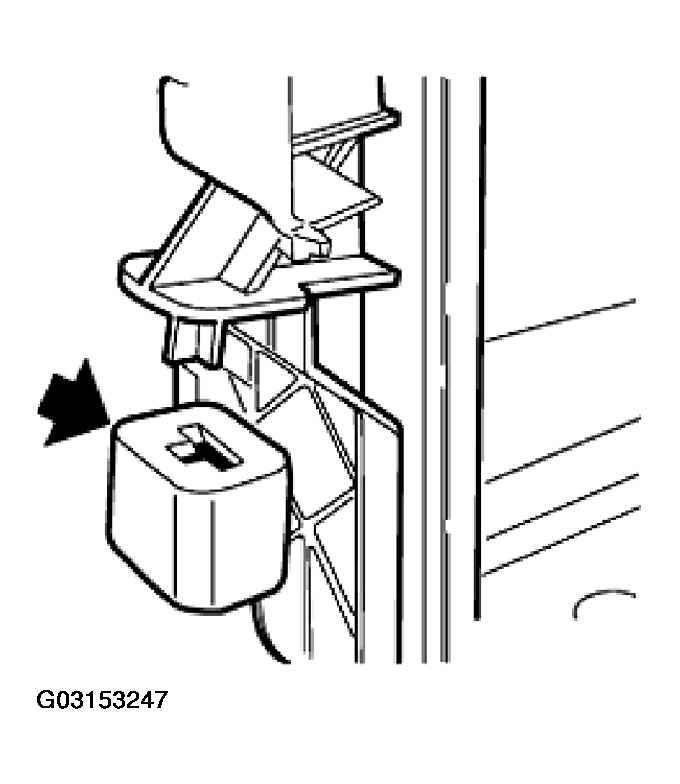

Fig 6: Checking Rubber Mounts

G03153247

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install cassette in left and right retainers and push forwards as far as it will go.

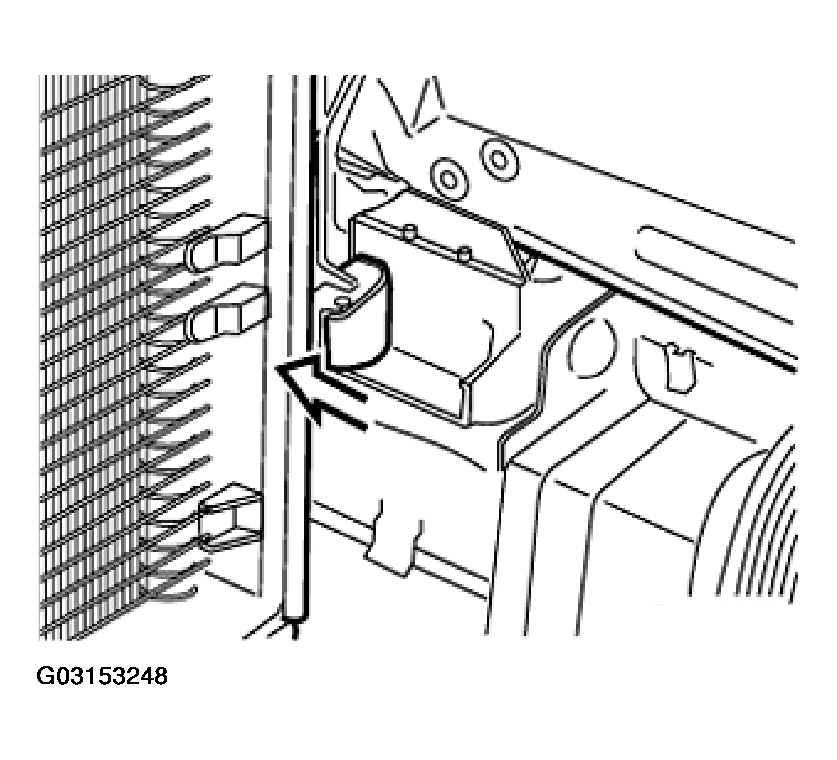

Fig 7: Identifying Cassette

G03153248

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check rubber profile seals.

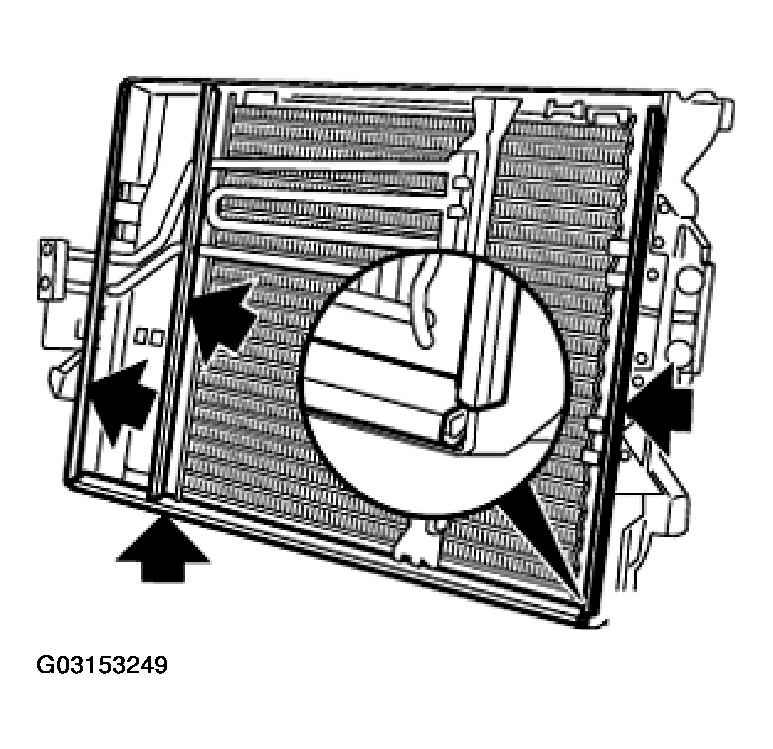

Fig 8: Checking Rubber Profile Seals

G03153249

Courtesy of BMW OF NORTH AMERICA, INC.
