17 11 031 Replacing fan cowl (M52, M62)

Remove fan impeller and fan clutch from water pump, refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN COUPLING (M62) .

M52

Lever out expansion rivets on left and right from fan cowl.

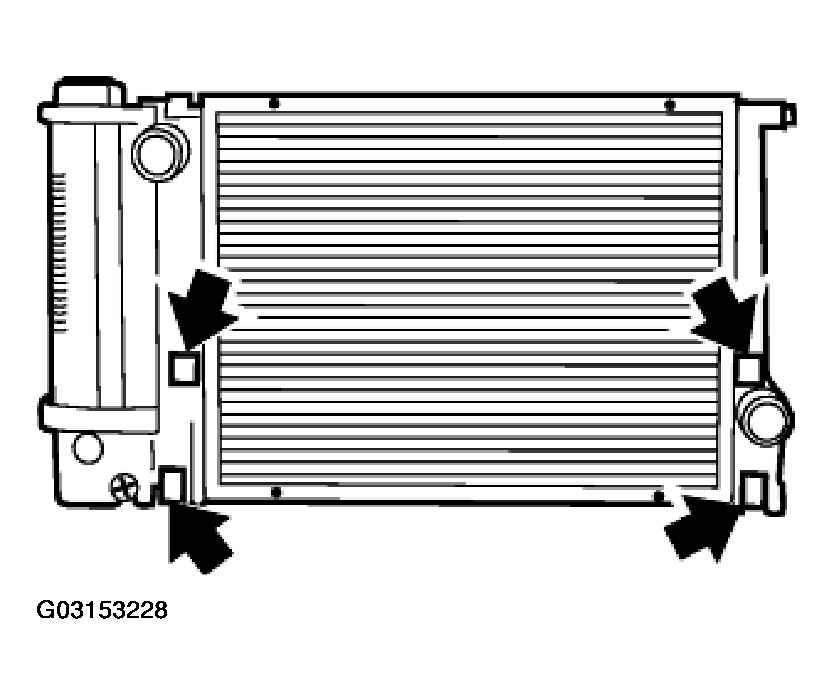

Fig 1: Identifying Rivets On Left And Right From Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Press center of fan cowl gently backwards and disconnect guide tab.

Extract fan cowl and fan together at the same time.

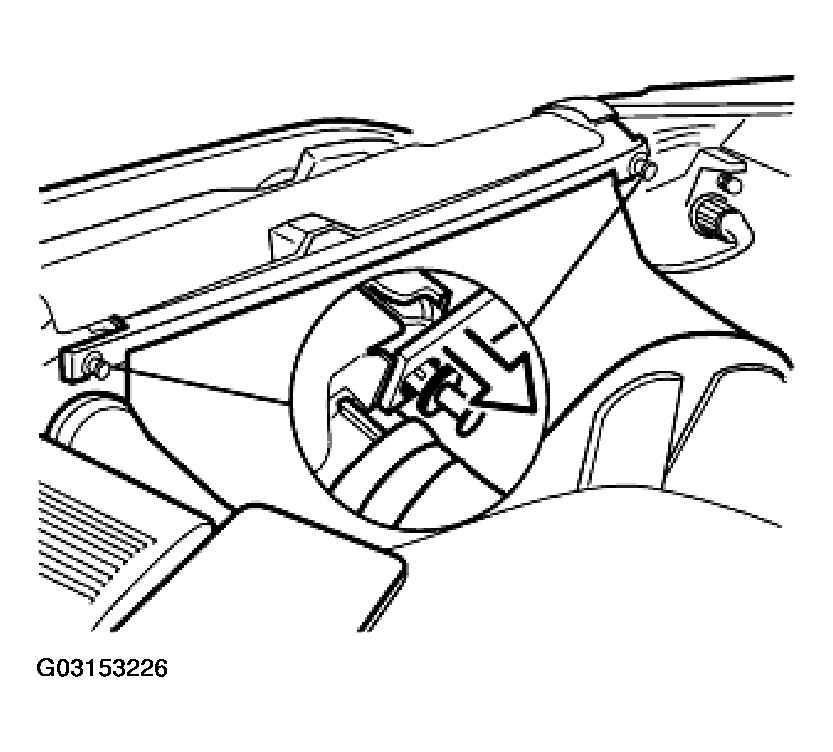

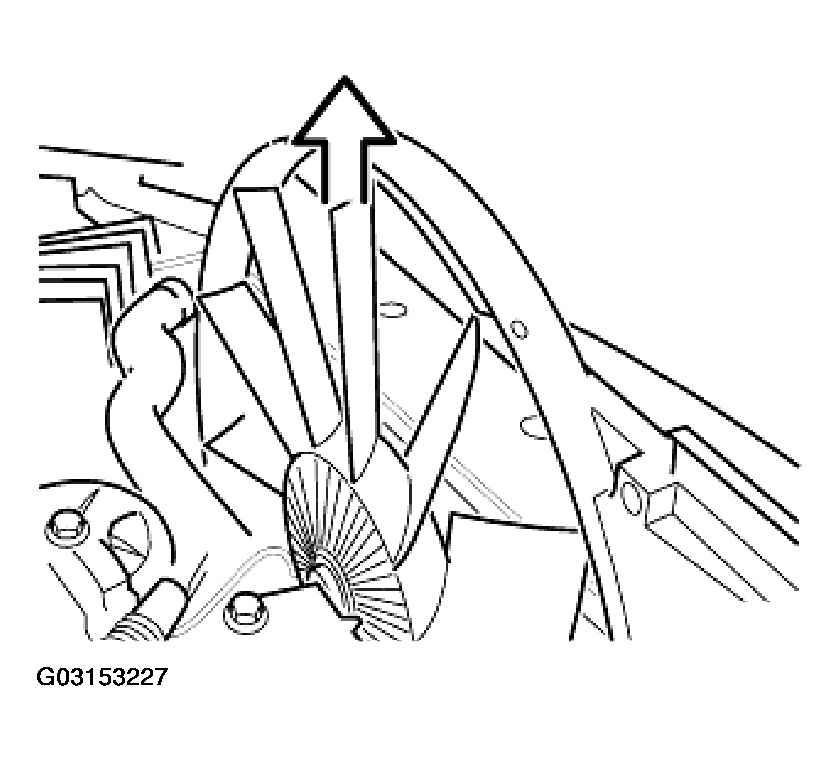

Fig 2: Identifying Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

When installing fan cowl, attach left and right tabs to radiator brackets.

Connect guide tab in upper center.

Fig 3: Identifying Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

M62

Remove and install coolant expansion tank, refer to 17 11 100 REMOVING AND INSTALLING OR REPLACING COOLANT EXPANSION TANK .

If necessary, unclip AUC sensor.

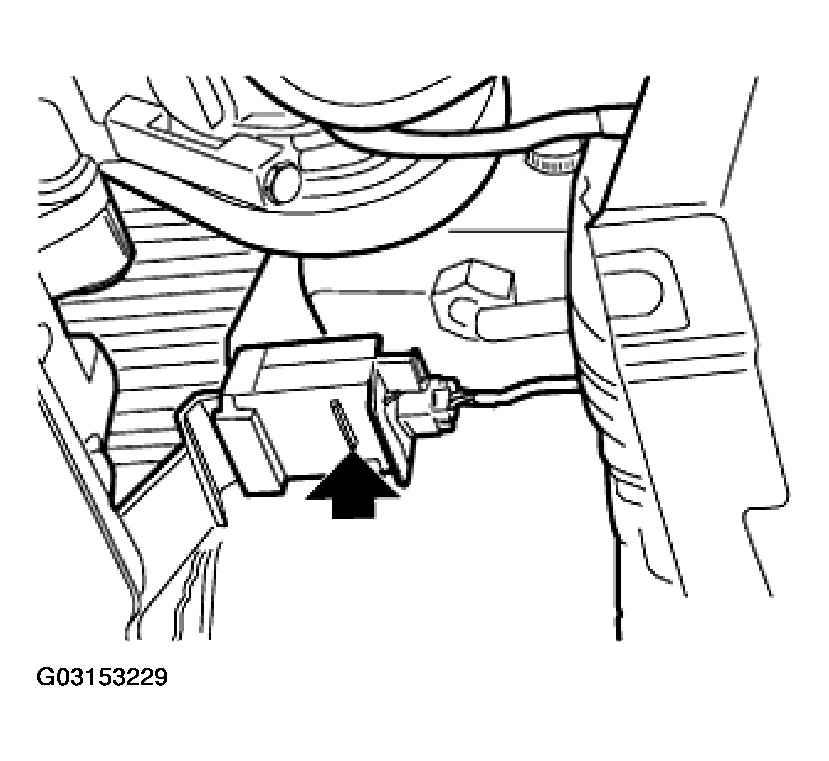

Fig 4: Unclipping AUC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

M62

Lift out left and right expanding rivets (1).

Pull off sealing strip (2).

Pull out fan cowl in upward direction.

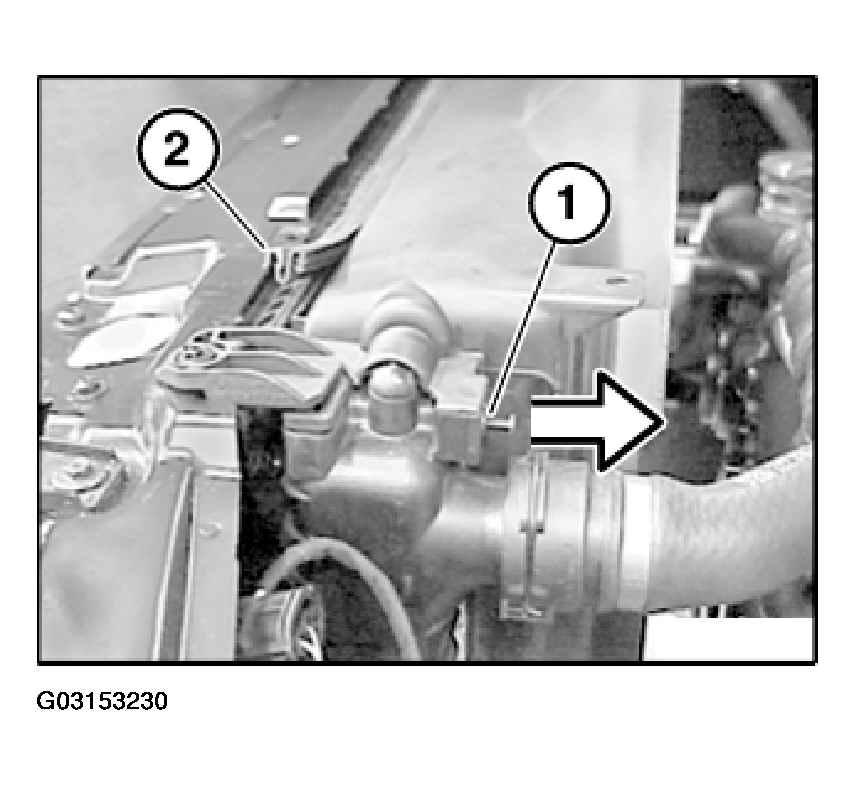

Fig 5: Lifting Out Left And Right Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

M62

Installation

Note sealing strip.

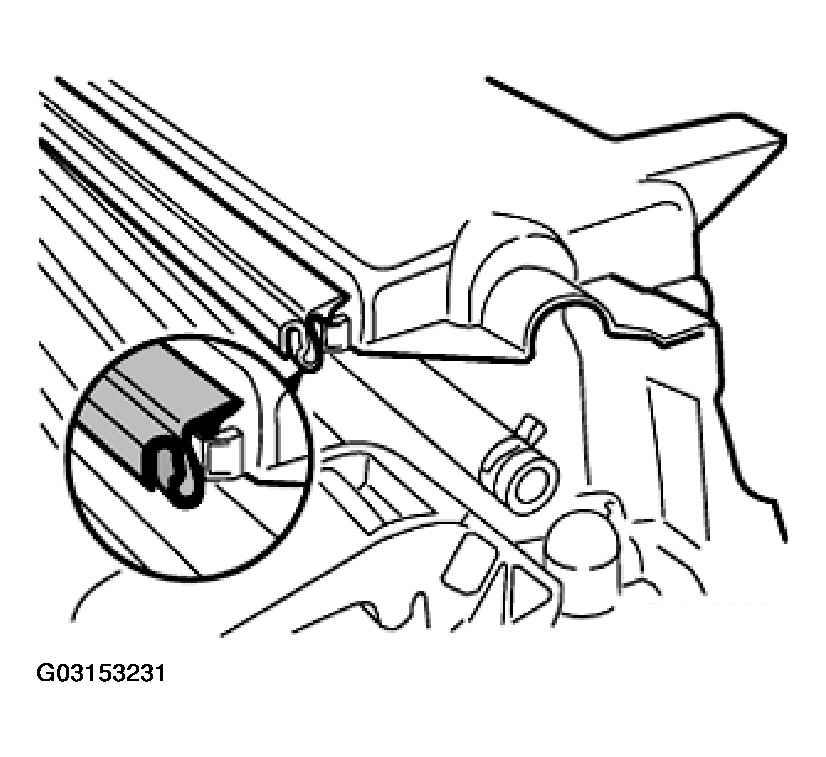

Fig 6: Identifying Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

M62

Installation

Attach fan cowl to retaining lugs on underside and side.

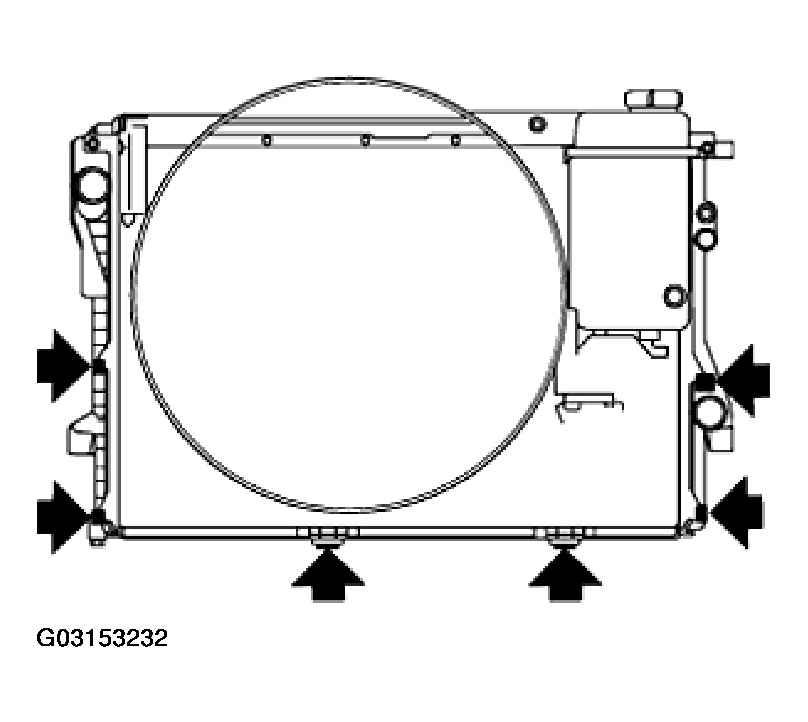

Fig 7: Attaching Fan Cowl To Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
