12 42 520 Removing and installing/replacing positive battery lead (between alternator and positive battery terminal on cylinder head cover) (M60, M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Observe safety instructions for handling vehicle battery.

Instructions for disconnecting and connecting battery, refer to 12 00 Instructions For Disconnecting And Connecting Battery .

Switch off ignition.

Remove battery negative line.

Unfasten clips (1).

If fitted, unfasten hose clip (2) on air intake hose for air pump.

Disconnect plug-in connection (3).

Unfasten hose clip (4).

Remove upper section of suction filter housing with mass air flow sensor.

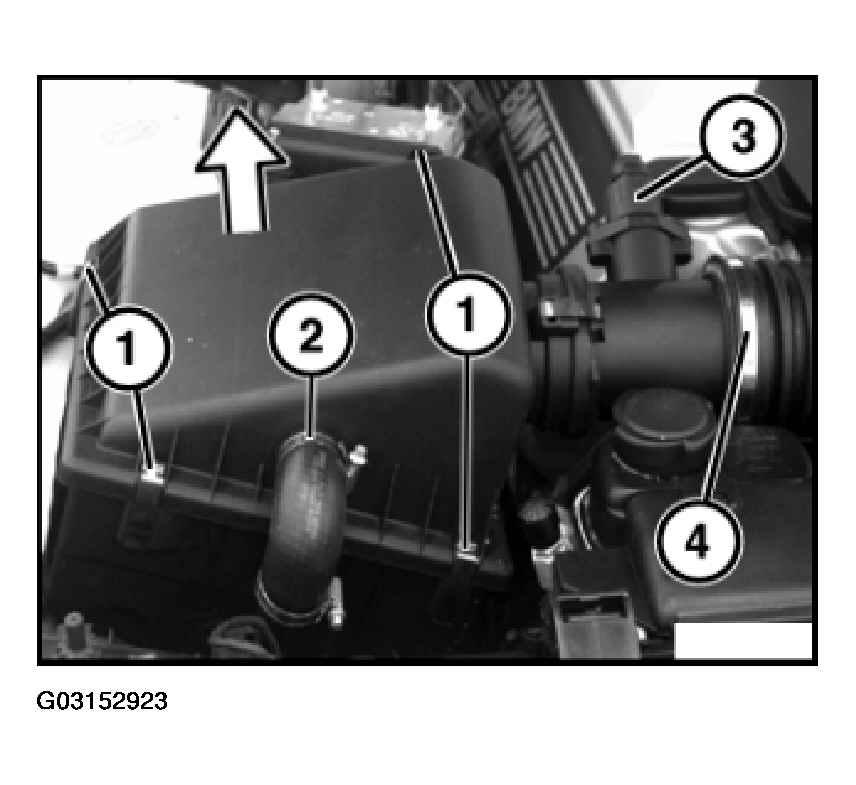

Fig 1: Removing Upper Section Of Suction Filter Housing With Mass Air Flow Sensor

G03152923

Courtesy of BMW OF NORTH AMERICA, INC.

Remove accelerator cables (1 and 2).

Accelerator pedal
Cruise control

Remove complete throttle assembly, refer to 13 54 060 REMOVING AND INSTALLING OR REPLACING THROTTLE BODY (ASC+T) (M60, M62) .

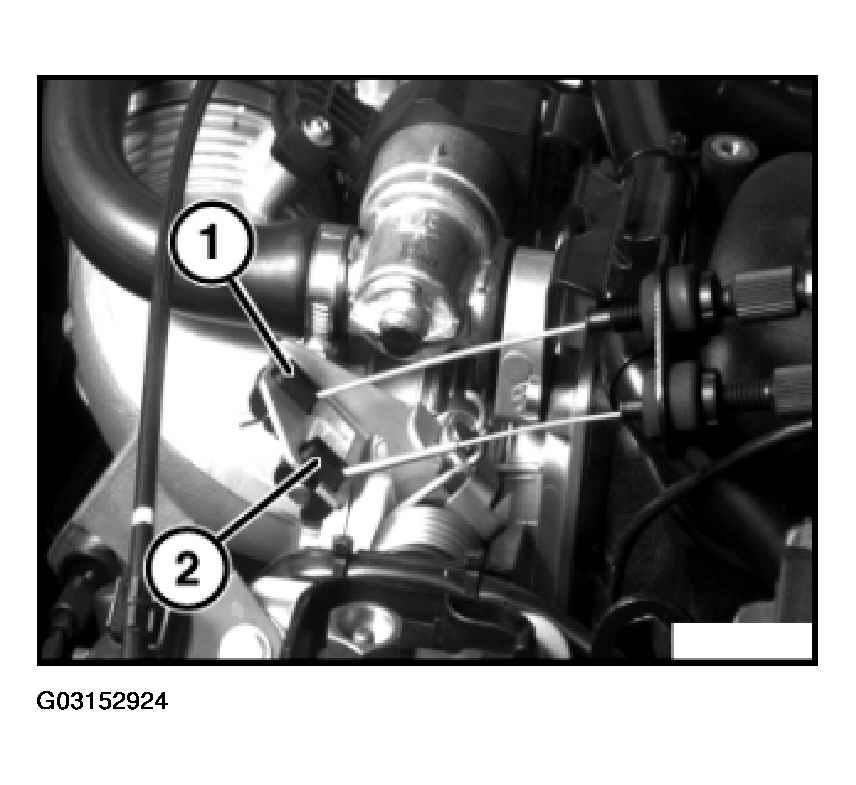

Fig 2: Removing Accelerator Cables

G03152924

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw connection on oil filter.

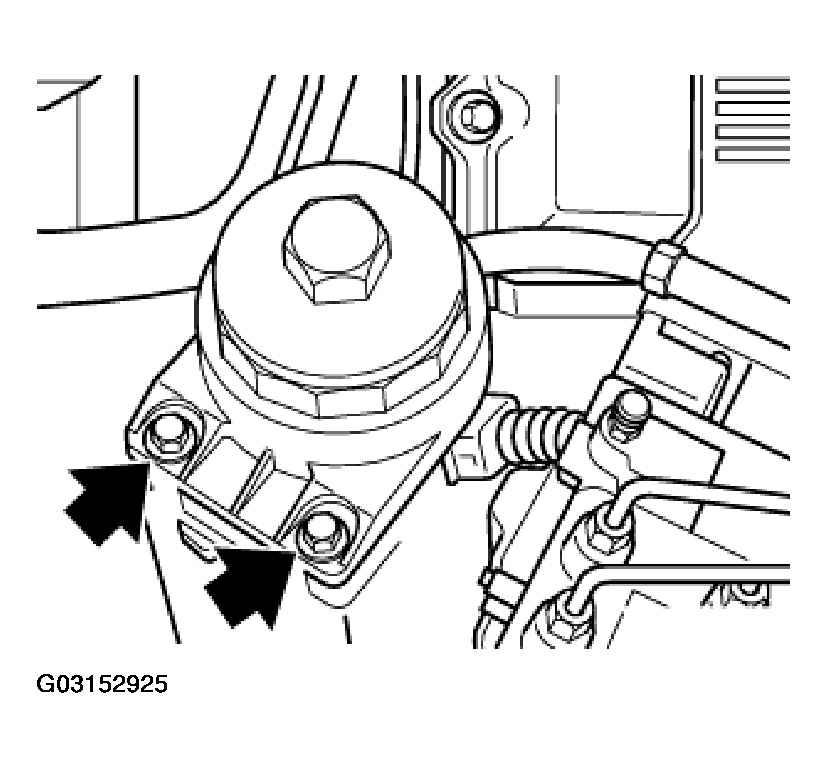

Fig 3: Identifying Unfasten Screw Connection On Oil Filter

G03152925

Courtesy of BMW OF NORTH AMERICA, INC.

Place oil filter to one side.

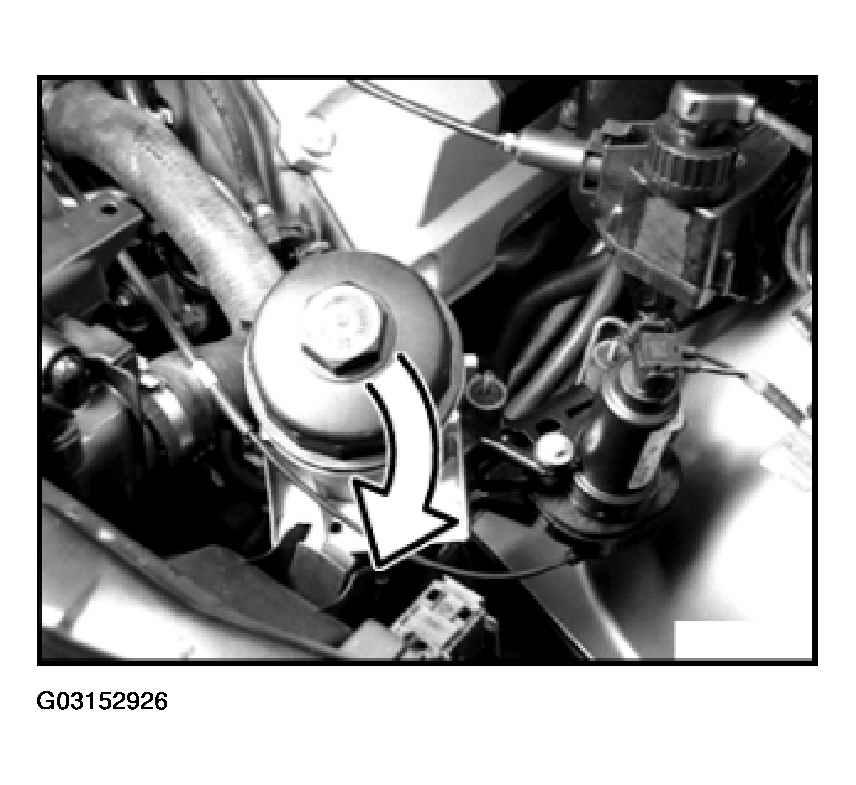

Fig 4: Placing Oil Filter To One Side

G03152926

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect alternator connections.

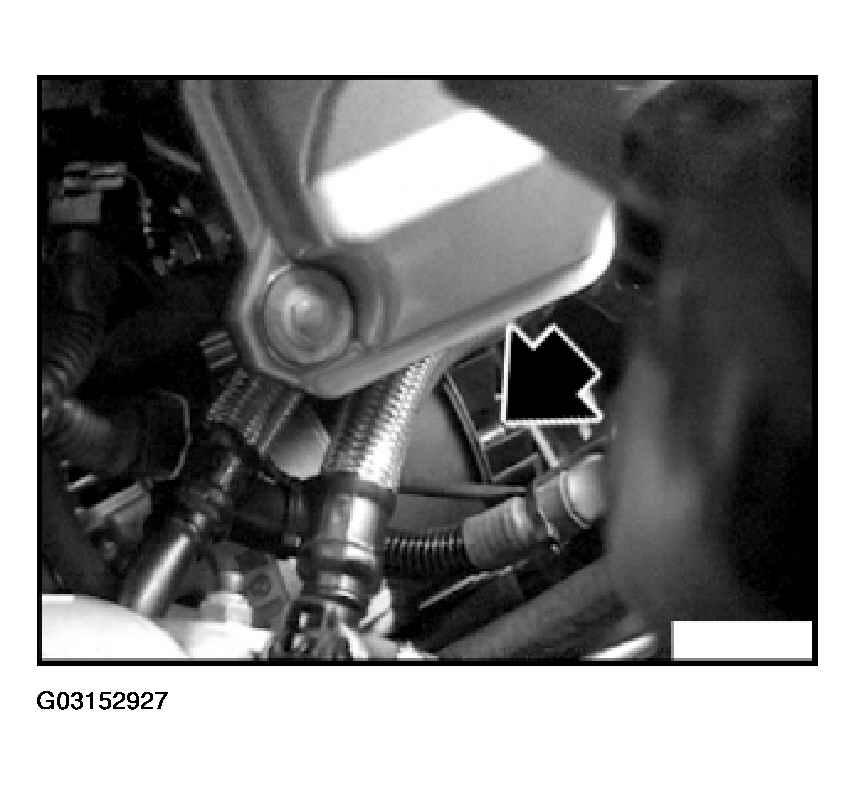

Fig 5: Disconnecting Alternator Connections

G03152927

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect alternator connections.

Unfasten plug connection (1).

Unfasten nut (2).

Tightening torque, see 12 13 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUE .

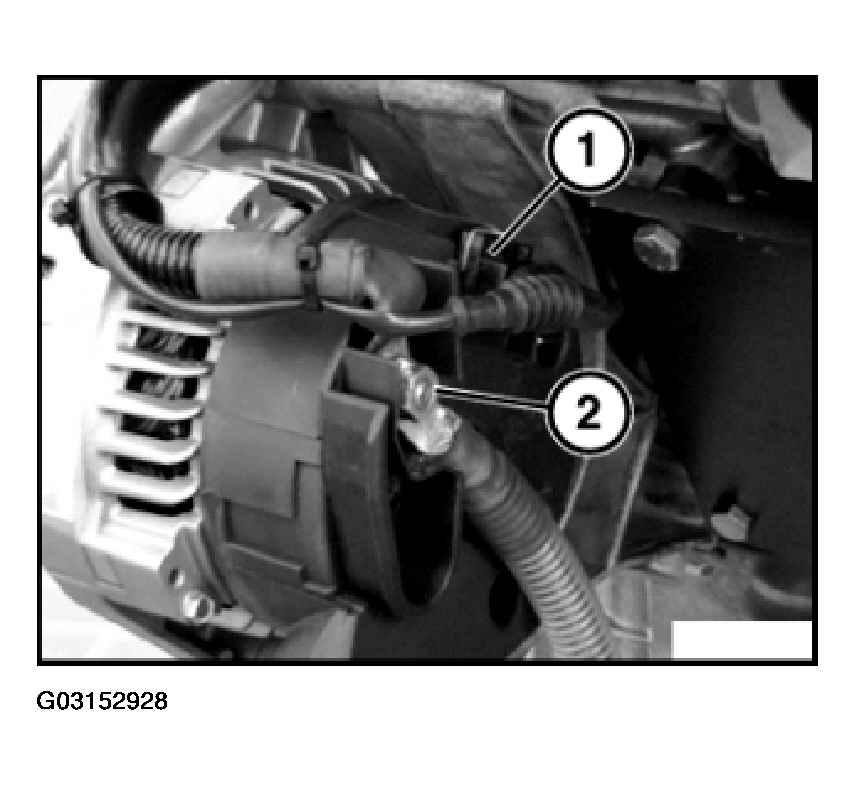

Fig 6: Identifying Plug Connection Nut

G03152928

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten cable connector.

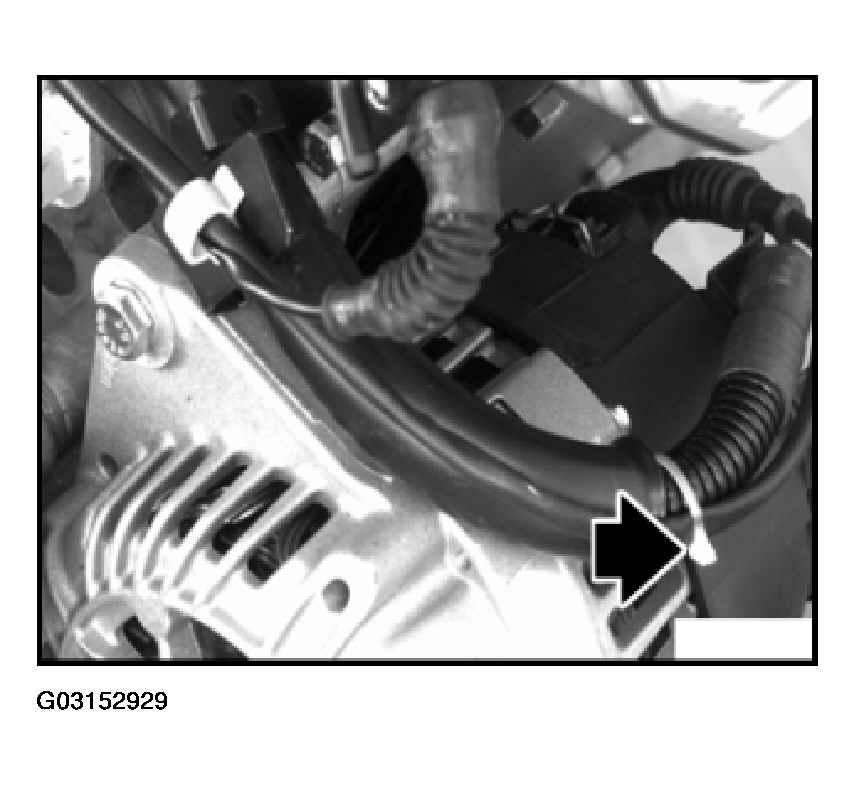

Fig 7: Identifying Cable Connector

G03152929

Courtesy of BMW OF NORTH AMERICA, INC.

Guide tube on positive battery wire.

Unscrew screw.

Illustrated here without coolant hose.

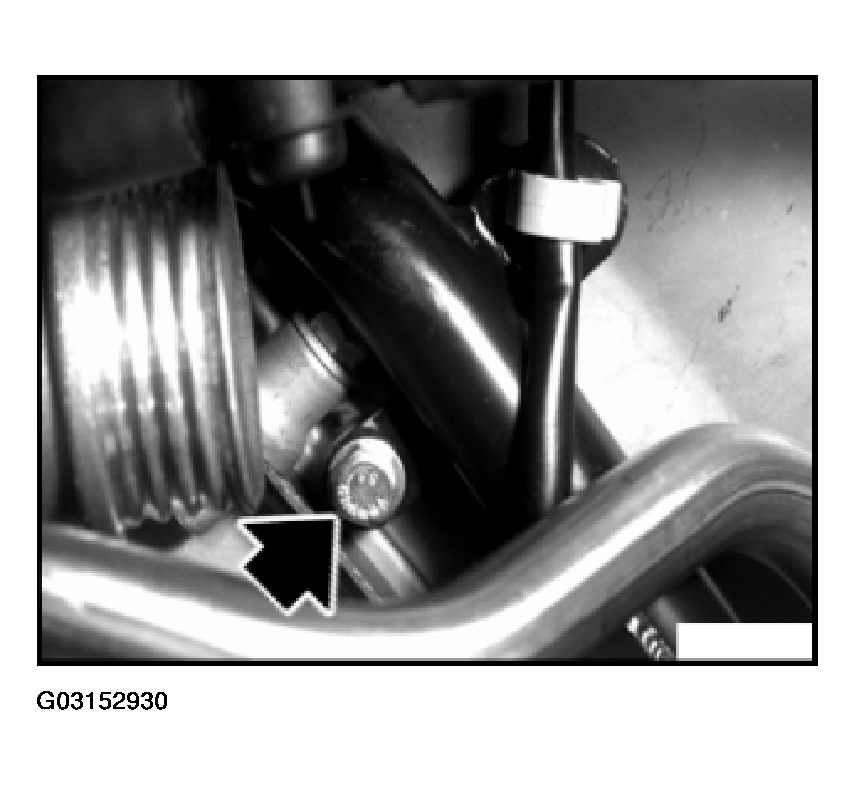

Fig 8: Identifying Coolant Hose

G03152930

Courtesy of BMW OF NORTH AMERICA, INC.

Guide tube on positive battery wire.

Unscrew screw.

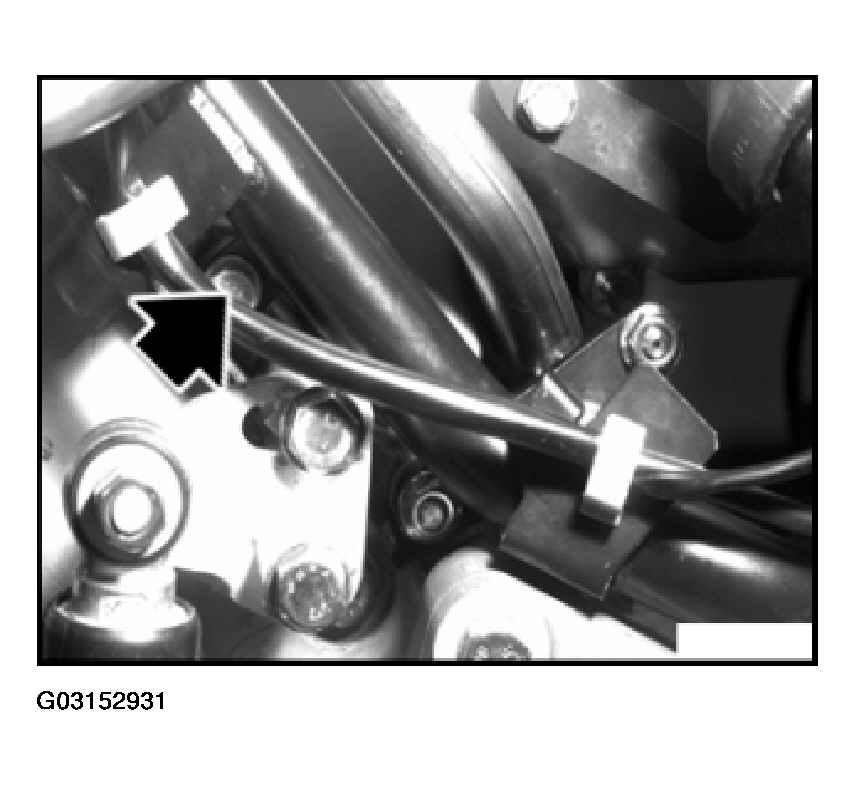

Fig 9: Identifying Guide Tube On Positive Battery Wire

G03152931

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Remove wiring harness.

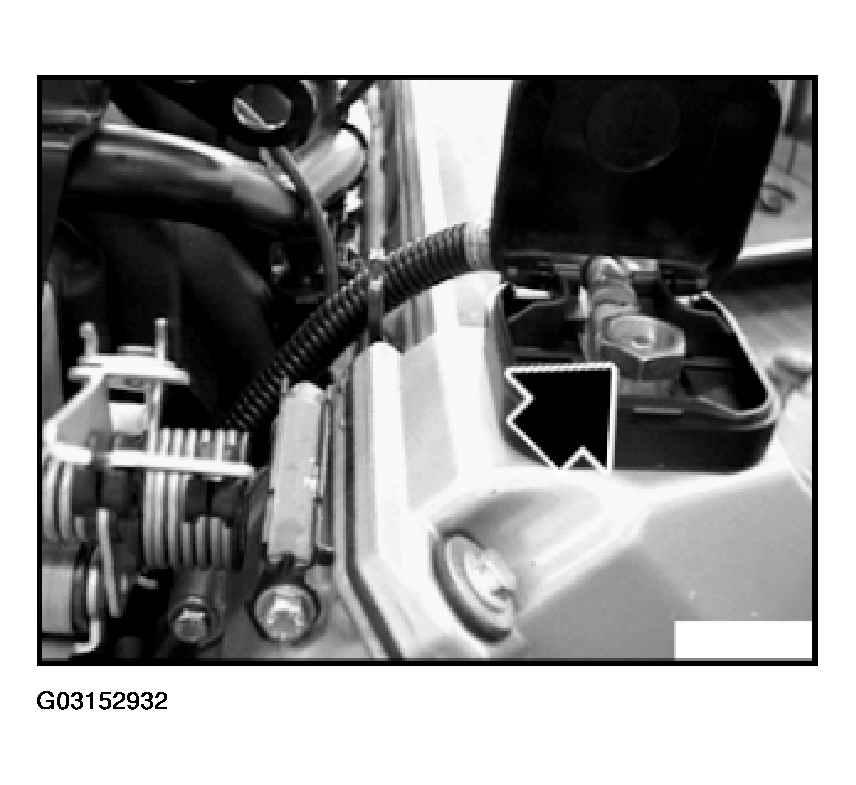

Fig 10: Removing Wiring Harness Nut

G03152932

Courtesy of BMW OF NORTH AMERICA, INC.
