11 51 000 Removing and installing/replacing water pump (M62 / S62)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Drain off coolant and dispose of correctly.
Installation
Vent cooling system and check for leaks,
refer to 17 00 005 DRAINING AND TOPPING UP COOLANT .
Remove vibration damper,
refer to 11 23 010 REMOVING AND INSTALLING/REPLACING VIBRATION DAMPER (M62) .
Remove thermostat housing,
refer to 11 53 000 REMOVING AND INSTALLING / REPLACING COOLANT THERMOSTAT (M62) .
- Remove pulley.
- Remove coolant hose.
- Unfasten screws.
- Remove water pump.
Installation

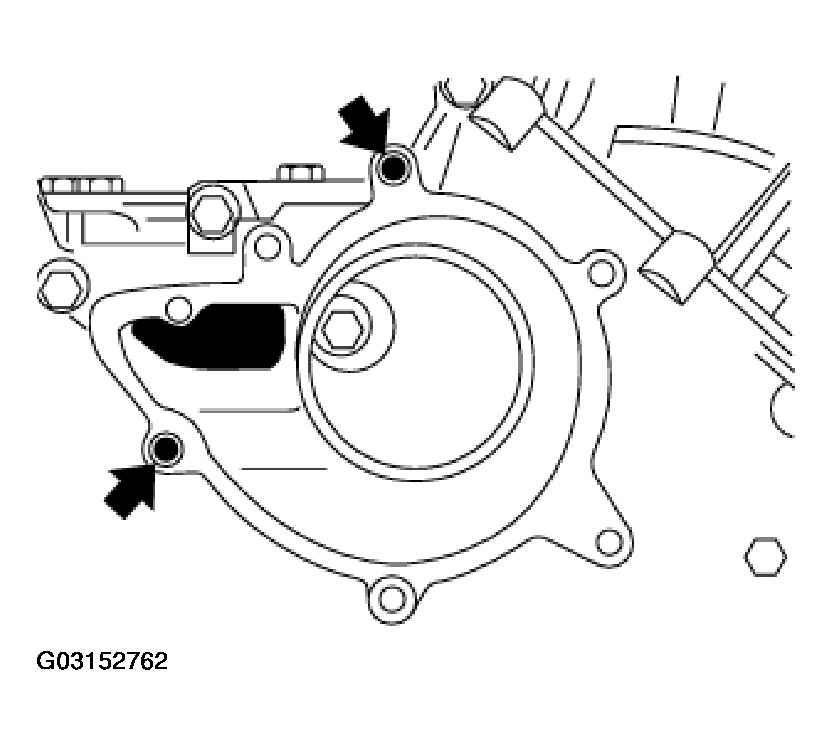

Make sure that sleeves are correctly seated.
Clean sealing faces.
Replace seal.
