11 23 010 Removing and installing/replacing vibration damper (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew and remove splash guard.

Remove alternator drive belt,

refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (M62)

Remove drive belt for a/c compressor,

refer to 11 28 050 REPLACING DRIVE BELT FOR A/C COMPRESSOR (M60 / M62 / M73)

Release screws and remove vibration damper.

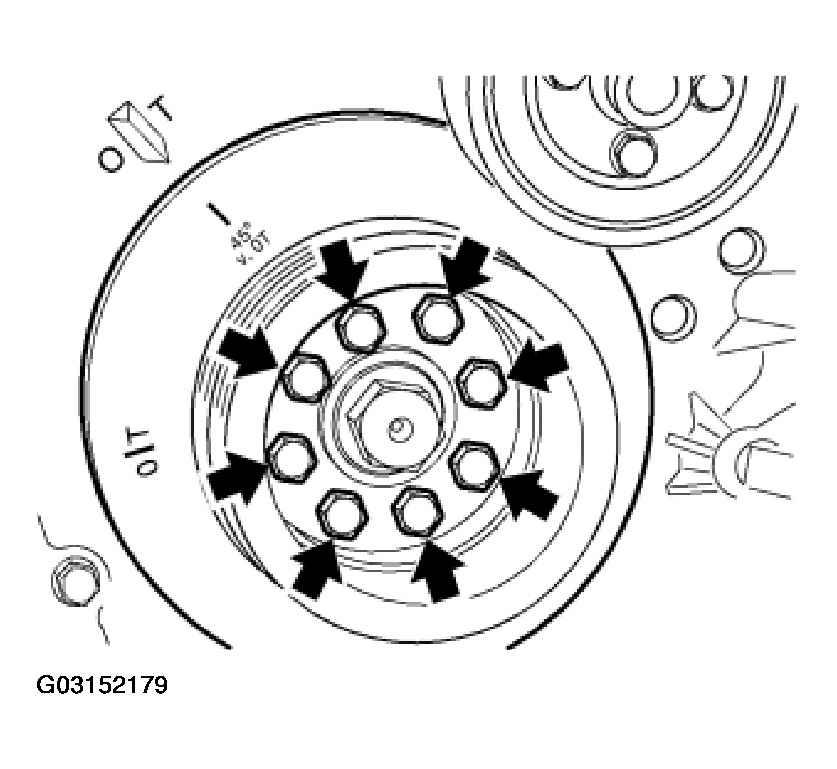

Fig 1: Releasing Screws And Remove Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

The vibration damper is located with a dowel pin. Replace screws.

Tightening torque, refer to 11 23 3AZ in ENGINE - TIGHTENING TORQUES - 540i .

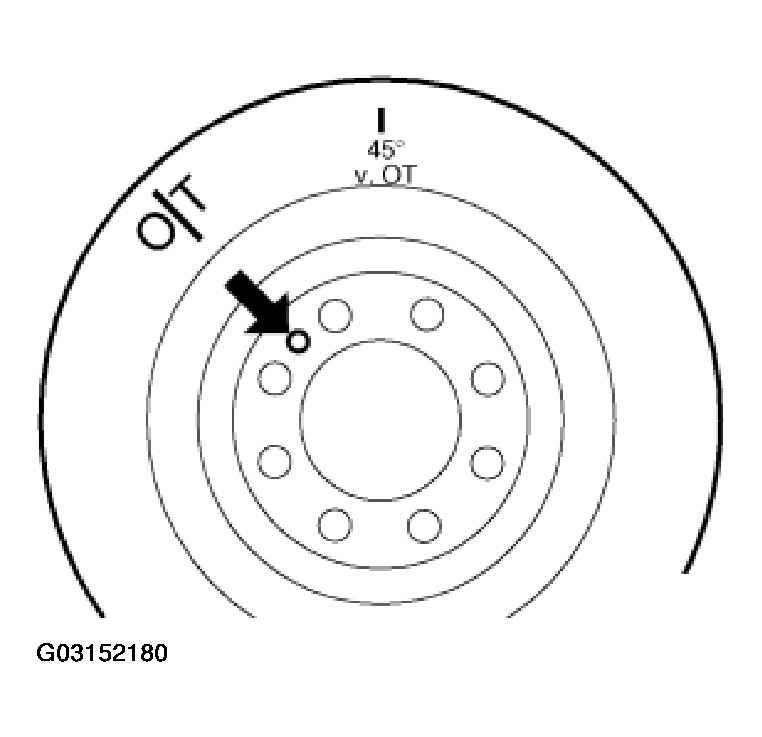

Fig 2: Identifying Vibration Damper Located With A Dowel Pin

Courtesy of BMW OF NORTH AMERICA, INC.
