11 23 031 Removing and installing/replacing hub for vibration damper (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing vibration damper,

refer to 11 23 010 REMOVING AND INSTALLING/REPLACING VIBRATION DAMPER (M62)

Remove cooling air duct for alternator.

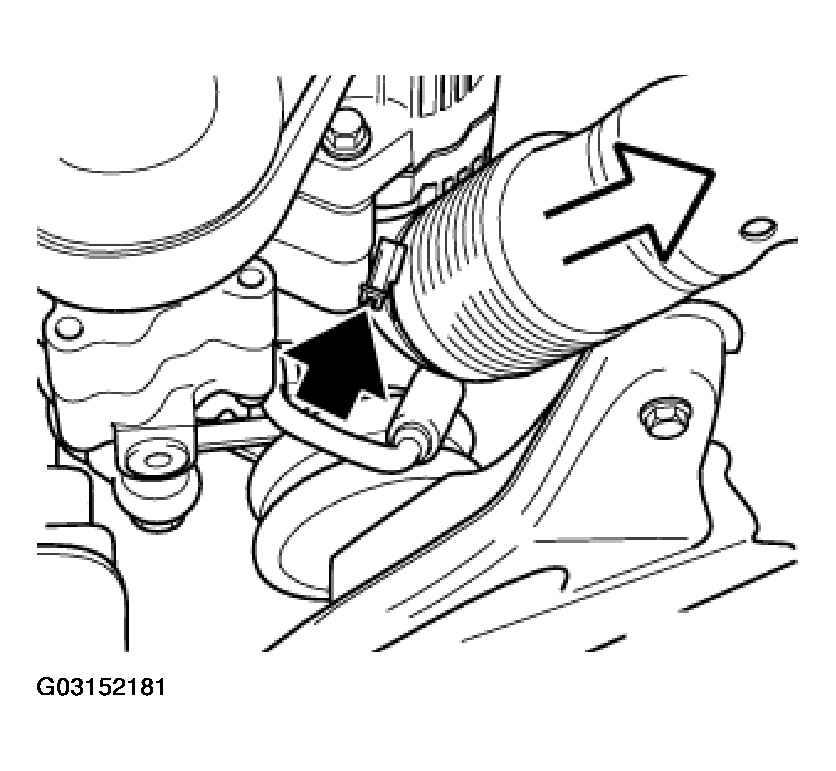

Fig 1: Removing Cooling Air Duct For Alternator

G03152181

Courtesy of BMW OF NORTH AMERICA, INC.

Remove brake air duct, left and right.

Release retainer for pressure line from engine support.

Pay attention to dowel pin.

Secure special tool 11 2 450.

NOTE: Protect engine bracket from damage.
Insert wood between engine support and special tool 11 2 450.

Unscrew central bolt.

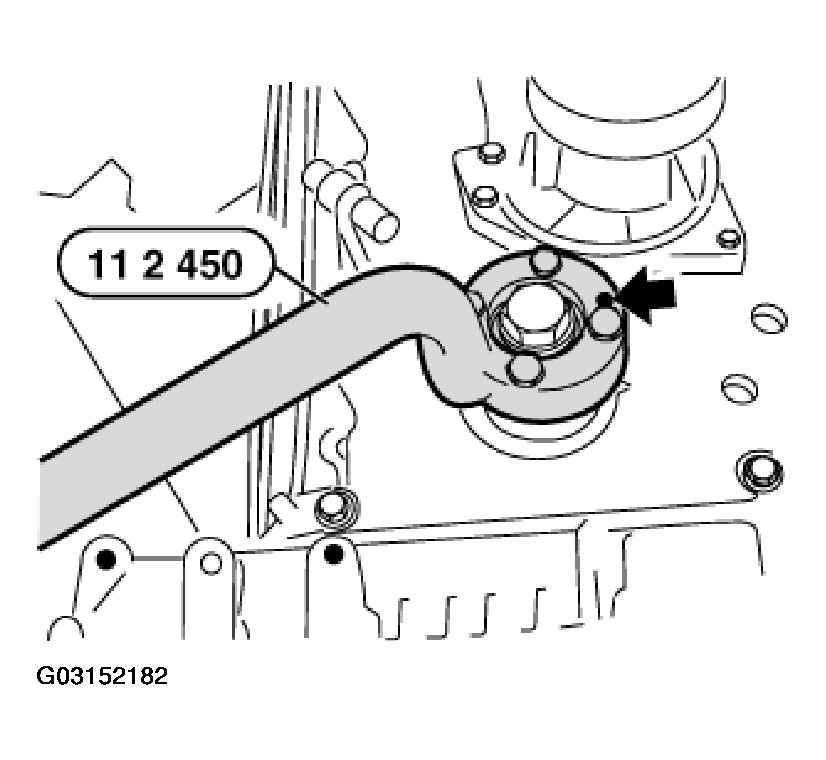

Fig 2: Unscrewing Central Bolt

G03152182

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Replace central screw.

Tighten the central screw with torque.

For tightening torque, refer to 11 23 2AZ in ENGINE - TIGHTENING TORQUES - 540i .

Installation

Place special tool 11 3 460 on special tool 11 2 450.

NOTE: Special tool 11 3 460 is magnetic.

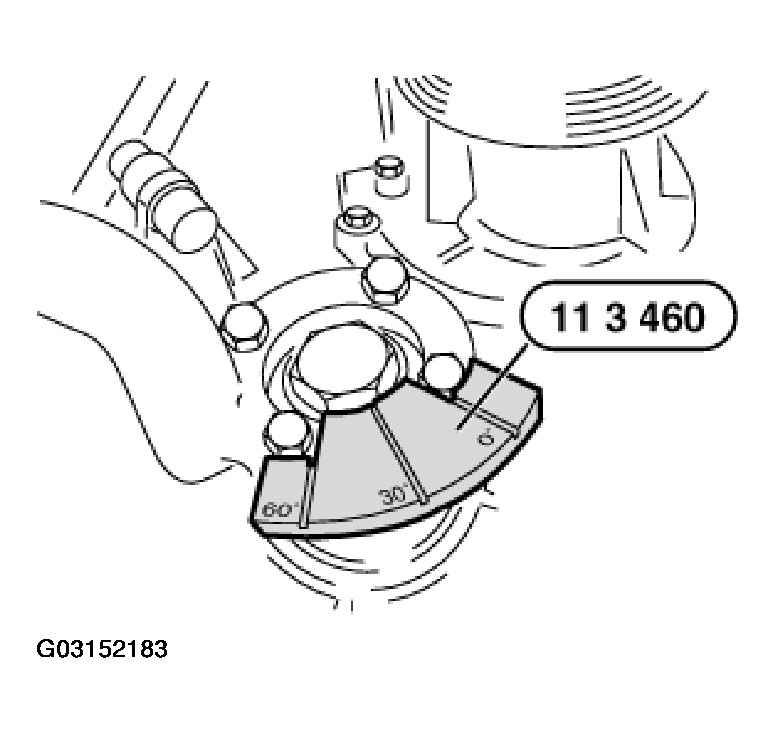

Fig 3: Identifying Special Tool 11 3 460

G03152183

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Select 0° location and mark on insertion nut. Tighten the central screw with torsion angle.

For tightening torque, refer to 11 23 2AZ in ENGINE - TIGHTENING TORQUES - 540i .

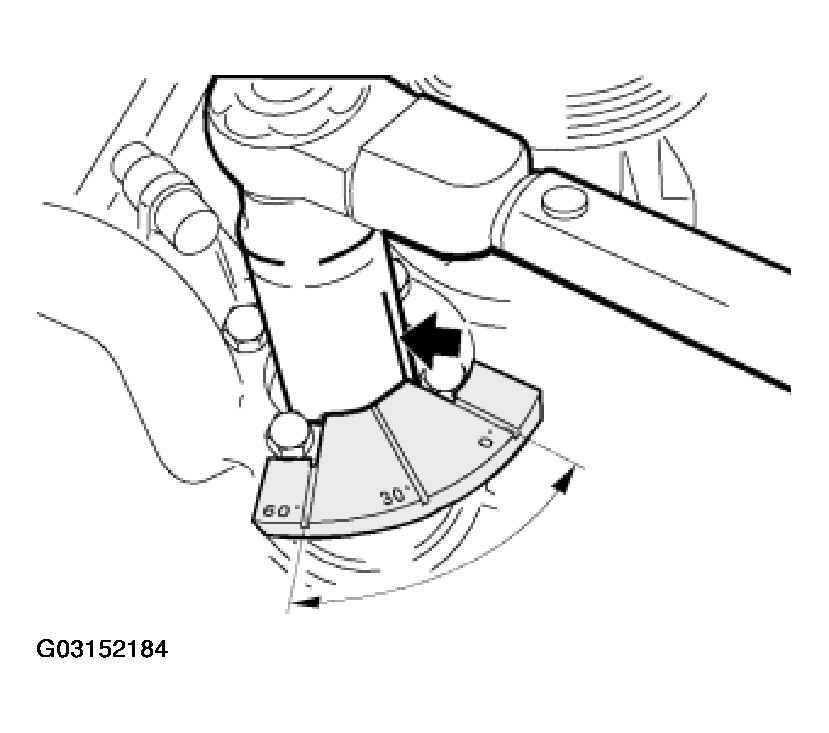

Fig 4: Tightening Central Screw With Torsion Angle

G03152184

Courtesy of BMW OF NORTH AMERICA, INC.
