11 61 050 Removing and installing intake air manifold (M62): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Follow instructions for disconnecting and connecting battery, See 12 00 INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect negative battery lead. See 12 00 INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Remove intake filter housing with air-mass flow sensor. See 13 71 000 REMOVING AND INSTALLING SUCTION-FILTER HOUSING (M60, M62)

Release wiring harness section for engine from intake air manifold and lay to one side with cable ducts.

If necessary, remove ASC+T throttle.

If necessary, disconnect Bowden cables for throttle actuation.

If necessary, remove throttle assembly.

CAUTION: Catch and dispose of escaping fuel.

Disconnect fuel feed and return lines from injection pipe.

NOTE: From 9/98 version without fuel return line.

Follow instructions for removing and installing fuel hoses,

refer to 13 53 540 REPLACING, SEALING FUEL HOSES .

Remove connector for brake force booster.

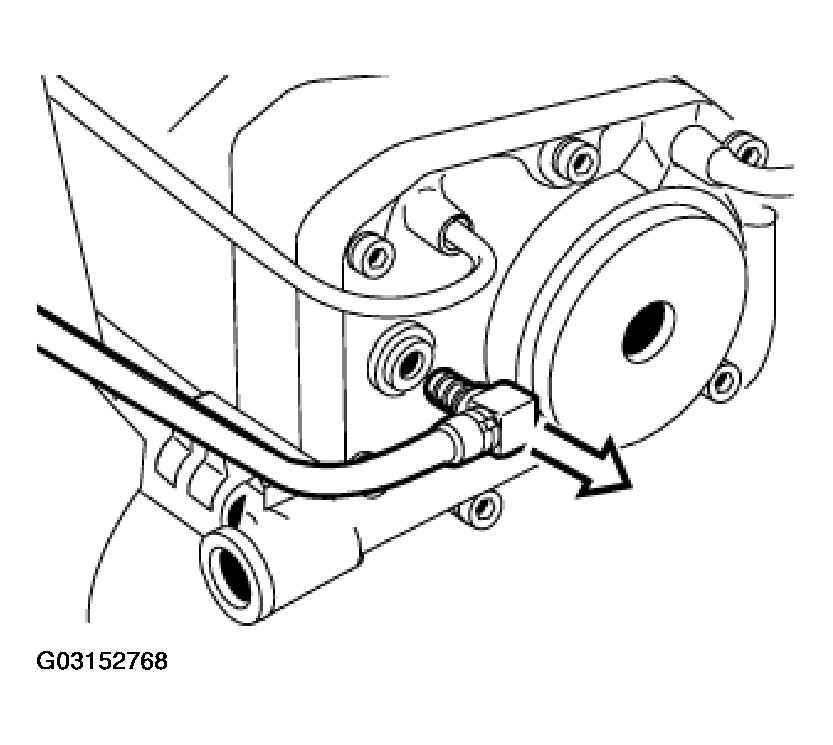

Fig 1: Removing Connector For Brake Force Booster

Courtesy of BMW OF NORTH AMERICA, INC.
