11 14 151 Replacing crankshaft radial seal (M62/S62)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
(transmission side)
- Remove gearbox. See AUTOMATIC TRANSMISSION
- Drain off engine oil
- Remove flywheel. See 11 22 500 Removing and installing/replacing flywheel (M62 / S62)

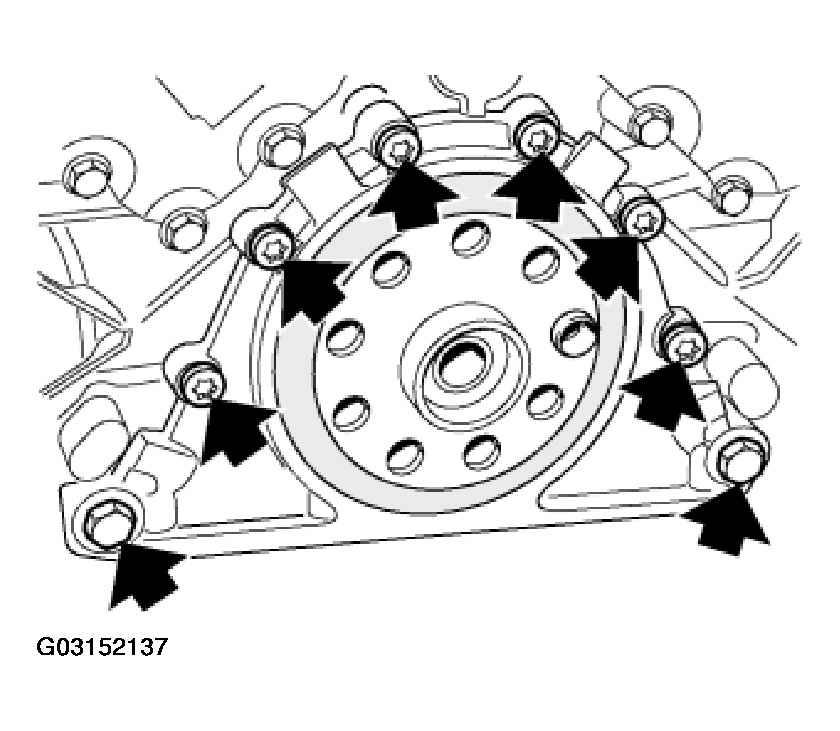

Unfasten screws.

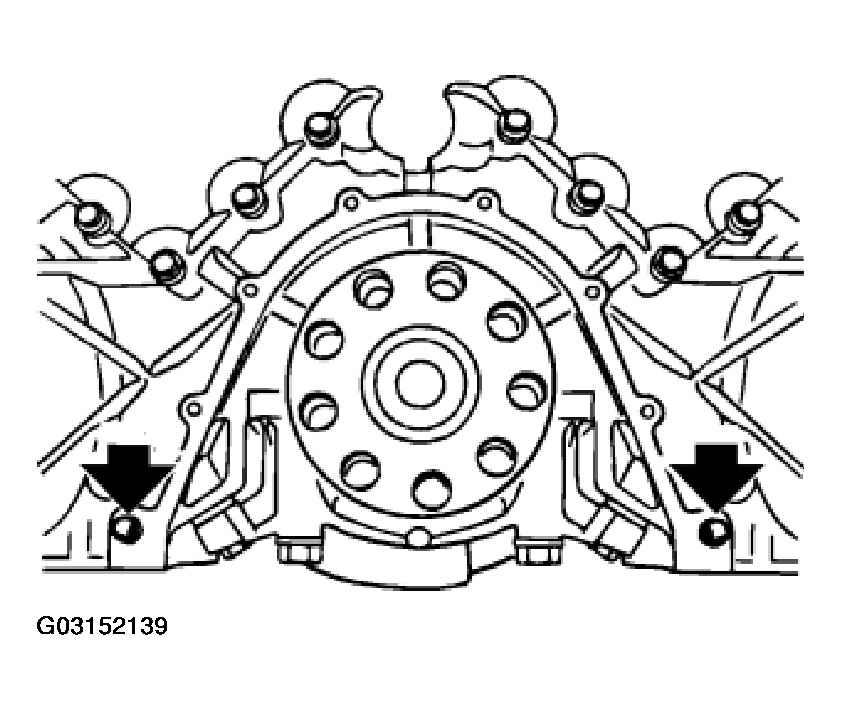

Unfasten screw on rear end cover.

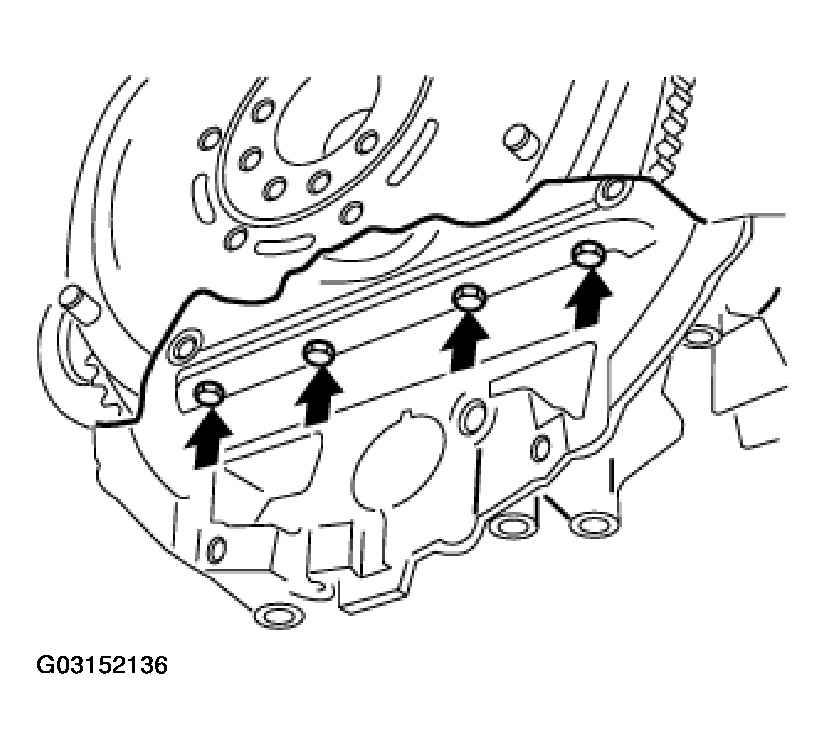

Carefully unfasten oil sump gasket from end cover and remove end cover.
NOTE:
The end cover is in the set with the radial sealing ring.

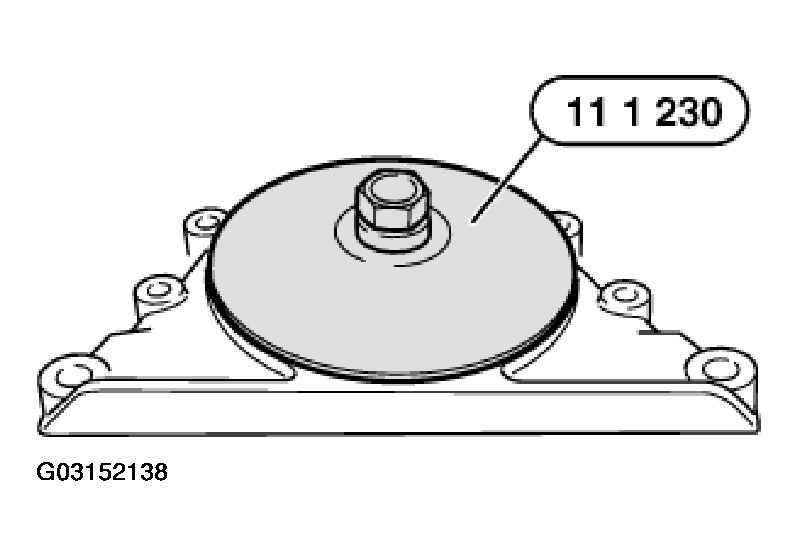

If necessary, lift out the radial seal and drive in new sealing ring using special tool 11 1 230 in conjunction with special tool 00 5 500.
If necessary, lift out the radial seal and drive in new sealing ring using special tool 11 1 230 in conjunction with special tool 00 5 500.
Check for correct fit of hollow bushes.
Replace seal.
Coat contact points on joint along oil sump with Drei Bond 1209.

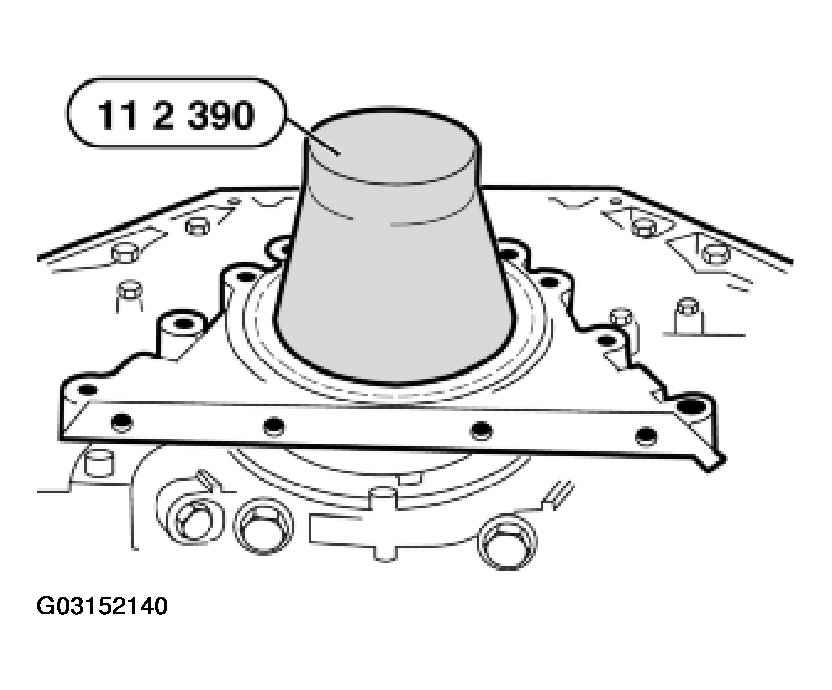

Fit special tool 11 2 390 on crankshaft.
Coat sealing lip of radial sealing ring with oil.
Slide on end cover.
Carefully remove special tool 11 2 390.

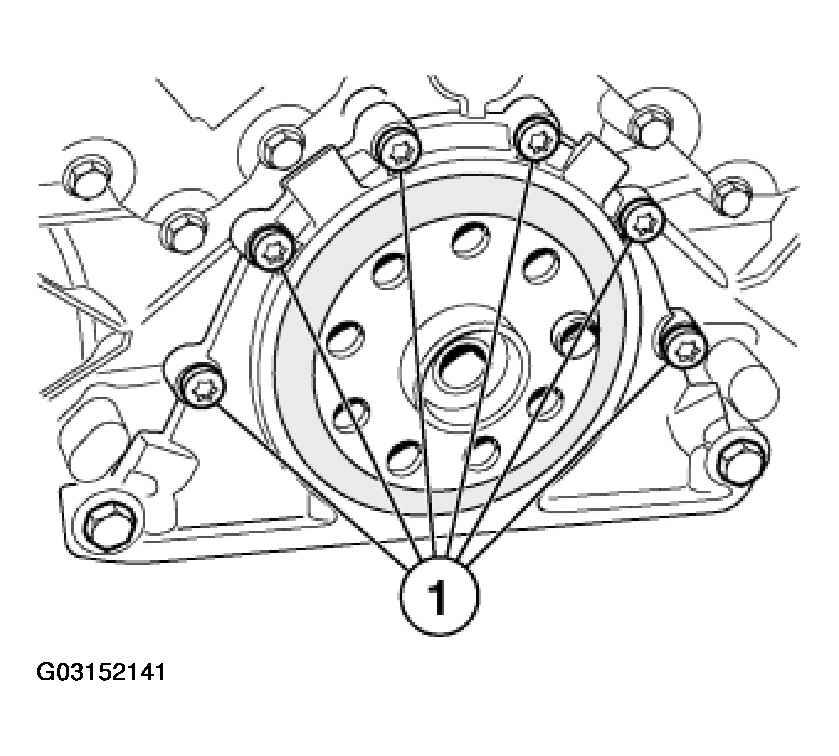

Replace the sealing washers under the screws (1).
Insert all screws and tighten down end cover.
