11 22 500 Removing and installing/replacing flywheel (M62 / S62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(clutch removed)

CAUTION: Once the flywheel has been replaced, the pulse generator must be reset, refer to 12 14 520 REPLACING IMPULSE SENSOR (M62) .

Block flywheel with special tool 11 2 070.

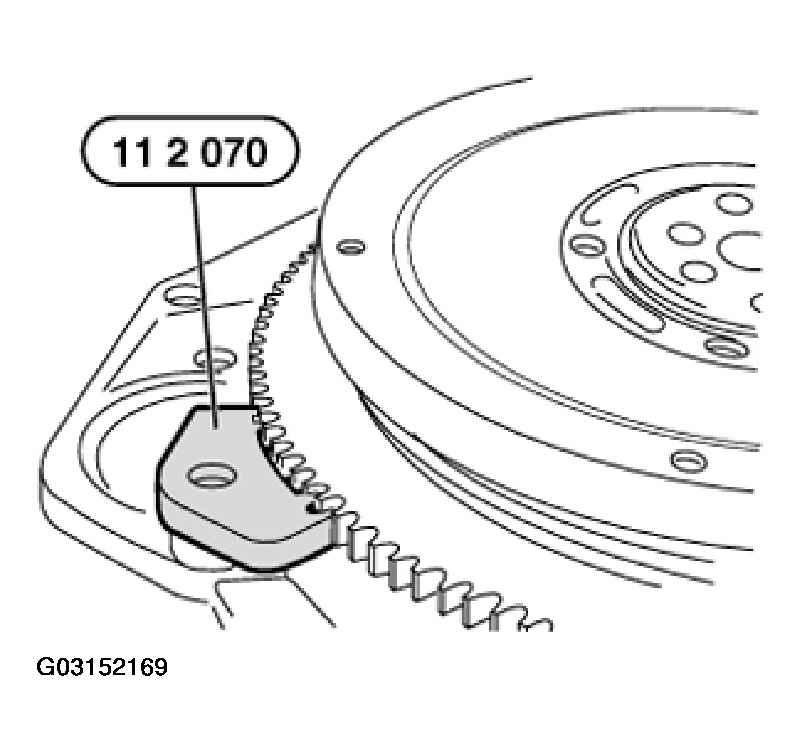

Fig 1: Blocking Flywheel With Special Tool 11 2 070

G03152169

Courtesy of BMW OF NORTH AMERICA, INC.

Release and tighten the flywheel (ZMS) only with special tool 11 4 180.

Installation

Tightening torque, refer to 11 22 1AZ in ENGINE - TIGHTENING TORQUES - 540i .

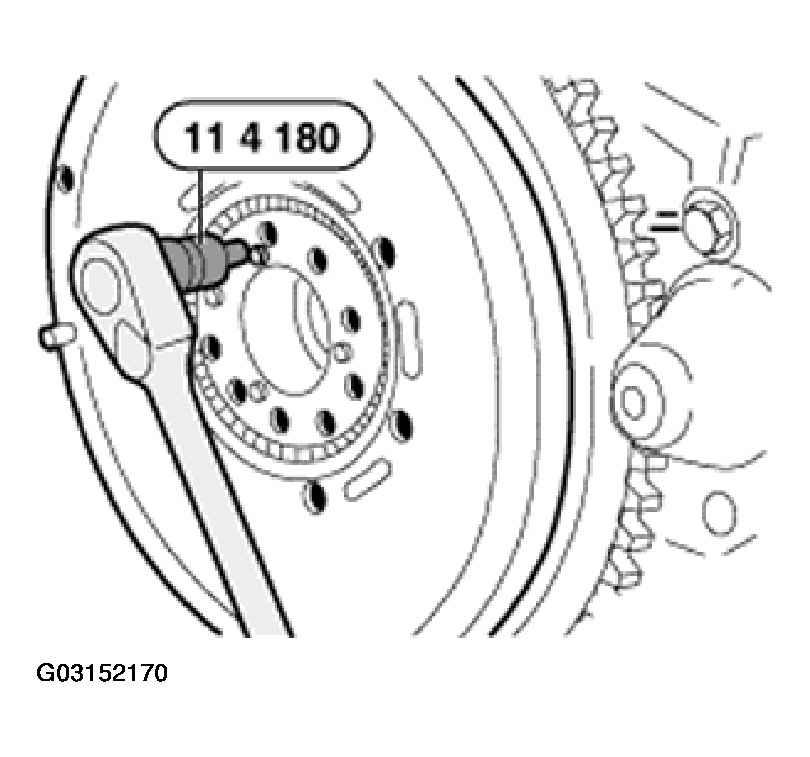

Fig 2: Releasing And Tightening Flywheel

G03152170

Courtesy of BMW OF NORTH AMERICA, INC.

Clean thread for flywheel screws in crankshaft.

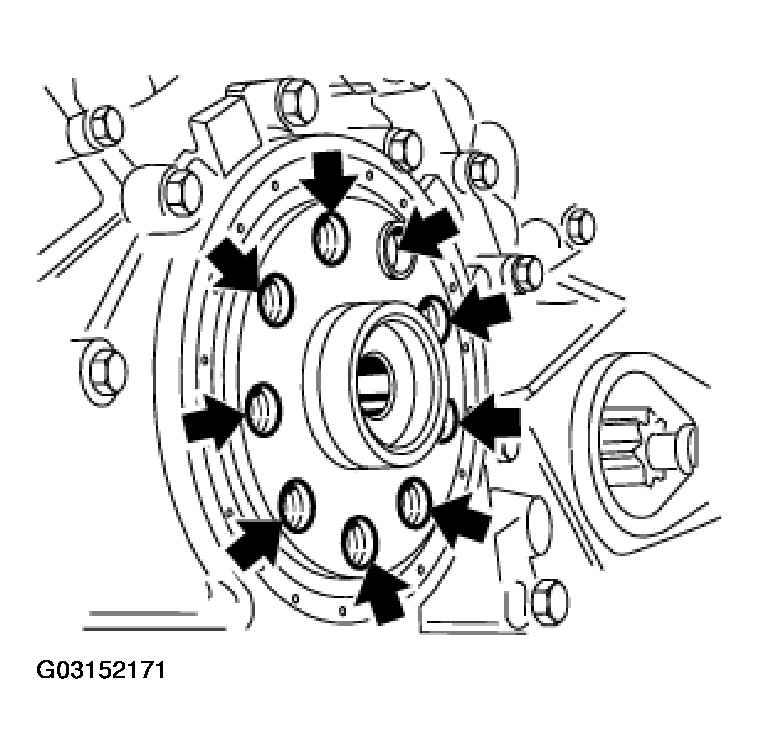

Fig 3: Cleaning Thread For Flywheel Screws In Crankshaft

G03152171

Courtesy of BMW OF NORTH AMERICA, INC.

The flywheel (ZMS) is located with a special (shorter) dowel sleeve.

CAUTION: Replace only with original BMW spare parts.

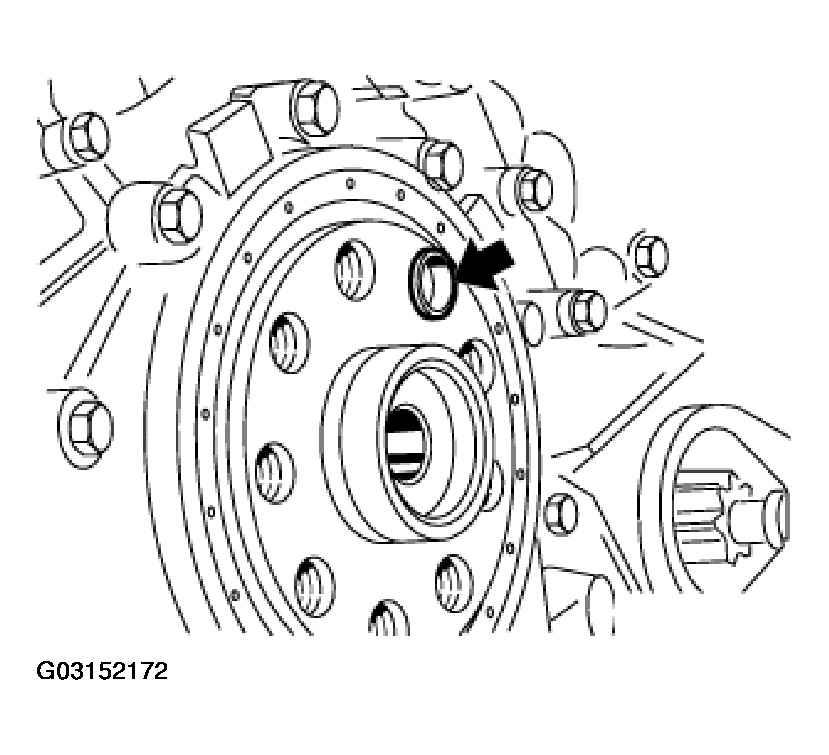

Fig 4: Identifying Flywheel Located With A Special Dowel Sleeve

G03152172

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

The position of the dowel sleeve (1) in the dual-mass flywheel is marked with two notches beside the respective screw bore.

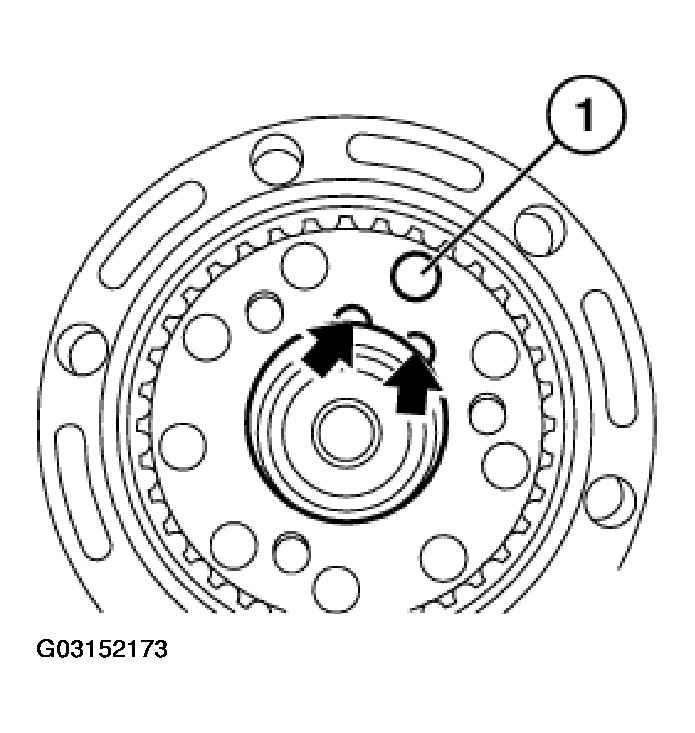

Fig 5: Identifying Position Of Dowel Sleeve

G03152173

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Flywheel screws are part of the flywheel and must not be installed with screw securing adhesive (Loctite).
Lubricate screw threads lightly.

Tightening torque, refer to 11 22 1AZ in ENGINE - TIGHTENING TORQUES - 540i .
