11 14 141 Replacing radial seal below timing case cover (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing hub for vibration damper, refer to 11 23 031 REMOVING AND INSTALLING/REPLACING HUB FOR VIBRATION DAMPER (M62)

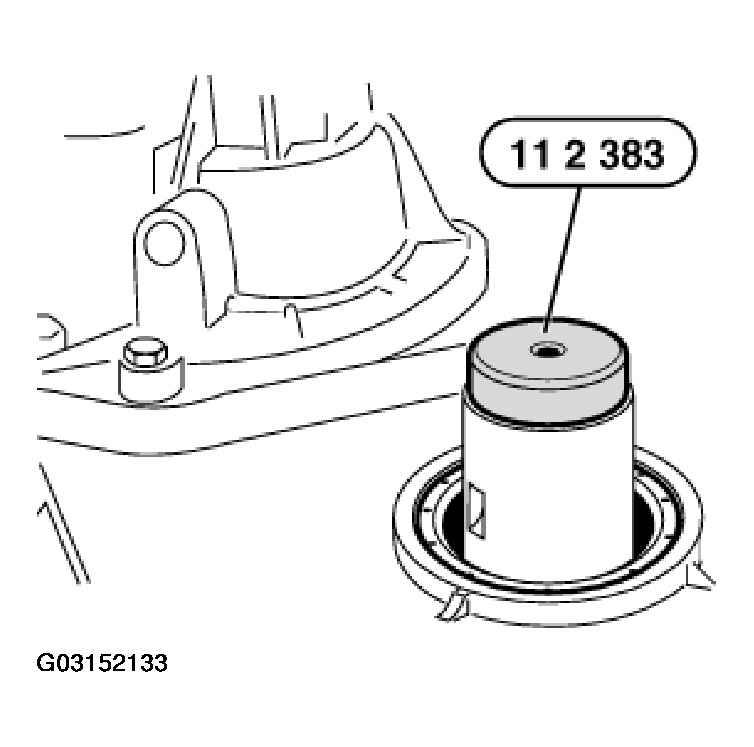

Fit special tool 11 2 383 to crankshaft.

Fig 1: Fitting Special Tool 11 2 383 To Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

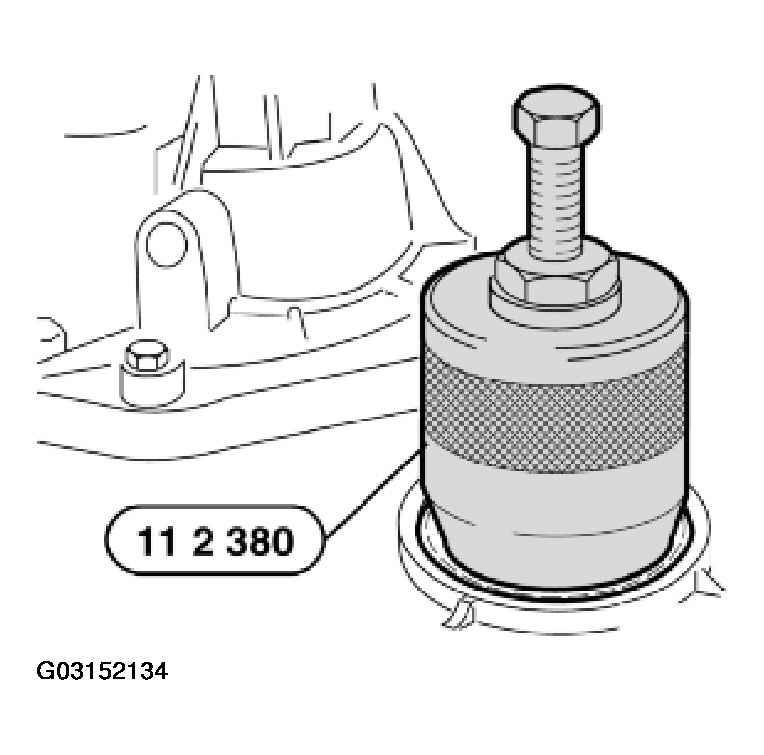

Screw on special tool 11 2 380 until it is securely connected to the radial seal.

Remove radial sealing ring by tightening in the screw.

Fig 2: Screwing On Special Tool 11 2 380

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing lips of new radial sealing ring with oil.

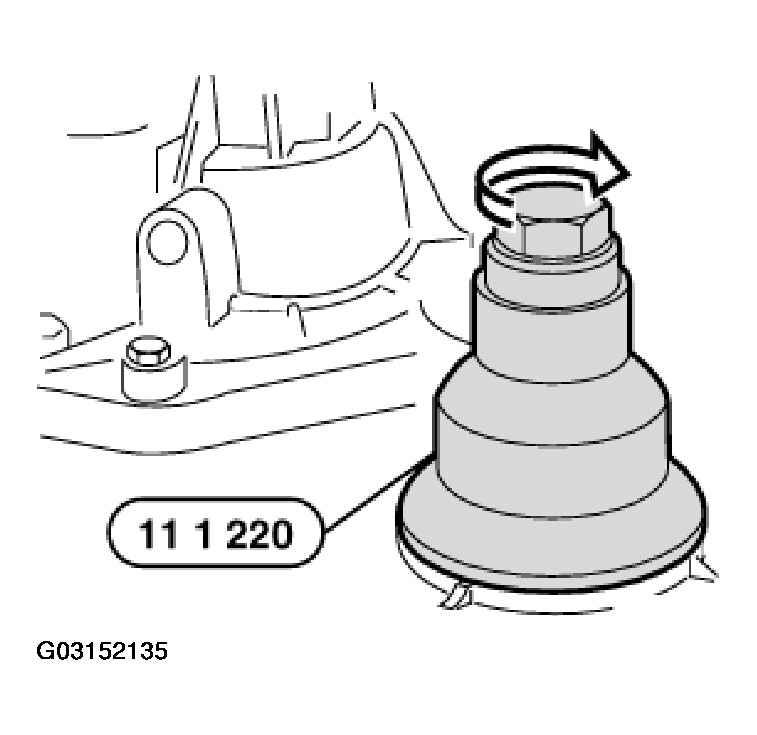

Using special tool 11 1 220 and central screw, install radial seal until flush with timing case cover.

Fig 3: Identifying Special Tool 11 1 220

Courtesy of BMW OF NORTH AMERICA, INC.
