11 14 085 Removing and installing timing case cover, top right (M62 VANOS from 9/98)

Disconnect plug connection to check valve.

Detach secondary-air line on timing case cover, top left and right.

Detach secondary-air line on bracket and remove.

Installation

Clean sealing faces on cylinder head, replace sealing ring on secondary-air line and apply a thin coat of grease as anti-friction agent.

Fig 1: Disconnecting Plug Connection To Check Valve

Courtesy of BMW OF NORTH AMERICA, INC.

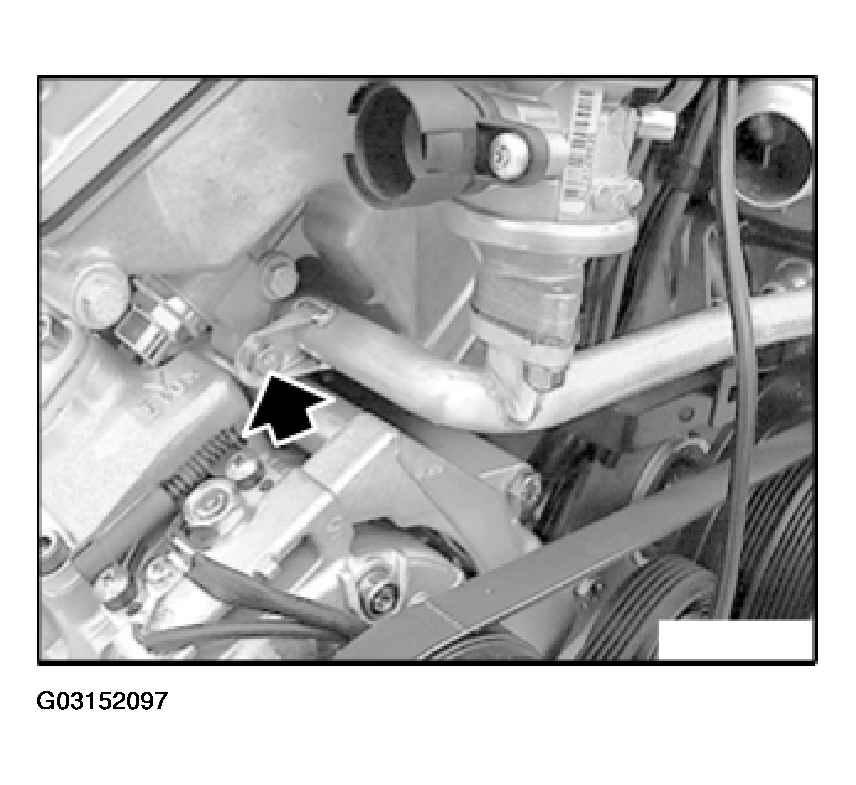

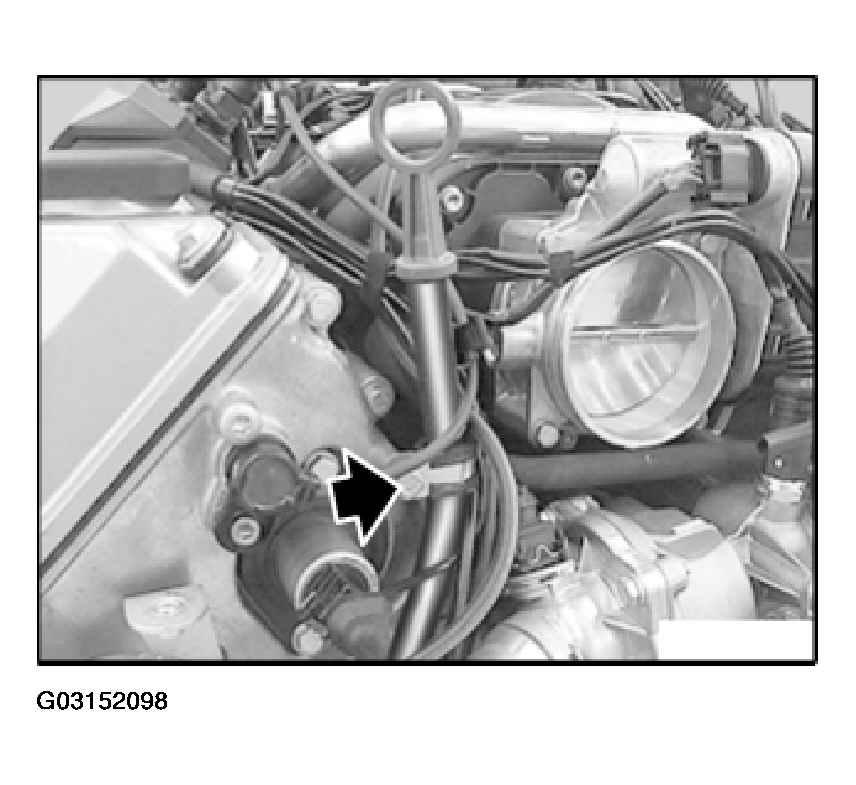

Unfasten top screw from dipstick tube.

Fig 2: Unfastening Top Screw From Dipstick Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Remove right cylinder head cover. These tasks are described in the work step Removing and installing/sealing both cylinder head covers, refer to 11 12 004 REMOVING AND INSTALLING/SEALING BOTH CYLINDER HEAD COVERS (M62) .

Remove piston for chain tensioner, refer to 11 31 090 INSTALLING AND REMOVING / REPLACING PISTON FOR CHAIN TENSIONER (M62) .

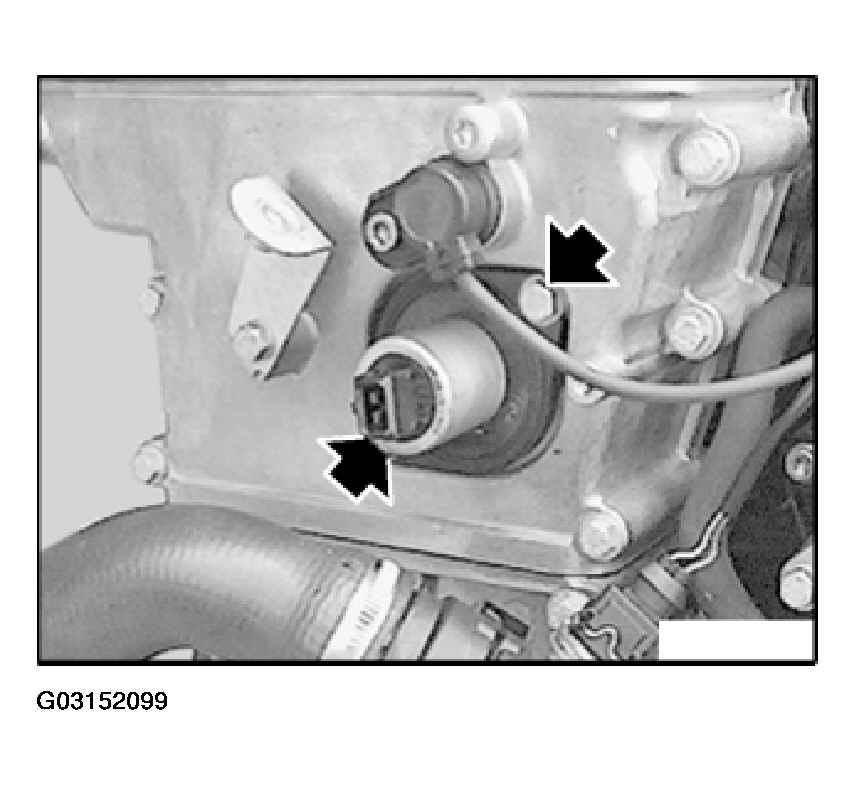

Release screws on sealing flange.

Fig 3: Releasing Screws On Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, clean solenoid valve with a cloth.

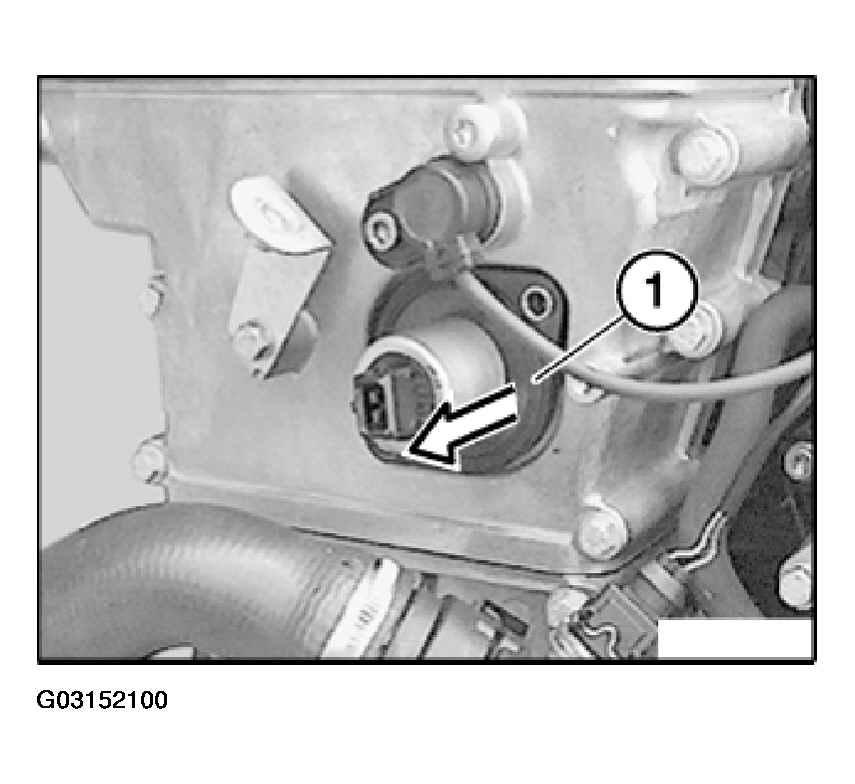

Remove sealing flange (1).

Fig 4: Removing Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove camshaft sensor or disconnect plug connection to cable duct.

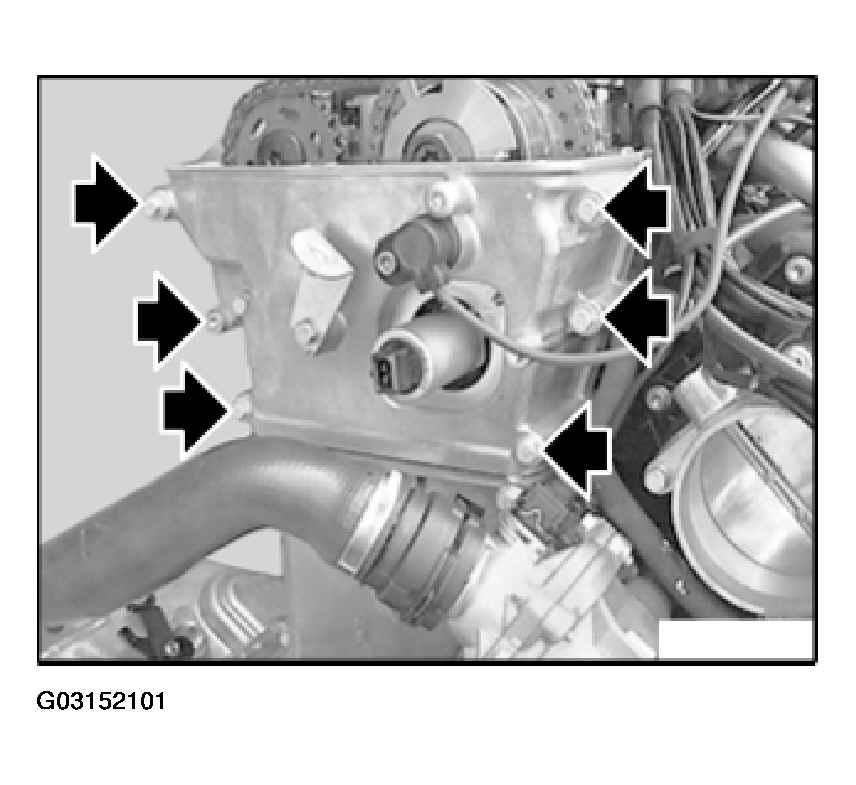

Release screws and remove timing case cover at top.

Fig 5: Releasing Screws And Removing Timing Case Cover At Top

Courtesy of BMW OF NORTH AMERICA, INC.

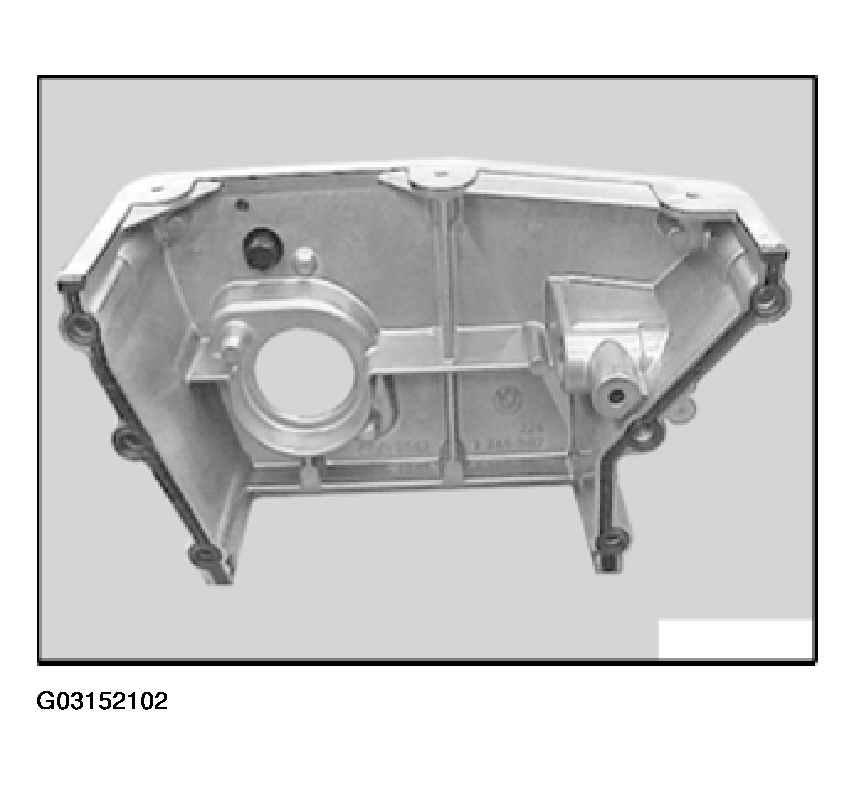

Remove rubber sealing strip.

Installation

Clean groove for rubber profile seal and sealing surfaces of remains of seal.

Fig 6: Identifying Rubber Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

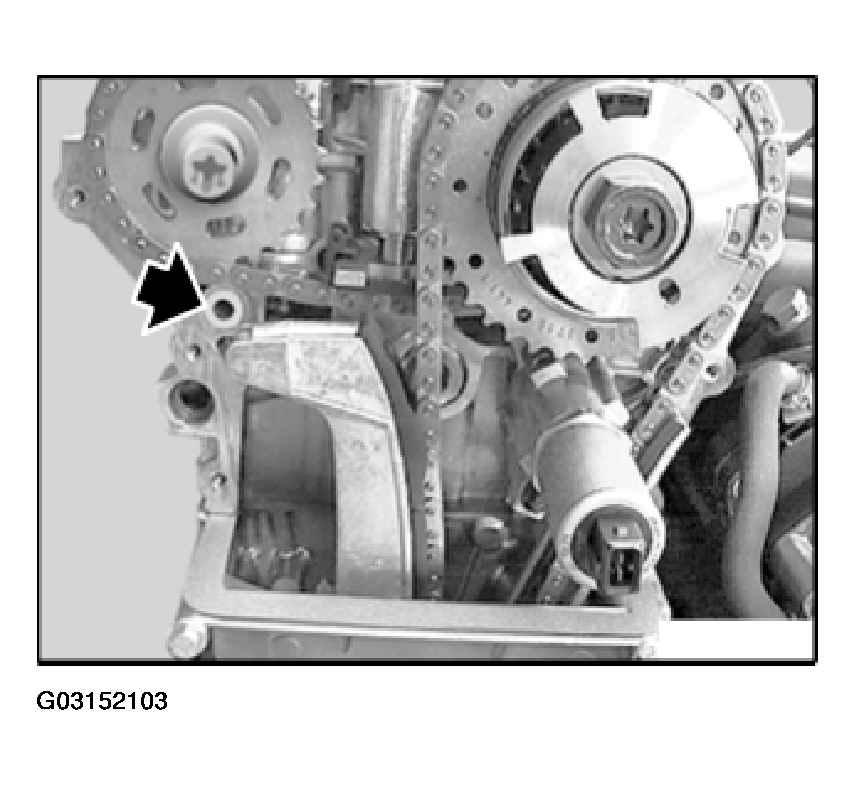

Replace sealing ring in cylinder head for oil supply of chain tensioner.

Fig 7: Replacing Sealing Ring In Cylinder Head For Oil Supply Of Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Keep sealing faces clean and free of oil.

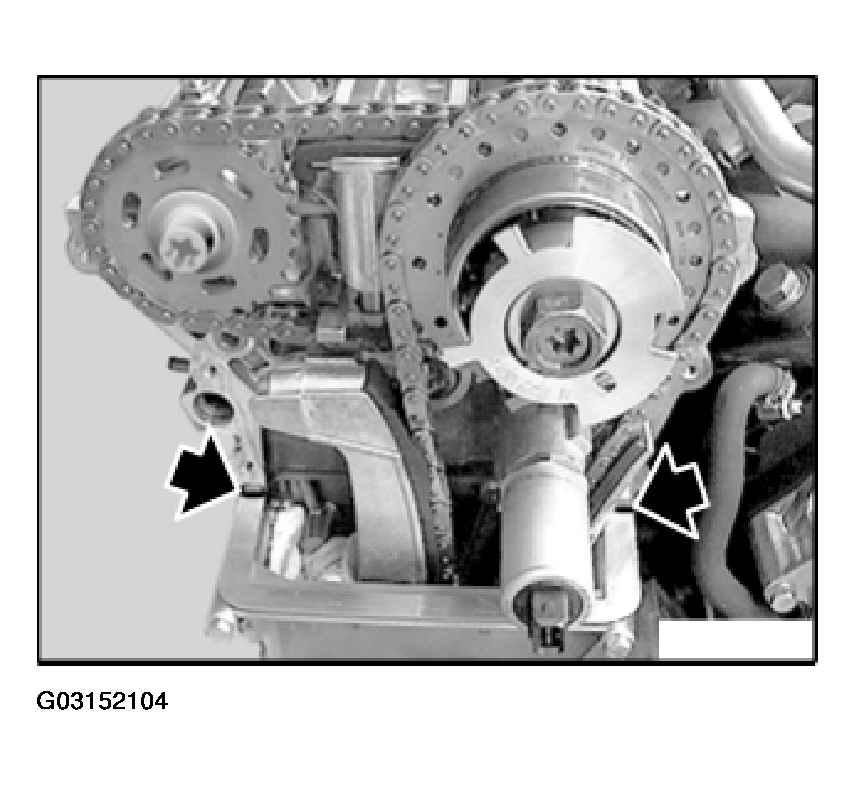

Apply coat of Drei Bond 1209 to joint between cylinder head and lower timing case cover.

Fig 8: Applying Coat Of Drei Bond 1209 To Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Seat new rubber seal in groove.

Fig 9: Identifying New Rubber Seal In Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Ensure that seals are correctly seated.

Press bow cover inwards and fit timing case cover.

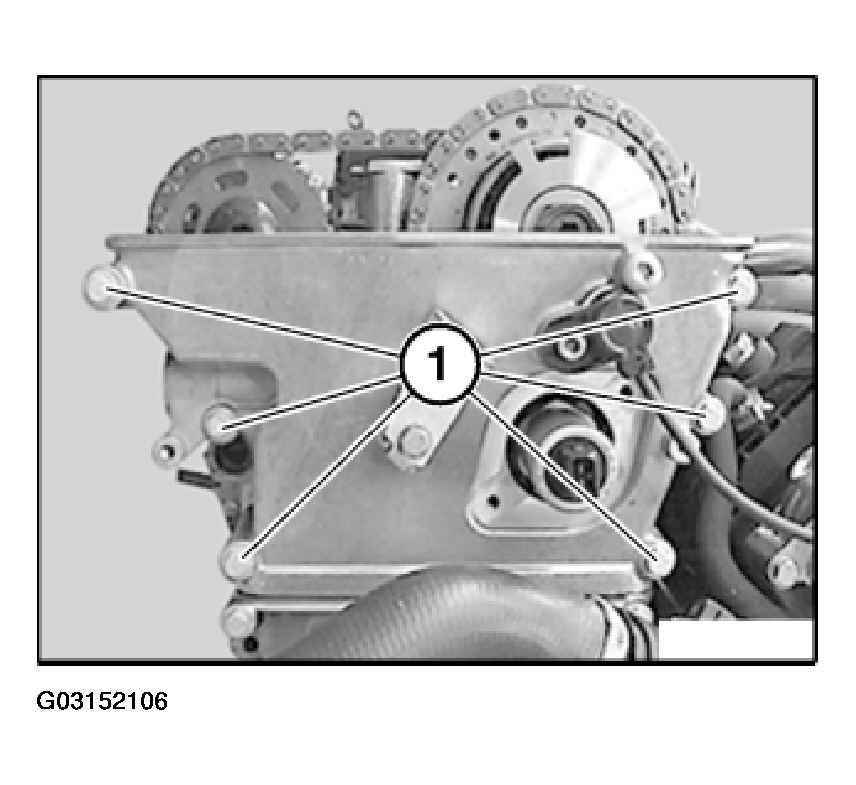

Install screws (1) and fit flush with cylinder head.

Fig 10: Installing Screws And Fit Flush With Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Remove outer and inner gasket from cylinder head cover.

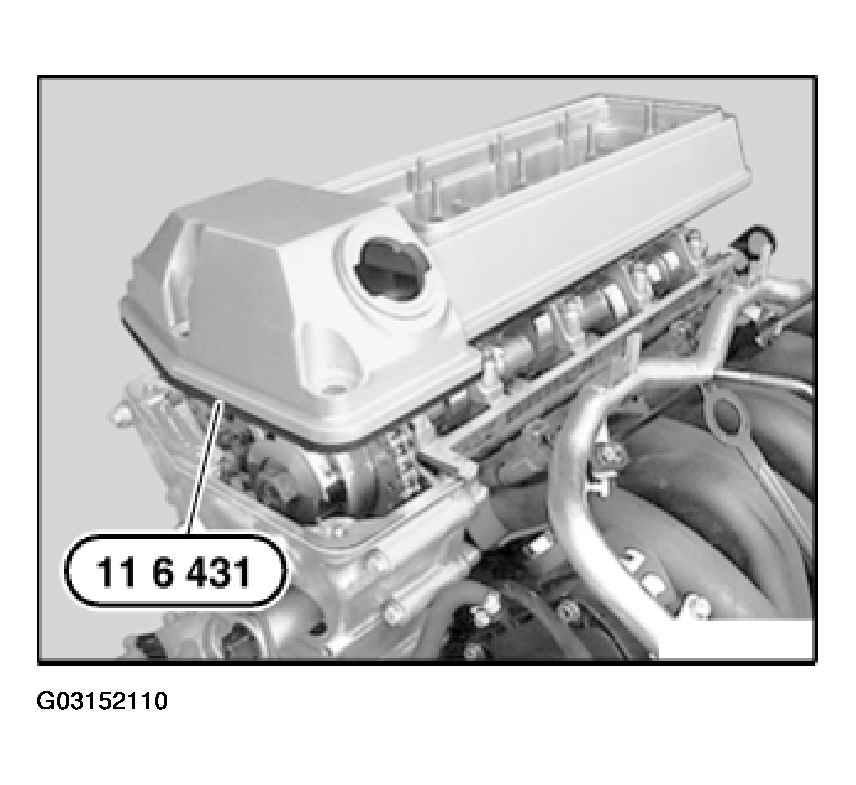

Insert special tool 11 6 431 from special tool kit 11 6 430 in groove of cover and fit cylinder head cover.

Fig 11: Removing Outer And Inner Gasket From Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

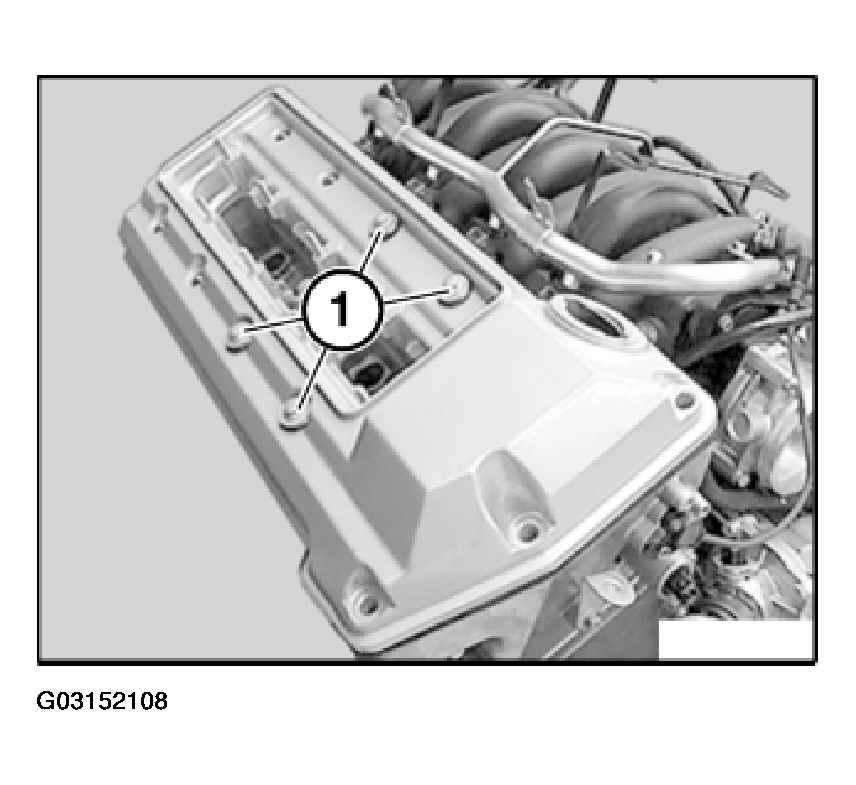

Install cover nuts (1) and tighten down uniformly in 1/2 turn steps.

Tightening torque, refer to 11 14 1AZ in ENGINE - TIGHTENING TORQUES - 540i .

Fig 12: Installing Cover Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

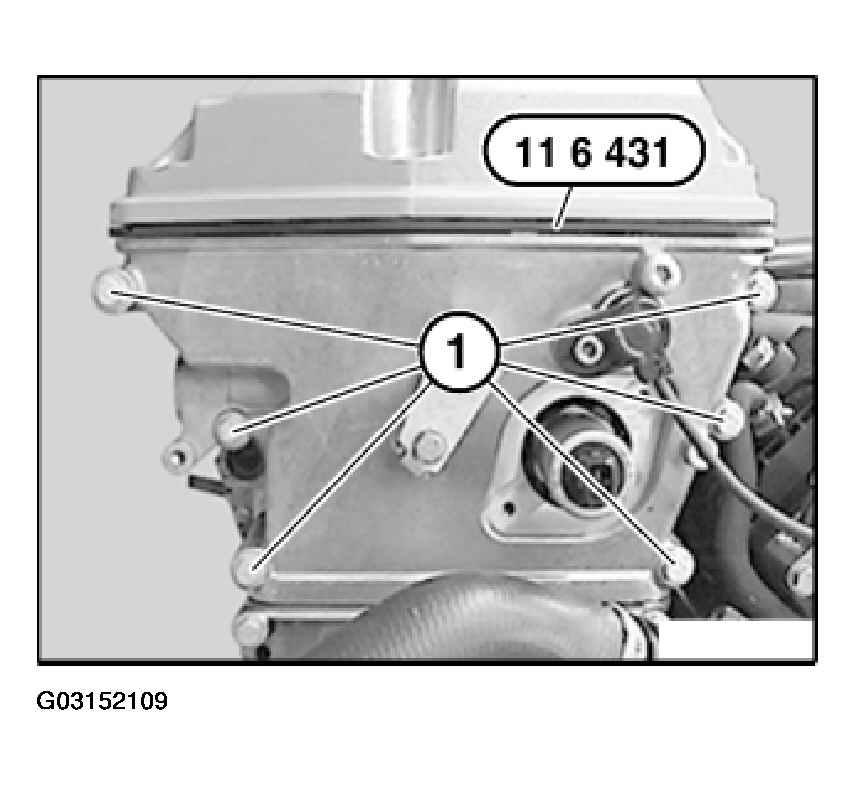

Tighten screws (1) on timing case cover in two passes.

Fig 13: Tightening Screws On Timing Case Cover In Two Passes

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cylinder head cover and remove special tool 11 6 431.

Fig 14: Removing Cylinder Head Cover And Special Tool 11 6 431

Courtesy of BMW OF NORTH AMERICA, INC.

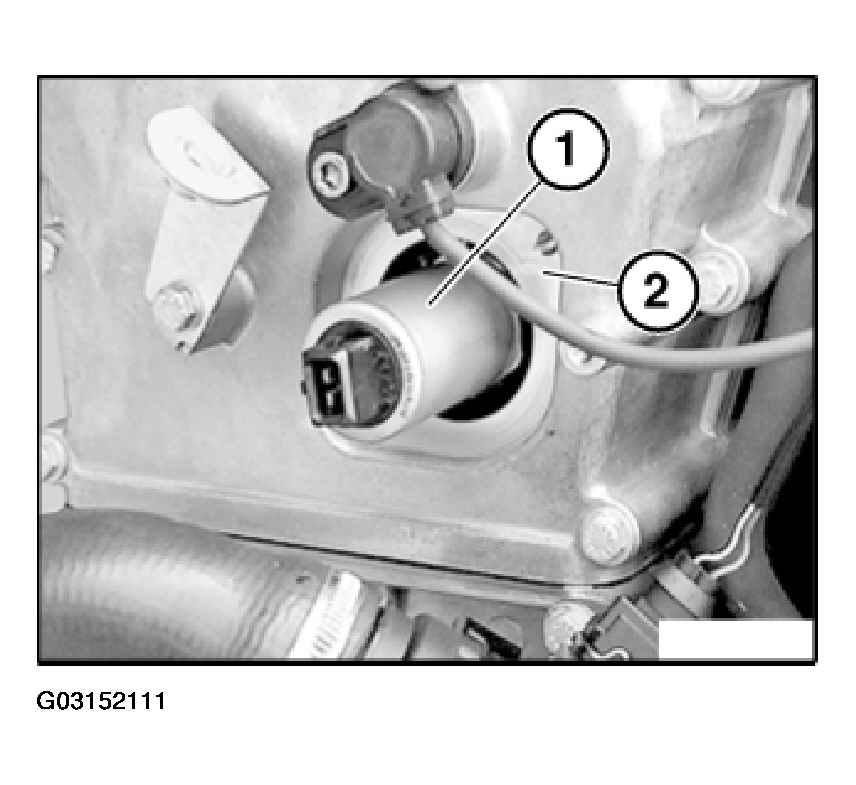

Clean solenoid valve (1) and sealing face (2).

Fig 15: Cleaning Solenoid Valve And Sealing Face

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check sealing flange (1), replace if necessary.

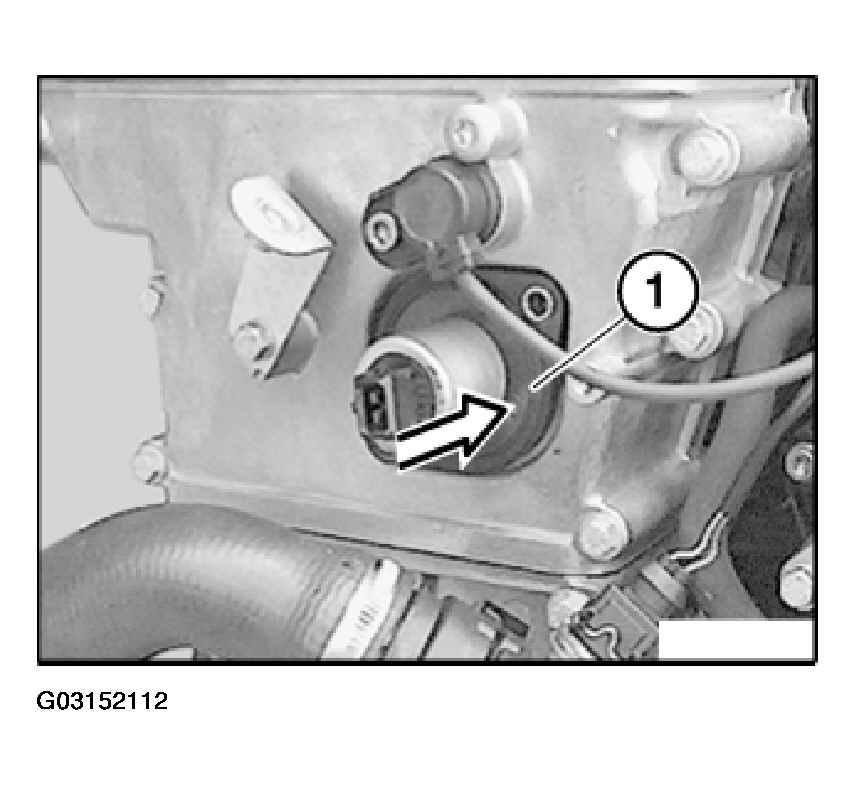

Apply a light coat of oil to inside of sealing flange (1) at sealing face to solenoid valve and carefully install.

Fig 16: Applying Light Coat Of Oil To Inside Of Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

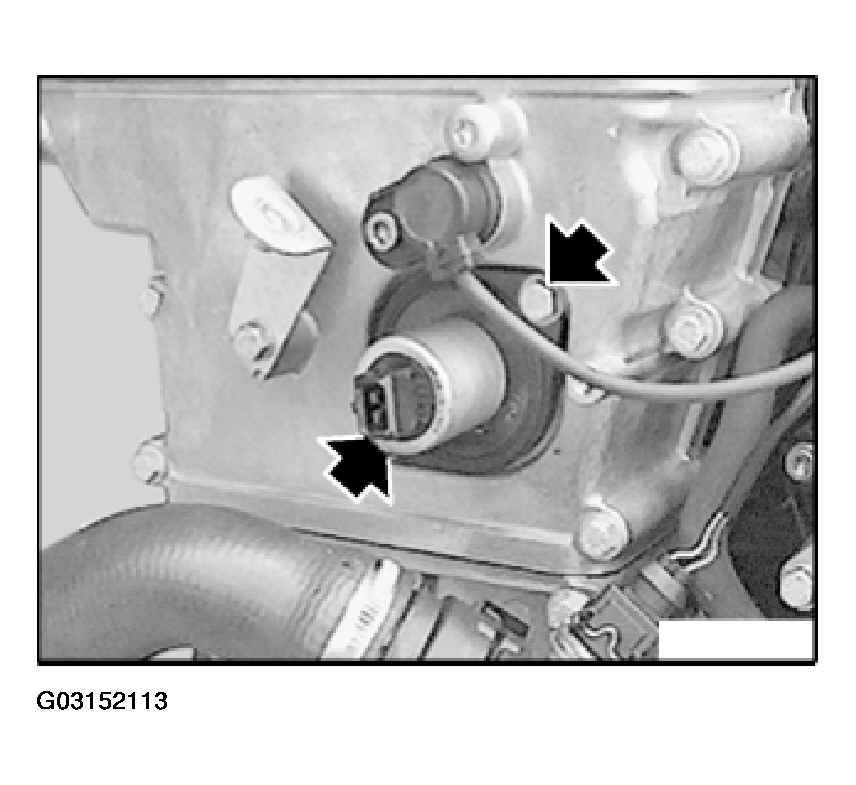

Insert screws on sealing flange and tighten down.

Assemble engine.

Fig 17: Inserting Screws On Sealing Flange
