11 14 080 Removing and installing timing case cover, top left (M62 up to 9/98)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove left cylinder head cover. These tasks are described in the work step Removing and installing/sealing both cylinder head covers, refer to 11 12 004 REMOVING AND INSTALLING/SEALING BOTH CYLINDER HEAD COVERS (M62) .

Remove fan clutch with impeller, refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN COUPLING (M62) .

Unfasten timing case cover.

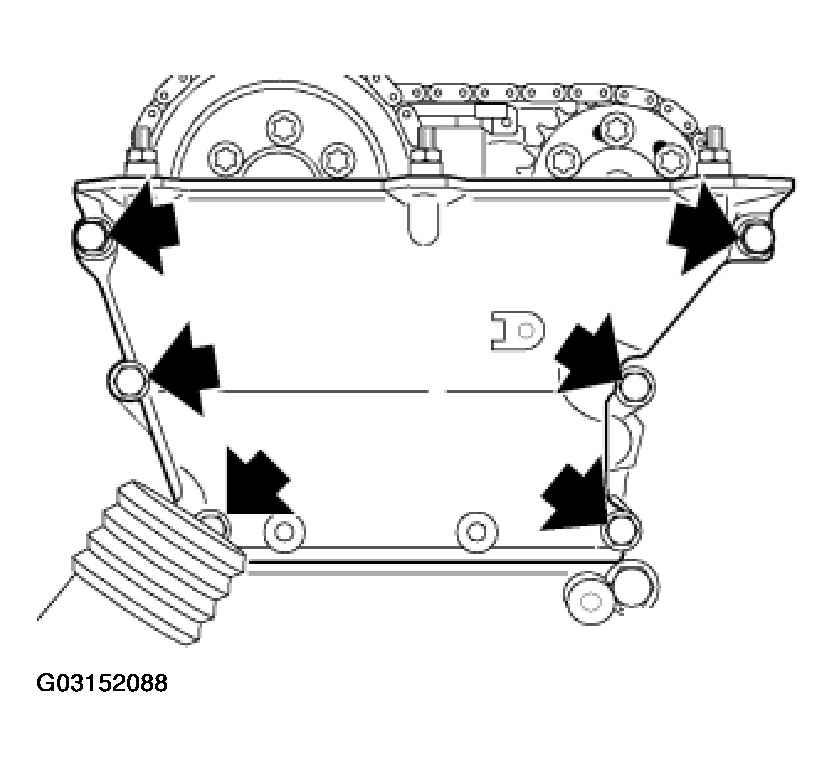

Fig 1: Unfastening Timing Case Cover

G03152088

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber sealing strip.

Installation

Clean groove for rubber profile seal and sealing surfaces of remains of seal.

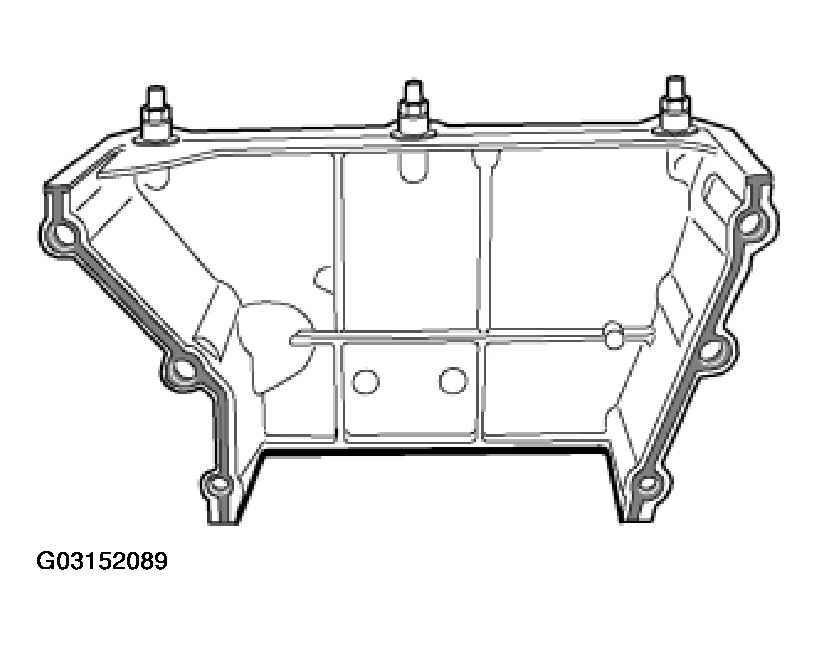

Fig 2: Identifying Rubber Sealing Strip

G03152089

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Keep sealing faces clean and free of oil.

Apply coat of Drei Bond 1209 to joint between cylinder head and lower timing case cover.

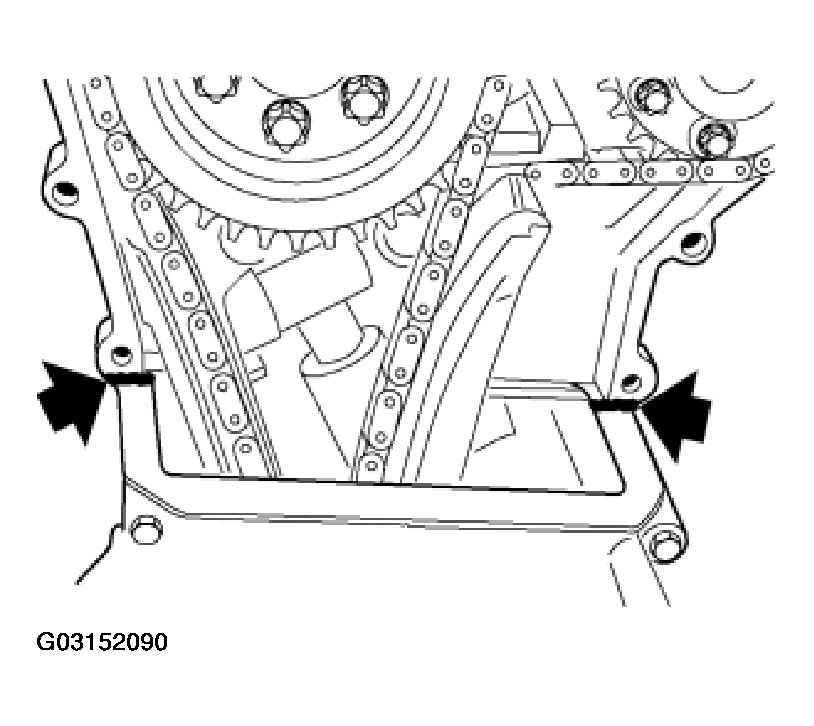

Fig 3: Applying Coat Of Drei Bond 1209 To Joint Between Cylinder Head And Lower Timing Case Cover

G03152090

Courtesy of BMW OF NORTH AMERICA, INC.

Seat new rubber seal in groove.

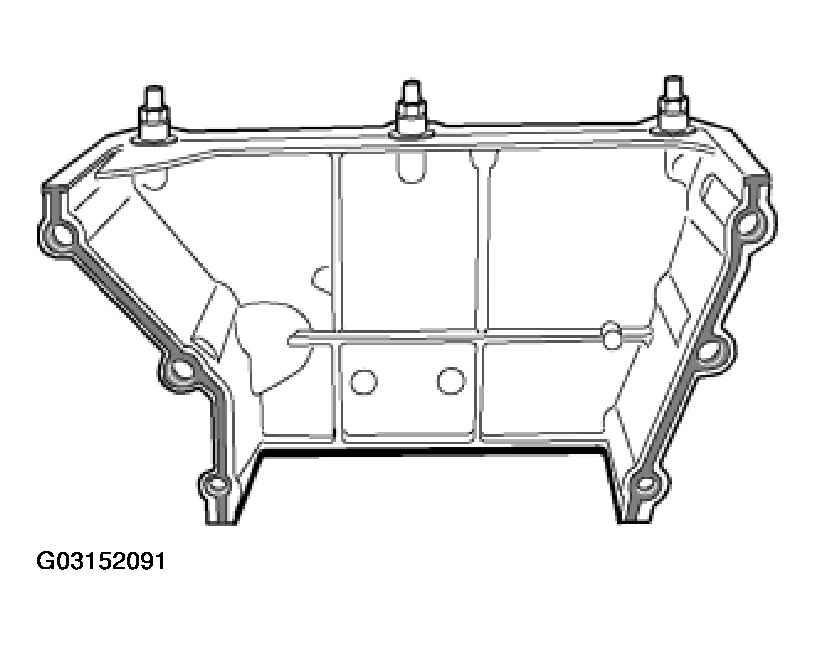

Fig 4: Identifying New Rubber Seal In Groove

G03152091

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Ensure that seal is correctly seated, then fit timing case cover with inserted screw (1).

NOTE: It is not possible to insert screw (1) after fitting the timing case cover.

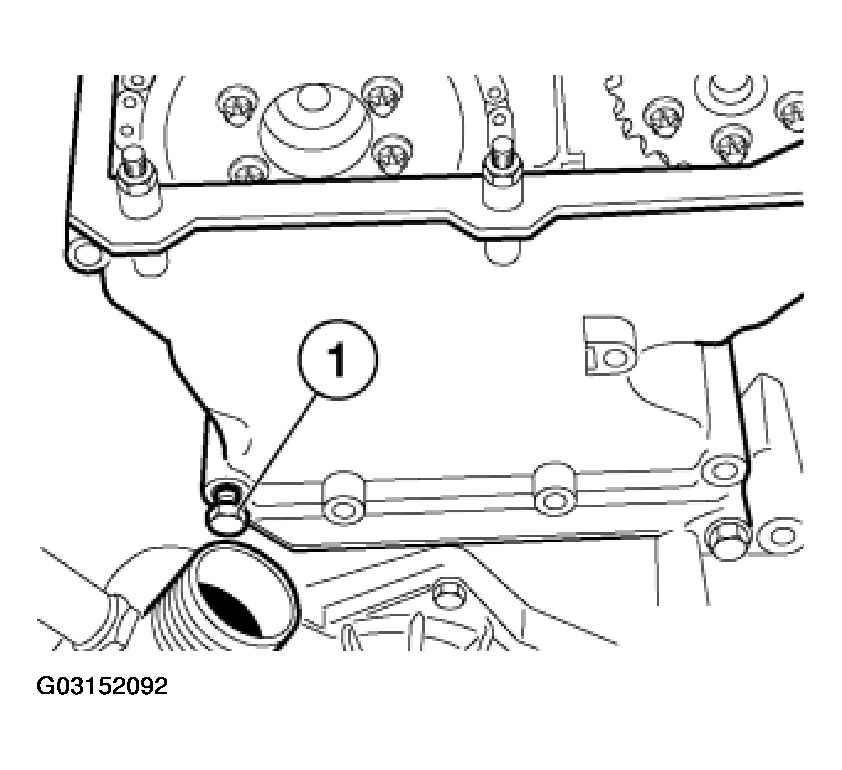

Fig 5: Fitting Timing Case Cover With Inserted Screw

G03152092

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install screws (1) and fit flush with cylinder head.

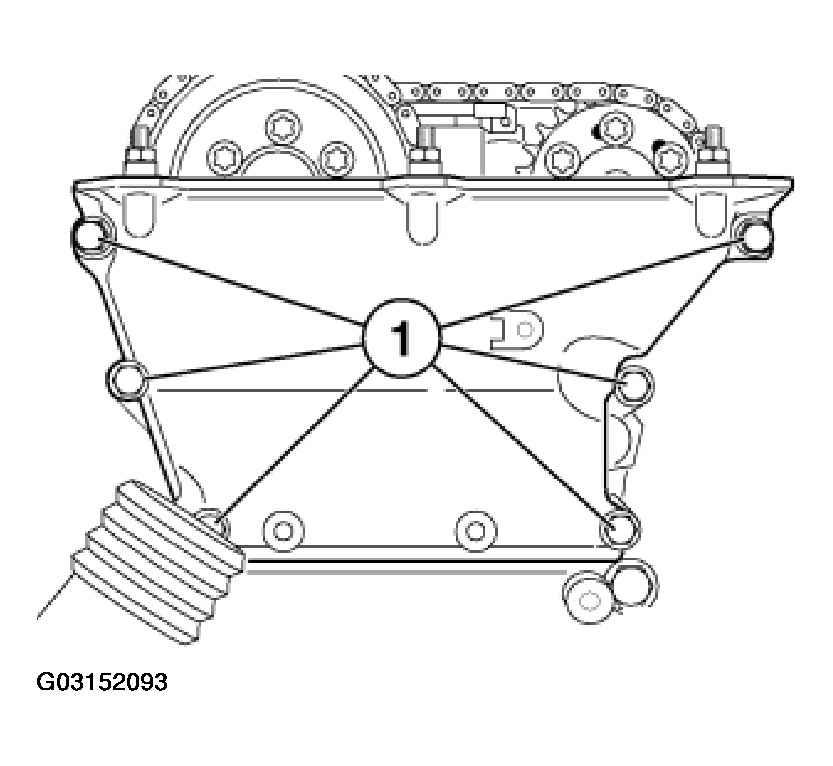

Fig 6: Installing Screws And Fit Flush With Cylinder Head

G03152093

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Remove outer and inner gasket from cylinder head cover.

Insert special tool 11 1 412 from special tool kit 11 1 410 in groove of cover and fit cylinder head cover.

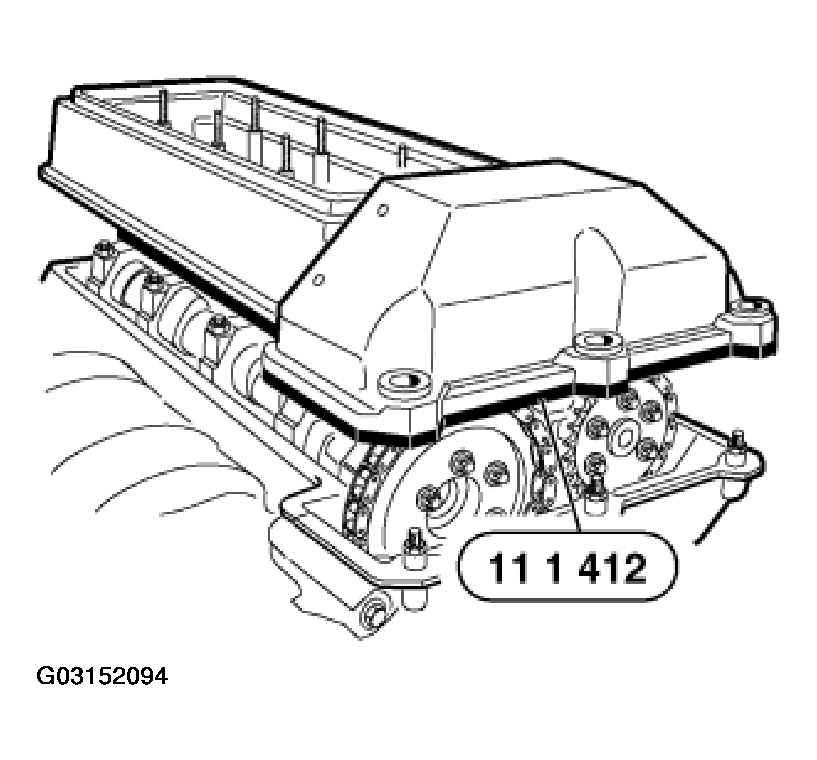

Fig 7: Removing Outer And Inner Gasket From Cylinder Head Cover

G03152094

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install cover nuts (1) and tighten down uniformly in 1/2 turn steps.

Tightening torque, refer to 11 12 11AZ in ENGINE - TIGHTENING TORQUES - 540i .

NOTE: The timing case cover is pressed down onto level of cylinder head by cylinder head cover.

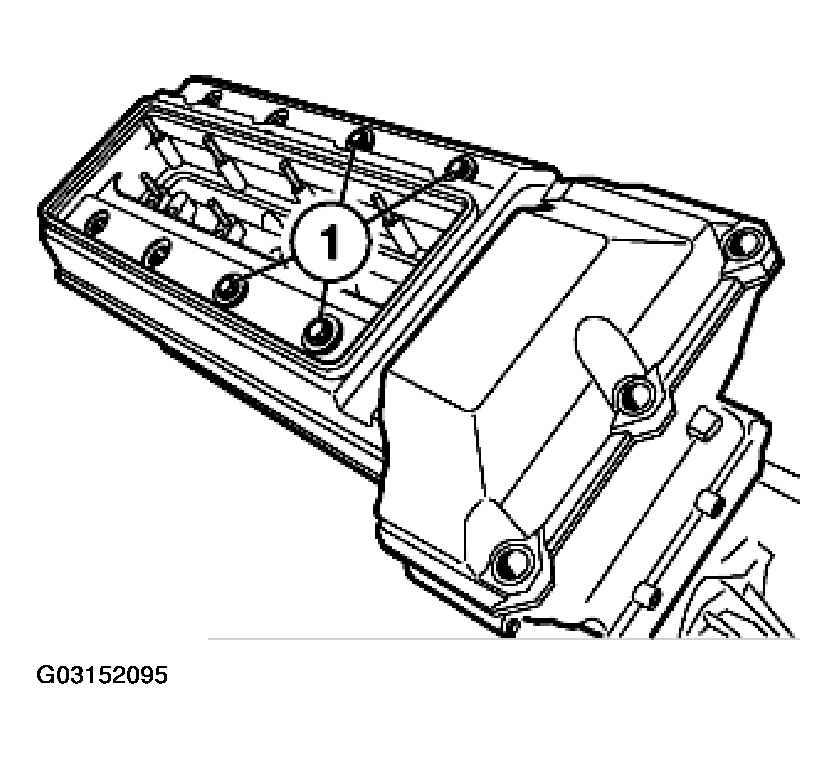

Fig 8: Installing Cover Nuts

G03152095

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Tighten screws (1) on timing case cover in two passes.

Remove cylinder head cover and remove special tool 11 1 412.

Assemble engine.

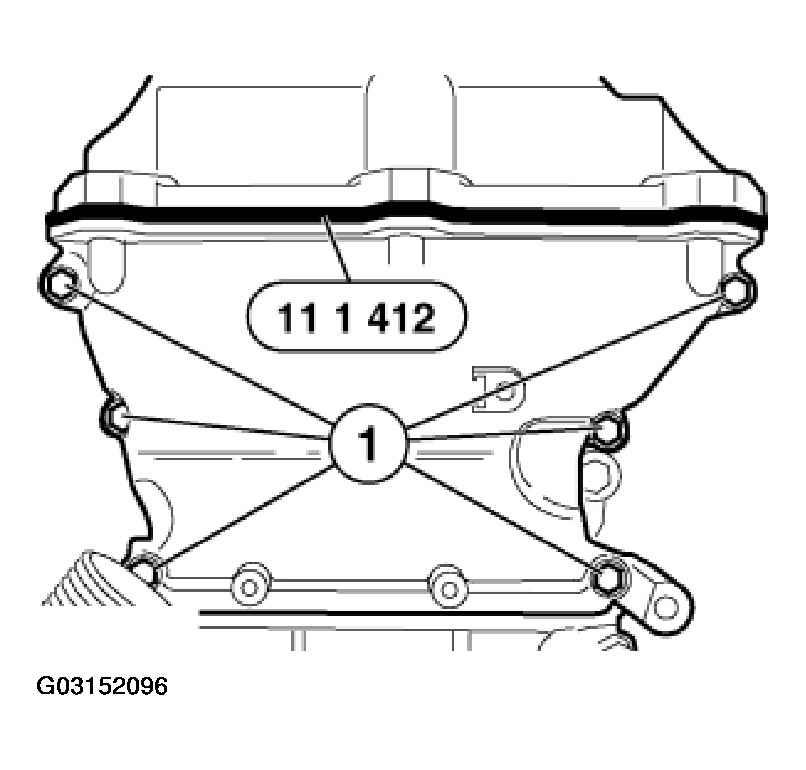

Fig 9: Tightening Screws (1) On Timing Case Cover In Two Passes

G03152096

Courtesy of BMW OF NORTH AMERICA, INC.
